Product Overview

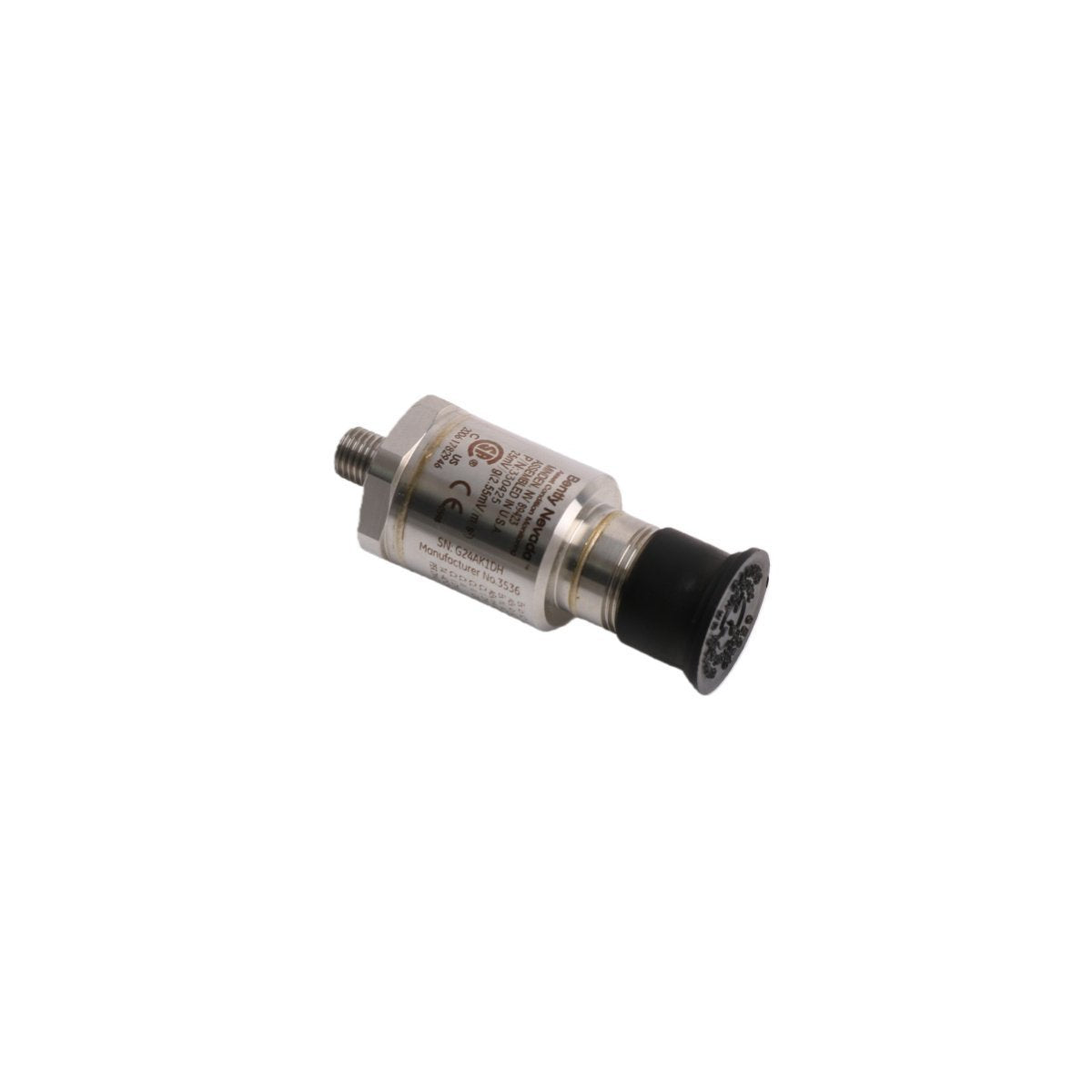

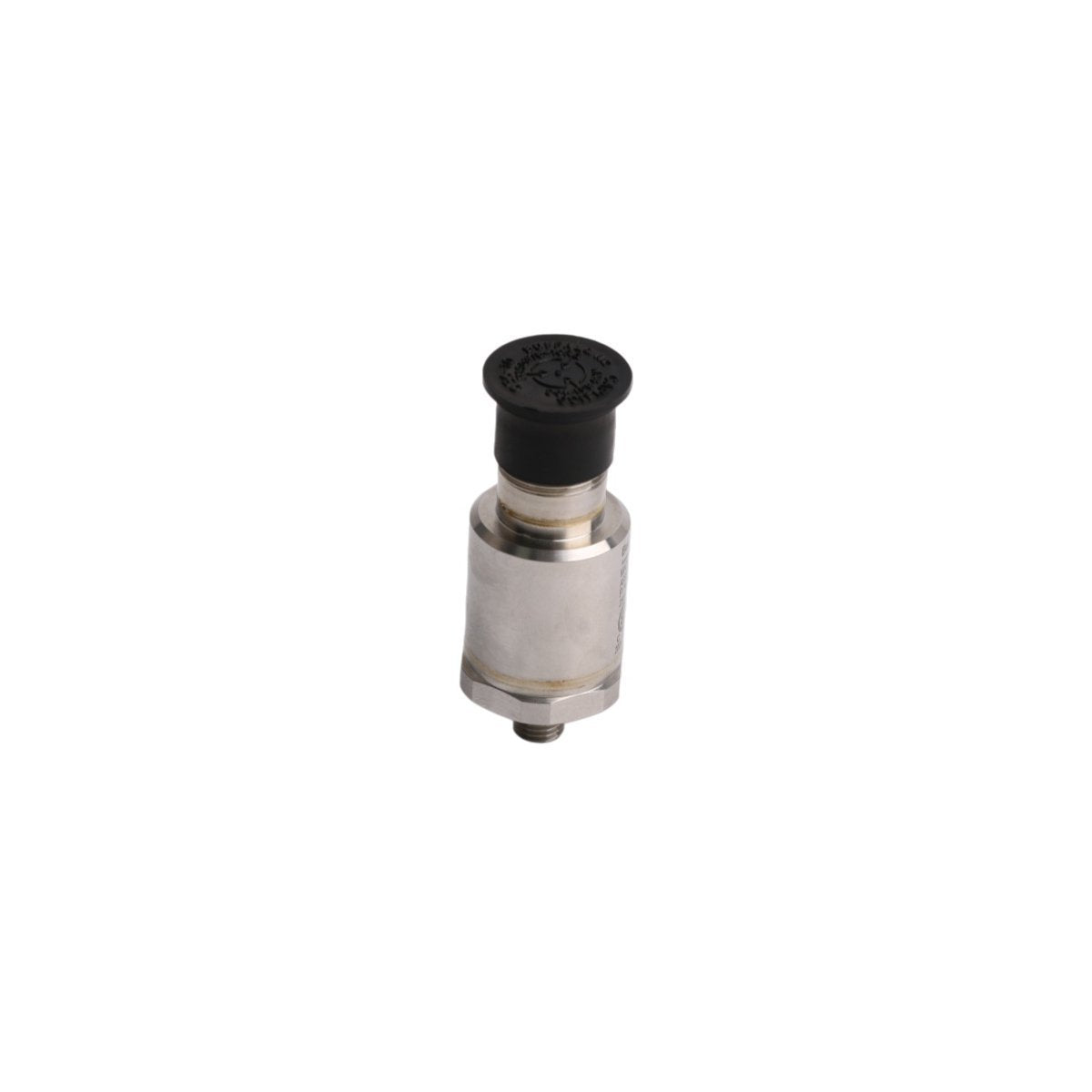

The Bently Nevada 330425-02-00 is a high-performance piezoelectric accelerometer designed for critical machinery applications where tracking high-frequency vibration is essential. This transducer converts mechanical acceleration into a proportional electrical signal, enabling the detection of early-stage mechanical faults that lower-frequency sensors might miss. Encased in a hermetically sealed 316L stainless steel housing, the 330425 is engineered to endure the thermal and chemical stresses of industrial environments. It is a fundamental component of Turbine Supervisory Instrumentation (TSI), providing the raw data necessary for automated machinery protection and advanced diagnostic analysis.

Key Technical Characteristics and Hardware Parameters

The 330425-02-00 is optimized for signal clarity and mechanical durability, ensuring consistent performance across a broad frequency spectrum.

• Model Identification 330425-02-00

• Transducer Type Piezoelectric Accelerometer

• Sensitivity 10.2 mV/m/s² (100 mV/g) ±5%

• Frequency Range 10 Hz to 15 kHz (600 to 900,000 cpm) ±3.0 dB

• Acceleration Range 490 m/s² (50 g) peak

• Mounting Thread 1/4-28 UNF (Option -02)

• Agency Approvals Multiple hazardous area certifications including ATEX, IECEx, and CSA (Option -00)

• Temperature Tolerance -51°C to +121°C (-60°F to +250°F)

• Resonant Frequency >30 kHz

• Connector Interface 3-pin MIL-C-5015 top-exit connector

Industrial Applications and Operational Benefits

Due to its exceptional high-frequency response, the 330425-02-00 is the industry standard for monitoring complex mechanical assemblies. It is an indispensable asset for predictive maintenance strategies in power generation and heavy manufacturing.

• Gearbox Monitoring Specifically effective for detecting gear mesh frequencies and identifying chipped or cracked teeth.

• Rolling Element Bearings Capturing the high-frequency "ringing" associated with early-stage bearing race degradation or lubrication issues.

• Gas and Steam Turbines Monitoring casing vibration to detect aerodynamic instabilities and mechanical looseness.

• High-Speed Compressors Providing reliable data for machines where rotor speeds and vibration frequencies exceed the limits of standard velocity sensors.

By integrating the 330425-02-00 with Bently Nevada 3500/42M or 1900/65A monitors, operators gain a dedicated safety layer. The system can be configured with specific trip thresholds, allowing for automatic machinery shutdown to prevent catastrophic failure, thereby maximizing equipment availability and protecting high-value industrial assets.
