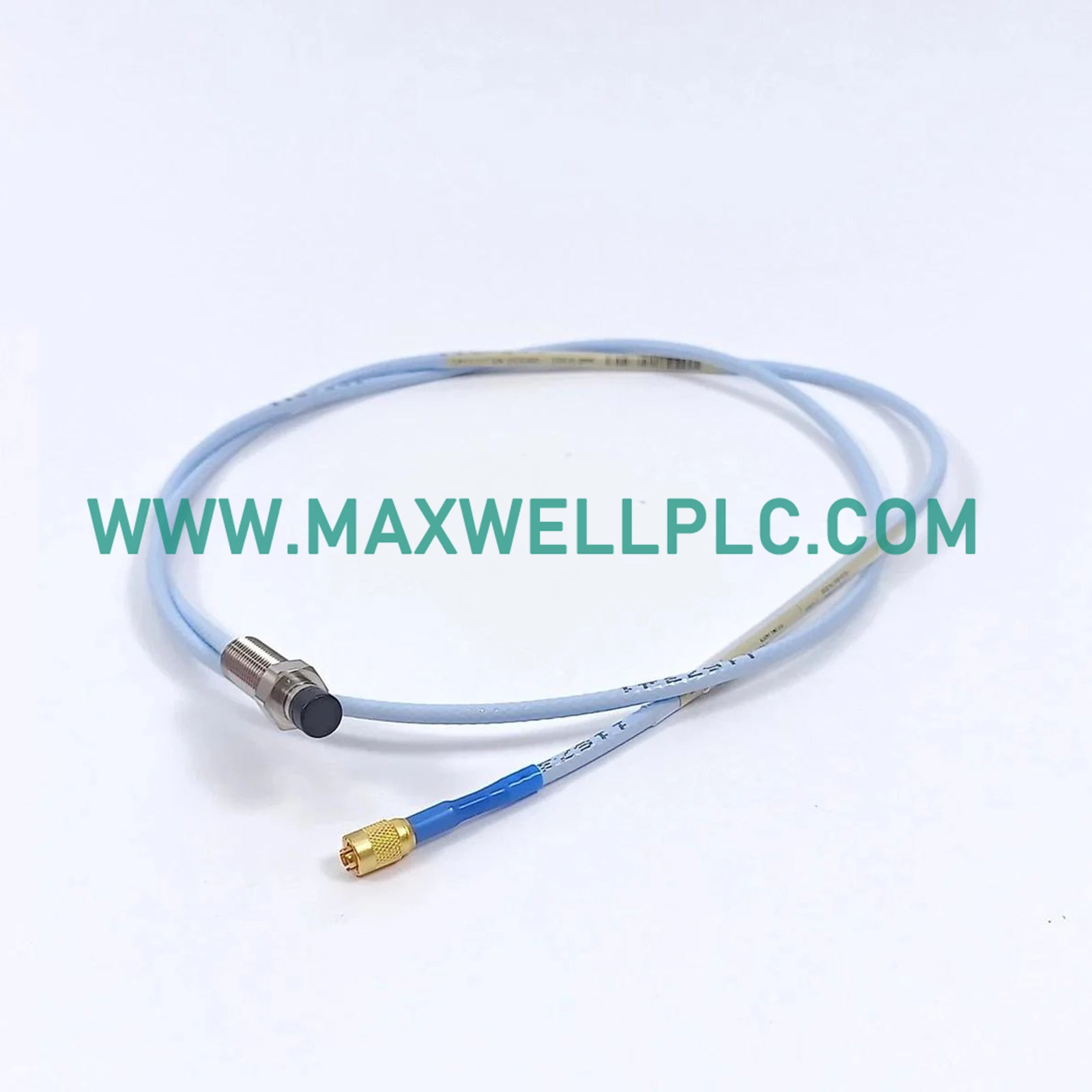

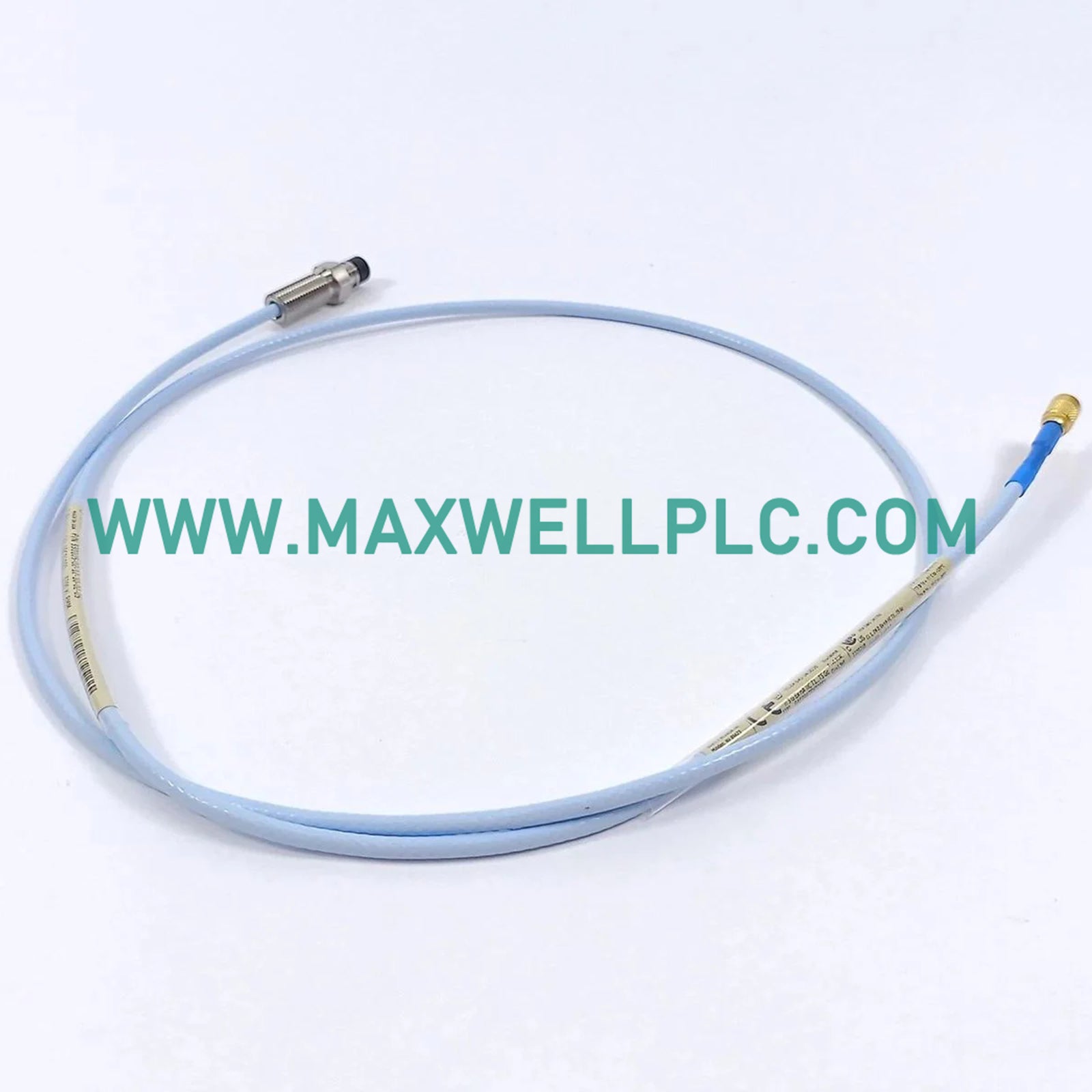

Configured for high-frequency signal transmission in rotor dynamic measurement systems, the Bently Nevada 330190-080-00-00, also cataloged as the 330190-080-00-00 3300 XL Extended Temperature Range(ETR) Extension Cable, provides direct physical/electrical execution.

Suffix Nomenclature & Option Mapping

• Option 080: 8.0 meters (26.2 feet) total cable length configuration
• Option 00: Standard cable build without specialized armoring
• Option 00: No agency approval options selected for this variant

Hardware Specifications

Rotor Dynamics & Eddy-Current Transducer Metrics

The extension cable functions as an integral transmission path within the eddy-current measurement circuit, maintaining correct electrical impedance matching to ensure precise eddy-current probe scaling. Gap voltage validation must be performed during initial commissioning to confirm baseline outputs adhere strictly to nominal target parameters. Proper signal propagation relies on maintaining low loop resistance to prevent phase shift errors during dynamic rotor vibration tracking. Furthermore, cross-talk suppression techniques, including continuous shield continuity and optimized cable routing away from high-voltage AC conductors, protect high-resolution shaft displacement signals from external electromagnetic interference.

Delivery Scope

• 1 x Bently Nevada 330190-080-00-00 3300 XL Extended Temperature Range Extension Cable
• 1 x ClickLoc connector protective cap assembly
• 1 x Technical installation instruction sheet

Physical Installation Guidelines

• Route the coaxial extension cable away from heavy motor power cables and variable frequency drives to prevent electromagnetic signal coupling.
• Secure the ClickLoc connector firmly to ensure mechanical locking and maintain environmental sealing against moisture ingress.
• Ground the outer metallic shield at the monitor rack side only, leaving the probe side floating to eliminate ground loops.
• Avoid sharp bending radii during installation to preserve the structural integrity of the coaxial conductor and dielectric core.

Technical Inquiries and Verification

• Q: What is the designated length of the 330190-080-00-00 extension cable?

  A: The cable is manufactured with a length of 8.0 meters (26.2 feet).

• Q: What is the specified output resistance rating for this extension cable model?

  A: The nominal output resistance is specified at 50 ohm.

• Q: What sensor types are compatible with the input interface of this cable?

  A: It accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe and companion hardware.

• Q: How does the cable design ensure secure connection to the probe tip assembly?

  A: It utilizes a specialized ClickLoc connector mechanism designed to withstand operational vibration without loosening.

• Q: What is the operational temperature range supported by this ETR cable variant?

  A: The extended temperature range model operates reliably between -51 deg C and 177 deg C.

• Q: Does this specific catalog number include hazardous area agency approvals?

  A: No, option 00 indicates that specific hazardous area agency approvals are not included with this unit.

• Q: What is the exact physical weight of the hardware component?

  A: The component weighs precisely 0.25 kg for structural load and shipping calculations.

• Q: What preventative measure should be taken regarding the cable shield during wiring?

  A: The shield drain wire must be isolated from chassis ground at the probe end to avoid ground loop interference.
