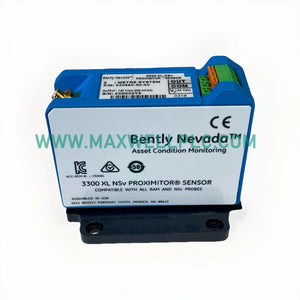

The Bently Nevada 330180-X1-05, also cataloged as the 330180 Proximitor Sensor, operates as a dedicated hardware component for signal conditioning within the 3300 XL transducer system. Configured for non-contact displacement monitoring, this sensor executes the conversion of high-frequency carrier signals into proportional voltage outputs representing target gap distance. It functions as the primary interface between the proximity probe and downstream monitoring instrumentation, facilitating the acquisition of rotor position and vibration data across rotating machinery platforms.

Suffix Breakdown & Model Matrix

• 330180: 3300 XL Proximitor Sensor
• X1: System length identifier (11: 1.0 m, 51: 5.0 m, 91: 9.0 m)
• 05: CSA, ATEX, IECEx Approvals

Hardware Specifications

Mechanical Monitoring and TSI Signal Integrity

The 330180 Proximitor requires precise eddy-current probe scaling to maintain linear output over the transducer's designated range. During system commissioning, gap voltage validation is performed to ensure the transducer operates at the target -10 VDC bias, which centers the sensor within its linear dynamic range for rotor dynamics analysis. Signal integrity is maintained via internal cross-talk suppression circuitry, which is essential when multiple proximitors are mounted in high-density rack configurations. Proper calibration and ground referencing are necessary to prevent noise induction, ensuring high-fidelity signal transmission for machinery protection logic.

Ordering info

• 1 x 330180-X1-05 Proximitor Sensor
• 1 x Technical documentation

Field Installation Guidelines

• Mounting and Grounding:
  • Mount the Proximitor on an electrically grounded surface or DIN rail to provide a reference path for the internal shield circuitry.
  • Use appropriate fasteners to ensure mechanical stability in high-vibration zones.
• Electrical Connection:
  • Ensure the ClickLoc or terminal connections are clean and free of oxidation to maintain consistent loop resistance.
  • Maintain separation between transducer coaxial cables and high-voltage AC cabling to mitigate electromagnetic interference.
• System Verification:
  • Validate the total system length (probe plus extension cable) matches the Proximitor calibration to avoid non-linear measurement output.

Frequently Asked Questions

• Q: Does the Proximitor require bench calibration?

  A: No. The 3300 XL system is designed for interchangeability, meaning components are factory-calibrated to perform within specifications without individual component matching.

• Q: How does the system length affect the Proximitor output?

  A: The system length defines the electrical impedance of the transducer loop. Using an incorrectly configured length will result in significant output gain and linearity errors.

• Q: Is the Proximitor housing grounded to the signal ground?

  A: The housing provides mechanical support and shielding; ensure it is bonded to the equipment chassis to maintain proper EMI protection.

• Q: Can this unit be used with non-XL series probes?

  A: No. The 330180 is specifically designed for 3300 XL series probes; legacy probe compatibility is not supported due to differences in carrier frequency.

• Q: What is the purpose of the gold-plated connector material?

  A: Gold plating minimizes contact resistance and prevents oxidation, ensuring stable signal transmission in industrial, high-humidity environments.

• Q: Is this device suitable for hazardous area installations?

  A: Yes, the 05 suffix indicates compliance with CSA, ATEX, and IECEx approvals, provided it is installed according to local hazardous area documentation.

• Q: How is the Proximitor powered?

  A: The unit requires a regulated -24 VDC supply, typically provided by the monitoring rack or external transducer power supply module.

• Q: Can I use this sensor in a high-temperature environment?

  A: The sensor housing is rated for industrial use; however, ensure the ambient temperature at the mounting location stays within the specified operational limits for the 3300 XL system.
