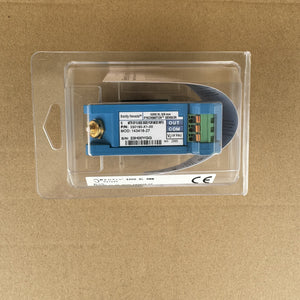

The Bently Nevada 330180-X1-00 MOD:145004-81, also cataloged as the 330180 Proximitor Sensor, operates as a dedicated hardware component for signal conditioning within eddy-current proximity transducer systems.

Suffix Breakdown

• Model: 330180 (Proximitor Sensor)

• System Length Options: 5.0 meters (51) or 9.0 meters (91)

• Mounting: DIN rail mount

• Modification: 145004-81 (Custom configuration)

Hardware Specifications

Mechanical Monitoring and Signal Validation

The Proximitor sensor acts as the radio-frequency excitation source for the eddy-current probe. It converts the impedance change of the probe tip into a linear voltage signal. Signal accuracy depends on gap voltage validation; the system is typically configured to provide a -10 VDC output at a reference gap of 1.27 mm. Rotor dynamics data integrity is maintained by ensuring the total system length (probe + extension cable + Proximitor) remains matched to the factory calibration. Cross-talk suppression is maintained when the Proximitor is installed in a grounded enclosure, preventing electromagnetic interference from contaminating the low-level signal output.

Ordering Information

• 330180-X1-00 MOD:145004-81 Proximitor Sensor unit

• DIN-rail mounting hardware (integrated)

• Documentation is not included unless specified in the purchase contract

Installation Guidelines

• Grounding: Secure the Proximitor to a common electrical ground plane to ensure shielding effectiveness.

• Mounting: Snap the unit onto a standard 35 mm DIN rail; ensure the mounting clip is locked to prevent vibration-induced movement.

• Cable Termination: Use a 3-conductor shielded triad cable for connection to the vibration monitor to minimize ground loop current.

• Wiring: Maintain separation between the Proximitor signal output wires and AC power lines to avoid induced 50/60 Hz interference.

Logistics and Handling

• Delivery time: 3-5 days when payment finish.

• Logistics: Shipped via DHL, FEDEX, or UPS.

• Packaging: All units are secured in anti-static industrial packaging to ensure protection against electrostatic discharge and mechanical shock.

Frequently Asked Questions

• Q: Can this unit be used with 8 mm probes?

  A: Yes, the 330180 Proximitor is designed to interface with standard 3300 series 8 mm probes.

• Q: What is the purpose of the 145004-81 modification code?

  A: This code denotes a factory-specified variation to the standard 330180 circuitry, often related to specific impedance or response curve requirements.

• Q: Does the Proximitor require an external power supply?

  A: Yes, it requires a regulated -17.5 to -26 VDC power supply input.

• Q: Can I mix different system lengths?

  A: No, the system calibration is dependent on the total length of the probe and extension cable; changing the length will alter the scale factor.

• Q: Is this sensor hot-swappable?

  A: It is recommended to remove power before disconnecting the sensor to prevent signal transients.

• Q: What is the signal output range?

  A: The output is typically proportional to the distance at -200 mV/mil.

• Q: How do I test if the Proximitor is functional?

  A: Measure the output voltage at the signal terminals while using a calibration target to verify the -10 VDC setpoint.

• Q: Is the DIN mount removable?

  A: The DIN mounting clip is integral to the housing design for vibration stability.
