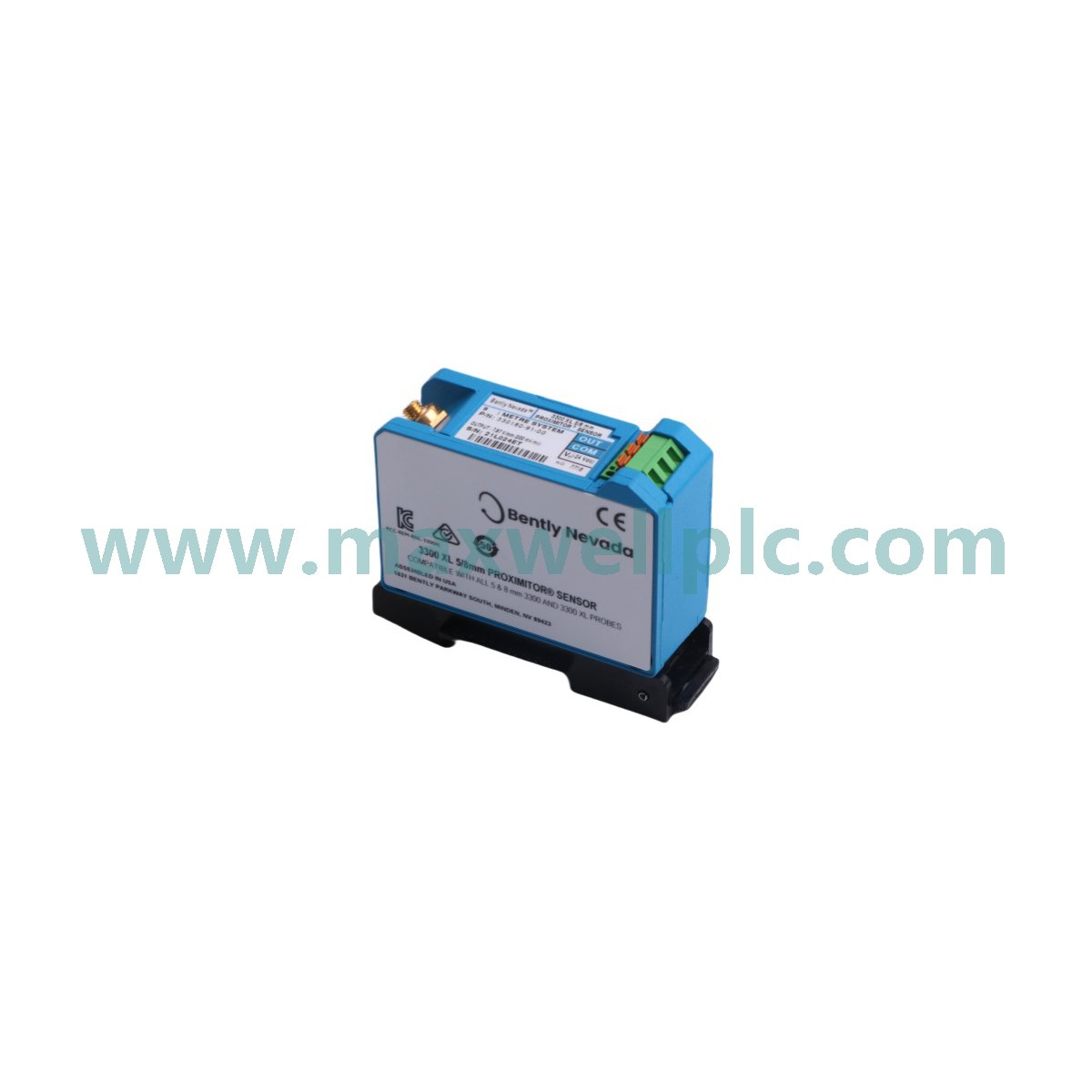

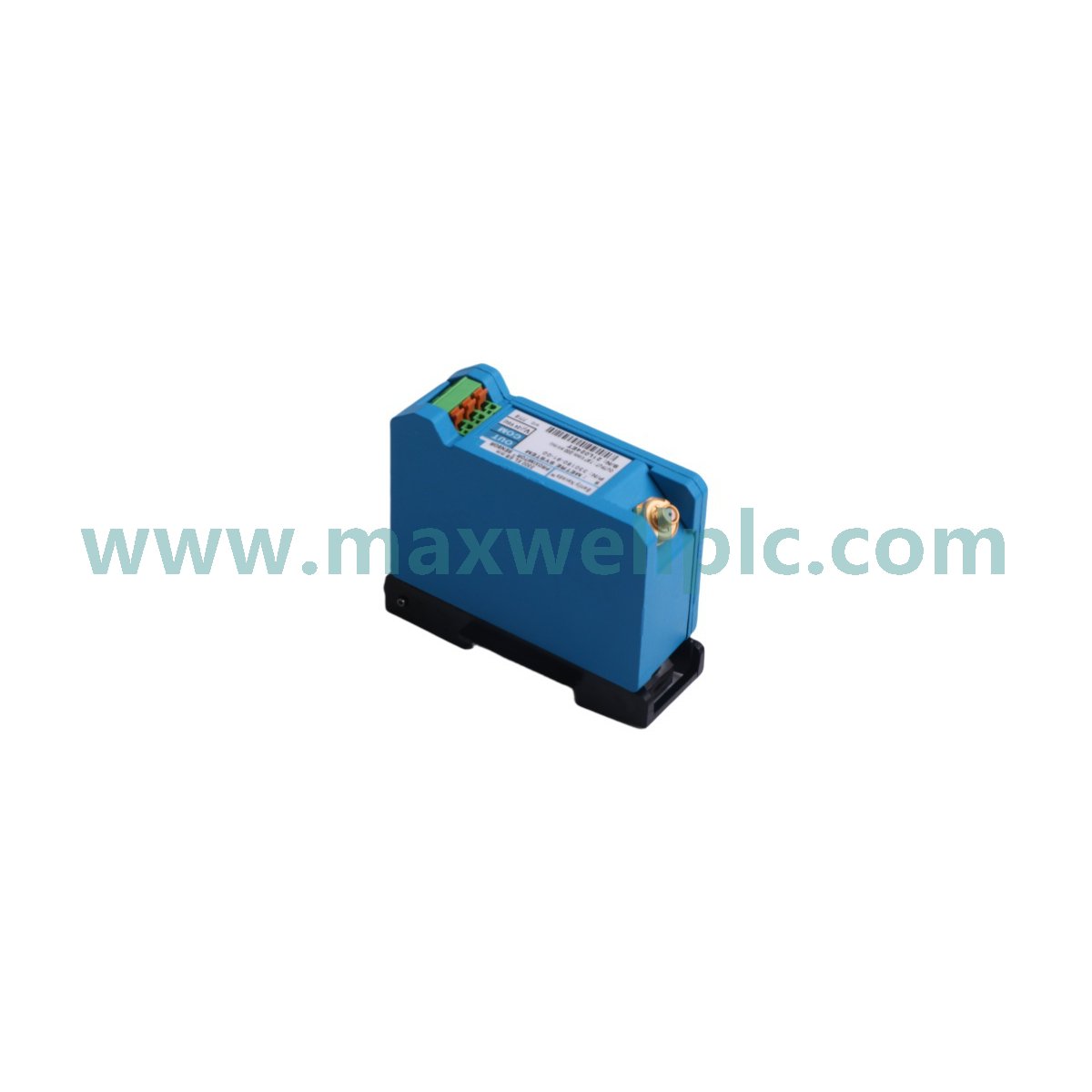

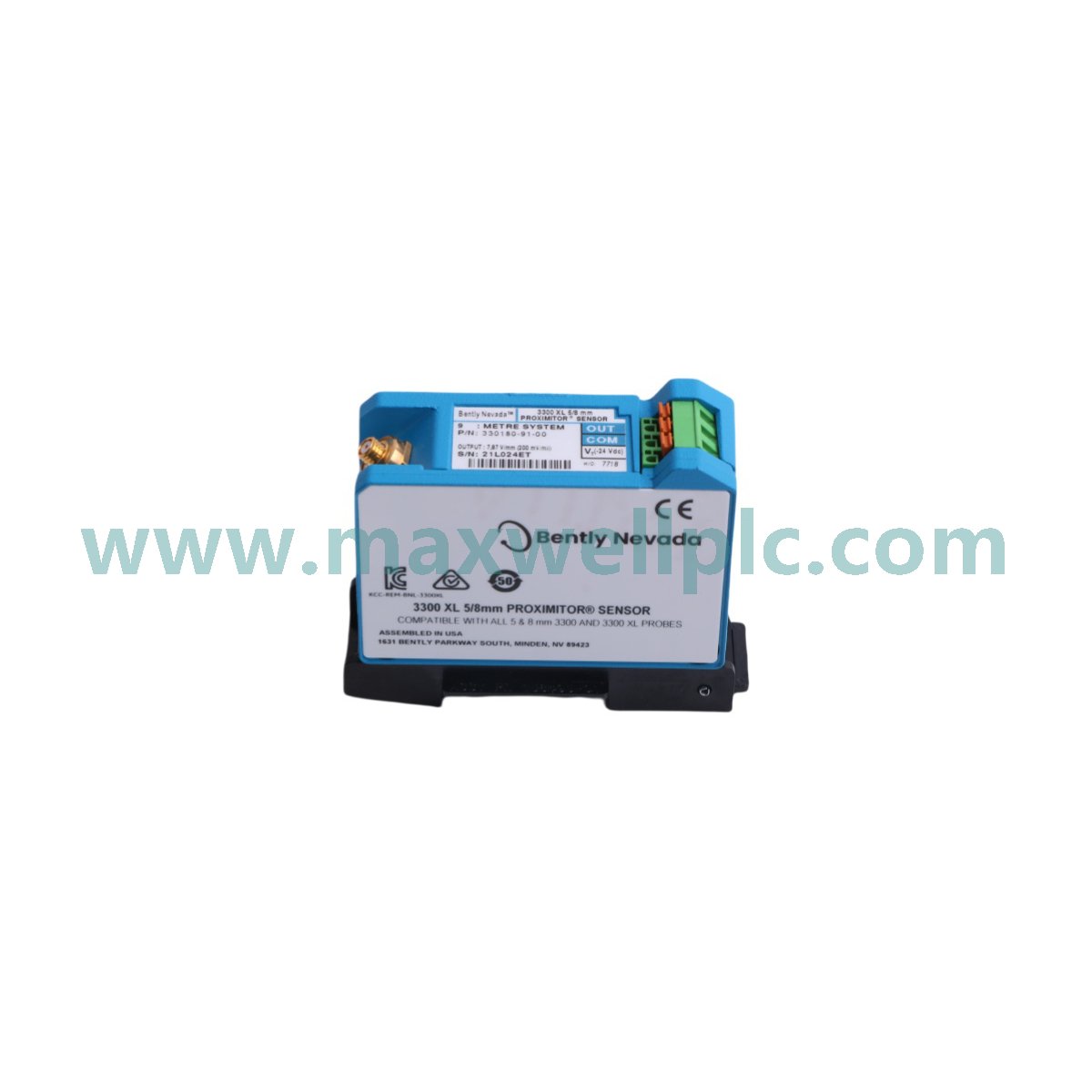

The Bently Nevada 330180-91-00, also cataloged as the 330180-91-00 Proximitor Sensor, operates as a dedicated hardware component for eddy-current signal conditioning within TSI (Turbomachinery Information) monitoring systems.

Configuration and Model Data

Signal Conditioning and Eddy-Current Mechanics

The 330180-91-00 utilizes high-frequency radio waves to excite the target material. Precise operation requires maintaining a nominal gap voltage, typically centered at -10 VDC within the linear range of the probe-extender-proximitor system. The sensor performs signal linearization to convert raw inductance changes into a proportional voltage output (typically 200 mV/mil). Effective rotor dynamics analysis relies on this proximitor to suppress cross-talk when multiple probes are installed in close proximity, ensuring that phase and amplitude measurements remain accurate under high-speed rotational load.

Order Fulfillment

• The shipment includes the Proximitor unit only.

• Required probe and extension cables must be ordered separately based on system length requirements.

• Documentation includes standard Bently Nevada technical manual references.

• Unit arrives in factory-sealed industrial packaging.

Mechanical Installation Requirements

• Mounting must ensure the proximitor is electrically isolated from the panel chassis if grounded loops are a risk.

• Proximitor cable length must be accounted for in total system length (TSL) calculations to maintain calibrated sensitivity.

• Ensure the probe tip is properly centered within the mounting bracket to avoid interference from surrounding metal.

• Verify shield continuity on extension cables to minimize EMI/RFI noise in the signal path.

Technical FAQ

• Q: Is the 330180-91-00 compatible with older 3300 series probes?

  A: Compatibility depends on the specific TSL (Total System Length). Mixing legacy 3300 components with 3300 XL proximitors requires verification of calibration curves.

• Q: What is the effect of incorrect gap voltage on data?

  A: Operating outside the linear range (-10 VDC nominal) will cause waveform clipping and signal distortion, leading to inaccurate vibration readings.

• Q: Can this unit be hot-swapped during operation?

  A: While the electronic circuits are robust, hot-swapping can trigger transients in the monitoring system. Power-down is recommended to prevent false trips.

• Q: How is the IP67 rating maintained during field wiring?

  A: The IP67 rating applies to the module housing. Field wiring connections must use appropriate conduit seals and moisture-resistant terminations.

• Q: Does the unit require periodic recalibration?

  A: Yes, annual calibration verification against a known target is standard procedure for TSI systems to ensure linearity within 0.1%.

• Q: What is the impact of cable length on output impedance?

  A: The 3300 XL system is calibrated for specific cable lengths (5m or 9m). Deviating from these lengths changes the system gain.

• Q: Does the proximitor provide diagnostic status?

  A: The unit outputs a "Gap" voltage which serves as a diagnostic indicator. A voltage near -2 VDC or -18 VDC indicates an open or short circuit.

• Q: How does this sensor handle power supply noise?

  A: The internal filtering design rejects ripple on the 12-24 VDC supply, though a regulated, low-noise power source is required for optimal performance.
