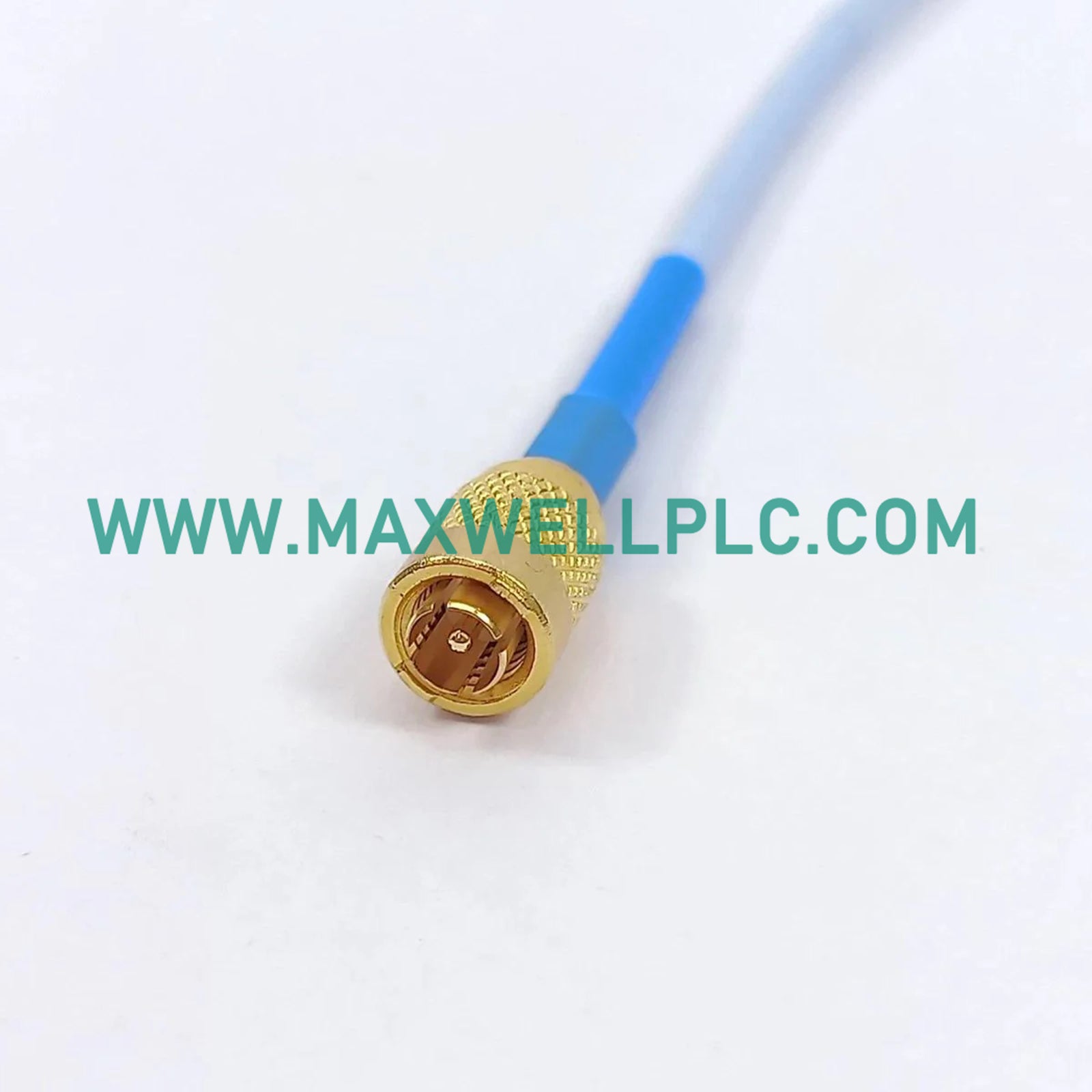

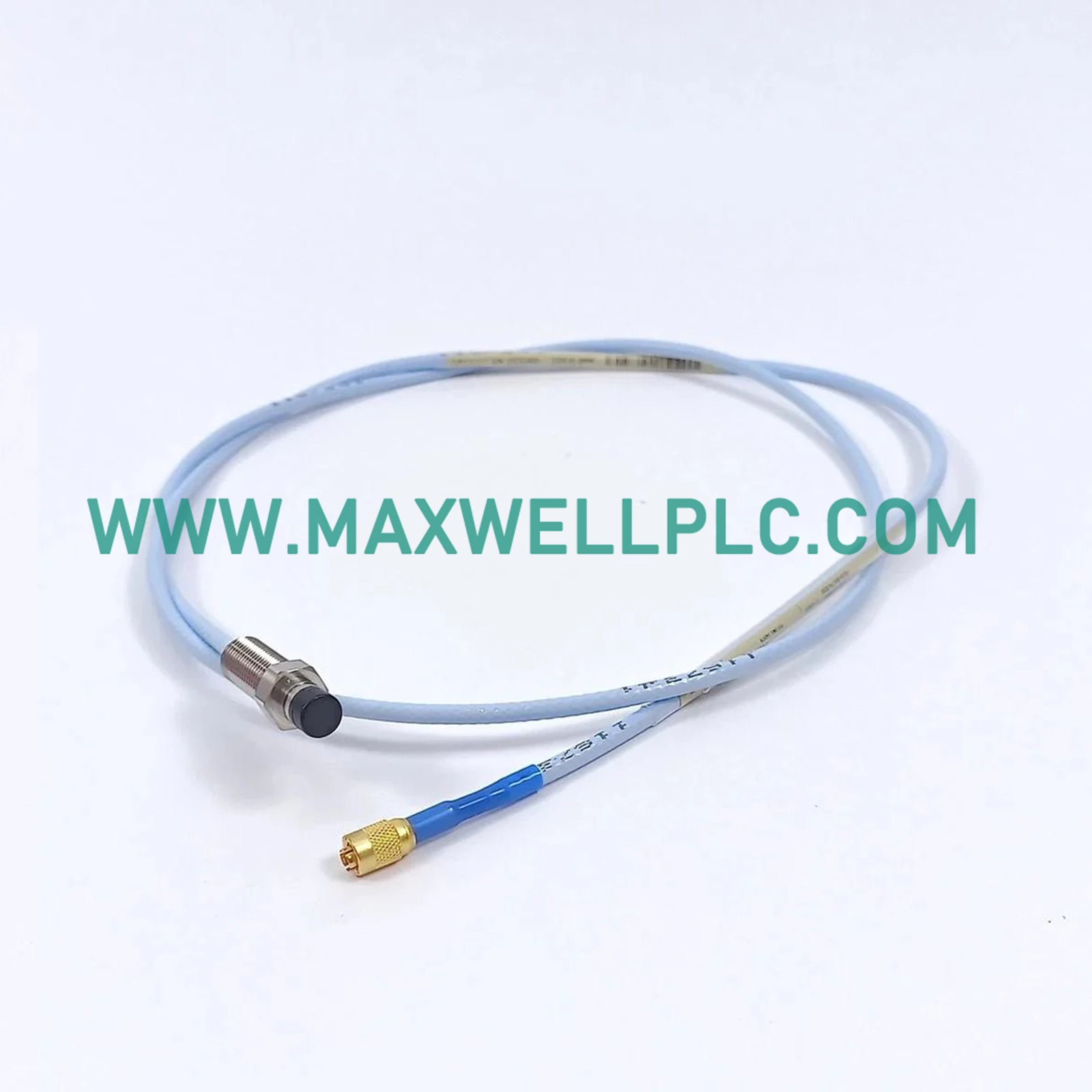

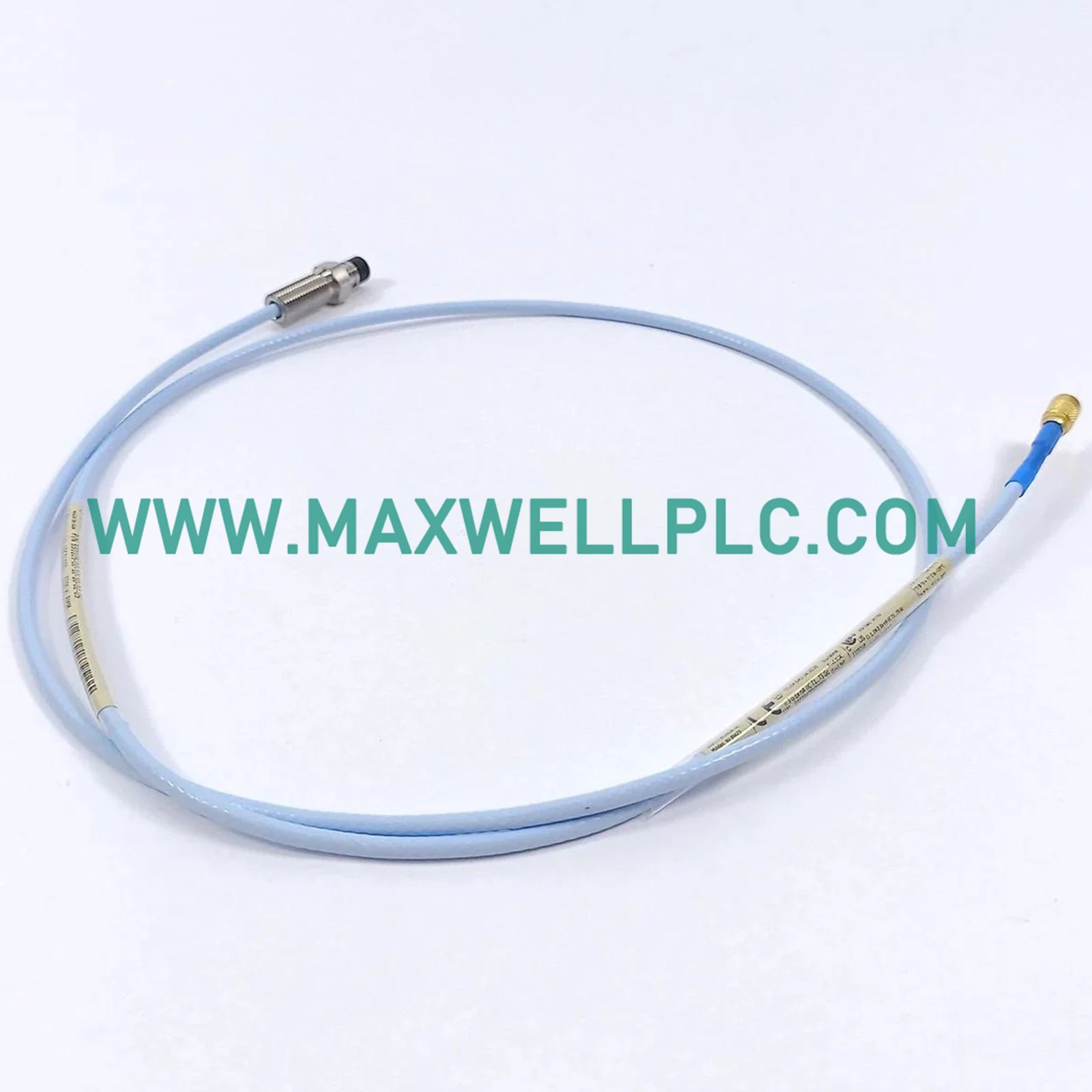

Configured for shaft vibration and radial displacement monitoring tasks within rotating machinery protection frameworks, the Bently Nevada 330171-12-41-10-02-05 (330171-12-41-10-02-05 Proximity Probes) provides direct physical/electrical execution.

Designation Breakdown and Option Matrix

• Base model code: 330171 representing the 3300 XL 8 mm proximity probe variant engineered for high-precision measurement.
• Thread and mounting options: Suffix digits configure specific thread sizing, total probe length, and armor protection characteristics.
• Connector option: Specialized coaxial connector configurations designed for secure coupling with extension cables.
• Agency approval options: Factory certification identifiers ensuring compliance with hazardous area operating standards.

Hardware Specifications

Rotor Dynamics and Eddy-Current Probe Scaling

• Implements precise eddy-current probe scaling to translate magnetic field interactions into linear voltage outputs corresponding to physical gap changes.
• Enforces gap voltage validation targeting -10 VDC operational baselines during static machinery alignment procedures.
• Maintains high-frequency response capabilities required for capturing transient rotor dynamics, shaft orbits, and synchronous vibration waveforms.
• Utilizes advanced cross-talk suppression methodologies across multi-probe installations to eliminate electromagnetic interference between adjacent channels.

Ordering Information

• 1 x 330171-12-41-10-02-05 Proximity Probes unit
• 1 x Protective dust cap set

Field Installation Guidelines

• Thread the probe assembly carefully into the designated machine casing port, maintaining proper thread engagement and torque limits.
• Set the initial mechanical gap using a calibrated multimeter until a stable -10 VDC reading is achieved prior to locking down mounting hardware.
• Route coaxial extension wiring through dedicated metallic conduits to protect signals from external electromagnetic noise coupling.
• Verify signal loop resistance and check system linearity before initiating permanent machinery operation.

Frequently Asked Questions

• Q: What is the primary function of the 330171-12-41-10-02-05 module?

  A: It functions as an 8 mm proximity probe for measuring continuous shaft vibration and radial displacement in rotating machinery.

• Q: What nominal scale factor does this probe architecture deliver?

  A: The unit provides a standard scale factor of 7.87 mV/um (200 mV/mil).

• Q: What target gap voltage is required during initial installation?

  A: Initial mechanical gap adjustment must target a stable baseline of -10 VDC.

• Q: What power supply range is necessary to energize the transducer loop?

  A: The system operates on a negative dc voltage supply ranging from -17.5 VDC to -26 VDC.

• Q: What is the operating temperature range limit for the probe tip?

  A: It is engineered to perform reliably in extreme ambient temperatures from -51 deg C to +177 deg C.

• Q: Are special grounding precautions required for the coaxial cable shield?

  A: Yes, coaxial shields must be grounded exclusively at the monitor rack termination to prevent ground loops and noise.

• Q: What is the total approximate weight of the packaged unit?

  A: The unit features an approximate packaged weight of 0.20 kg.

• Q: How does the probe prevent signal degradation in multi-channel setups?

  A: It incorporates built-in cross-talk suppression features to isolate adjacent electromagnetic fields between closely mounted sensors.
