Product Overview

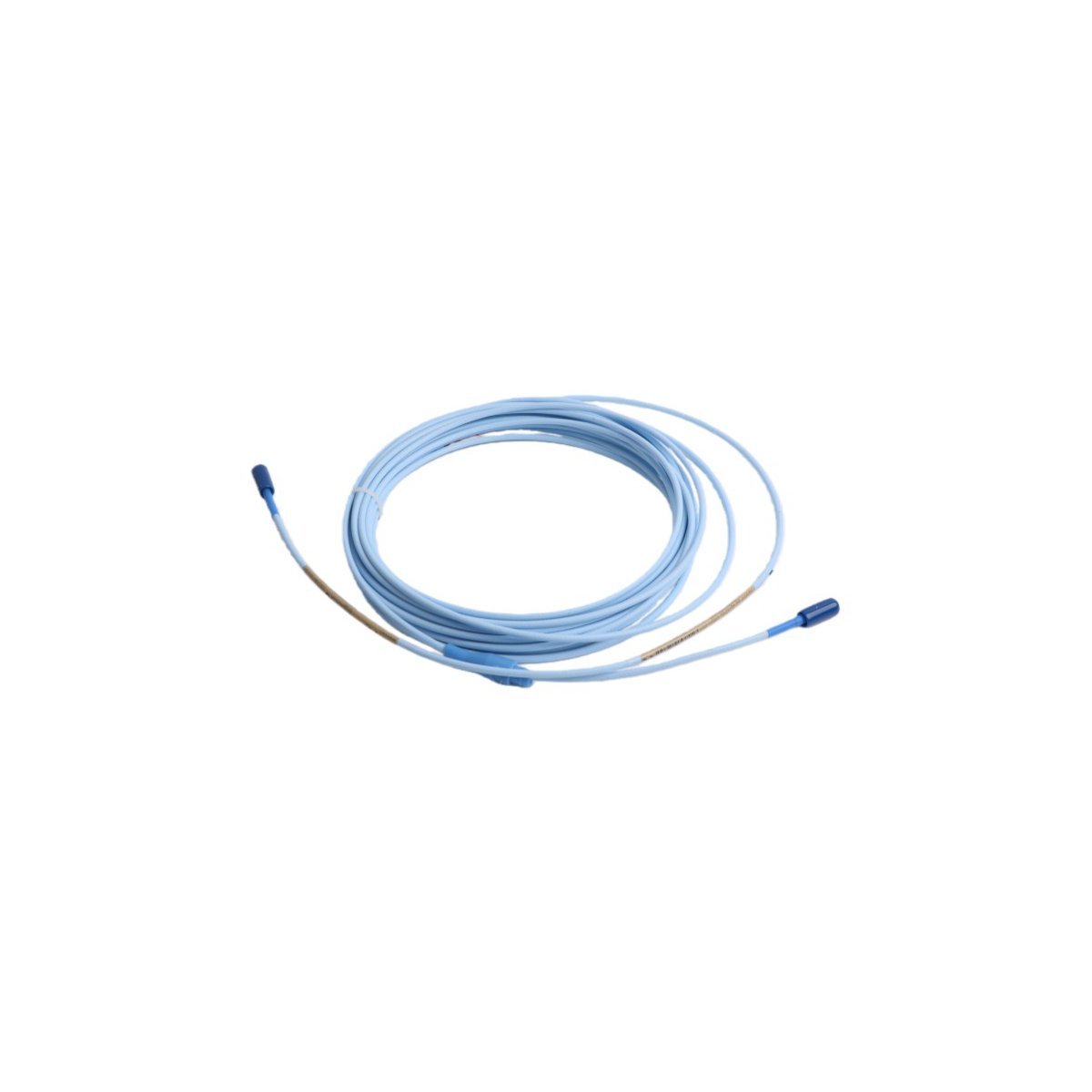

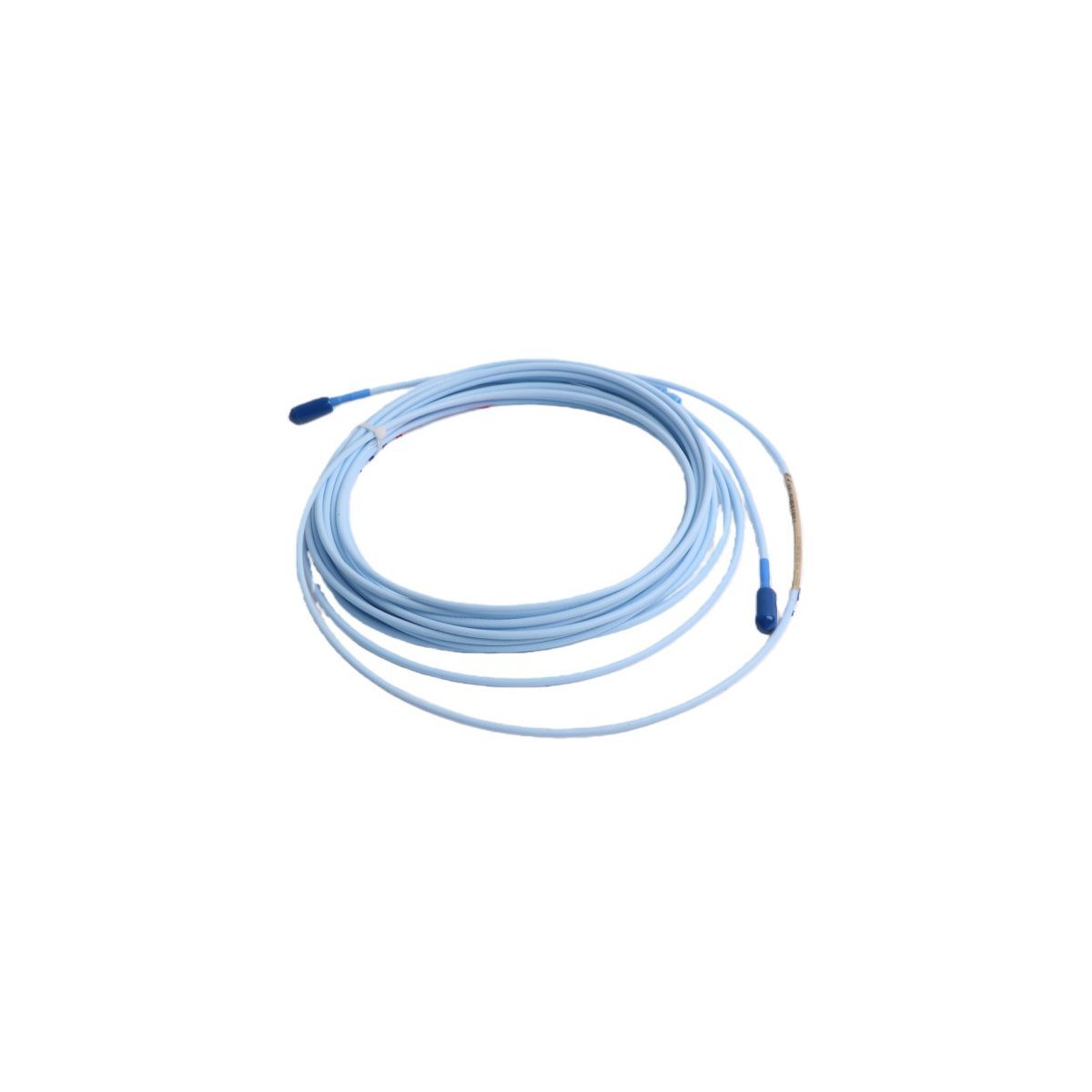

The 330130-080-12-05 serves as a high-integrity bridge within the 3300 XL Transducer System, facilitating the transmission of high-frequency proximity signals between the 8 mm probe and the Proximitor sensor. This 8.0-meter extension cable is engineered to maintain signal fidelity across long distances in demanding industrial environments. By utilizing advanced FluidLoc technology, this component acts as a physical barrier against internal moisture and oil migration, which is a common cause of signal degradation in heavy machinery applications. It is an essential element for ensuring the accuracy of radial vibration and axial position data in critical asset monitoring.

Component Architecture and Technical Specifications

Industrial Implementation and Deployment

This extension cable is specifically designed for integration into Turbine Supervisory Instrumentation (TSI) and large-scale rotating equipment protection schemes. It is widely deployed in power generation facilities, petrochemical plants, and refineries to monitor the health of steam turbines, gas turbines, and centrifugal compressors. Because the 330130-080-12-05 is rated for hazardous locations, it is the standard choice for offshore platforms and chemical processing zones where explosive atmospheres are a constant risk. Its rugged construction allows it to withstand the high temperatures and corrosive vapors typically found in engine rooms and industrial pump stations.

FAQ

Q: What is the primary function of the FluidLoc technology in this cable?

A: The FluidLoc feature is a proprietary design that seals the interior of the cable. This prevents oil, water, or other process fluids from leaking through the cable's core into the Proximitor housing or other sensitive electronics, preserving the electrical integrity of the system.

Q: Can this 8.0-meter cable be used with any Bently Nevada probe?

A: The 330130-080-12-05 is specifically tuned for the 3300 XL 8 mm system. It is vital to ensure that the total length of the probe lead and the extension cable matches the calibration requirements of your specific Proximitor (typically 5 or 9 meters total system length).

Q: Does the 330130-080-12-05 cable require additional conduit for protection?

A: While the cable includes built-in connector protectors and a rugged jacket, many industrial standards recommend using stainless steel flexible conduit (armor) if the cable is exposed to extreme mechanical stress or falling debris.

Q: Are there specific installation requirements for the connectors?

A: The gold-plated connectors should be tightened to a specific torque or finger-tightened as per Bently Nevada's 3300 XL manual to ensure a low-impedance connection. The integrated protectors should always be used to shield the connection from environmental contaminants.

Q: Is this cable certified for use in Europe and North America?

A: Yes, this model carries international certifications including ATEX for Europe, CSA for North America, and IECEx for global hazardous area compliance, making it suitable for worldwide industrial deployment.
