Product Overview

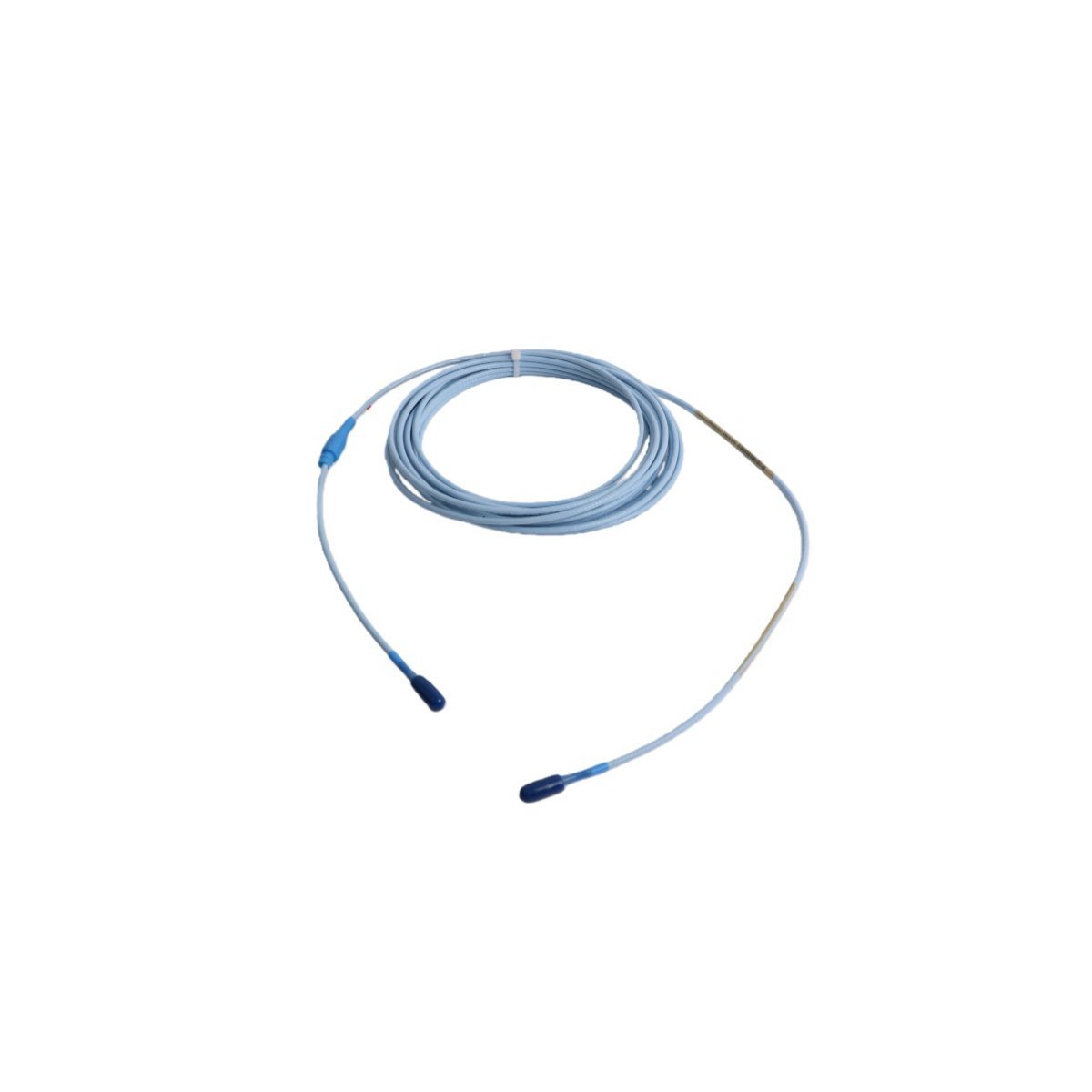

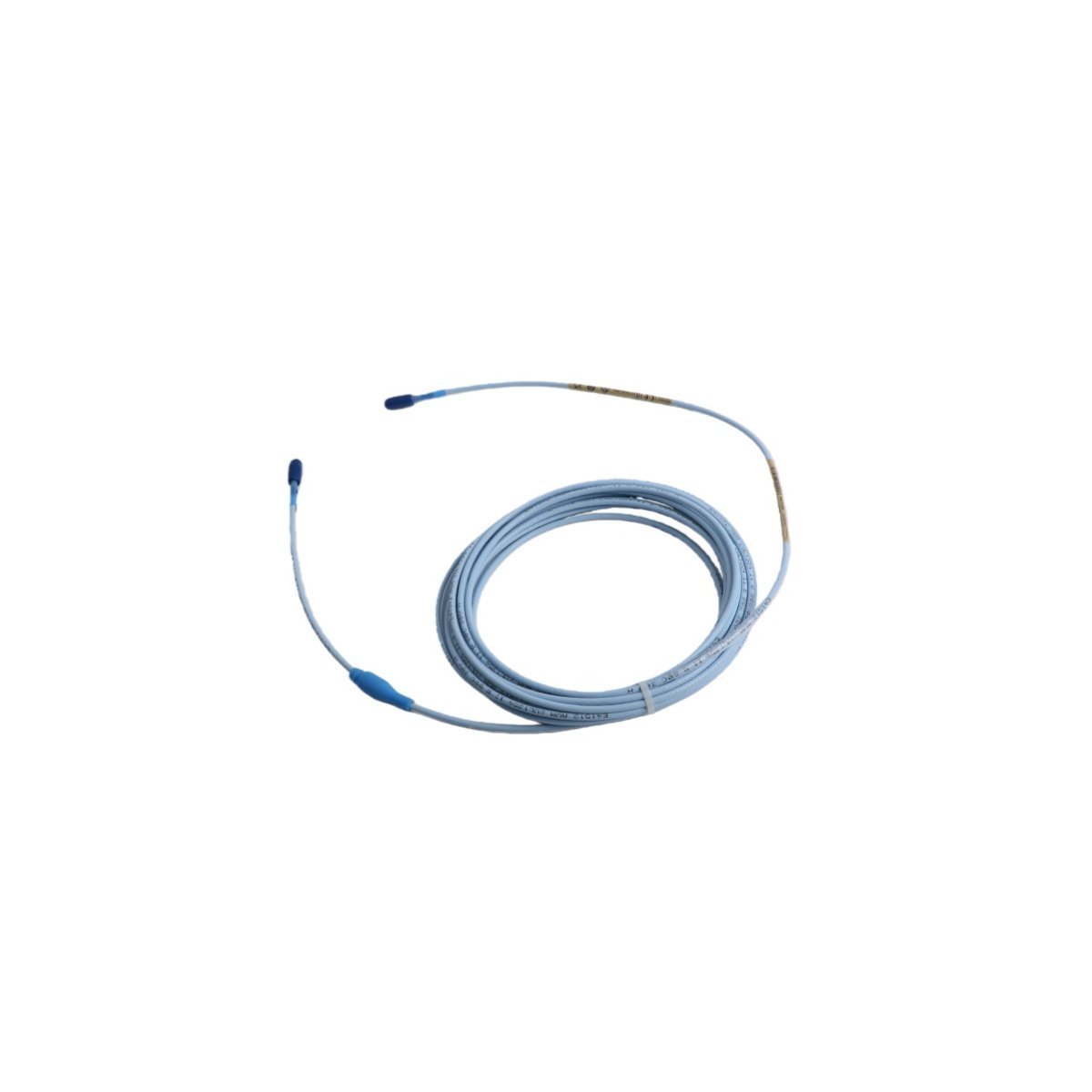

The 330130-075-10-05 serves as a high-integrity bridge within the Bently Nevada 3300 XL 8mm Proximity Transducer System. This specific 7.5-meter extension cable is engineered to facilitate the transmission of precise displacement and vibration data from the transducer probe to the Proximitor Sensor. Built to withstand the rigorous conditions of industrial environments, it ensures that critical machinery metrics—such as shaft vibration and position—are captured with laboratory-grade accuracy. By maintaining a stable electrical connection, this component is fundamental to the reliability of Turbine Supervisory Instrumentation (TSI) and predictive maintenance programs.

Essential Engineering Specifications

• Total Cable Length: 7.5 Meters (approximately 24.6 feet)

• System Series: 3300 XL 8mm

• Pull Strength Capacity: Rated for up to 330 Newtons (75 lbf) at connection points

• Connector Technology: ClickLoc™ gold-plated, corrosion-resistant coaxial connectors

• Mechanical Bonding: Employs CableLoc™ and TipLoc™ design for superior physical durability

• Signal Integrity: High immunity to Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI)

• Material Origin: Manufactured in the USA

Field Deployment Scenarios

This extension cable is a staple in heavy industry for monitoring high-speed rotating assets where failure is not an option. Common applications include:

• Radial Vibration Monitoring: Identifying shaft instability or bearing wear in centrifugal compressors and large pumps.

• Axial Displacement Analysis: Measuring thrust position in steam and gas turbines to prevent internal rotor-to-stator contact.

• Fluid-Film Bearing Protection: Providing non-contacting measurements for critical motors and generators used in power generation.

• Contaminated Environments: Utilizing its robust outer jacket and optional FluidLoc® construction to prevent oil and cooling fluids from migrating through the cable core.

• Condition-Based Maintenance: Serving as the primary data conduit for 3500 Series racks and other machinery protection systems.
