Product Overview

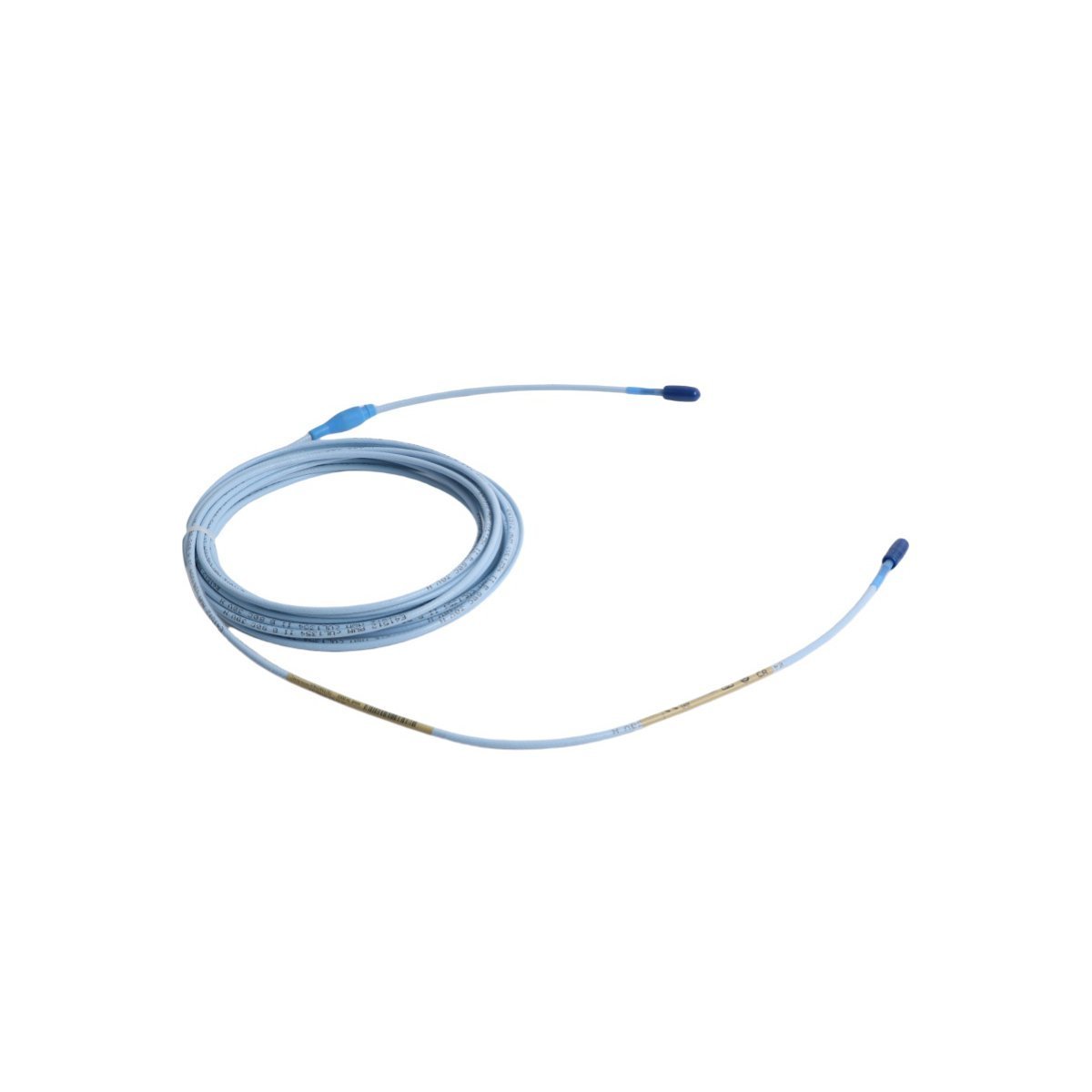

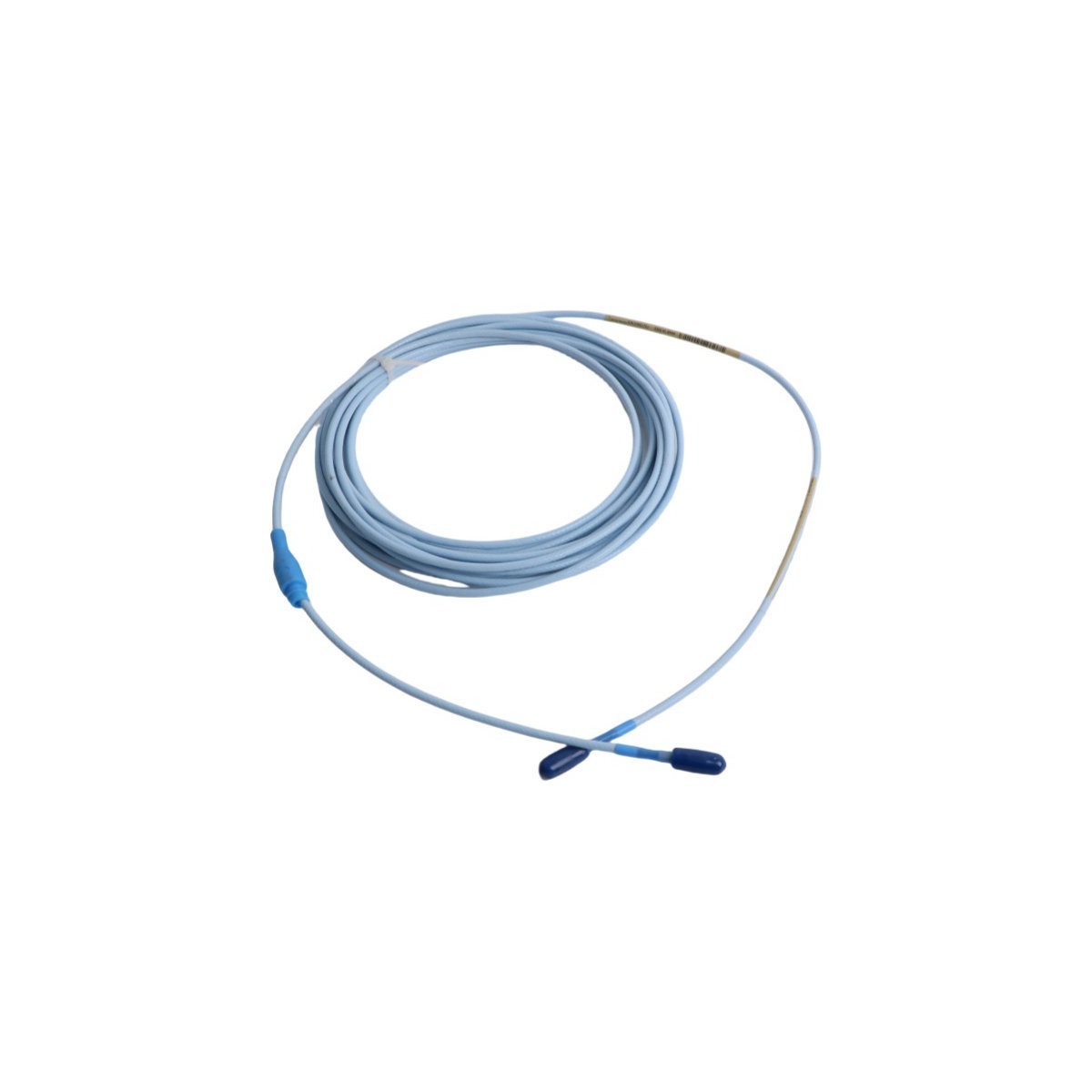

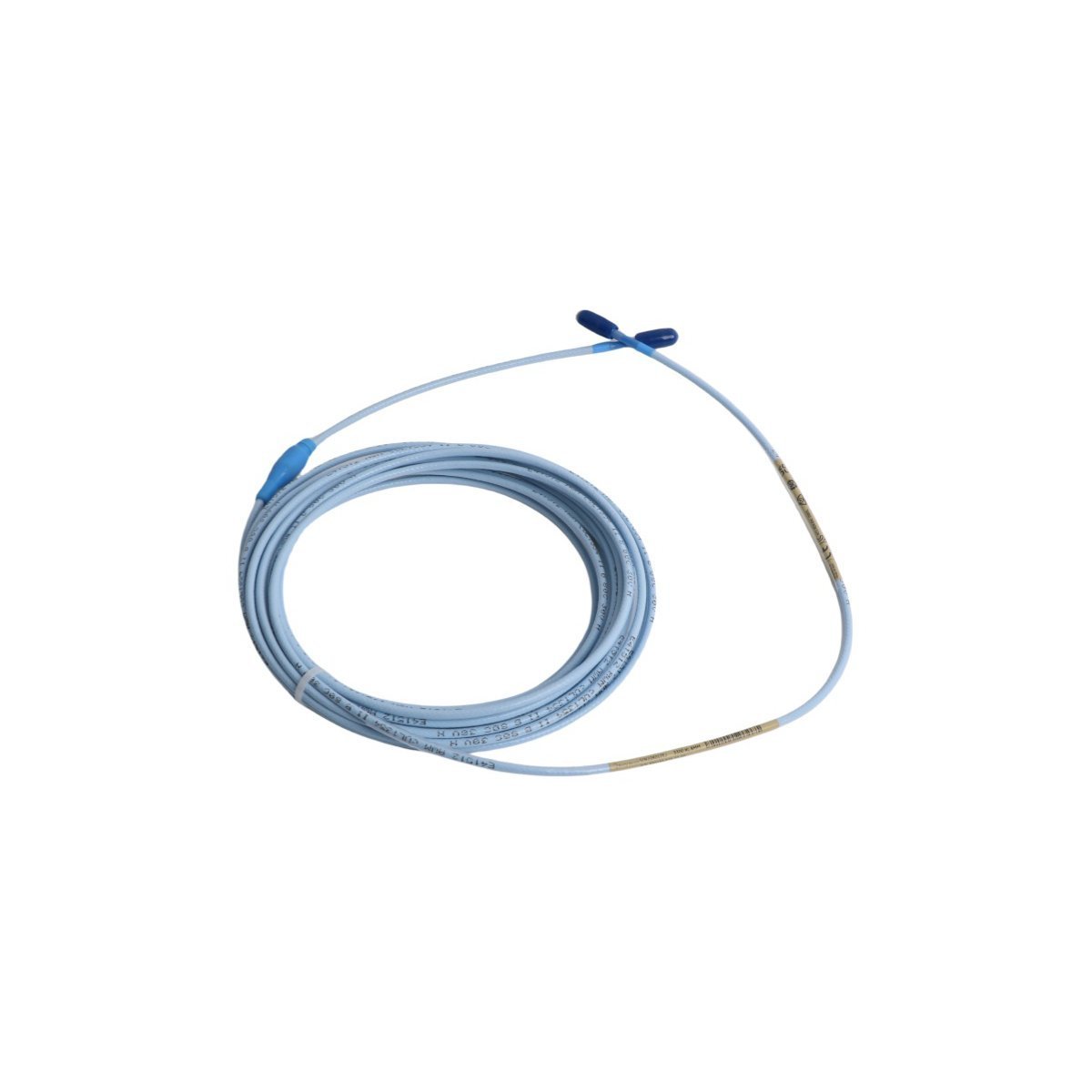

The Bently Nevada 330130-075-02-05 (330130 Extension Cables) serves as a precision-engineered signal transmission link within the 3300 XL 8 mm Proximity Transducer System. By bridging the physical gap between the machine-mounted proximity probe and the Proximitor sensor located in the instrumentation cabinet, this cable assembly maintains the controlled impedance required for accurate eddy-current signal propagation. It is constructed to preserve the integrity of high-frequency shaft vibration and position data without attenuation or phase distortion, ensuring reliable performance in turbomachinery protection platforms.

Suffix Breakdown

The 330130-075-02-05 assembly is defined by the following configuration parameters:

• 075: Cable length (7.5 meters)

• 02: Connector configuration (Miniature coaxial, standard)

• 05: Agency approval and certification classification

Hardware Specifications

TSI & Rotor Dynamics Integration

Accurate rotor dynamics analysis requires precise signal calibration across the entire transducer loop. The 330130 extension cable is factory-tuned to maintain constant system impedance, which is critical for validating gap voltage at the -10 VDC nominal center-point. Any impedance mismatch introduced by non-standard cabling would induce non-linearity and frequency response shifts, undermining the machine protection system's ability to interpret vibration vectors. These assemblies utilize shielded coaxial paths specifically designed to suppress cross-talk and prevent electromagnetic interference from contaminating raw signal waveforms.

Ordering Info

• 330130 3300 XL Extension Cable assembly

• Protective connector thread caps

• Technical installation guide

• Note: Cable length is fixed based on system calibration requirements; ensure the total loop length (Probe + Extension Cable) matches the configuration of the Proximitor sensor.

Field Installation Guidelines

• Connector Integrity: Inspect mating surfaces for contamination before coupling; use a non-residue cleaner if required.

• Mating Procedure: Engage the Click-loc connectors fully to ensure a secure, low-impedance connection; avoid using pliers to tighten, as this can crush the internal dielectric.

• Conduit Routing: Install cabling through grounded, rigid metallic conduit to provide shielding and prevent mechanical abrasion.

• Bend Radius: Maintain a minimum bend radius of 5 times the cable diameter to prevent internal impedance changes caused by dielectric deformation.

• Grounding Strategy: Ensure a single-point ground connection at the instrumentation cabinet to eliminate ground loops that can induce 50/60 Hz signal noise.

Frequently Asked Questions

• Q: Can this cable be shortened if the 7.5-meter length is too long?

• A: No. The cable is a precision-calibrated component of the transducer system. Cutting it will change the system impedance and invalidate accuracy.

• Q: Is the 330130 cable compatible with older 3300-series hardware?

• A: No. This cable is specifically designed for 3300 XL transducer systems; using it with legacy hardware will result in signal errors.

• Q: How can I tell if the cable is causing signal noise?

• A: If you observe high noise floors or intermittent DC bias shifts, inspect the connector for moisture or the cable jacket for physical damage.

• Q: Are the connectors submersible?

• A: No. They are intended for dry, protected environments. Use a junction box if installation occurs in areas prone to moisture or oil spray.

• Q: What is the benefit of the Click-loc connector?

• A: The Click-loc design ensures a vibration-resistant, low-resistance interface that maintains signal stability in high-vibration turbomachinery environments.

• Q: Should I apply electrical tape to the connection point?

• A: Only if required by site-specific standards; in most cases, a clean, dry, properly mated connection is superior to taped joints.

• Q: Can I use this cable on a non-conductive target?

• A: The cable is designed for 3300 XL systems which utilize eddy-current sensing; the target must be conductive for the system to generate a signal.

• Q: Does the 05 suffix imply hazardous area compliance?

• A: Yes, the 05 suffix indicates specific agency approvals for hazardous environments; confirm the rating against local safety site requirements.
