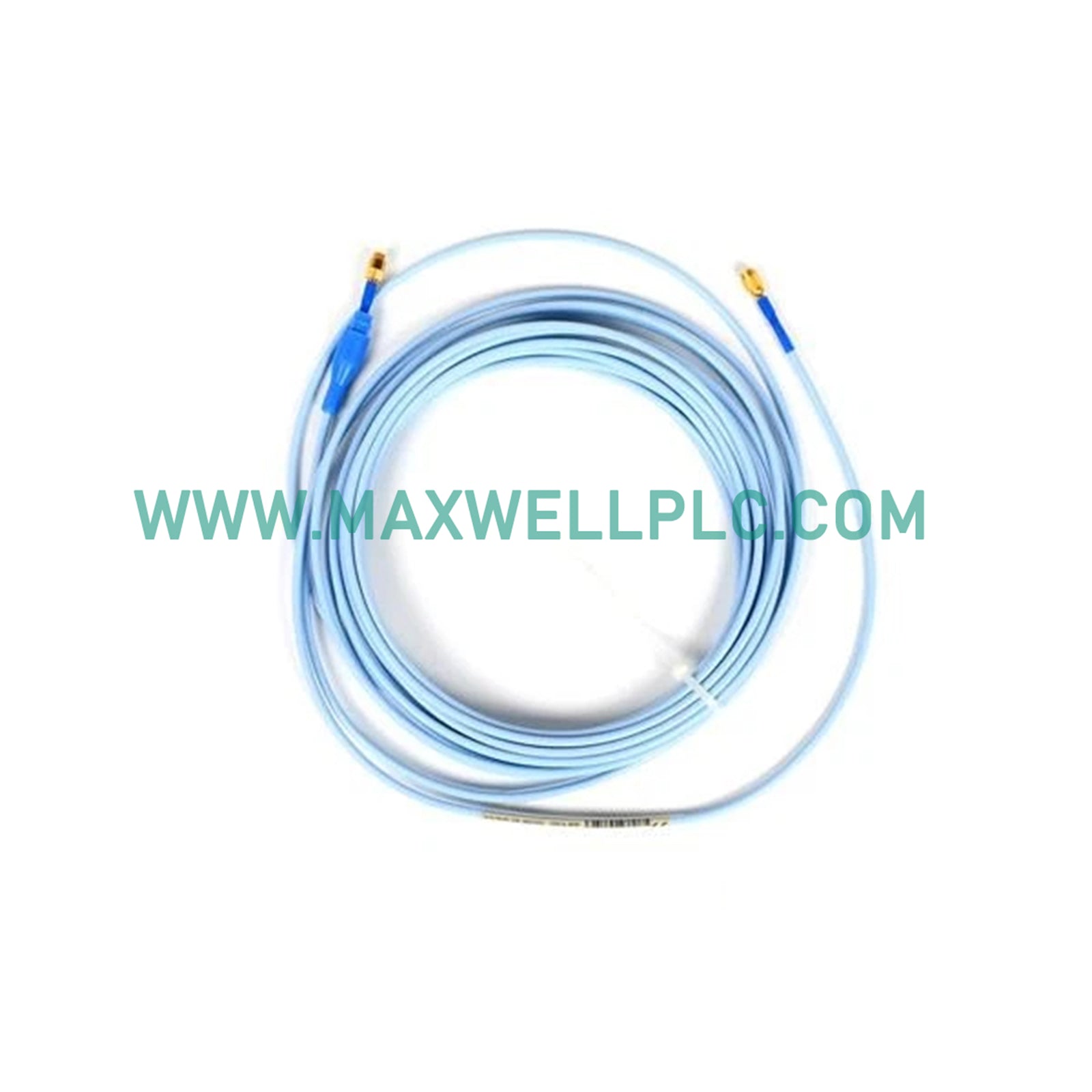

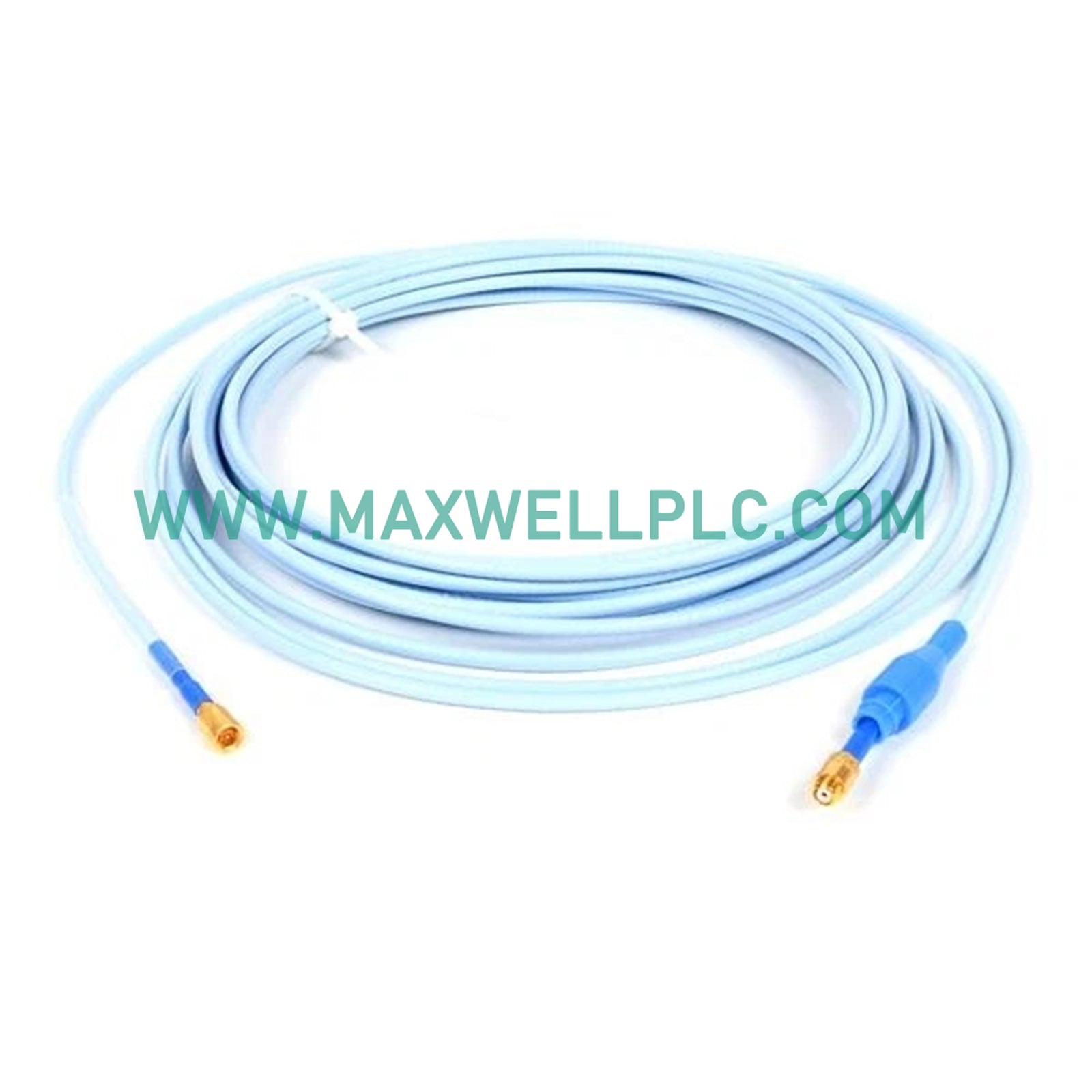

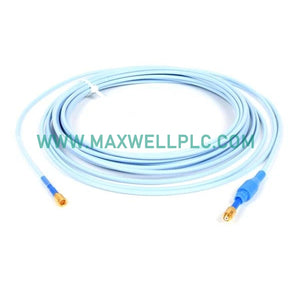

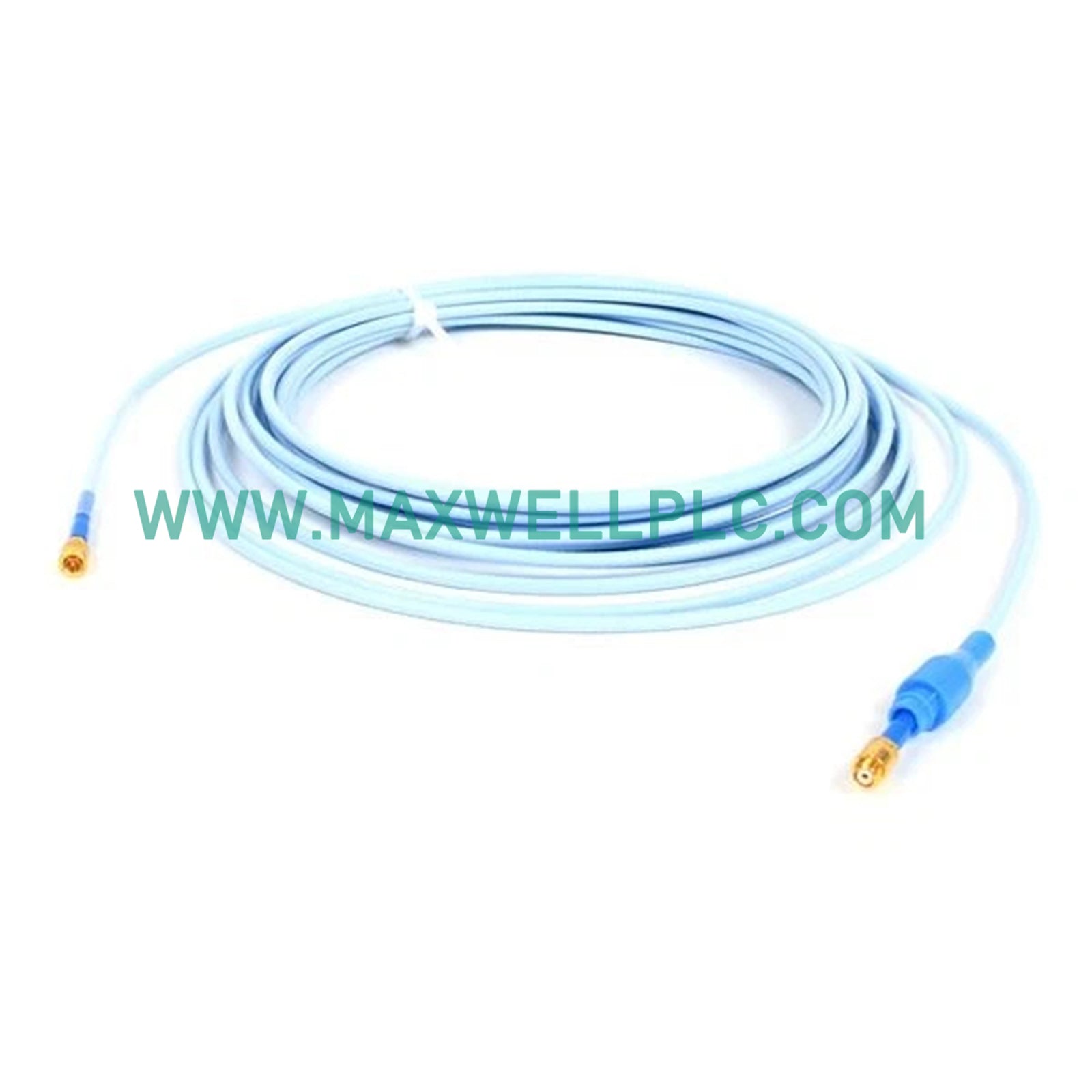

Configured for high-fidelity mechanical vibration transmission within turbomachinery protection infrastructure, the Bently Nevada 330130-075-02-00, also cataloged as the 3300 XL Standard Extension Cable Proximity Transducers, provides direct physical and electrical execution.

Suffix Breakdown & Model Matrix

• Platform Series: Bently Nevada 3300 XL high-frequency mechanical monitoring architecture.
• Part Catalog Identifier: 330130 designating a standard extension cable configuration for eddy-current transducer systems.
• Length Option Suffix: -075 indicating a specific total system cable length variant.
• Approvals & Connectors: -02-00 defining standard connector protection and agency approval configurations.

Hardware Specifications

Rotor Dynamics & Transducer Signal Integrity

The extension cable preserves eddy-current probe scaling accuracy by maintaining precise 75-ohm characteristic impedance across the measurement loop. Proper gap voltage validation (-10 VDC targets) relies on uninterrupted signal transfer between the probe tip and proximitor monitor. Furthermore, advanced cross-talk suppression shielding prevents electromagnetic interference from distorting high-frequency rotor dynamics and shaft vibration telemetry.

Ordering Info

• 1 x Bently Nevada 330130-075-02-00 3300 XL Standard Extension Cable unit
• 2 x Protective connector caps
• 1 x Technical reference installation sheet

Field Installation Guidelines

• Mechanical Routing: Route the coaxial extension cable through dedicated protective conduit, ensuring bend radii do not exceed manufacturer limits to prevent internal conductor damage.
• Connector Engagement: Thread the ClickLoc coaxial connectors together by hand until an audible or tactile click confirms complete mechanical and electrical seating.
• Shield Continuity: Maintain continuous outer shield isolation from grounded metallic structures along the entire cable run to avoid ground loop current injection.

Advanced Engineering Inquiries

• Q: How does matching the characteristic impedance of the extension cable prevent signal reflections in vibration monitoring loops?

  A: A precise 75-ohm impedance match prevents high-frequency carrier signal reflections from distorting the radio frequency waveform generated by the proximitor sensor.

• Q: What is the primary electrical consequence of moisture or oil ingress inside the ClickLoc coaxial connectors?

  A: Contaminants introduce capacitive coupling and leakage paths that degrade the high-frequency carrier signal, leading to erroneous gap voltage readings and dynamic data distortion.

• Q: Can extension cables of differing length variants be spliced together to accommodate longer machine routing paths?

  A: No, total system length must strictly match the calibration design of the proximitor sensor, as altering capacitance changes the system scale factor.

• Q: How do extreme operating temperatures near +177 deg C impact the physical properties of the cable jacket?

  A: The FEP insulation maintains structural integrity and dielectric stability under high thermal stress, preventing jacket cracking or signal attenuation in harsh environments.

• Q: What occurs to the direct current gap voltage if the extension cable is accidentally pinched or short-circuited?

  A: A short-circuit collapses the proximitor output voltage to zero or rails it to negative supply limits, immediately triggering a transducer hardware fault alarm on the monitor.

• Q: Why is it critical to use non-conductive tape or protective boots over mating connectors in wet locations?

  A: Protective boots prevent galvanic corrosion and liquid bridging across the exposed metal shells of the coaxial connectors during operational washdowns.

• Q: How does maintaining proper physical separation from high-current motor cables protect dynamic vibration signals?

  A: Separation eliminates electromagnetic induction, preventing AC power frequency harmonics from superimposing noise onto the sensitive displacement telemetry.

• Q: What specific verification steps must be performed during initial commissioning of the extension cable assembly?

  A: Technicians must verify static gap voltage against mechanical zero position targets using a digital multimeter before clearing the machinery for rotation.
