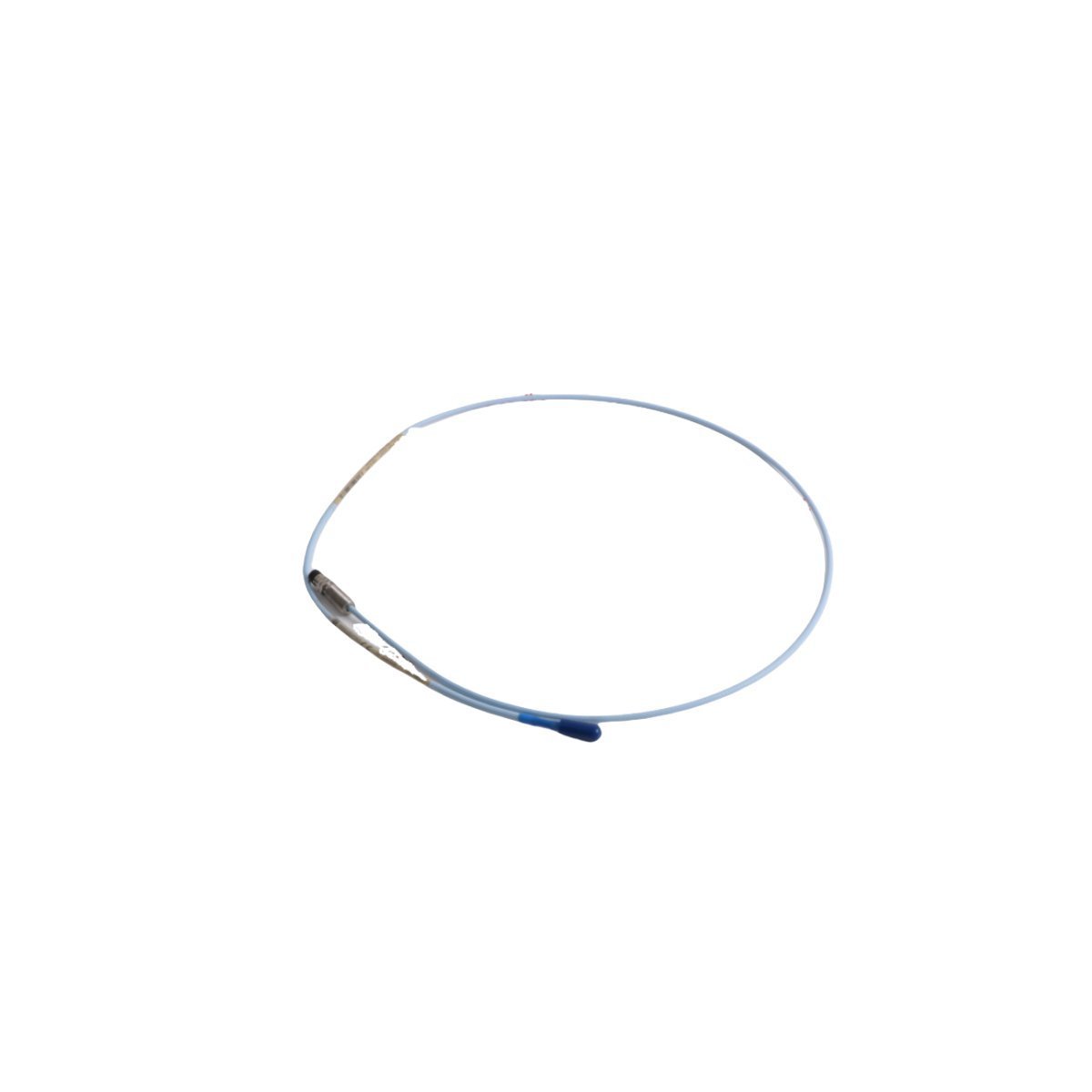

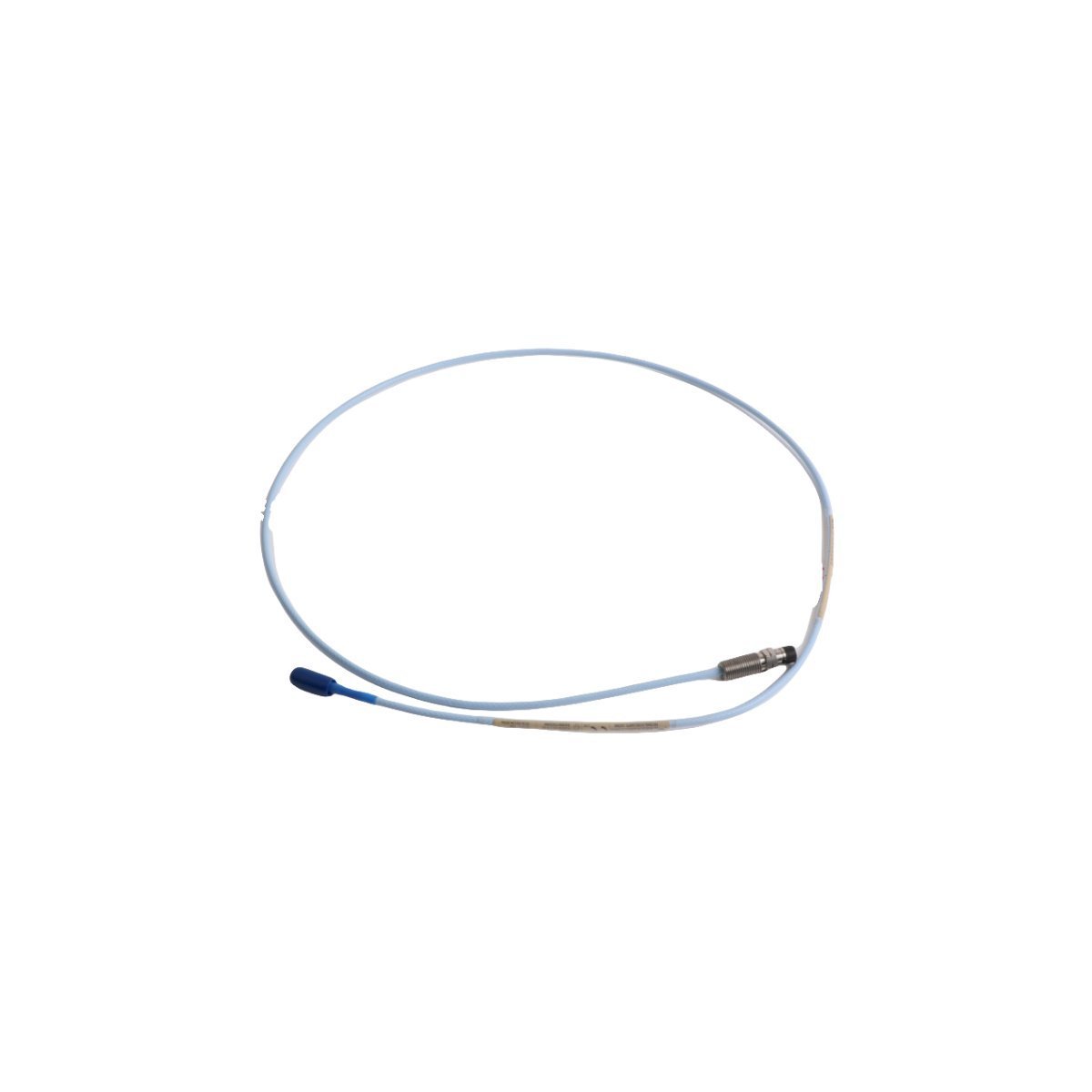

The Bently Nevada 330106-05-30-10-02-05, also cataloged as the 330106 Proximity probe, operates as a dedicated hardware component for non-contact shaft displacement detection within Bently Nevada 3300 XL monitoring networks. The probe assembly converts eddy-current field variation into proportional electrical output for rotor vibration, axial position, and mechanical runout measurement.

Ordering Code Reference

The ordering sequence 330106-05-30-10-02-05 identifies a factory-configured proximity probe assembly within the 3300 XL transducer family. The supplied configuration defines mechanical mounting style, probe system length, connector arrangement, and installation compatibility with associated extension cable and proximitor sensor components.

Electrical and Mechanical Specifications

Gap Voltage Validation and Cross-Talk Control

The 3300 XL probe system uses calibrated eddy-current scaling matched to the associated extension cable and proximitor assembly. Static gap voltage verification is commonly performed during commissioning to confirm correct target spacing within the linear operating range. Typical system setup targets approach -10 VDC during alignment validation procedures.

Cable routing separation between adjacent transducer channels reduces electromagnetic coupling and minimizes cross-talk effects. Parallel routing near motor feeder conductors, contactor wiring, or high-frequency inverter outputs should be avoided where possible.

Engineering Questions and Responses

Q: Can this probe operate without a matched extension cable?
A: No. The probe is calibrated as part of a complete transducer system including extension cable and proximitor sensor components.

Q: What target material is required for measurement stability?
A: Conductive metallic shaft surfaces compatible with eddy-current sensing are required for accurate signal generation.

Q: Does probe mounting pressure affect measurement output?
A: Excessive mechanical stress on the probe body or mounting threads can alter probe alignment and introduce signal instability.

Q: Is the probe directly powered from the monitor rack?
A: The probe itself is passive. Excitation and signal conditioning are supplied by the associated proximitor or monitor circuitry.

Q: What installation condition most commonly introduces signal noise?
A: Improper shield grounding and close cable proximity to high-current conductors are common sources of electrical interference.

Site Wiring and Installation Notes

Verify thread cleanliness and mounting rigidity before probe insertion into the machine casing. Probe tip alignment should remain concentric with the monitored shaft surface throughout the machine operating range.

Maintain minimum bending stress on the coaxial cable near connector transitions. Cable clamps should support the assembly without compressing the cable jacket.

Ground cable shielding according to the transducer system grounding architecture. Multi-point grounding practices can create low-frequency interference currents in vibration channels.

After installation, verify stable gap voltage before machine startup and confirm signal response during slow-roll shaft rotation.

Ordering Information

(1) Shipment includes configured proximity probe assembly with factory-installed cable section.

(2) Extension cables and proximitor sensors may require separate ordering depending on transducer system architecture.

(3) Mounting brackets, thread adapters, and conduit fittings are not always supplied with replacement probes.

(4) Confirm compatibility with existing 3300 XL transducer calibration lengths before field installation.

Shipping and Handling Details

Delivery time: 3-5 days when payment finish. International shipment available through DHL, FedEx, and UPS carrier services.

All units are packed using anti-static industrial packaging with reinforced impact insulation and moisture-protected transit handling materials for electrical instrumentation transport.
