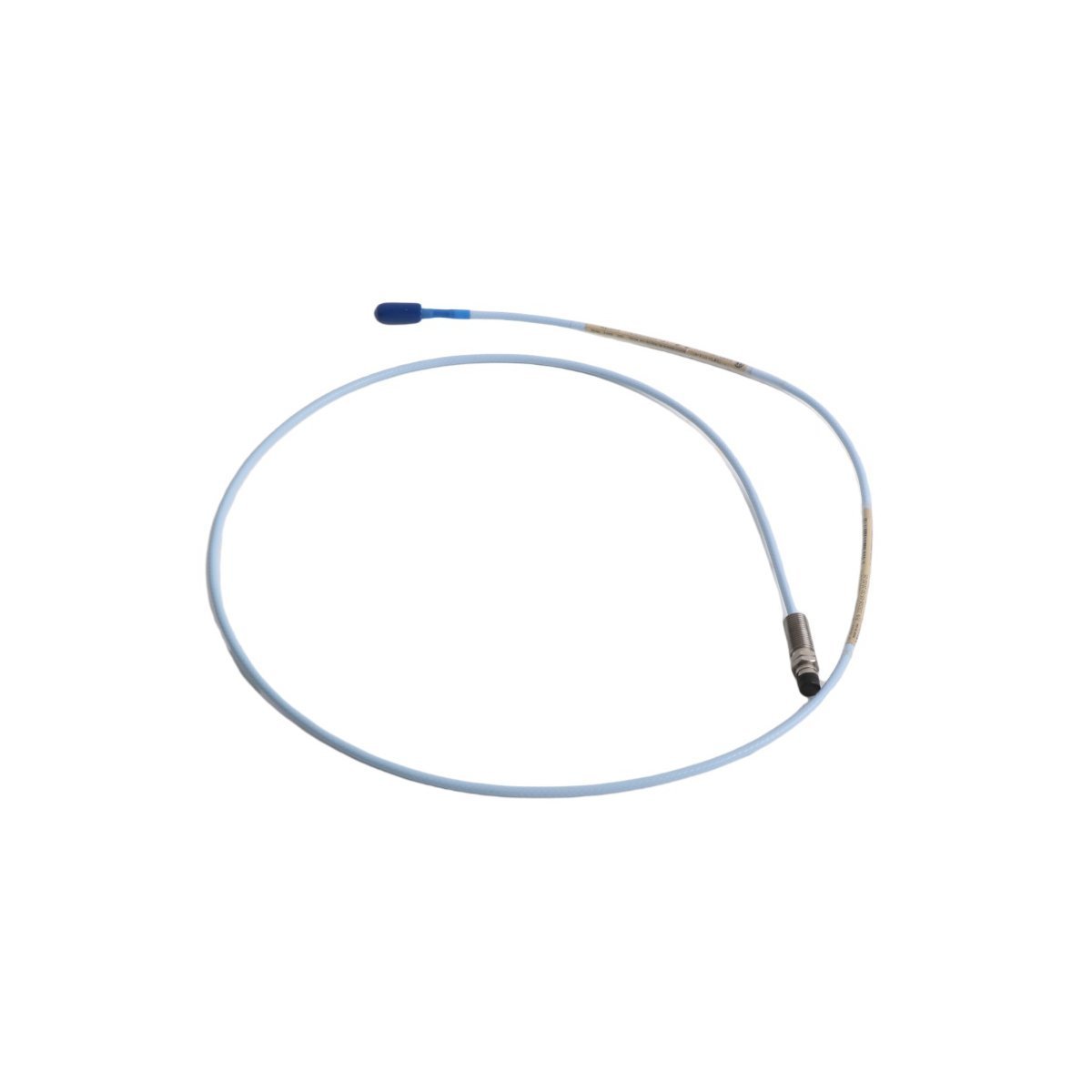

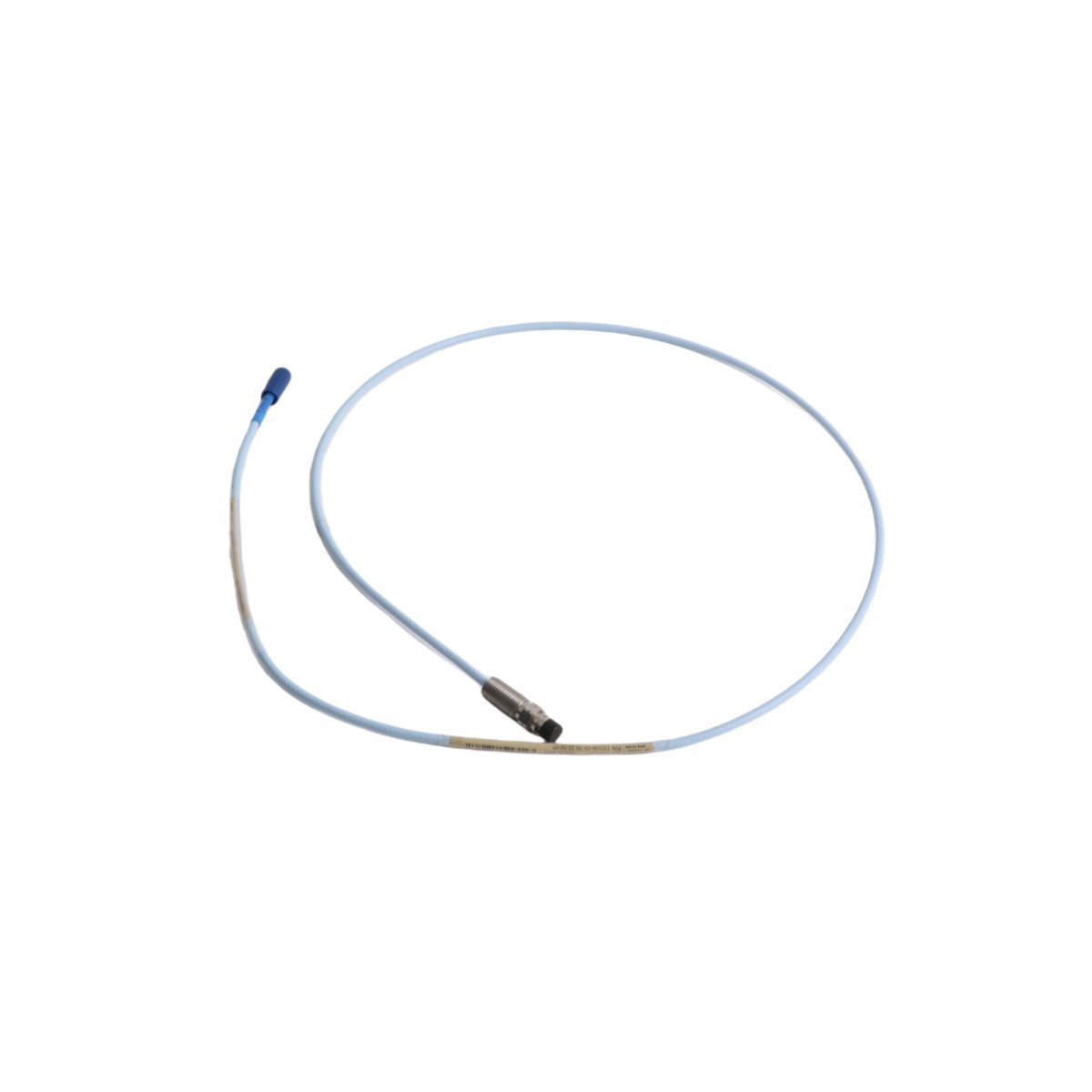

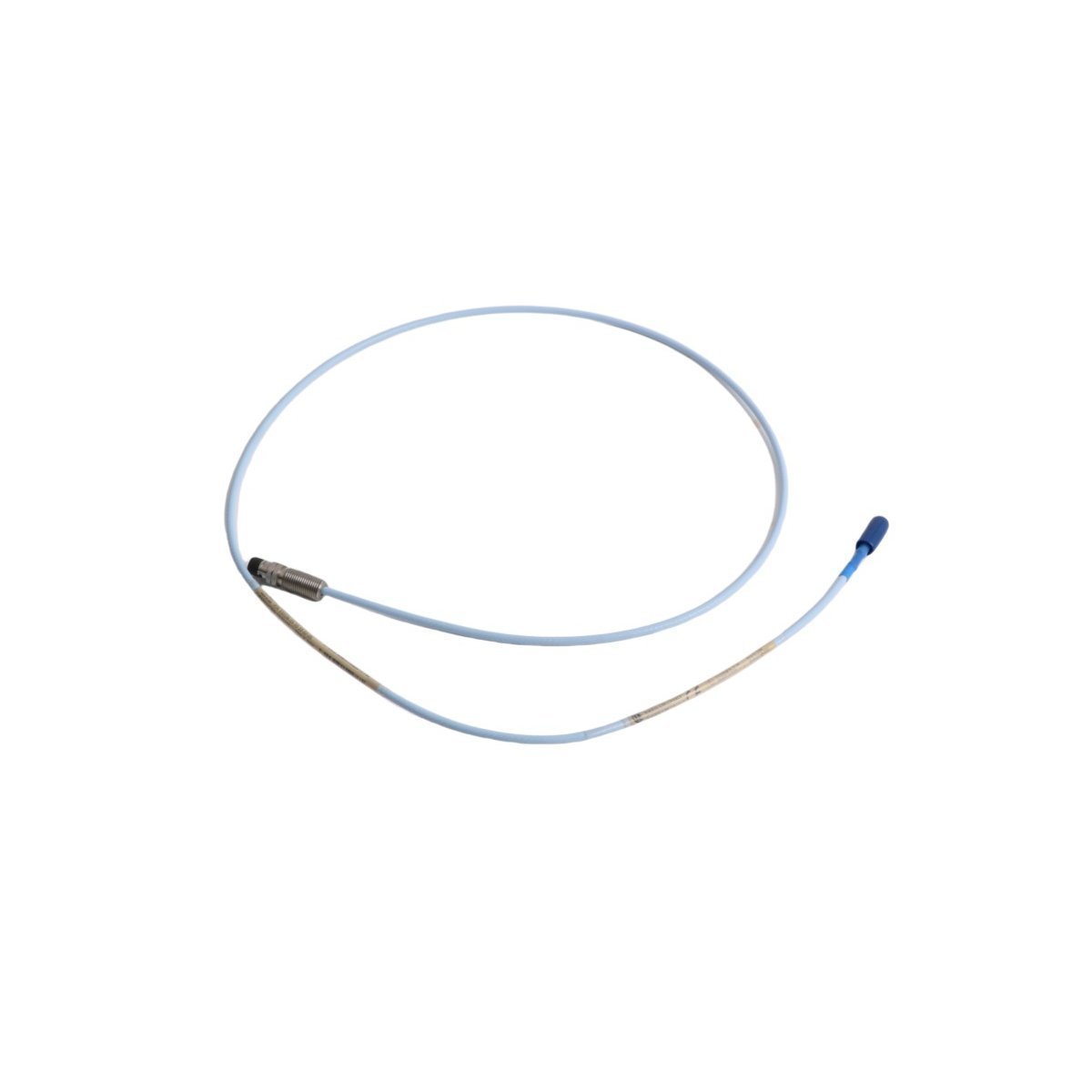

The Bently Nevada 330106-05-30-10-00, also cataloged as the 330106 Reverse Mount Probe, operates as a dedicated hardware component for non-contacting vibration and displacement measurements within 3300 XL Transducer Systems. This hardware variant is configured to thread from the rear side of a mounting bracket or housing sleeve, transforming eddy-current variations into electrical potential changes. It executes high-resolution shaft position monitoring by interacting directly with rotating elements without introducing mechanical wear.

Option Code Parameterization Matrix

The alphanumeric sequence defines specific mechanical dimensions, cable lengths, and testing protocols for the probe hardware:

• Total Length Option (-05): 0.5 m (1.6 ft) integrated cable length.

• Connector Option (-30): Miniature coaxial ClickLoc connector, includes silicone connector protector.

• Agency Approval Option (-10): Multi-agency hazardous area certifications (ATEX, IECEx, CSA).

• Testing Option (-00): Standard factory calibration and verification procedures.

Physical and Performance Parameters

Rotor Dynamics and Gap Voltage Validation

The mechanical loop integrity depends on accurate eddy-current probe scaling to track microscopic deviations across the machine shaft. When integrating this reverse mount assembly into high-speed rotor dynamics monitoring architectures, field calibration mandates a gap voltage validation. Technicians must physically position the assembly inside the reverse sleeve until the matched 3300 XL Proximitor outputs a steady -10 VDC targets baseline. This mechanical calibration maximizes linearity and ensures that adjacent sensors operate with sufficient cross-talk suppression to block signal overlap.

Package Manifest and Ordering Details

The ordered shipping package contains the following specific hardware items:

• 1 x Bently Nevada 330106-05-30-10-00 reverse mount probe.

• 1 x Pre-installed silicone ClickLoc connector protector.

• 1 x Hazardous location installation compliance manifest.

Structural Installation Matrix

• Secure the reverse mount threaded body inside the adapter sleeve using a torque limit of 4.5 N-m (40 in-lb) to avoid stripping the 3/8-24 threads.

• Maintain a minimum 9.5 mm boundary clearance between the unshielded tip and nearby structural casing metal to avoid side-loading distortion.

• Ensure a standard mechanical engagement depth of at least 5 full threads inside the housing bracket to guarantee pressure-tight sealing.

• Run the FEP coaxial cable through dedicated rigid conduit paths to establish a robust environmental and electromagnetic shield matrix.

Logistics Framework and Delivery

• Dispatch Interval: 2-7 days when payment finish.

• Freight Channels: Delivered worldwide via premier air carriers including DHL, FEDEX, or UPS.

• Outer Package: Encased inside specialized anti-static industrial packaging optimized for dynamic drop and shock mitigation.

Mechanical Engineering FAQ

• How does an improper gap voltage profile alter vibration tracking accuracy? Operating outside the verified -9 VDC to -11 VDC target window moves the transducer away from its optimized linear range, causing signal clipping during severe peak-to-peak shaft excursions.

• Is this reverse mount analog probe hot-swappable while the system is energized? Yes, because the assembly contains no active microprocessors or firmware layers, it supports hot-swap replacement without risking electrical surge faults in the driving monitoring loop.

• What is the consequence of exceeding the minimum cable bend radius during routing? Bending the coaxial lead tighter than a 25.4 mm radius introduces microstructural stress that degrades the 75 ohm characteristic impedance and introduces high-frequency anomalies.

• How does target metallurgy influence the default eddy-current probe scaling? The system is calibrated for AISI 4140 steel; deploying other target metals shifts the magnetic permeability profile, requiring a recalibration of the linear scale factor.

• What steps must be implemented to shield the ClickLoc joint from lubrication oil? Field engineers must slide the pre-installed silicone protector sleeve over the mated junction or wrap the union with self-fusing insulation tape.

• What occurs if two probe tips are mounted too close together on the same bearing? Spacing the tips below 30 mm causes high-frequency magnetic field coupling, generating false beat notes that corrupt the rotor dynamics analysis.

• How does extreme thermal exposure affect the incremental scale factor? Internal analog balancing keeps scale factor drift below 5% across the entire -51 deg C to +177 deg C operating envelope, maintaining measurement reliability.

• How can a technician check if the internal induction coil is open or shorted? Using a digital multimeter, measure the loop resistance between the center pin and outer shield of the connector to confirm it matches factory design bounds.
