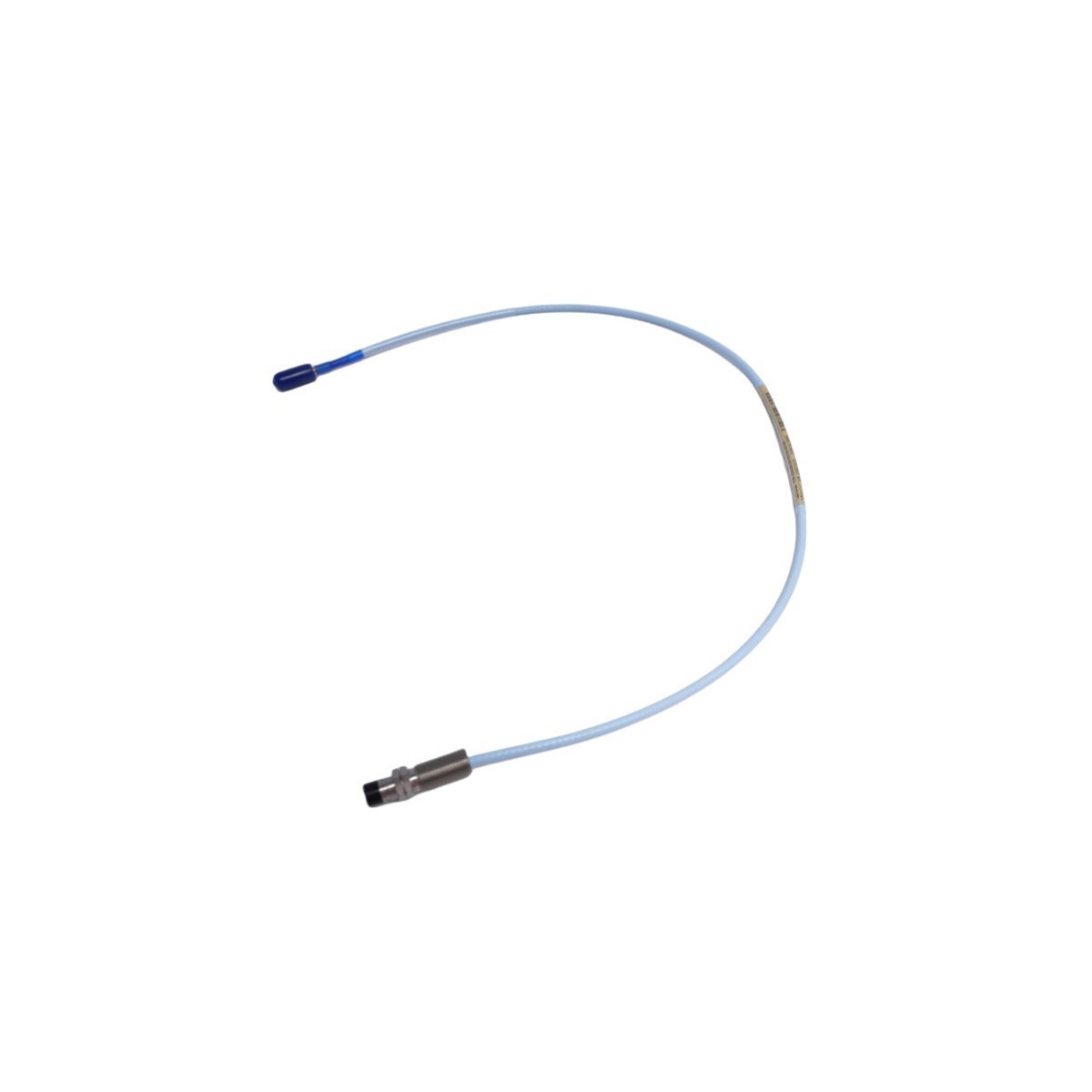

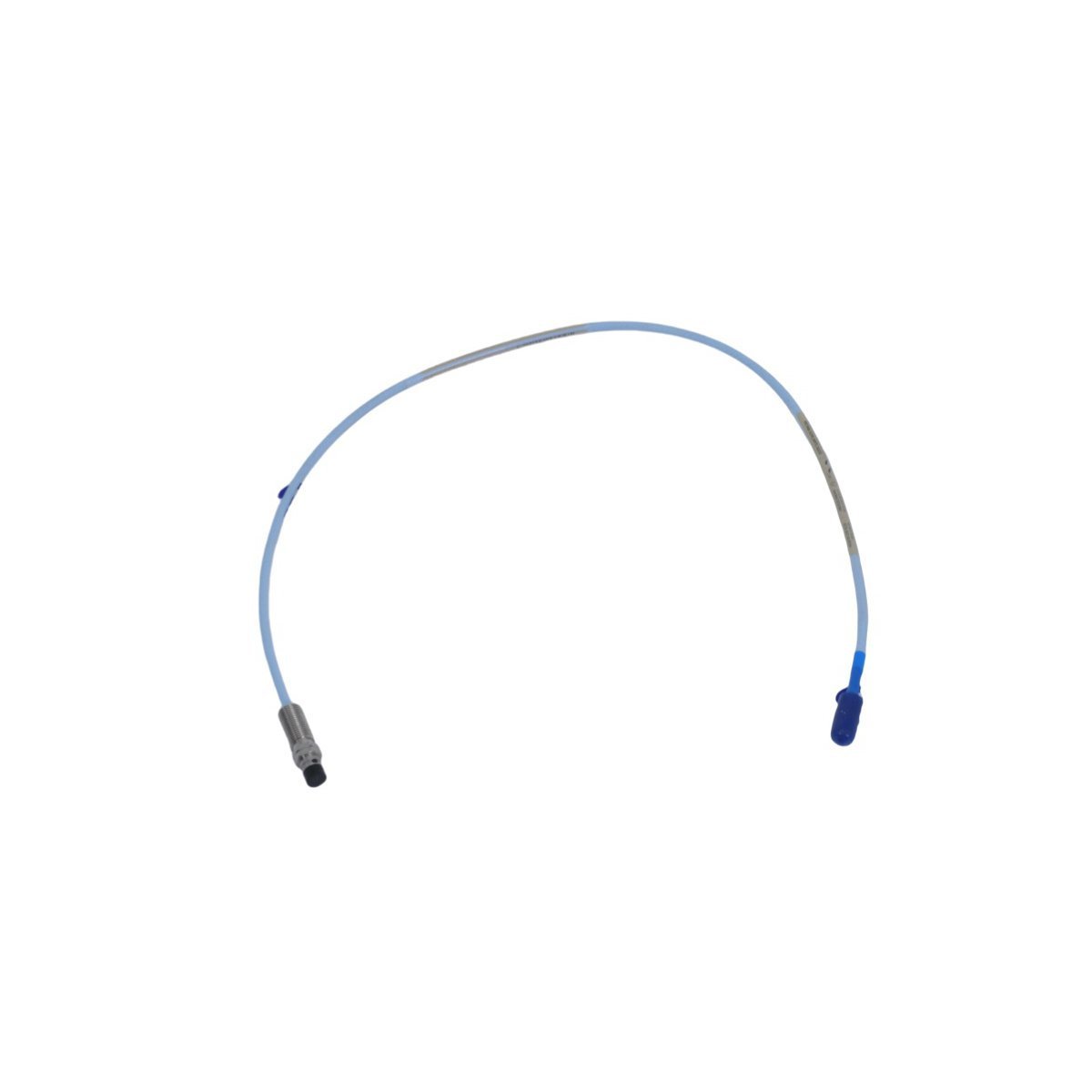

The Bently Nevada 330106-05-30-05-00-00 serves as the primary 330106 Reverse Mount Probe utilized to execute non-contact shaft vibration and position measurement across 3300 XL monitoring platforms. The probe assembly operates through eddy-current sensing principles and interfaces directly with calibrated extension cable and Proximitor components to maintain linear displacement signal transmission.

Model Configuration Reference

The supplied ordering code identifies a factory-configured reverse mount probe assembly within the 3300 XL 8 mm transducer product line. No official field suffix matrix was provided with the source material.

Electrical and Mechanical Data

Gap Voltage Verification Characteristics

3300 XL reverse mount probes operate with calibrated gap voltage response referenced through the associated Proximitor sensor. During commissioning, static target positioning is commonly adjusted toward approximately -10 VDC gap voltage to maintain linear operating range for shaft displacement monitoring.

Probe target material composition and surface finish directly influence eddy-current response stability. Excessive conductive debris accumulation near the probe tip can alter baseline voltage conditions and measurement repeatability.

Engineering Service Questions

Q: Can the probe assembly be installed without the matched extension cable?
A: System calibration depends on the complete probe, extension cable, and Proximitor combination specified for the transducer assembly.

Q: Does reverse mounting affect polarity or scaling?
A: Mounting orientation changes physical installation geometry only. Electrical scaling remains dependent on calibrated transducer components.

Q: Is direct field splicing permitted on the probe cable?
A: Cable splicing changes impedance characteristics and is not recommended for calibrated eddy-current systems.

Q: Can the probe be routed near motor power conductors?
A: Separation from high-energy conductors is recommended to reduce induced electrical interference.

Q: Does the probe require external excitation power?
A: Excitation is supplied through the compatible Proximitor sensor assembly.

Site Wiring and Installation Practices

Install the reverse mount probe with sufficient mechanical clearance to prevent contact between the probe tip and rotating shaft surfaces during transient machine movement.

Maintain shield continuity throughout the transducer routing path. Avoid parallel cable routing alongside variable-frequency drive output conductors or switching cabinet busbars.

Connector threads should be secured evenly to prevent vibration-induced loosening. Excessive cable bending near the probe body should be avoided to reduce mechanical stress on the coaxial conductor assembly.

Ordering Information

(1) Shipment includes one configured 3300 XL reverse mount probe assembly.
(2) Extension cables and Proximitor sensors are supplied separately unless specified.
(3) Protective packaging includes anti-static shielding and connector protection.
(4) Optional mounting accessories depend on machine installation geometry.

Transit and Packaging Details

Standard processing time: 3-5 days after payment completion. International shipment available through DHL, FedEx, or UPS carrier services.

The probe assembly is packed using anti-static industrial packaging materials with reinforced connector isolation and vibration-resistant carton protection for export handling conditions.
