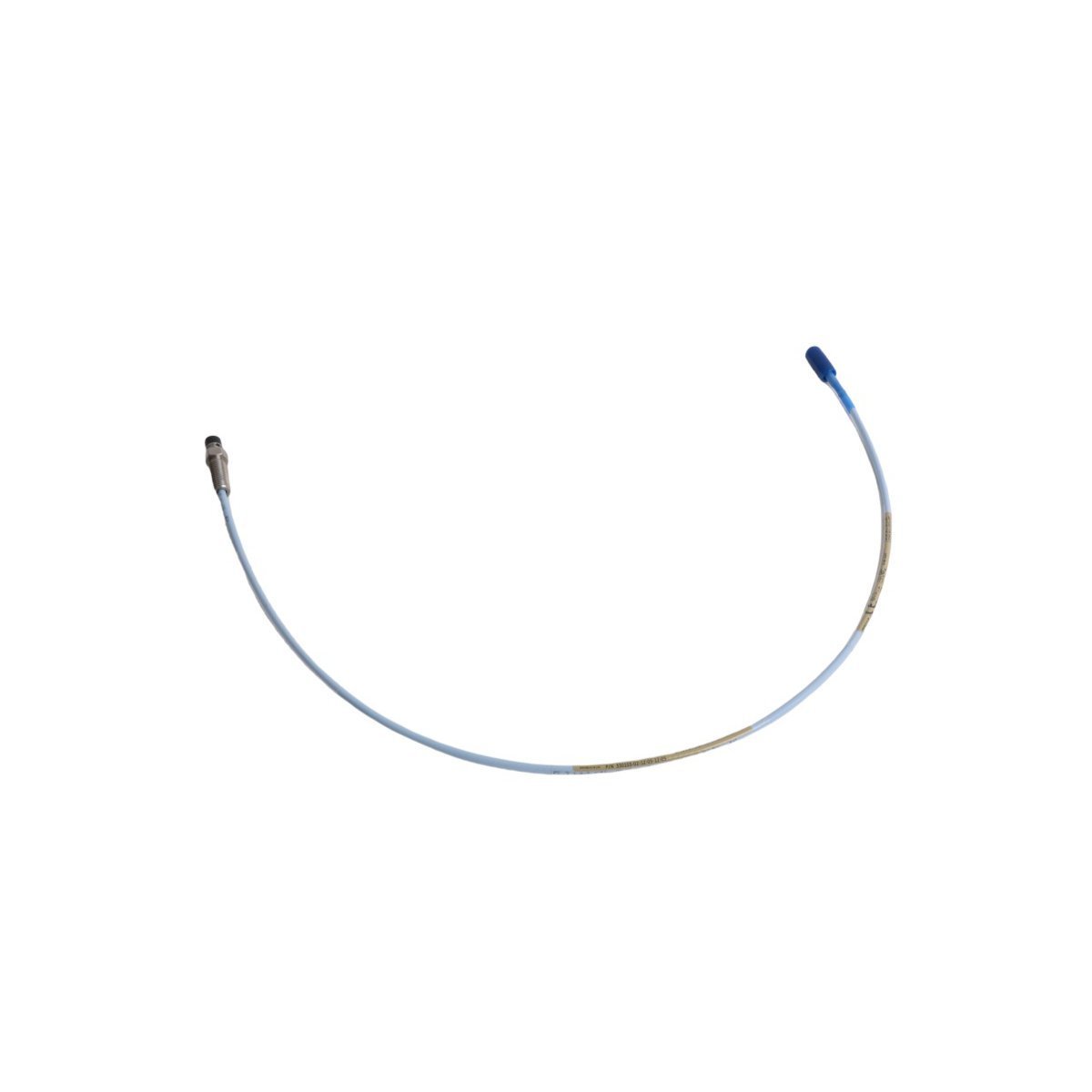

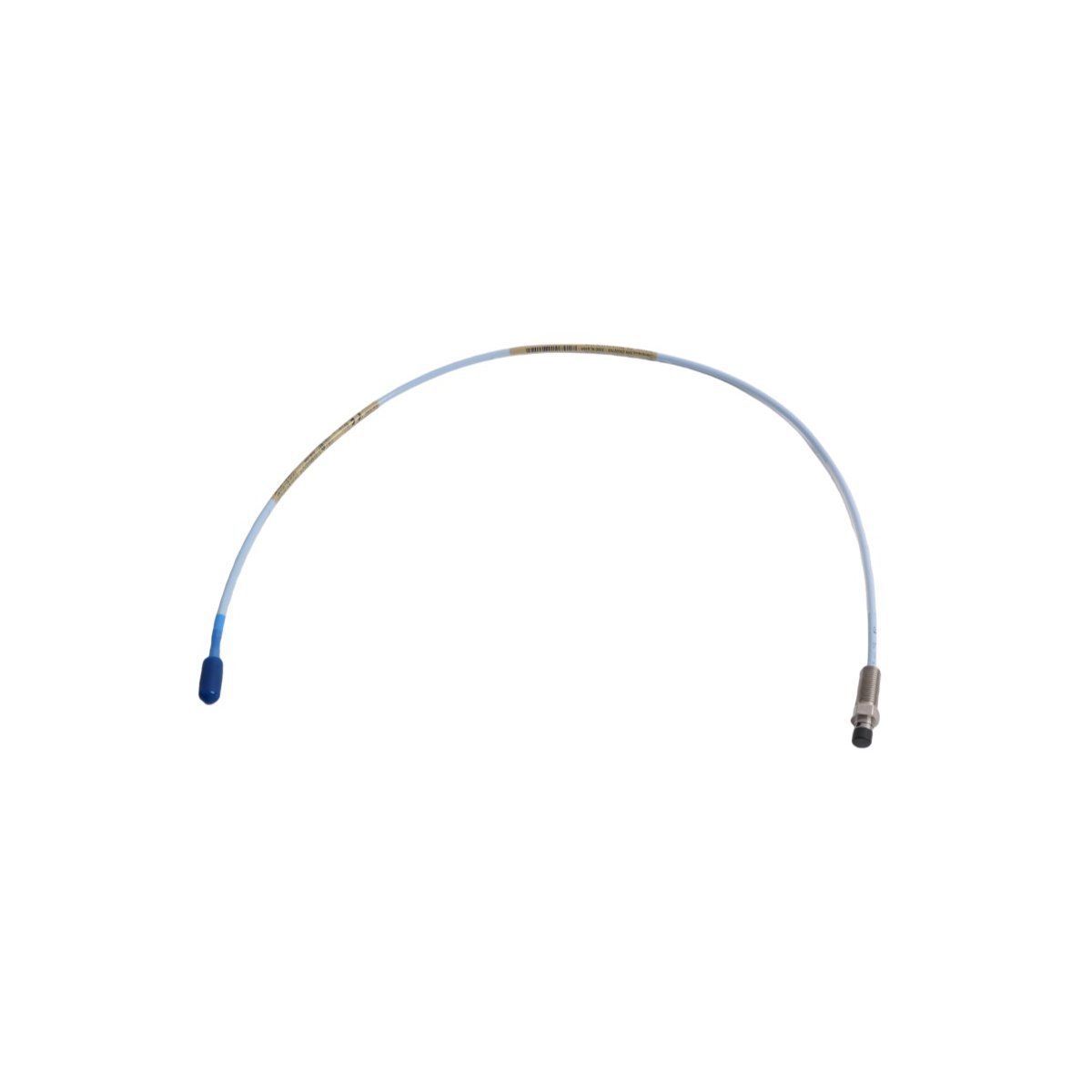

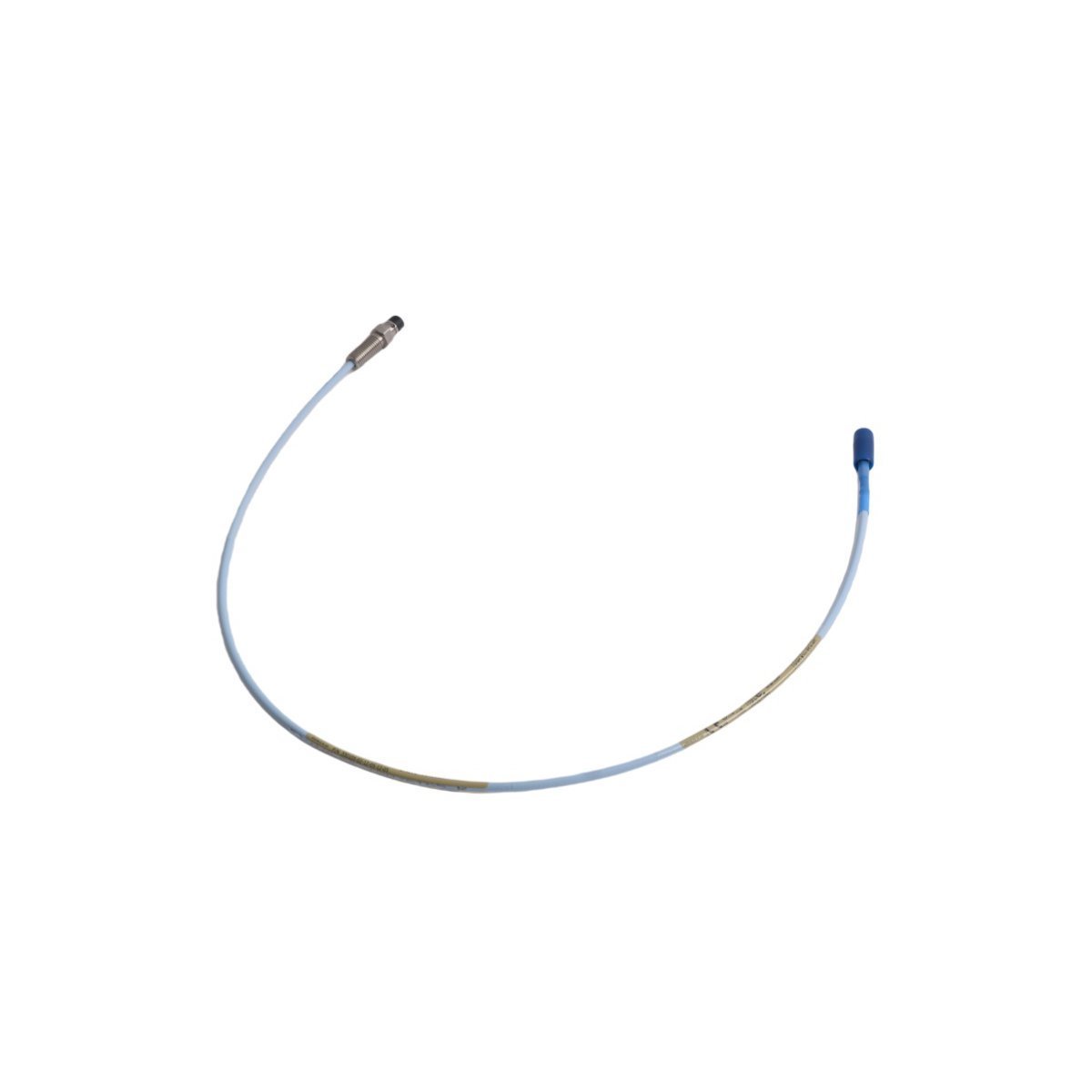

Configured for non-contacting static and dynamic shaft displacement measurements in 3300 XL Turbomachinery Instrumentation System platforms, the Bently Nevada 330105-02-12-05-12-05 (330105 Reverse Mount Probes) provides direct physical/electrical execution. The component interacts via high-frequency eddy-current fields generated by the reverse-mount tip geometry facing a rotating conductive target to output raw radial vibration, axial position, or speed metrics.

Suffix Nomenclature Matrix

• 02-12: 3/8-24 UNF threads mechanization housing option

• 05: 0.5 meter (20 inches) total integrated cable length

• 12: Miniature coaxial ClickLoc connector with fluid-resistant protective armor

• 05: Multiple Agency Approvals certification option (ATEX, IECEx, CSA)

Transducer System Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Tracking

The 8 mm reverse-mount sensing tip relies on strict compliance with factory-calibrated eddy-current probe scaling constraints to output a linear voltage slope of 7.87 V/mm. Mechanical positioning of the housing assembly defines the static air gap relative to the target surface, matching the gap voltage validation target of -10 VDC at the linear center point of the transducer system loop. This physical-to-electrical alignment enables continuous parsing of microscopic high-frequency rotor dynamics. Internal impedance optimization across the armored coaxial path preserves signal integrity and ensures cross-talk suppression when multiple probes are configured in close physical proximity along a single machinery bearing casing.

Ordering Package Composition

• One (1) integrated Bently Nevada 330105 8 mm reverse mount probe with 0.5-meter armored cable.

• One (1) fluorocarbon heat-shrink sleeve kit for external coaxial terminal insulation.

• Excludes standalone 3300 XL Proximitor sensors, external extension cables, and dedicated rigid mounting brackets.

Logistics Dispatch Standards

• Processing Window: Dispatches are finalized within 2-7 days when payment finish verification is cleared.

• Carrier Methods: Consignments route through premium priority lines including DHL, FEDEX, or UPS.

• Defect Prevention Packaging: All hardware travels enclosed within high-density anti-static industrial packaging to negate latent electrostatic or physical breakdown risk.

Field Installation Guidelines

• Reverse Mount Torquing Constraints: Thread the reverse mount sleeve housing manually into the mounting bracket or port. Torque the primary sleeve lock fasteners to a maximum limit of 11.2 N-m (100 in-lb) to prevent structural binding or thread distortion of the 3/8-24 UNF interfaces.

• Transducer Gap Optimization: Interconnect a digital voltmeter to the corresponding Proximitor output terminal block. Rotate the probe body inside the housing until the real-time gap voltage validation records -10 VDC nominal before tightening the outer locking rings.

• Coaxial Joint Shield Isolation: Prior to final insertion into protective conduit sleeves, wrap all miniature ClickLoc connection nodes with the provided fluorocarbon heat-shrink insulation. This isolates the coaxial signal path from local ground potentials and sustains cross-talk suppression integrity.

Frequently Asked Questions

Q: How does a field deviation from the nominal gap voltage validation affect target measurement accuracy?

A: Installing the probe face outside the calibrated linear window modifies the configured eddy-current probe scaling profile. This leads to early signal saturation or clipping during transient peaks, preventing accurate evaluation of complex rotor dynamics.

Q: Can the 0.5-meter armored integrated cable be cut or modified in the field to match short conduit runs?

A: No. Modifying the integrated cable changes the calibrated electrical length and loop capacitance properties. Splicing disrupts the calibrated eddy-current probe scaling, rendering the transducer loop output invalid.

Q: What separation distance must be maintained to achieve effective cross-talk suppression with the 3300 XL sensor?

A: Maintain a minimum center-to-center separation distance of 40 mm between adjacent 8 mm probe tips. Positioning tips closer than this threshold allows their electromagnetic fields to overlap, causing signal beat frequencies that override cross-talk suppression circuits.
