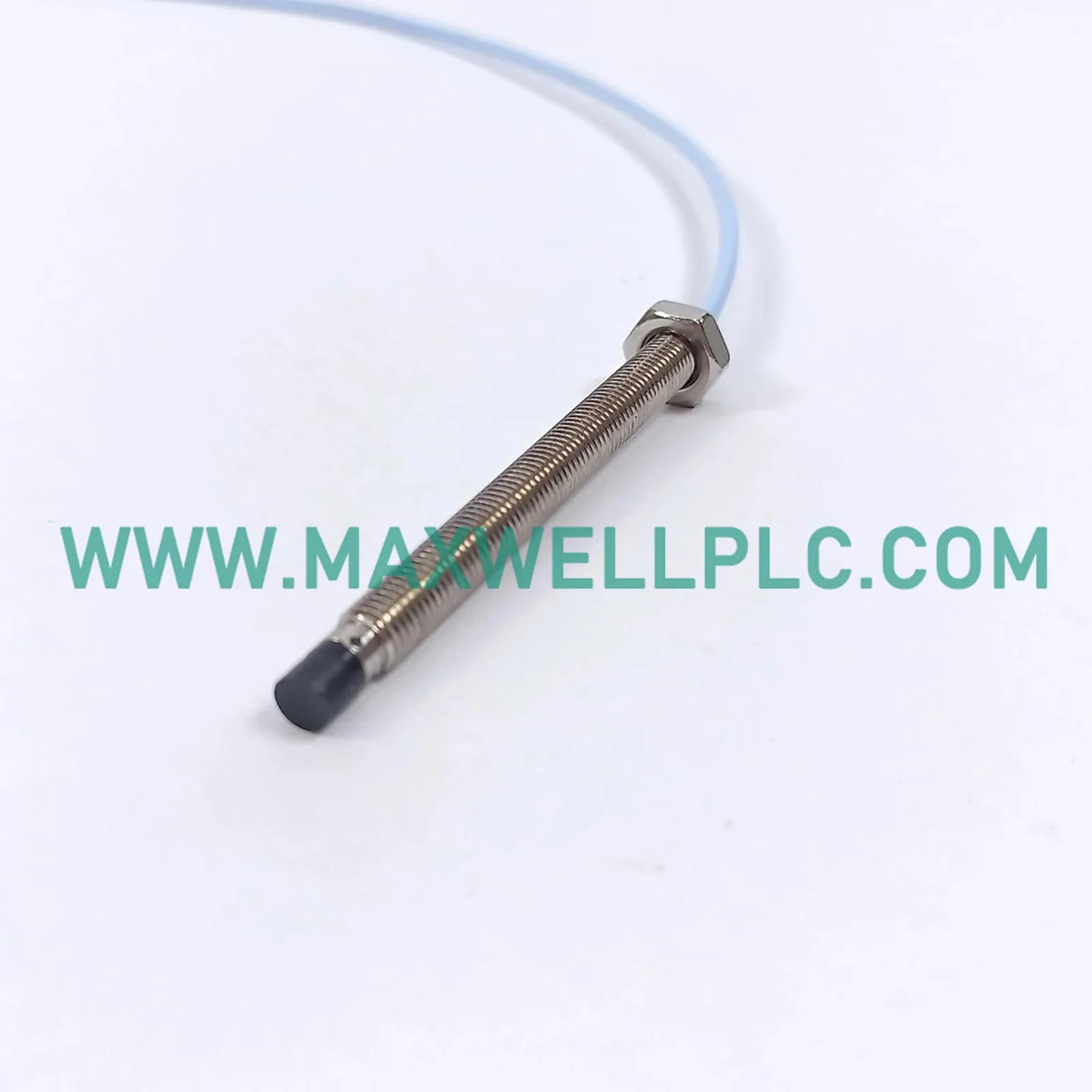

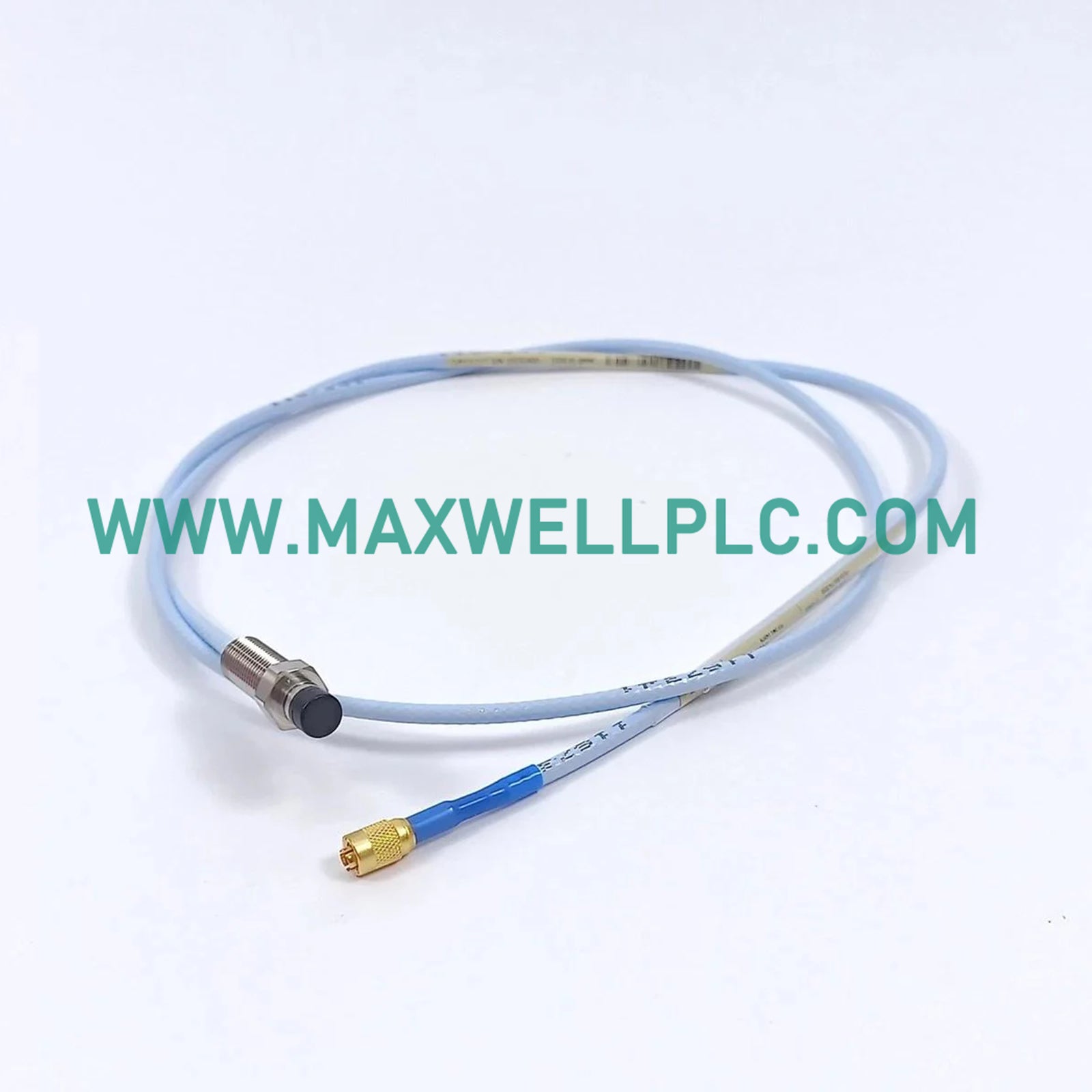

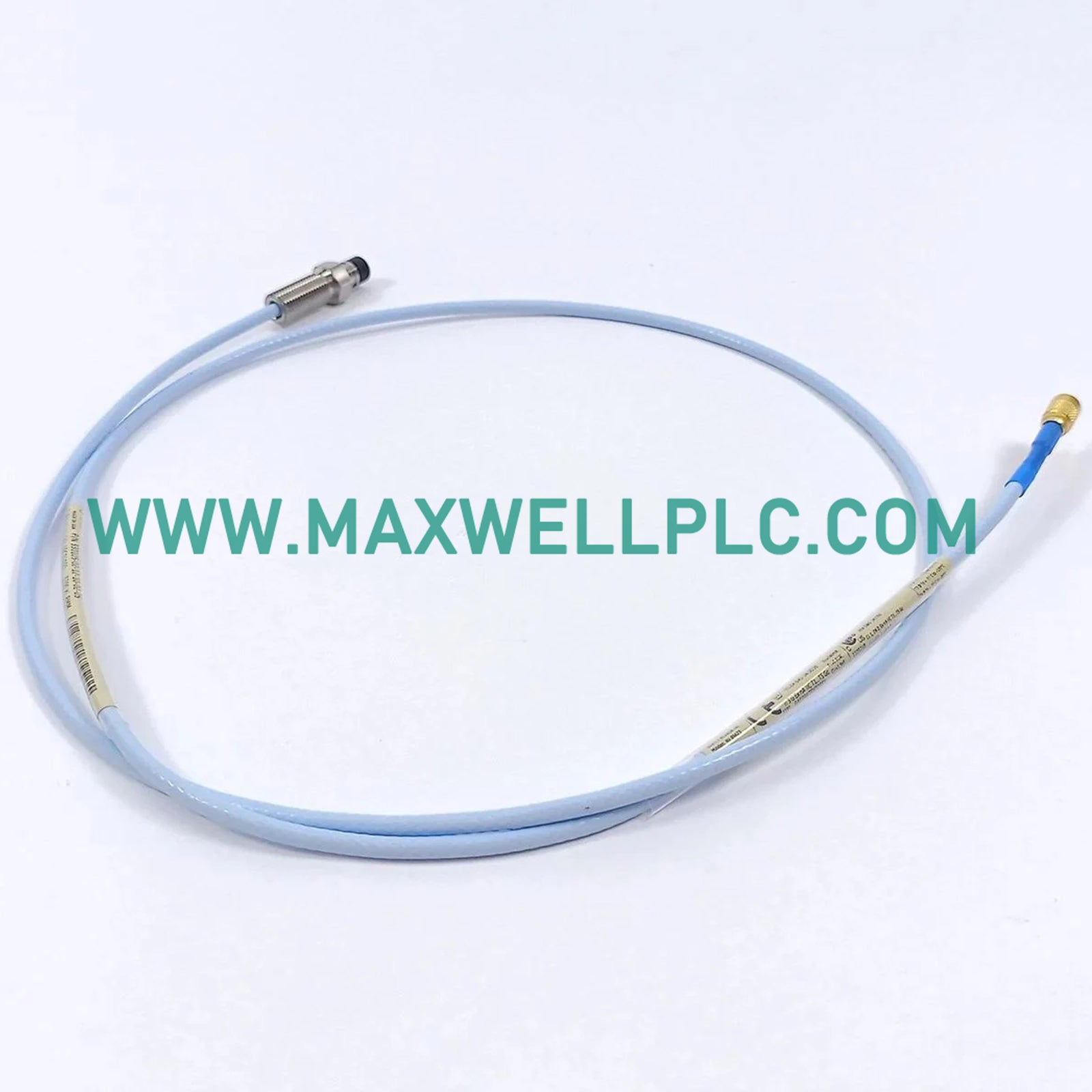

The Bently Nevada 330104-08-12-10-02-00 serves as the primary 330104 Proximity Probe utilized to execute non-contacting displacement measurement and vibration monitoring across 3300 XL Series platforms.

Suffix Breakdown & Model Matrix

• Base Model Number: 330104 (3300 XL 8 mm Proximity Probe Assembly)
• Thread and Armor Option (-08): M10 x 1 thread configuration with protective armor
• Unthreaded Length Option (-12): 80 mm minimum unthreaded length parameter
• Overall Case Length Option (-10): 120 mm minimum case length
• Total Length Option (-10): 1.0 meter (3.3 feet) integral cable length
• Connector and Cable Option (-02-00): Miniature coaxial ClickLoc connector standard cable with no additional agency approvals required

Hardware Specifications

Rotor Dynamics and Transducer Measurement Mechanics

• Eddy-Current Probe Scaling: High-frequency radio frequency circuitry excites the probe coil, generating a linear voltage output directly proportional to the air gap distance between the sensor tip and the conductive rotating shaft target.
• Gap Voltage Validation: Technicians must verify that the initial static operating point achieves exactly -10 VDC using a calibrated multimeter during mechanical alignment to guarantee full linear dynamic range.
• Cross-Talk Suppression: Spatial isolation and high-frequency modulation design prevent electromagnetic interference when multiple proximity probe assemblies are installed adjacently on shared machinery casings.
• Rotor Dynamics Monitoring: Translates mechanical shaft radial vibration, axial position displacement, and speed changes into high-fidelity electrical inputs for continuous machinery protection monitors.

Ordering Info

• 1 x 330104-08-12-10-02-00 3300 XL 8 mm Proximity Probe
• 1 x Matching Locknut and Sealing Washer Set

Field Installation Guidelines

• Thread Engagement: Secure the M10 x 1 threaded probe body into the machinery casing, ensuring correct thread engagement and torque to prevent operational loosening.
• Physical Gap Setting: Adjust the mechanical distance between the probe tip and the shaft surface to yield a 1.27 mm (50 mils) air gap, targeting a stable -10 VDC output.
• Cable Routing: Route the integral coaxial cable away from high-voltage motor leads and variable frequency drives, utilizing protective conduits where necessary.
• Grounding Compliance: Ensure shield continuity is maintained through the monitoring loop to prevent extraneous electromagnetic noise interference.

Frequently Asked Questions

• What is the total nominal weight of the 330104-08-12-10-02-00 probe?

  The unit weighs approximately 0.15 kg.

• What are the physical shipping package dimensions?

  The shipping container measures 1.7 x 1.5 x 116 cm.

• What thread size is specified for this probe case model?

  The probe features an M10 x 1 threaded case configuration.

• What unthreaded length does the -12 option provide?

  It provides an 80 mm minimum unthreaded length along the probe case.

• What overall case length is designated by the configuration?

  The case length is configured to 120 mm.

• What is the total length of the integral cable?

  The integral cable length is 1.0 meter (3.3 feet).

• What connector type is fitted on the probe lead?

  It features a miniature coaxial ClickLoc connector standard cable.

• What static gap voltage must be targeted during alignment?

  Installers must adjust the probe gap until the system registers a stable -10 VDC output.
