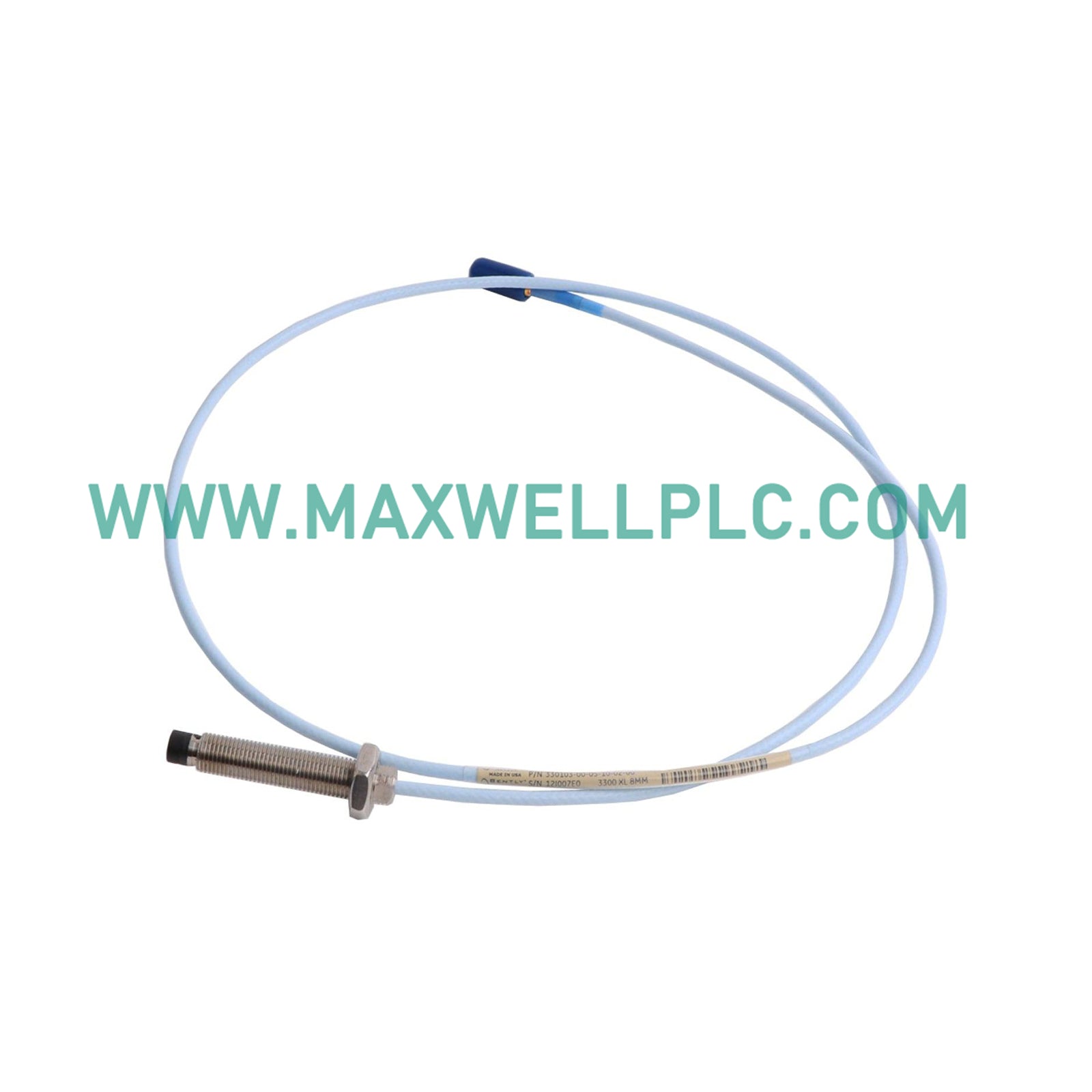

Configured for shaft vibration and position measurement within machinery monitoring frameworks, the Bently Nevada 330104-07-14-05-01-05 (330104-07-14-05-01-05 Proximity Probes) provides direct physical and electrical execution by transforming clearance variations into proportional voltage outputs.

Suffix Breakdown and Configuration Matrix

• 330104: 3300 XL 8 mm probe component model family
• 07: Unthreaded length option code for specific case extension profiles
• 14: Case length and mounting thread configuration option
• 05: Total system length option of 0.5 metres
• 01: Miniature coaxial connector option without armor
• 05: CSA, ATEX, and IECEx hazardous area agency approval option

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

• Eddy-current probe scaling translates mechanical shaft displacement relative to the probe tip directly into precise electrical signals.
• Proper system calibration requires gap voltage validation to ensure the static operating point achieves the -10 VDC target within the linear range.
• Rotor dynamics analysis depends on the high-frequency response of the probe configuration to track transient vibrations accurately.
• Cross-talk suppression properties prevent mutual signal interference when multiple sensing channels are installed closely on machine housings.

Ordering Information

• 1 x 330104-07-14-05-01-05 Proximity Probe
• 1 x Mounting Nut Assembly
• 1 x Insulating Sleeve

Mechanical Installation Guidelines

• Thread the probe securely into the designated machine casing port, ensuring proper engagement to prevent mechanical looseness.
• Route the integral coaxial cable carefully to avoid sharp bends that can compromise impedance and shielding integrity.
• Maintain recommended bend radii along the coaxial cable run to prevent internal conductor damage and impedance shifts.
• Terminate the signal shield exclusively at the monitoring instrumentation rack ground to eliminate disruptive ground loops.

Technical FAQ

• What is the nominal scale factor for this proximity transducer model?

  The incremental scale factor is calibrated to 7.87 V/mm across the standard linear measuring range.

• What operating temperature range does this probe model support?

  The probe withstands continuous environmental temperatures ranging from -35 deg C to +177 deg C.

• How should the static gap voltage be adjusted during initial setup?

  The gap voltage must be adjusted to -10 VDC using a digital multimeter connected to the Proximitor sensor output.

• Can the integral cable length be modified or shortened on-site?

  Field cutting or splicing alters electrical resonance and voids factory calibration accuracy.

• What thread profile does this specific probe body utilize?

  The unit incorporates a standard thread specification corresponding to its designated 3300 XL configuration matrix.

• Does this probe require an independent power source?

  No, it operates passively and receives excitation voltage through the connected Proximitor sensor unit.

• What is the linear measurement range of the 8 mm probe tip?

  The linear measurement span covers 2.0 mm centered symmetrically along the response curve.

• How is signal integrity preserved against external electromagnetic interference?

  An outer metallic shielding braid encases the high-frequency coaxial line against noise coupling.
