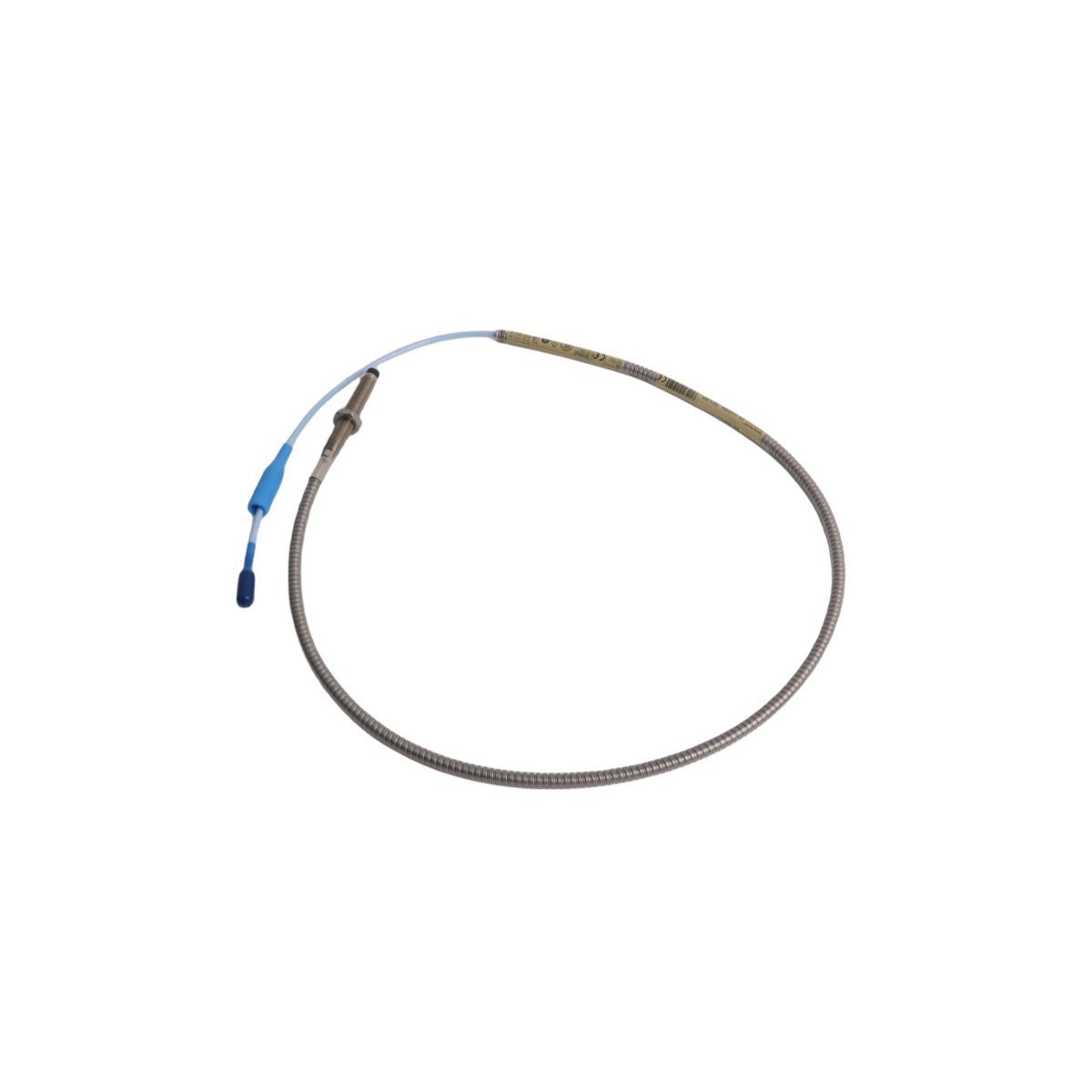

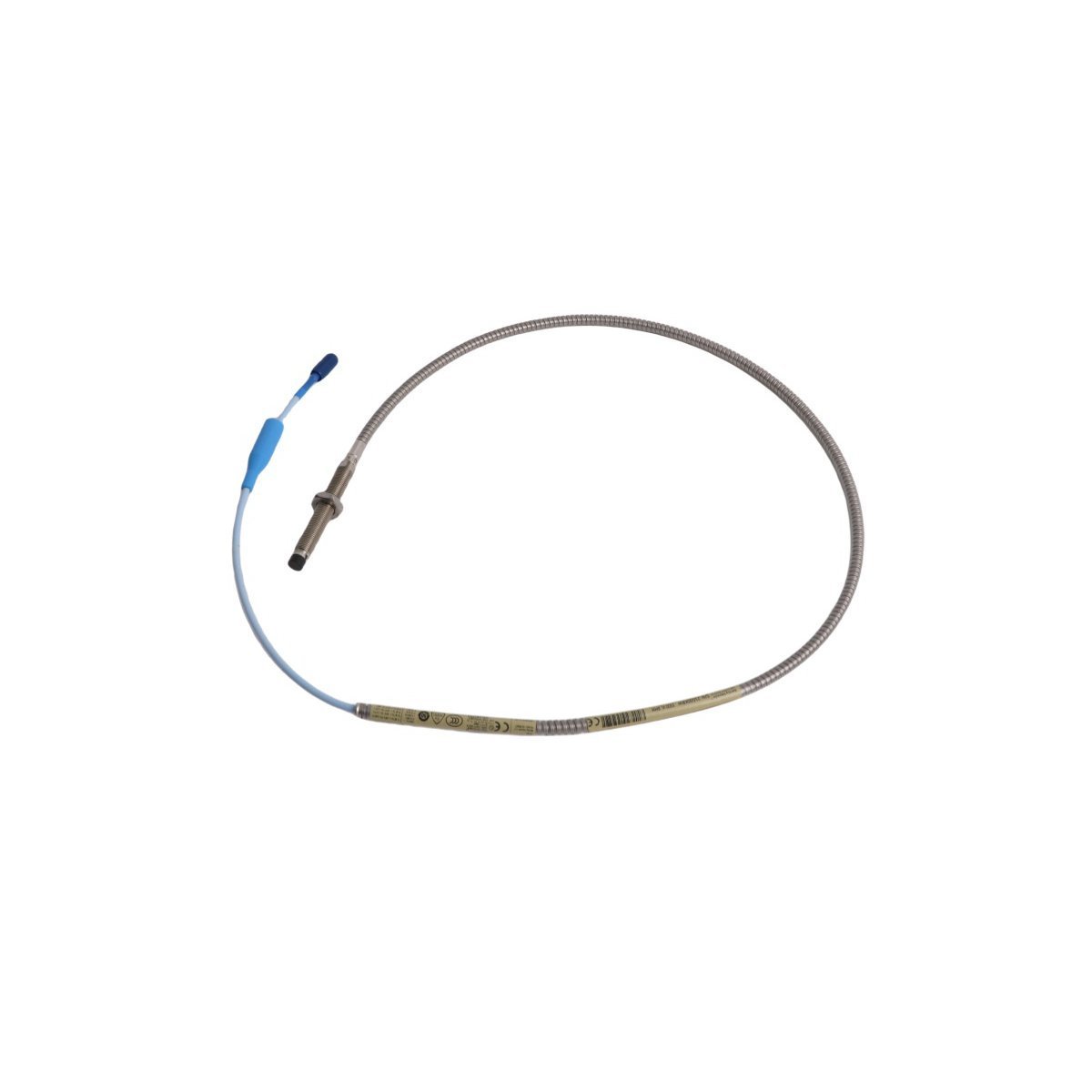

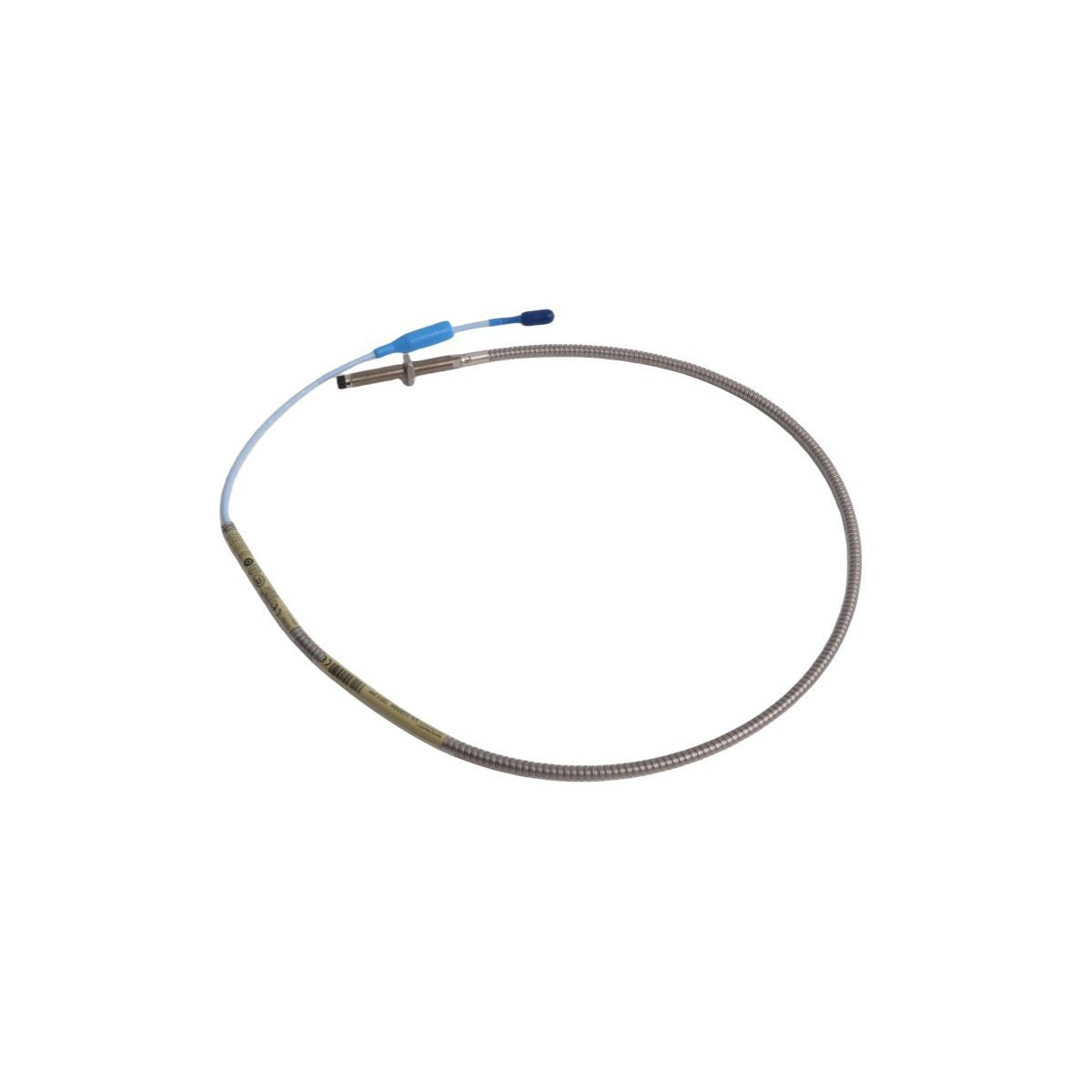

The Bently Nevada 330104-00-07-10-01-CN serves as the primary 330104 Proximity Probes utilized to execute non-contacting vibration and displacement measurements across 3300 XL 8 mm Transducer Systems platforms. The hardware system tracks dynamic gap changes between the 8 mm probe tip and the target rotating shaft. This mechanism converts physical proximity variances into proportional, linear high-frequency analog voltage output signals processed by specialized monitoring backplanes.

Hardware Configurator Coding

The alphanumeric suffix options define the exact mechanical footprint, dimensional properties, and regional standards compliance of the probe assembly:

• Unthreaded Length Option (-00): 0 mm unthreaded length configuration.

• Overall Case Length Option (-07): 70 mm overall threaded case length configuration.

• Total Length Option (-10): 1.0 m (3.3 ft) integrated cable length.

• Connector and Cable Option (-01): Miniature coaxial ClickLoc connector, standard cable type.

• Agency Approval Option (-CN): Compulsory Certification (CCC) approval matrix for hazardous area zoning.

Hardware Specifications

Rotor Dynamics and Eddy-Current Probe Scaling

The operation of this physical transducer depends on high-frequency eddy-current probe scaling to register exact surface proximity deviations. When integrating the hardware into dense rotor dynamics machinery layouts, technicians must complete a field gap voltage validation. Adjusting the mechanical insertion depth into the bearing block until the Proximitor loop registers a nominal -10 VDC targets reference baseline ensures proper operation within the linear region. This precise physical alignment minimizes signal degradation and maximizes cross-talk suppression between neighboring sensors.

Procurement Package Manifest

Each distinct hardware order comprises the following items:

• 1 x Bently Nevada 330104-00-07-10-01-CN proximity probe assembly.

• 2 x Hexagonal brass locknuts for threaded case mounting.

• 1 x Removable plastic connector protector sleeve over the ClickLoc interface.

• 1 x CCC certified hazardous location installation guide sheet.

Engineering Site Installation Guide

• Mount the M10 x 1 threaded probe barrel into the bracket, ensuring that the installation torque does not exceed 4.5 N-m (40 in-lb) to prevent structural casing distortion.

• Maintain a minimum physical clear radius of 15.0 mm around the exposed probe tip face to prevent side-loading interference from adjacent housing metals.

• Ensure a standard mechanical engagement depth of at least 5 full thread rotations when passing through fluid-retaining walls.

• Route the FEP jacketed coaxial cable inside dedicated, rigid or flexible conduit channels to prevent structural rubbing and to maintain continuous shielding matrix performance.

• Connect the extension cable shield directly to the designated Proximitor terminal block ground to neutralize industrial ground loops.

Logistics Packaging & Dispatch Framework

• Estimated Processing Window: 2-7 days when payment finish.

• Air Freight Logistics: Dispatched internationally via established DHL, FEDEX, or UPS carrier networks.

• Protective Configuration: Packed exclusively within anti-static industrial packaging featuring molded high-density foam cells to eliminate shipping shock hazards.

Product Engineering FAQ

• What defines an incorrect gap voltage reading during the verification procedure? A static reading outside the -9 VDC to -11 VDC target window indicates the probe tip is spaced improperly, forcing the output loop into non-linear saturation zones where dynamic vibration tracking clips.

• Is this passive proximity probe model hot-swappable while the machinery train is live? Yes, because the sensor contains no active digital processing microprocessors or volatile firmware code, it supports live hot-swapping inside the active Proximitor loop without causing hardware damage.

• What is the structural limit for bending the integrated coaxial probe cable? The 75 ohm FEP insulated coaxial cable requires a minimum physical bend radius of 25.4 mm (1.0 in); bending past this physical threshold risks crushing the shield matrix and changing circuit impedance.

• How does target material composition alter the factory calibration data? The internal eddy-current probe scaling is factory-calibrated to AISI 4140 steel; using alternative target alloys shifts the loop scale factor and requires an external calibration slope correction.

• What steps prevent fluid and oil contamination at the extension cable junction? Field installation requires utilizing the included connector protector sleeve or wrapping the ClickLoc union tightly with self-fusing silicone tape to block continuous oil mist ingress.

• What is the consequence of placing two probe tips too close together? Spacing probe tips closer than 30 mm causes high-frequency electromagnetic cross-talk, which generates false beat frequencies and phantom vibrations in the rotor dynamics monitoring system.

• Does this probe experience significant thermal drift at its maximum temperature limit? Thermal effects are minimal, as the internal analog compensation maintains scale factor accuracy within 5% across the entire -51 deg C to +177 deg C operational window.

• How do you verify the electrical continuity of the probe before final field setup? Technicians measure the center-conductor-to-shield resistance using a digital multimeter to verify the expected low DC loop resistance of the internal inductive coil.
