Product Overview

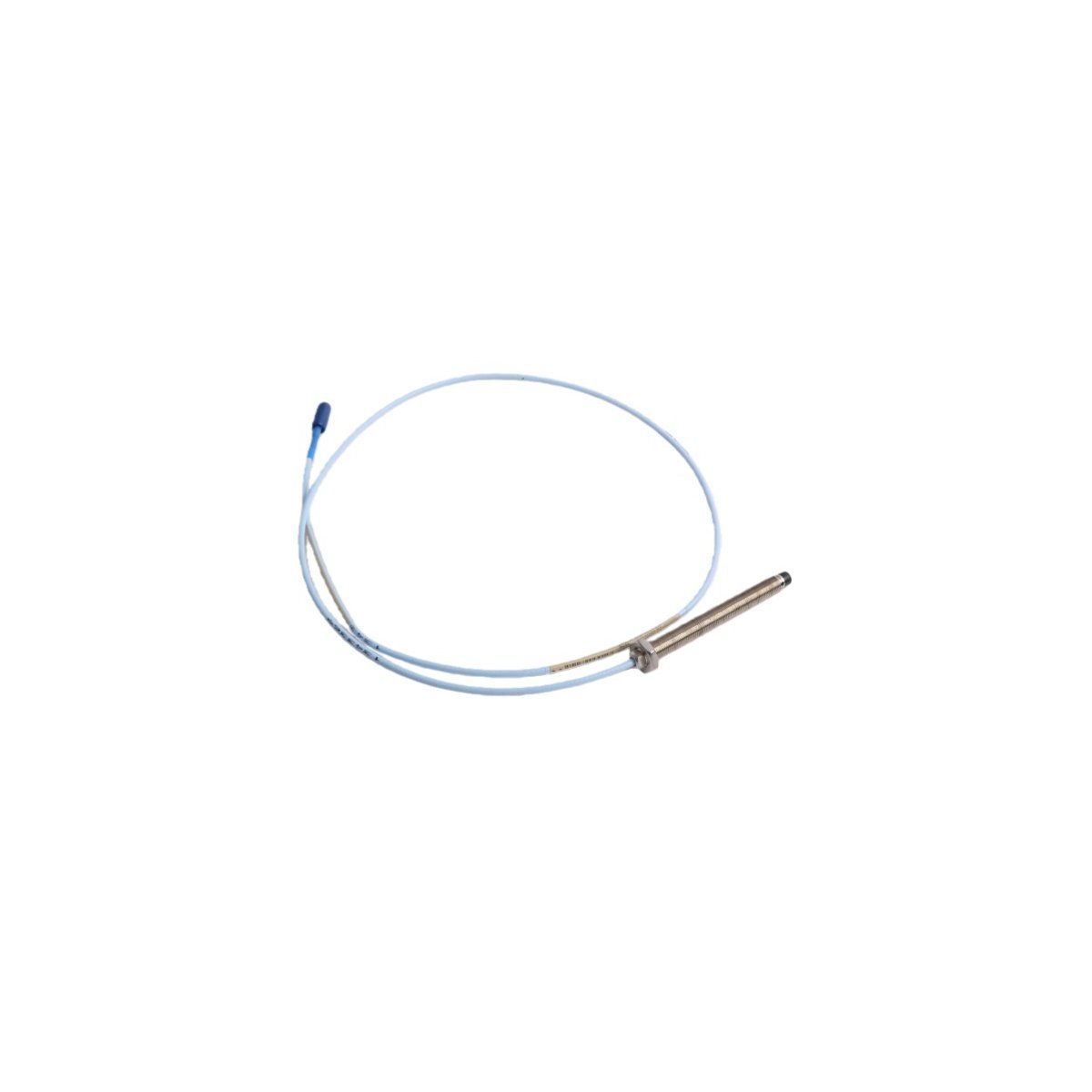

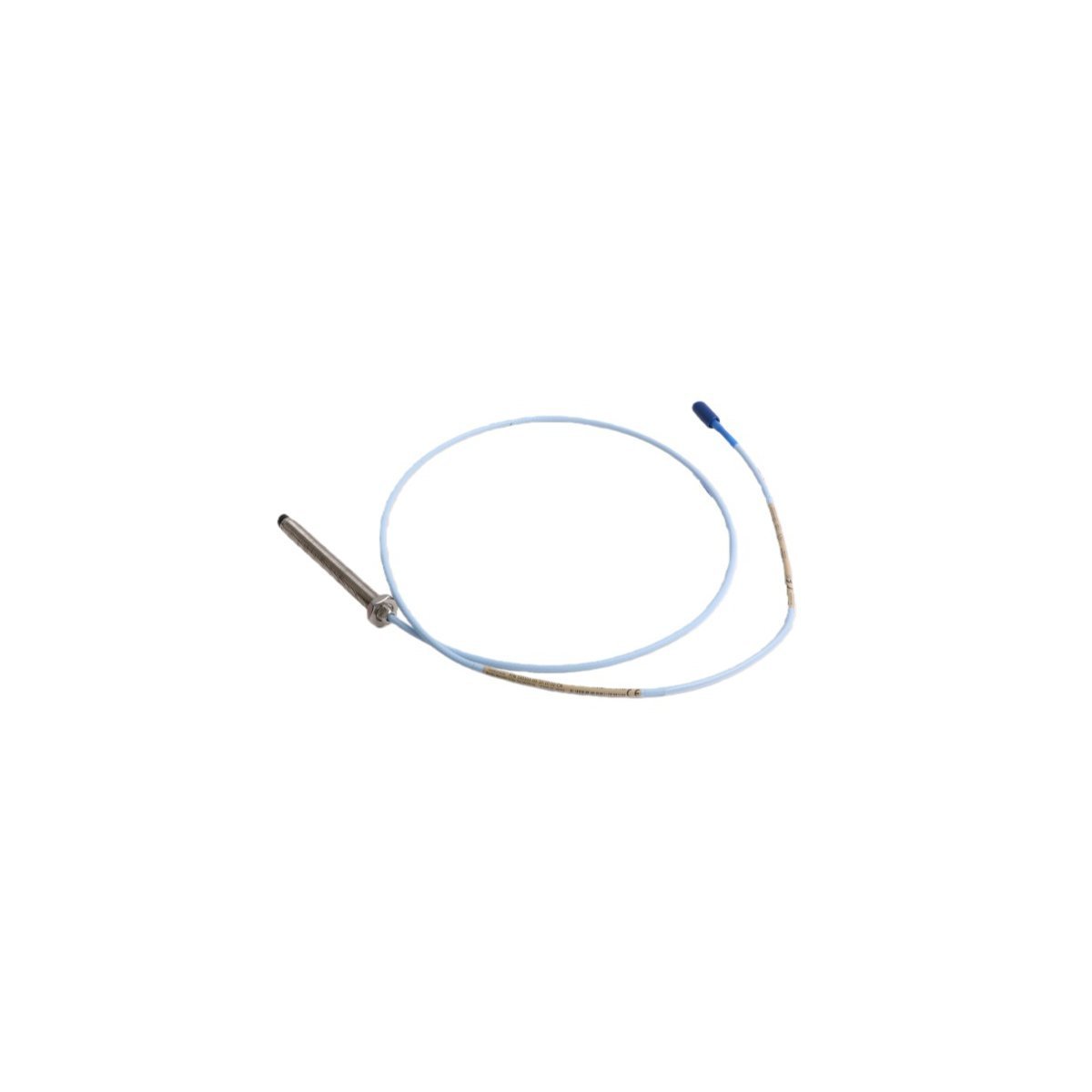

The Bently Nevada 330103-00-10-10-12-05 is a 3300 XL 8 mm eddy-current proximity probe used for non-contact measurement of shaft relative displacement on rotating machinery. Installed with the correct 3300 XL extension cable and Proximitor sensor, the probe provides a stable proportional signal that supports vibration monitoring and position-related measurements in machinery protection and condition monitoring programs.

This probe is intended for fluid-film bearing machines where small changes in shaft motion must be detected early. Correct installation (probe mounting, target material, and gap setting) is essential to maintain linearity and repeatable results across operating temperature and vibration conditions.

Key Technical Characteristics

Important correction to common listing errors
This product is a passive probe element and does not provide a standalone 4–20 mA output. Current-loop outputs, if required, are implemented by external transmitters or monitoring modules. The probe is used with a Proximitor sensor to condition the signal for monitoring systems.

Technical summary

• Model / Order Number: 330103-00-10-10-12-05

• Product Family: 3300 XL / 3300 System

• Probe Type: 8 mm proximity probe (eddy-current)

• Measurement Method: Non-contact displacement (relative)

• Typical System Output Scaling: 100 mV/mil (3.94 V/mm) when paired with the correct 3300 XL Proximitor and matched system length

• Construction: Industrial-grade probe body designed for long-term service in machine housings

• Integration Requirement: Must be used with compatible 3300 XL extension cable and Proximitor sensor of the same system length

• Condition: Brand New

• Availability: In Stock

• Origin: USA

• Weight: 0.06 kg

• Dimensions: 1.8 x 1.6 x 123 cm

• HS Code: 8537101190

• MOQ: 1

• Lifecycle Status: Active
