Configured for non-contact shaft displacement and vibration sensing in 3300 System platforms, the Bently Nevada 330103-00-07-05-02-00 (330103 Proximity Probe) provides direct physical/electrical execution. The instrument captures high-frequency inductive changes generated between its 8 mm tip and the rotating target material, providing raw proximity parameters directly to localized Proximitor loop drivers.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330103-00-07-05-02-00 utilizes eddy-current probe scaling to convert structural gap variations into precise analog voltages. Field calibration relies on accurate gap voltage validation (-10 VDC targets) across the linear range of the sensor to record static position and dynamic rotor dynamics accurately. Proper spatial configuration and cable separation ensure high-efficiency cross-talk suppression when multiple 8 mm probes are installed side-by-side in orthogonal (X-Y) orientations.

Frequently Asked Questions

Q: How does the short 0.5 meter cable length influence the overall matching configuration of the transducer loop?

A: The 0.5 meter probe must be explicitly paired with a 4.5 meter or 8.5 meter extension cable to reach a total system length of 5.0 meters or 9.0 meters. Running mismatched cable lengths shifts the loop inductance, destroying the default eddy-current probe scaling.

Q: What physical damage can arise if the standard unarmored coaxial cable is bent past its minimum limits?

A: Bending the unarmored polymer cable too sharply risks fracturing the inner conductor or distorting the outer shield layer. This structural breakdown increases electrical impedance and causes signal noise that corrupts rotor dynamics feedback.

Q: Is the integrated ClickLoc connector optimized for direct immersion in high-pressure lubrication fluid?

A: No. While the ClickLoc design secures the mechanical connection, it is not fluid-tight under pressure. Moisture or oil migration into the connection face compromises the dielectric impedance, forcing an artificial shift in the gap voltage validation metrics.

Field Installation Guidelines

• Thread Engagement Depth Control: Thread the M10 x 1 casing directly into the machine mount or bracket plate, ensuring the full 70 mm case length is locked down firmly with a dedicated locknut to prevent drift under high vibration.

• Mechanical Counterbore Clearance: Maintain a clear cylindrical space of at least 15 mm radius around the 8 mm tip face to prevent target path interference from surrounding metal walls.

• Shield Grounding Isolation: Keep the probe coaxial cable floating at the sensor casing. Ensure all instrumentation shields terminate exclusively at the primary system monitor rack ground terminal.

• Locknut Torque Limitations: Apply balanced torque during tightening to avoid skinning or twisting the unarmored cable junction located at the rear of the probe casing.

Ordering Info

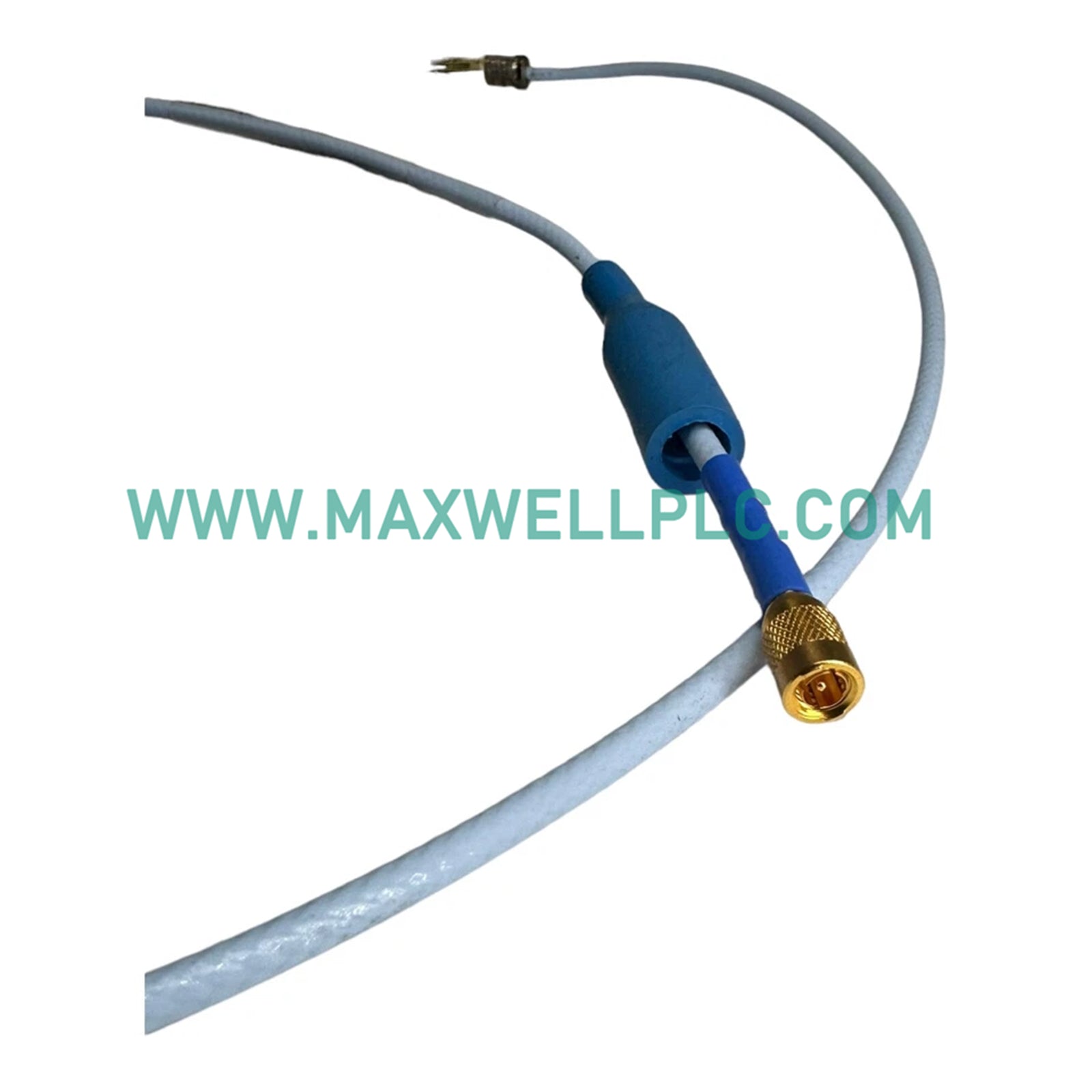

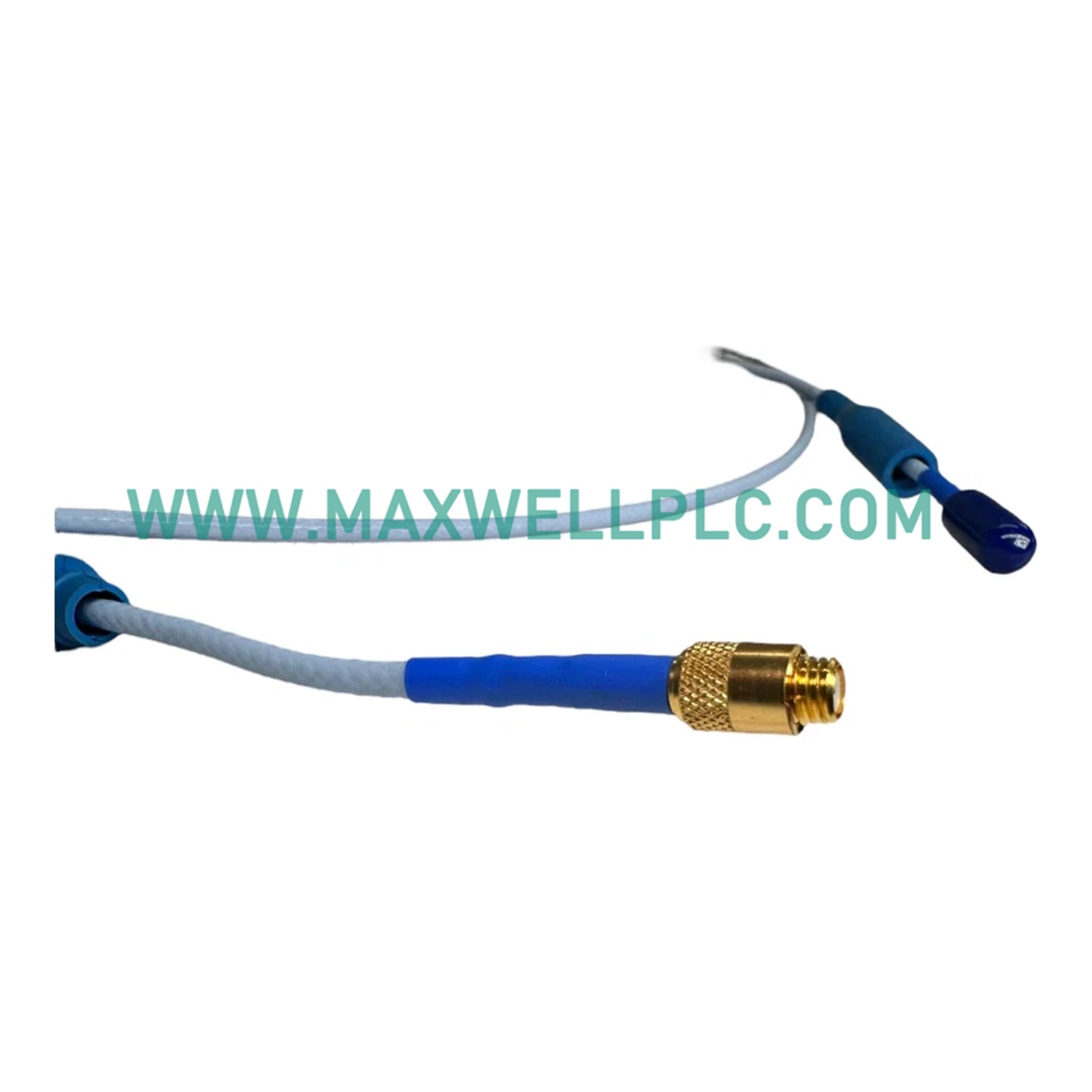

• Components Contained in Shipped Item: One Bently Nevada 330103-00-07-05-02-00 8 mm proximity probe element fitted with a 0.5 meter standard unarmored cable and a pre-installed male ClickLoc connector.

• Separated Hardware Elements: Matching extension cables, external Proximitor drivers, mounting brackets, and specialized calibration housings must be ordered separately.

Delivery Information

Delivery time: 3-5 days when payment finish via expedited express options including DHL, FEDEX, and UPS. All units are shipped from Xiamen, China, enclosed within certified anti-static industrial packaging to maintain coil stability and protect the unarmored coaxial cable line from transit damage.
