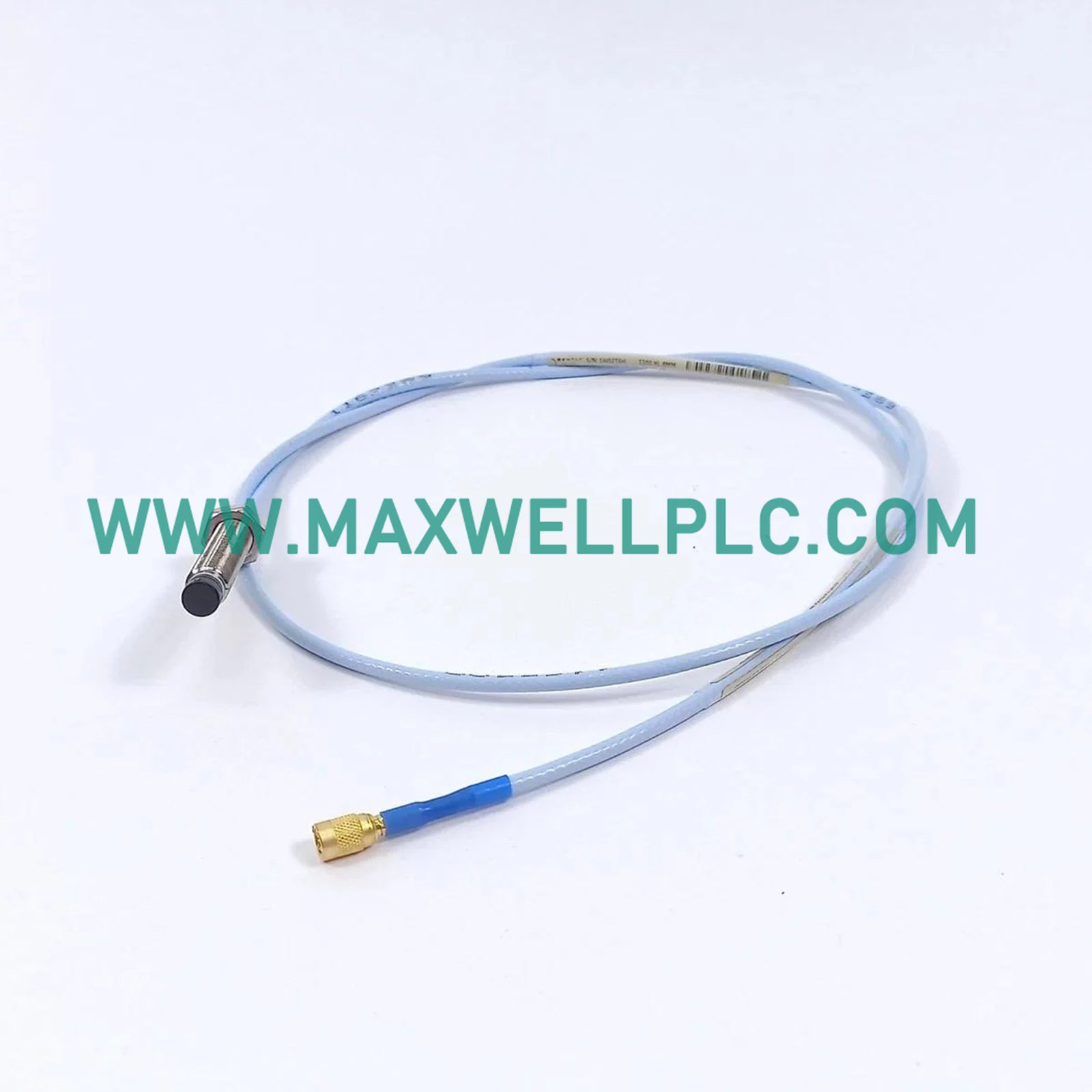

Configured for high-precision vibration and position monitoring within industrial rotating machinery networks, the Bently Nevada 330103-00-06-50-02-RU (330103-00-06-50-02-RU Proximity Probes) provides direct physical signal execution via eddy-current air-gap translation.

Model Suffix Matrix

• 330103: Base model designation for the 3300 XL 8 mm proximity probe featuring an M10 x 1 thread without armor.
• 00: Minimum unthreaded length option of 0 mm.
• 06: Minimum case length option of 60 mm.
• 50: Total cable length option of 5.0 meters (16.4 feet).
• 02: Miniature coaxial ClickLoc connector with standard cable type.
• RU: CSA, ATEX, and IECEx hazardous area certifications.

Hardware Specifications

Rotor Dynamics And Gap Voltage Validation

• Gap Voltage Target: Calibrated during initial cold alignment to achieve a steady-state output of -10.0 VDC (linear range spanning -1 VDC to -13 VDC).
• Eddy-Current Scaling: Translates physical distance between the probe tip and a conductive surface into a precise proportional voltage signal.
• Cross-Talk Suppression: Employs coaxial shielding architecture to mitigate radio frequency interference and high-frequency noise injection.
• Frequency Response: Delivers linear signal transmission capabilities from 0 Hz for static position up to 10 kHz for dynamic vibration.

Bill Of Delivery

• 1 x 330103-00-06-50-02-RU Unarmored Proximity Probe

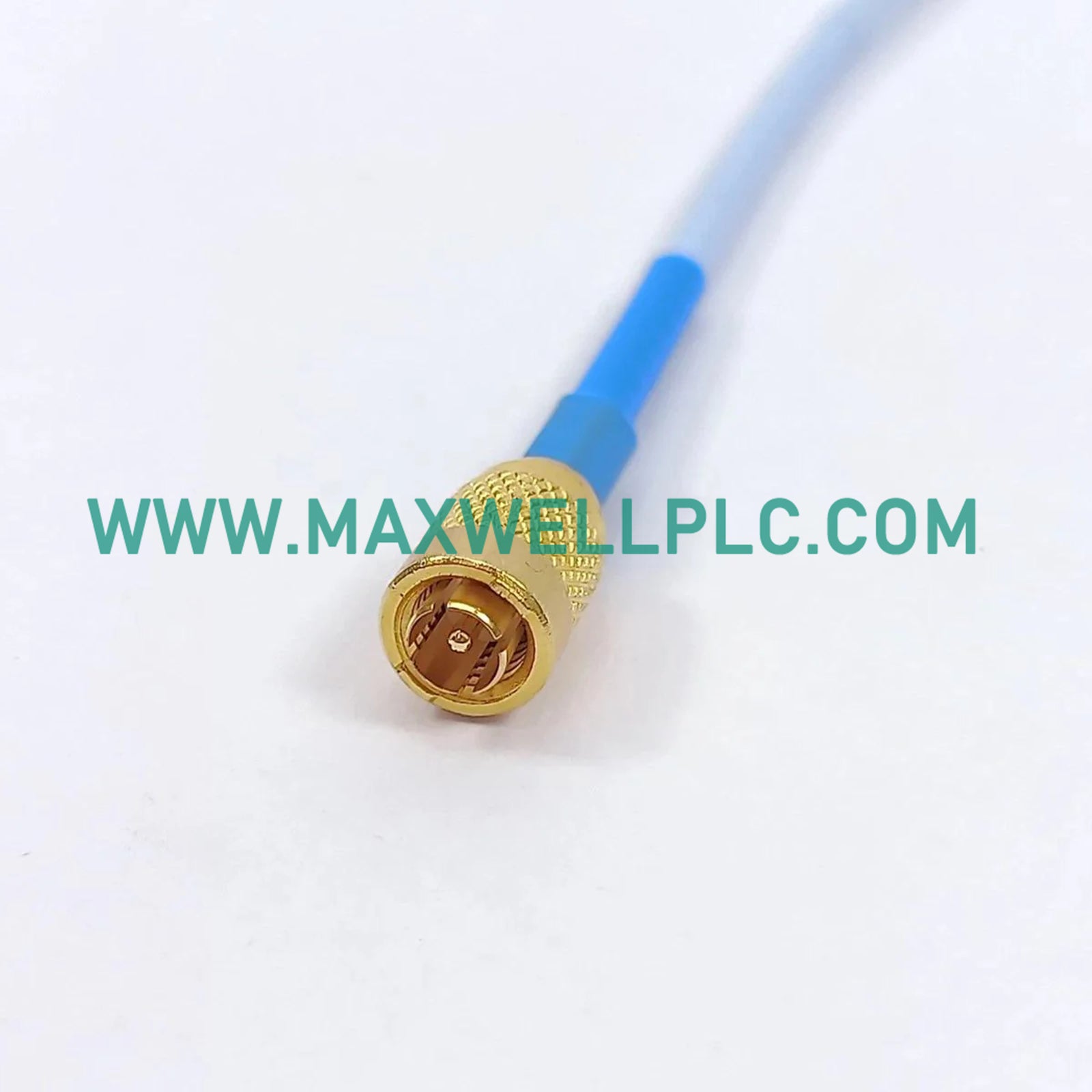

• 1 x Miniature coaxial ClickLoc connector assembly

Mechanical Mounting And Cabling Guidelines

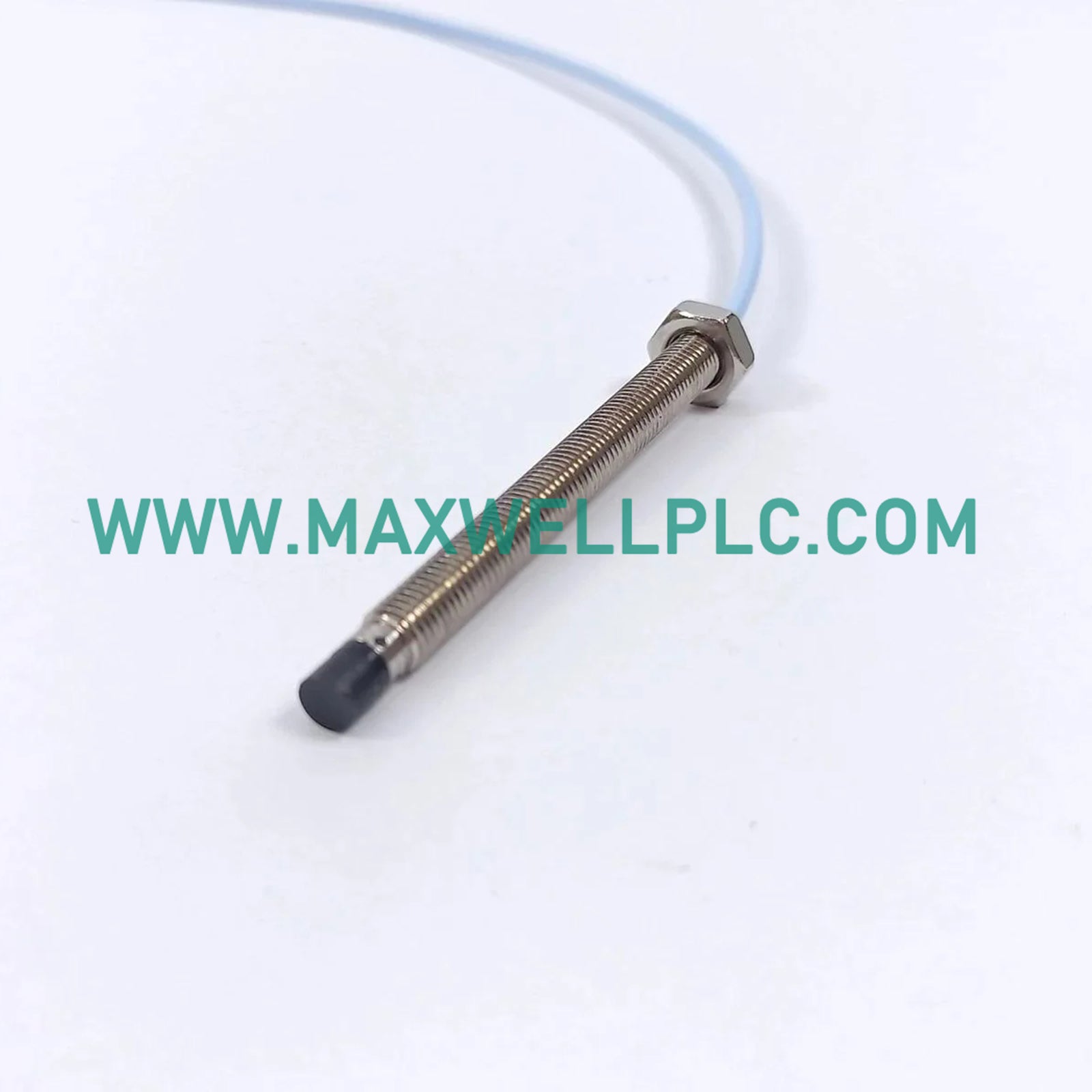

• Thread Engagement: Install the M10 x 1 threaded probe body into the machine housing, ensuring thread engagement does not exceed 15 mm to prevent structural binding.
• Target Alignment: Position the probe tip to maintain an air gap corresponding to the designated voltage range of 0.25 mm to 1.75 mm.
• Cable Protection: Route coaxial cabling away from high-voltage alternating current lines and sharp edges to avoid mechanical crushing or electrical induction.
• Connector Sealing: Utilize connector protective boots to safeguard the ClickLoc mating interface against moisture, oil, and particulate contamination.

Frequently Asked Questions

• Question: What physical parameter does the 330103-00-06-50-02-RU transducer measure?

  Answer: It measures the physical distance between the probe tip and a conductive surface to track both static position and dynamic vibration.

• Question: Does this proximity probe require an internal power source?

  Answer: No, it operates passively, receiving its electrical excitation current from a compatible 3300 XL Proximitor Sensor.

• Question: What thread specification is utilized on the probe housing?

  Answer: The housing features an M10 x 1 metric thread pattern designed for direct installation into machinery ports.

• Question: What is the total length of the attached cable assembly?

  Answer: The part includes a total system cable length of 5.0 meters (16.4 feet).

• Question: What is the recommended gap voltage setting during initial setup?

  Answer: Technicians typically adjust the static gap until the system outputs a nominal value of -10.0 VDC.

• Question: What type of connector is provided on the probe lead?

  Answer: It features a miniature coaxial ClickLoc connector designed for secure, tool-free locking.

• Question: What hazardous area approvals are associated with this model suffix?

  Answer: The RU designation indicates compliance with CSA, ATEX, and IECEx safety certifications.

• Question: What is the total shipping weight of the unit?

  Answer: The packed item has an estimated weight of 0.1 kg.
