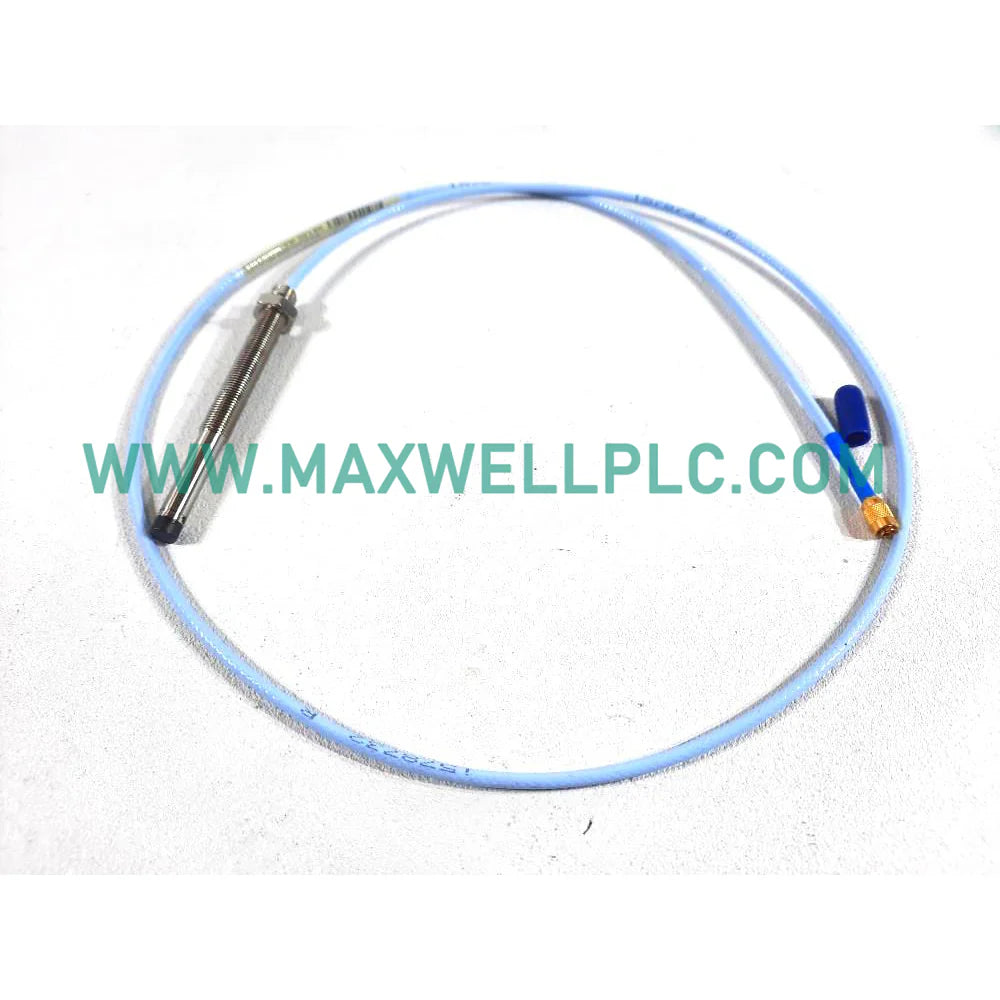

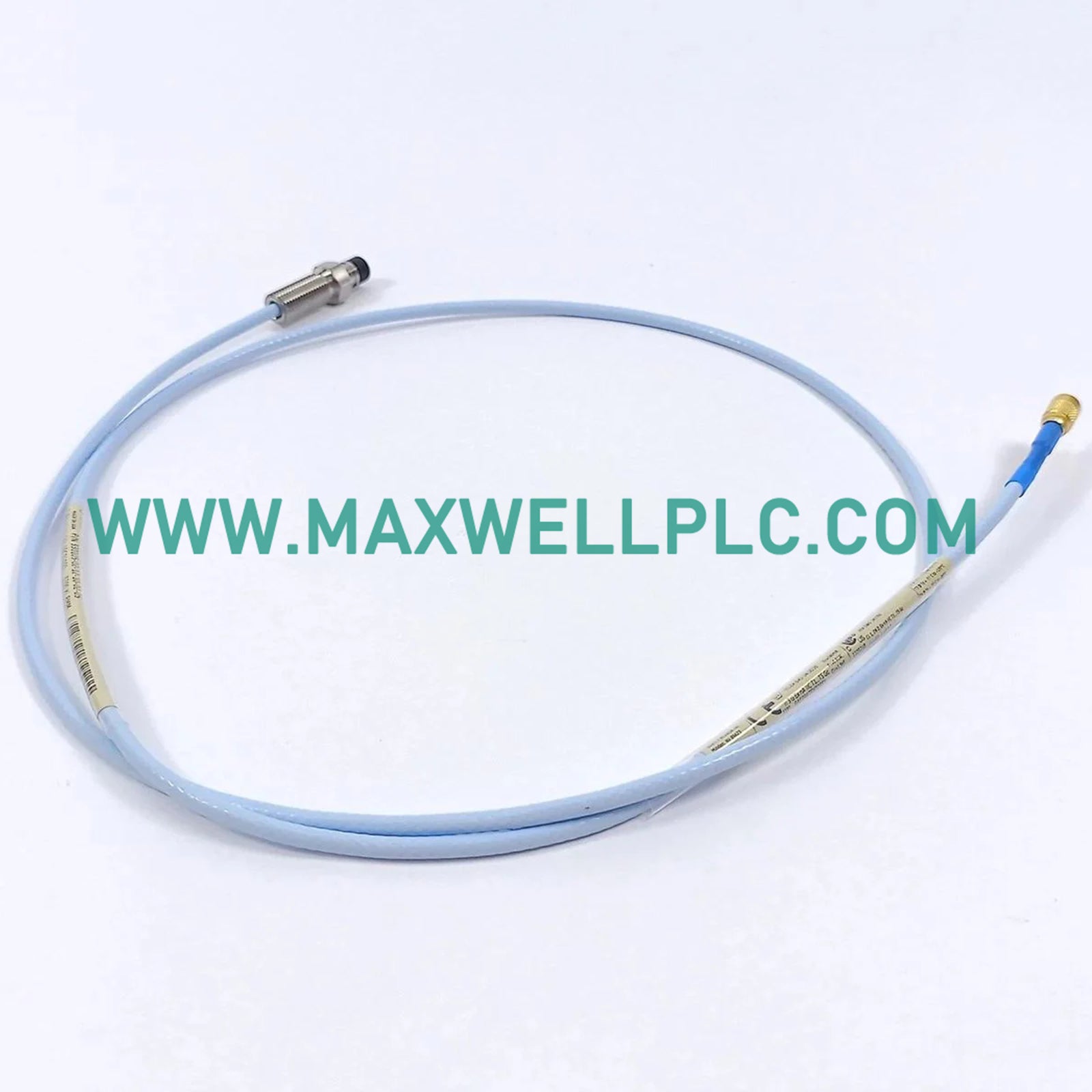

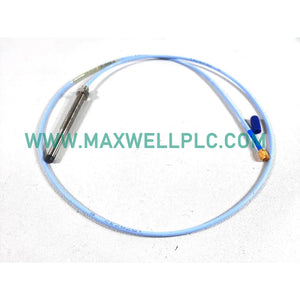

The Bently Nevada 330103-00-05-90-02-05, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for non-contacting shaft displacement and vibration tracking within 3300 XL system networks.

Nomenclature Configuration & Hardware Matrix

• 330103: Core assembly identification for the 3300 XL 8 mm proximity probe mechanical form factor.
• 00: Specifies a 0 mm minimum unthreaded case section.
• 05: Configures a 50 mm minimum total threaded case length.
• 90: Dictates a 9.0 meters (29.5 feet) integral hardware cable length.
• 02: Equips a miniature coaxial ClickLoc connector on a standard unarmored cable jacket.
• 05: Assigns factory certified CSA, ATEX, and IECEx agency approvals for hazardous location loops.

Physical and Electrical Specifications

Rotor Dynamics and Gap Voltage Validation

The 8 mm sensing tip relies on uniform eddy-current probe scaling rules to transform magnetic field variations into precise physical distance parameters. During active rotor dynamics monitoring, the probe tip generates constant radio frequency field interactions, tracking the target shaft position to establish proper gap voltage validation (-10 VDC targets) across high-speed machinery bearing surfaces.

Shipping Kit Inventory

• 1 x 330103-00-05-90-02-05 3300 XL 8 mm Proximity Probe
• 1 x Coaxial Terminal Protection Sleeve Set

Field Mechanical Mounting Protocol

• Thread Insertion & Torquing Steps

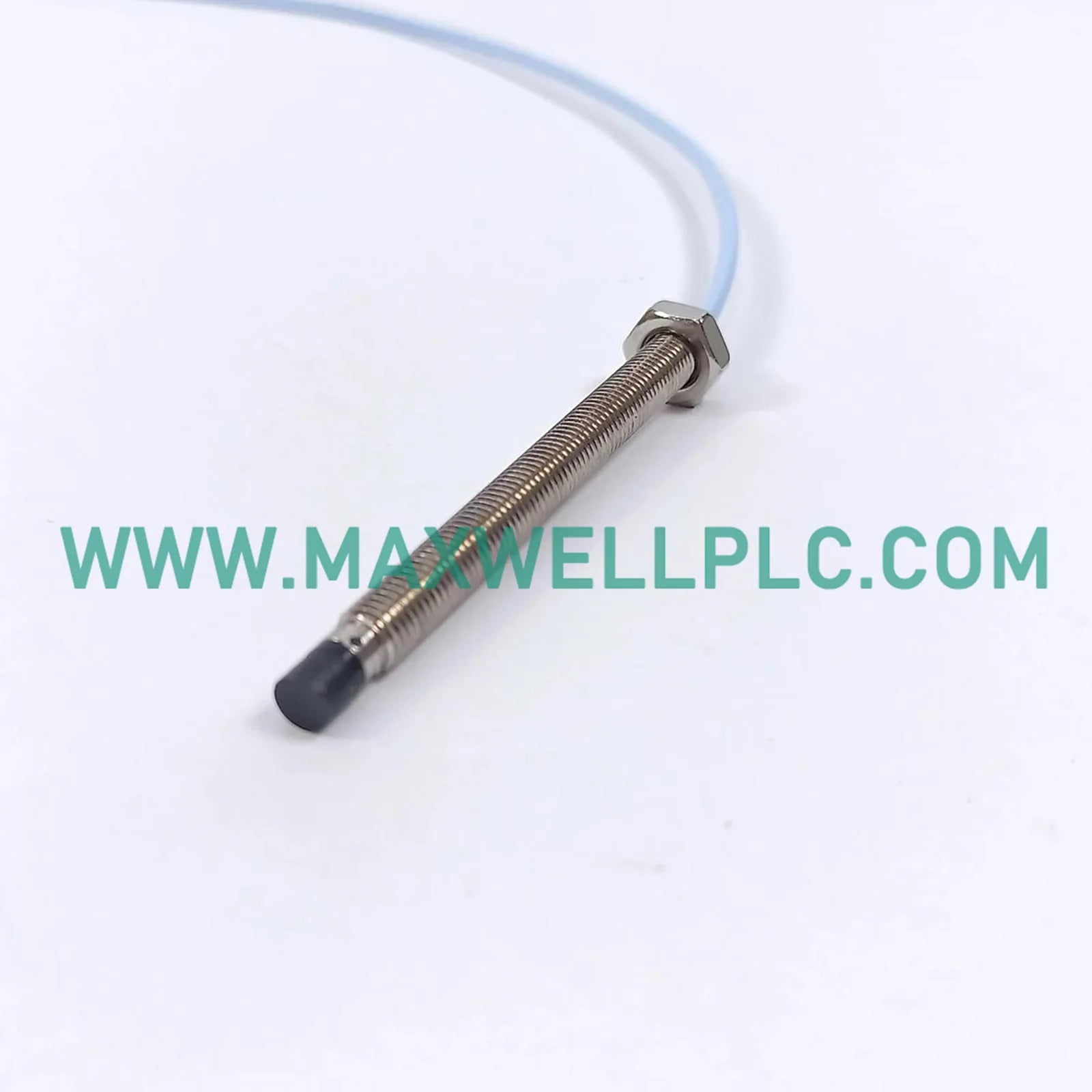

  • Thread the M10 x 1 sensor body into the tapped installation port by hand until the tip nears the target shaft surface.
  • Maintain a minimum of 5 full thread engagements within the mounting boss to ensure long-term mechanical stability against vibration.
• Physical Cable Support
  • Fasten the 9.0 meters standard unarmored cable using dedicated insulated clamps to prevent high-frequency signal noise.
  • Enforce a strict minimum physical bending radius limit of 25.4 mm (1.0 in) along all physical junction layouts.

Transducer Hardware FAQ

• What nominal target parameter defines standard gap voltage validation during field balancing?

  The primary instrumentation loop requires a gap voltage validation targeting -10 VDC at the center of the sensor linear range.

• Can this 9.0 meters probe module be coupled directly with an additional 9.0 meters extension cable?

  No, the complete system loop must equal the designated match length; pairing with an incorrect line shifts the electrical calibration.

• How does moisture entry inside the miniature ClickLoc connector affect signal feedback?

  Moisture inside the ClickLoc terminal alters loop impedance, corrupts the eddy-current probe scaling, and induces measurement errors.

• What is the specific mechanical function of the 0 mm unthreaded option selection?

  The 0 mm parameter provides continuous external threading along the 50 mm case, maximizing depth adjustability in thin brackets.

• Is an external cooling supply mandatory for the probe when tracking high-temperature turbines?

  No, the passive materials are rated to function continuously at temperatures up to +177 deg C without separate cooling lines.

• Does the unarmored cable jacket tolerate continuous immersion in industrial machine lubricants?

  Yes, the polymer insulation layer is engineered to withstand direct contact with common mineral and synthetic turbine oils.

• What mechanical hazard develops if the probe tip makes physical contact with a spinning target?

  Physical contact destroys the internal coil assembly instantly, causing the proximity loop to saturate to its maximum fault voltage.

• How is the coaxial shield loop isolated from secondary stray electrical ground currents?

  The connector protection sleeve kit must be installed around the junction point to isolate the shield wire from machine frames.
