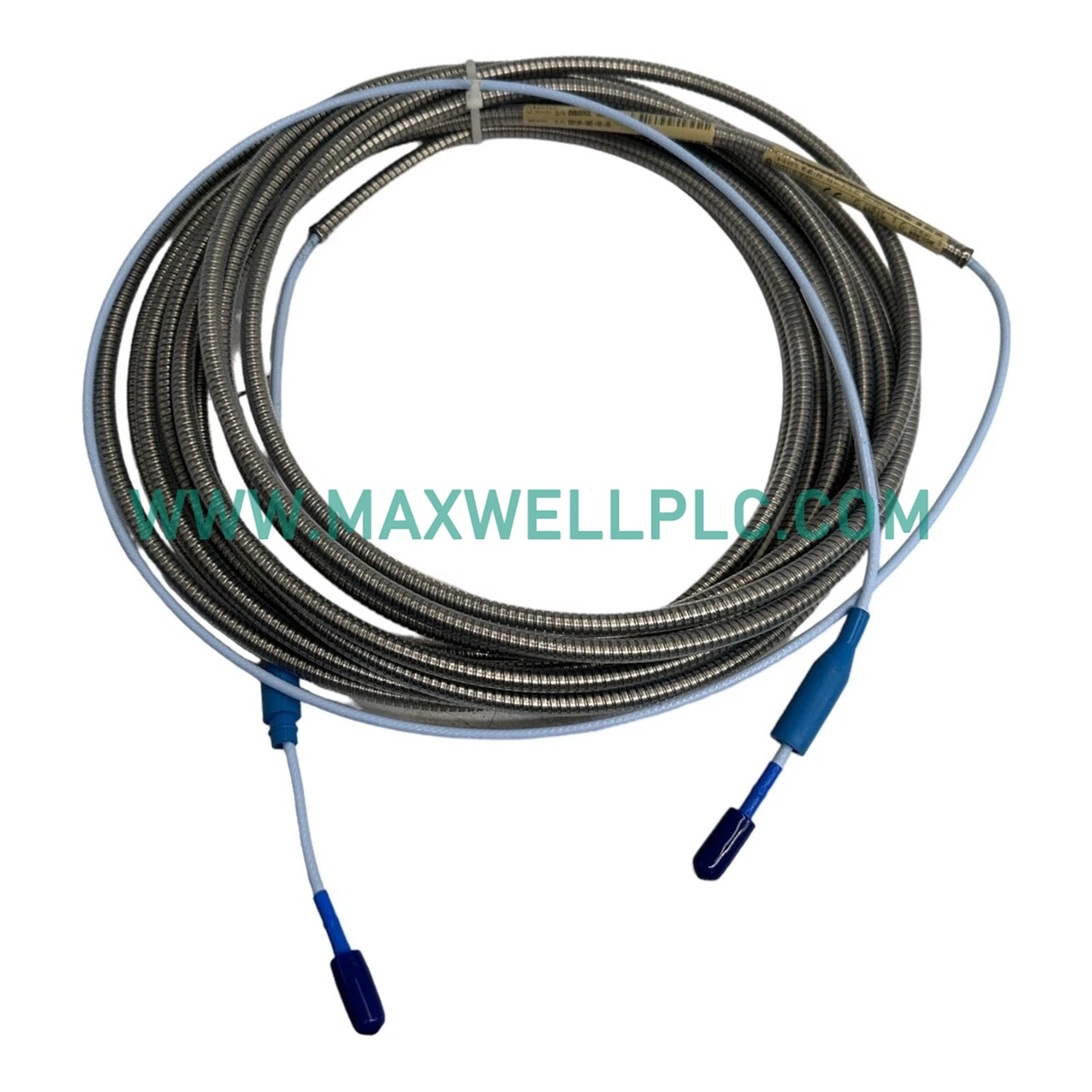

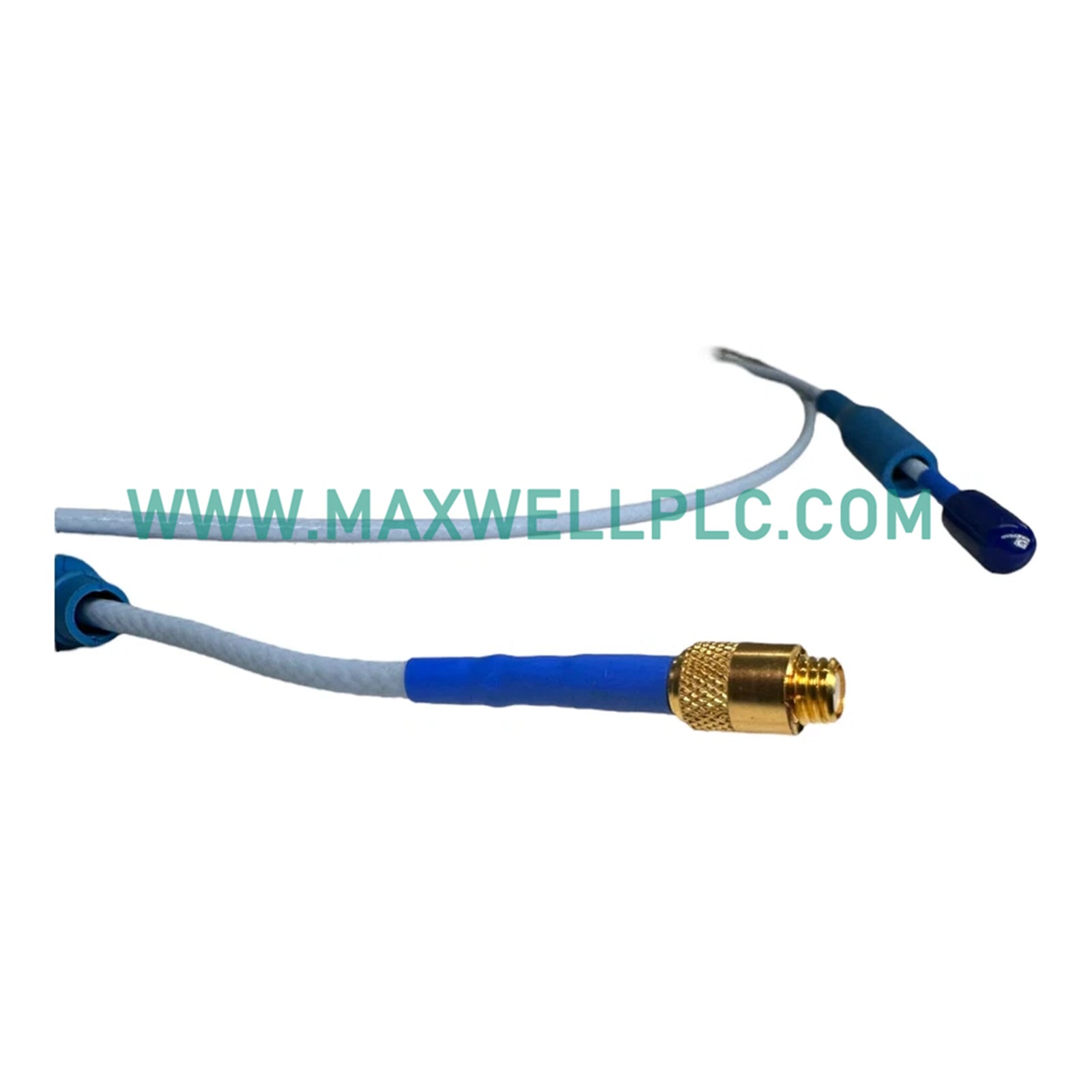

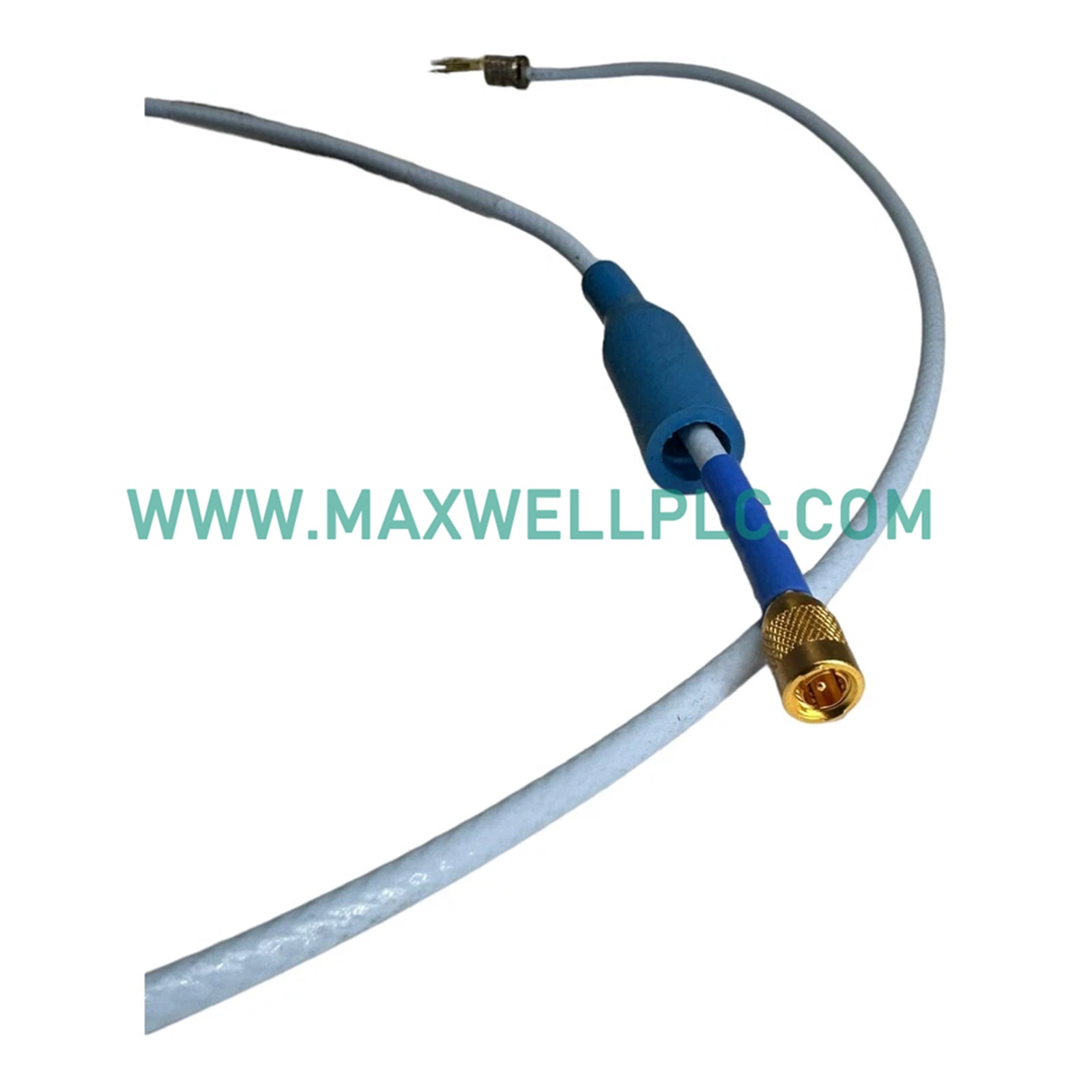

The Bently Nevada 330103-00-05-10-01-00, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for non-contacting shaft displacement and vibration measurement within 3300 XL Series Transducer platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 8 mm probe tip relies on stable RF impedance characteristics to maintain precise eddy-current probe scaling across its linear range. As the machine shaft modifies the high-frequency magnetic field, the sensor registers precise changes in gap distance to provide continuous tracking of dynamic rotor dynamics. The miniature coaxial ClickLoc connector assembly maintains uniform terminal resistance, enforcing accurate gap voltage validation metrics against fixed -10 VDC targets. Integrated structural shielding guarantees cross-talk suppression between close-set multi-probe installations within the machine bearing housing.

Field Installation Guidelines

Thread the M10 x 1 probe body into the mounting port, ensuring the threads engage cleanly without binding to prevent cross-threading damage. Adjust the mechanical position of the probe tip to achieve the precise static gap voltage validation parameter via a voltmeter connected to the Proximitor terminal strip. Route the 1.0 meter unarmored cable through a dedicated, grounded metal conduit to insulate the low-level RF lines from external electromagnetic interference. Verify that the integrated connector protector is positioned fully over the ClickLoc coaxial connection to prevent oil and fluid contamination from compromising the loop.

Frequently Asked Questions

Q: What operational consequences result from changing the factory-calibrated 1.0 meter cable length?

A: Cutting or altering the physical length of the probe cable shifts the nominal electrical inductance and capacitance metrics. This shift corrupts the calibrated eddy-current probe scaling line slope, generating inaccurate displacement outputs at the monitoring system interface.

Q: How does moisture or oil ingress at the ClickLoc connector alter gap voltage validation?

A: Ingress of conductive fluids creates a parallel resistance path across the 50 Ohm coaxial termination point. This path degrades cross-talk suppression and skews the high-frequency feedback loop, resulting in a drifted gap voltage reference and false TSI warning indicators.

Q: Why does this configuration specify a 0 mm unthreaded length with a 50 mm case length?

A: The 0 mm unthreaded length ensures full-length thread engagement for maximum mechanical stability within deep mounting brackets. The 50 mm overall case length determines the structural depth of the probe shell inside the machine frame, allowing proper tip positioning without structural flex.
