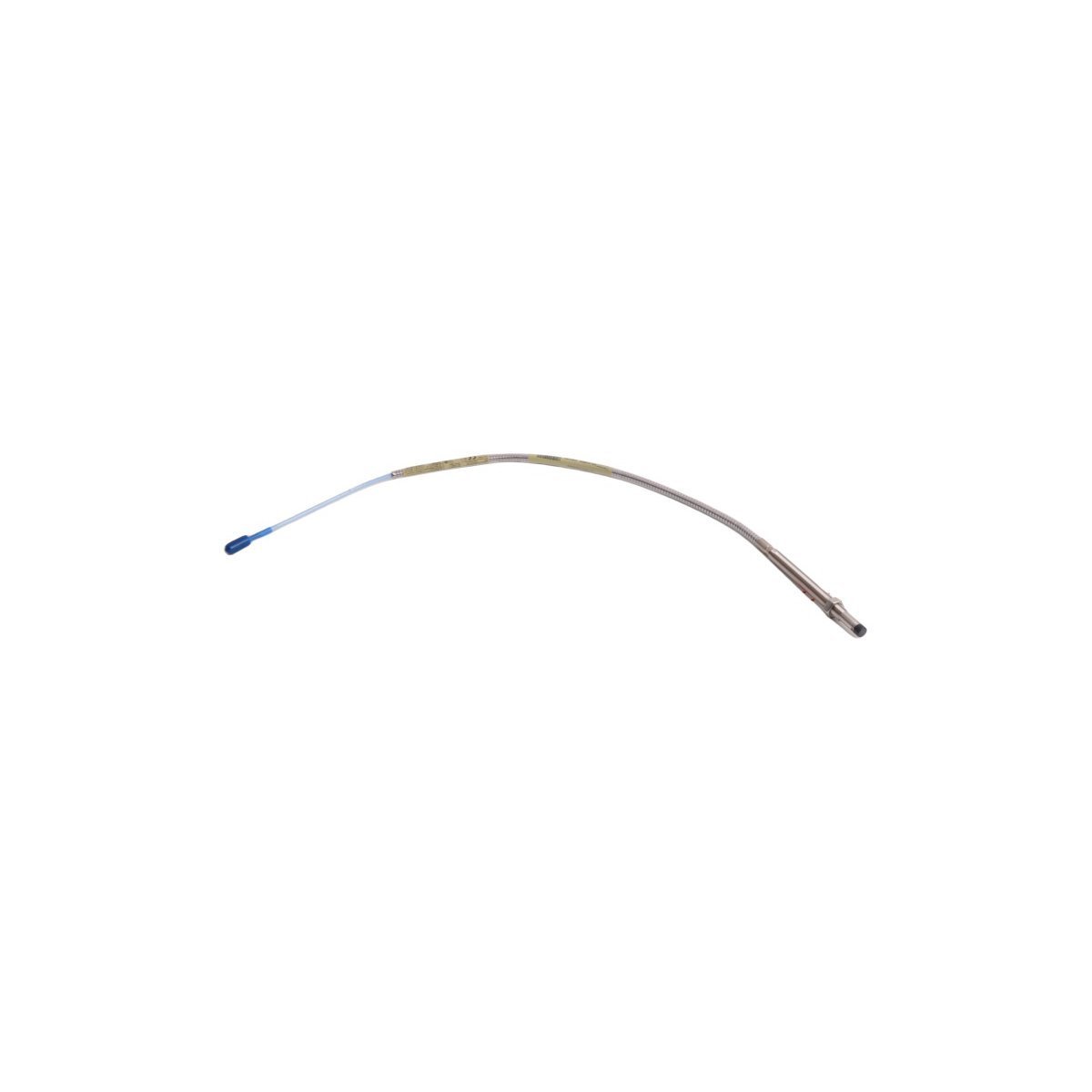

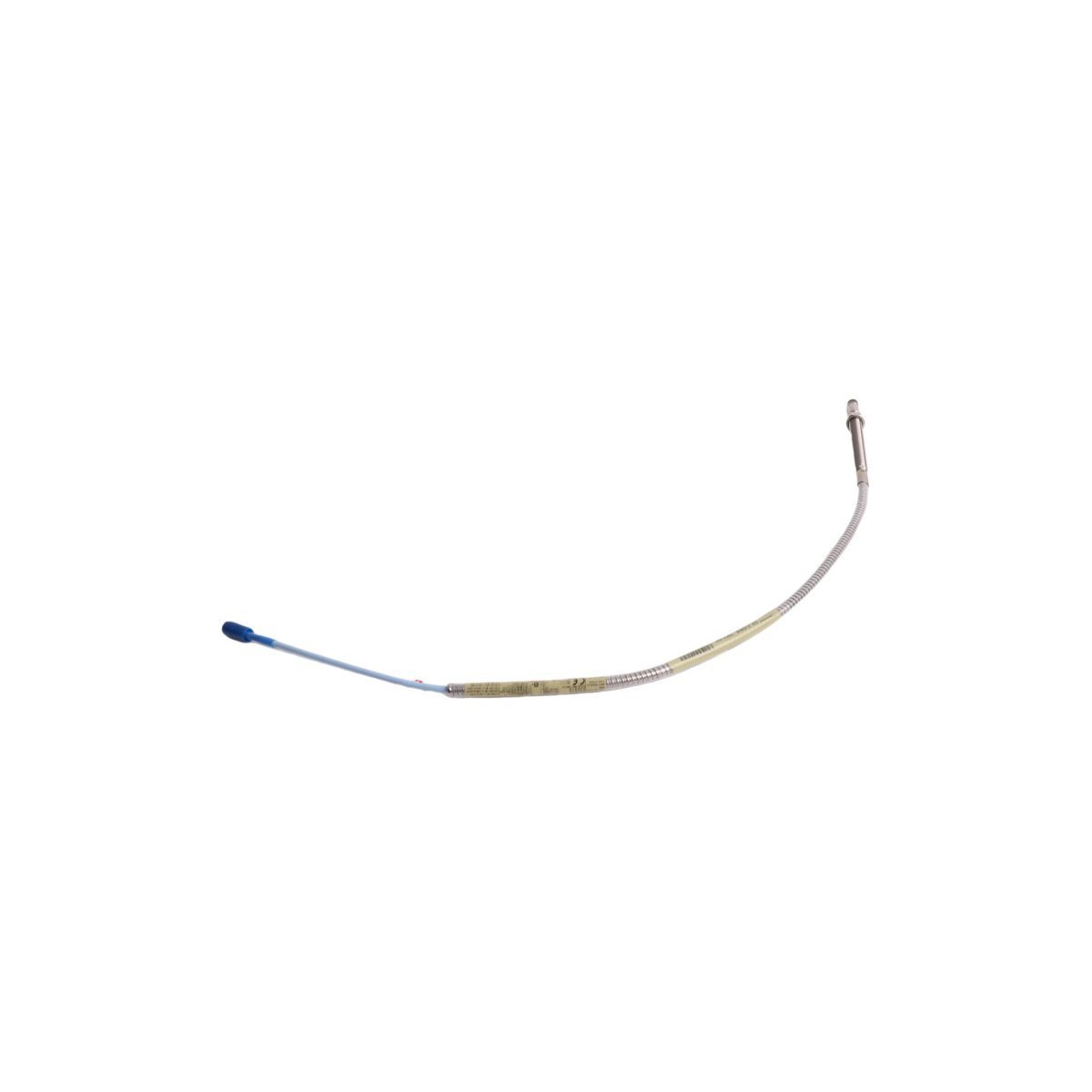

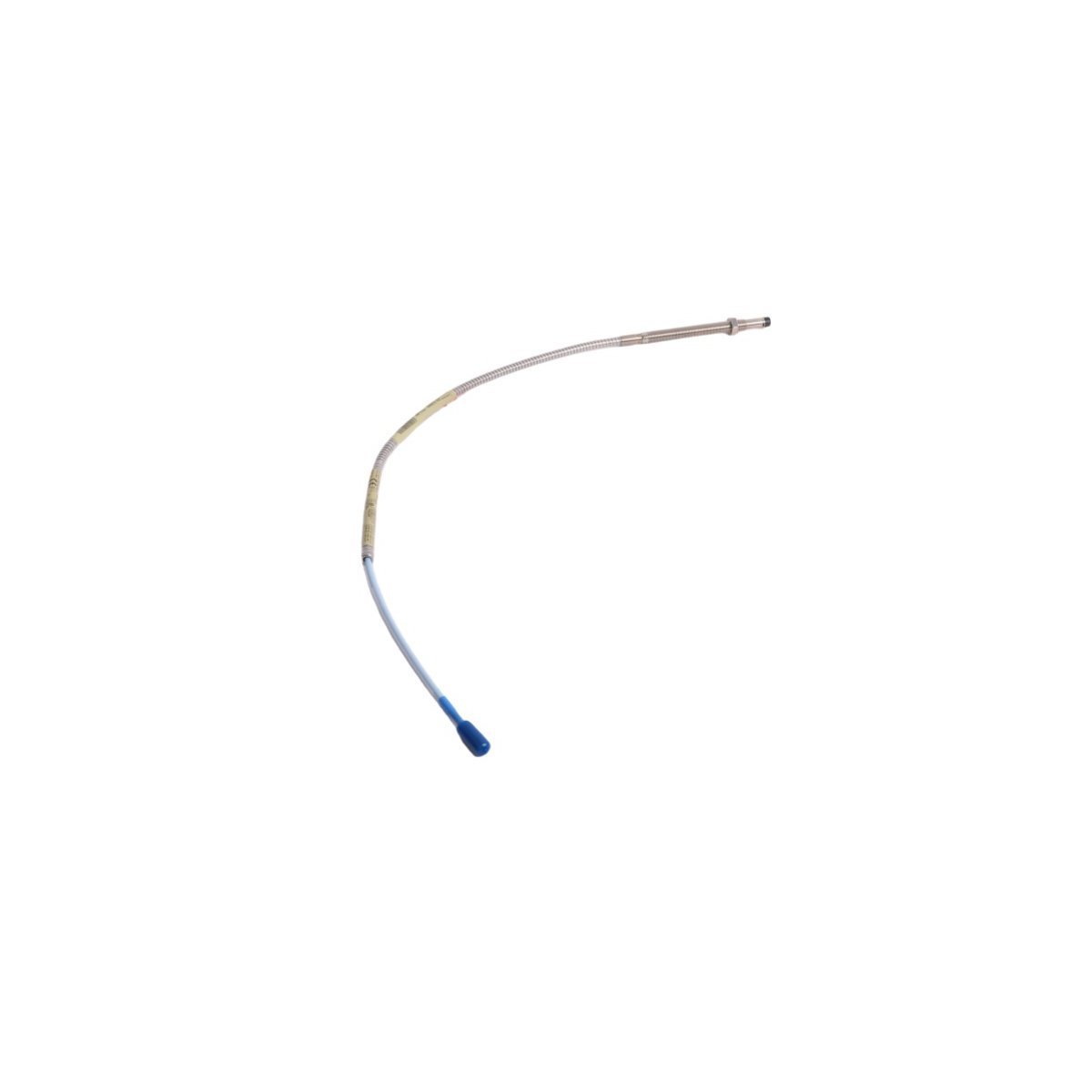

The Bently Nevada 330102-05-30-50-02-05, also cataloged as the 330102 Proximity Probe, operates as a dedicated hardware component for shaft radial vibration and axial position sensing within 3300 XL monitoring systems. Configured for non-contact displacement measurement, the Bently Nevada 330102-05-30-50-02-05 (330102 Proximity Probes) provides direct physical/electrical execution of eddy-current induction. The device translates the physical gap between the probe tip and a conductive target into a precise voltage signal, serving as the front-end sensor in a transducer chain for high-speed rotating machinery observation.

Suffix Breakdown & Model Matrix

The 330102-05-30-50-02-05 assembly is defined by the following configuration parameters:

• 05: Unthreaded length (50 mm)

• 30: Overall case length (30 mm)

• 50: Total length (5.0 meters)

• 02: Connector type (Miniature coaxial)

• 05: Agency approval (Hazardous area)

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 XL system relies on precise eddy-current probe scaling to ensure linear output. During field commissioning, gap voltage validation remains a primary requirement; technicians must target -10 VDC at the monitor input when the probe is positioned at its nominal gap. Effective rotor dynamics analysis depends on this calibration to detect shaft vibration vectors and centerline displacement. To maintain signal integrity, cross-talk suppression is achieved by following specified physical spacing and conduit routing protocols, which prevents frequency interference between adjacent probes in dense instrument arrays.

Ordering Info

• 330102 8 mm Proximity Probe assembly

• Protective connector thread caps

• Installation data sheet

• Note: Matching extension cables and Proximitor sensors must be verified for 3300 XL compatibility before integration.

Installation Guidelines

• Gap Setting: Utilize a feeler gauge to establish the air gap; confirm the Proximitor output voltage is -10 VDC at the monitor termination point.

• Torque Application: Apply manufacturer-specified torque to the probe locknut to prevent mechanical resonance; avoid excessive force that deforms the casing.

• Signal Shielding: Route coaxial cabling through dedicated, grounded steel conduit to minimize external electromagnetic interference.

• Grounding: Establish a common reference point between the probe housing and the machine chassis to eliminate ground loop voltage.

• Surface Preparation: Verify the target shaft area is smooth, clean, and free of conductive residues or machining burrs to ensure data linearity.

Frequently Asked Questions

• Q: Is this probe compatible with 5 mm NSv systems?

• A: No, 8 mm 330102 probes require specific 3300 XL Proximitor tuning and are not electrically compatible with NSv series components.

• Q: How can I confirm the transducer loop integrity?

• A: Measure the DC gap voltage at the Proximitor output terminal. A stable reading between -4 VDC and -18 VDC confirms a functioning electrical loop.

• Q: What is the purpose of the miniature coaxial connector?

• A: The connector provides a high-frequency, low-impedance interface that preserves signal fidelity and prevents data loss in the monitoring path.

• Q: Can the 5.0 meter cable be cut to fit a shorter distance?

• A: No, the cable is an integral part of the tuned system impedance; altering its length will induce calibration errors and signal non-linearity.

• Q: How do high temperatures affect probe performance?

• A: The probe is rated for 177 deg C; consistent operation within this range ensures stability, though significant thermal cycling may require periodic baseline verification.

• Q: Does the probe require an external power source?

• A: No, the probe is passive; it receives excitation power from the associated 3300 XL Proximitor sensor unit.

• Q: Are the connectors submersible?

• A: No, connectors must be installed within a junction box to prevent environmental moisture or oil from entering the coaxial connection point.

• Q: What is the significance of the 8 mm probe tip diameter?

• A: The 8 mm tip provides the optimal linear range (80 mil) for standard industrial applications, balancing sensitivity with mechanical robustness.
