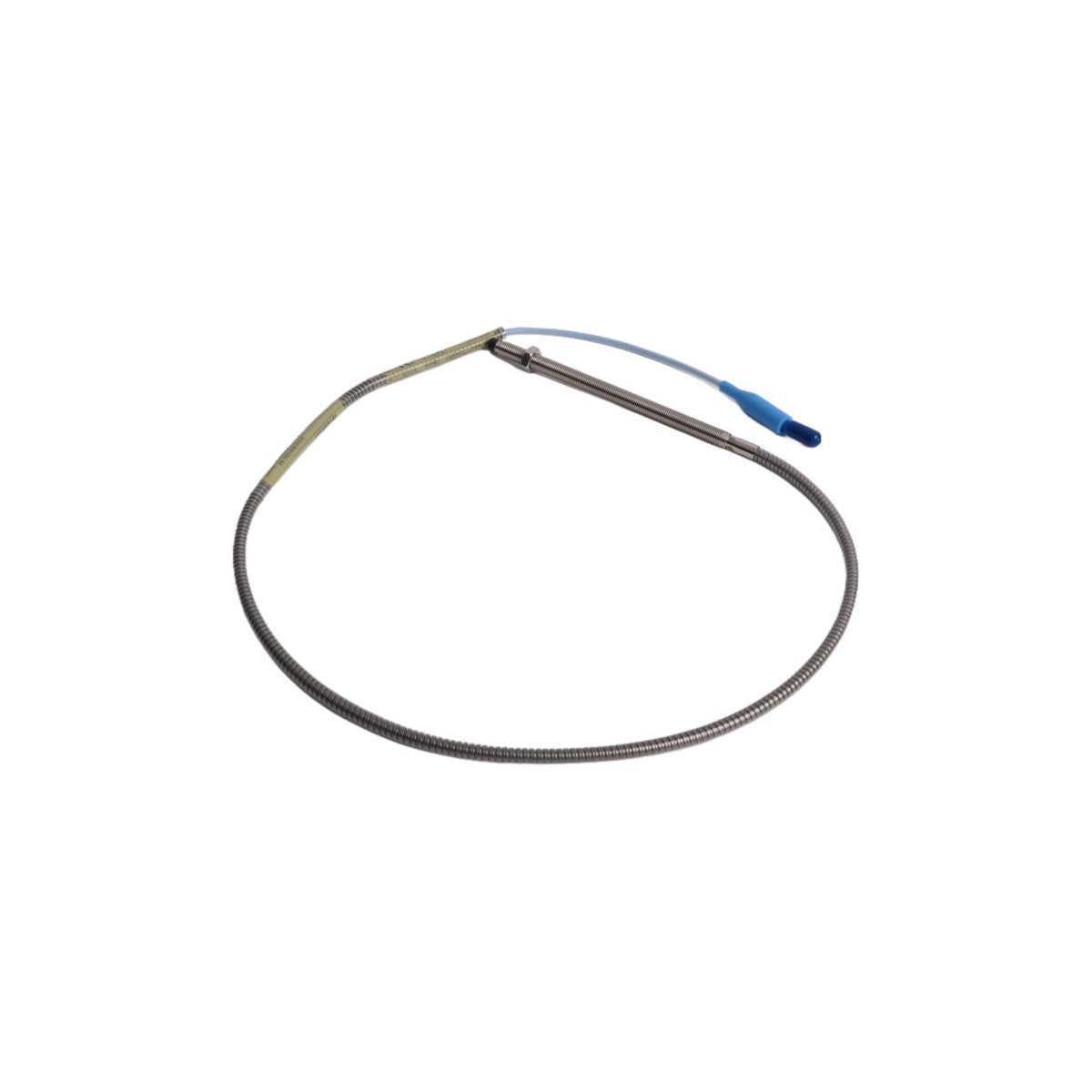

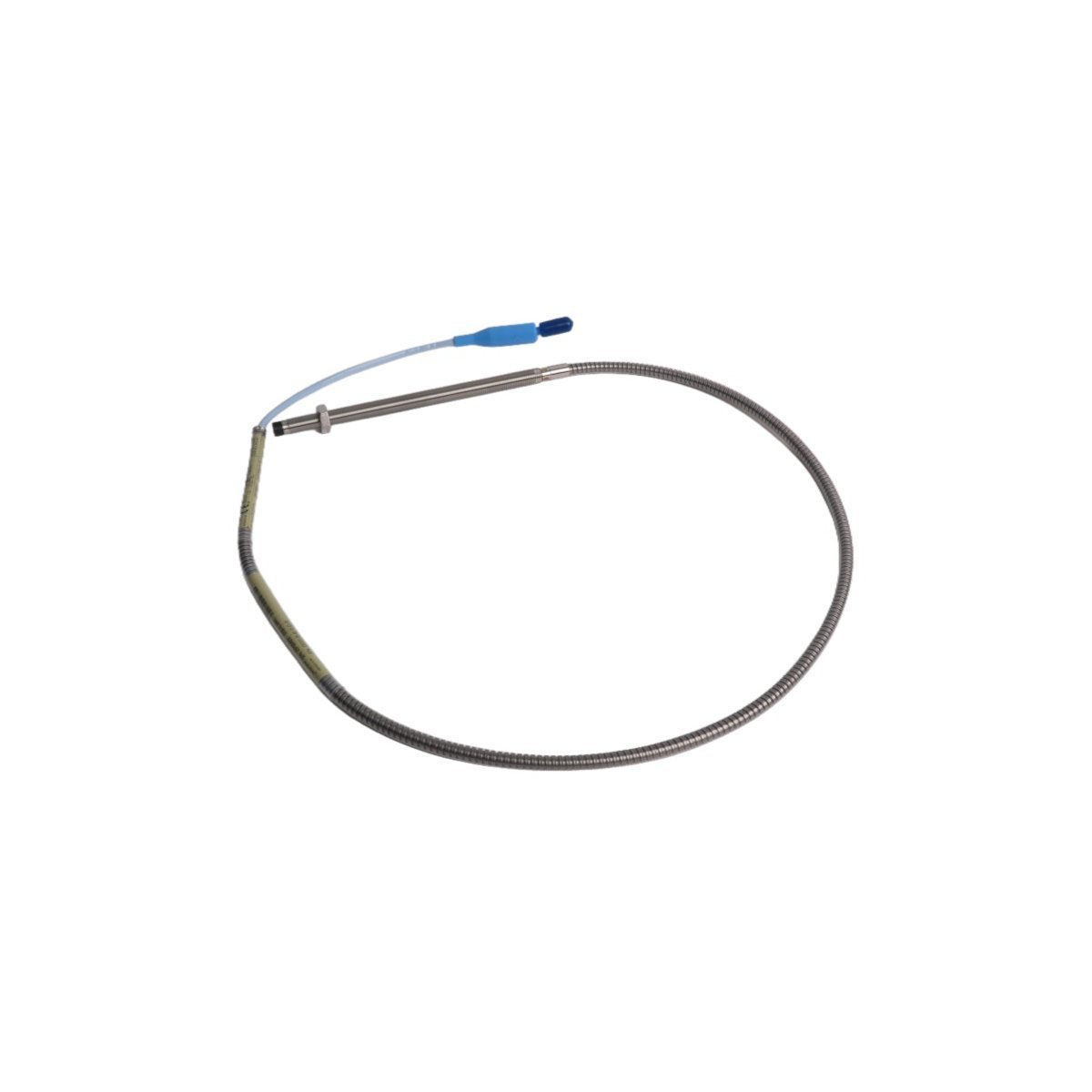

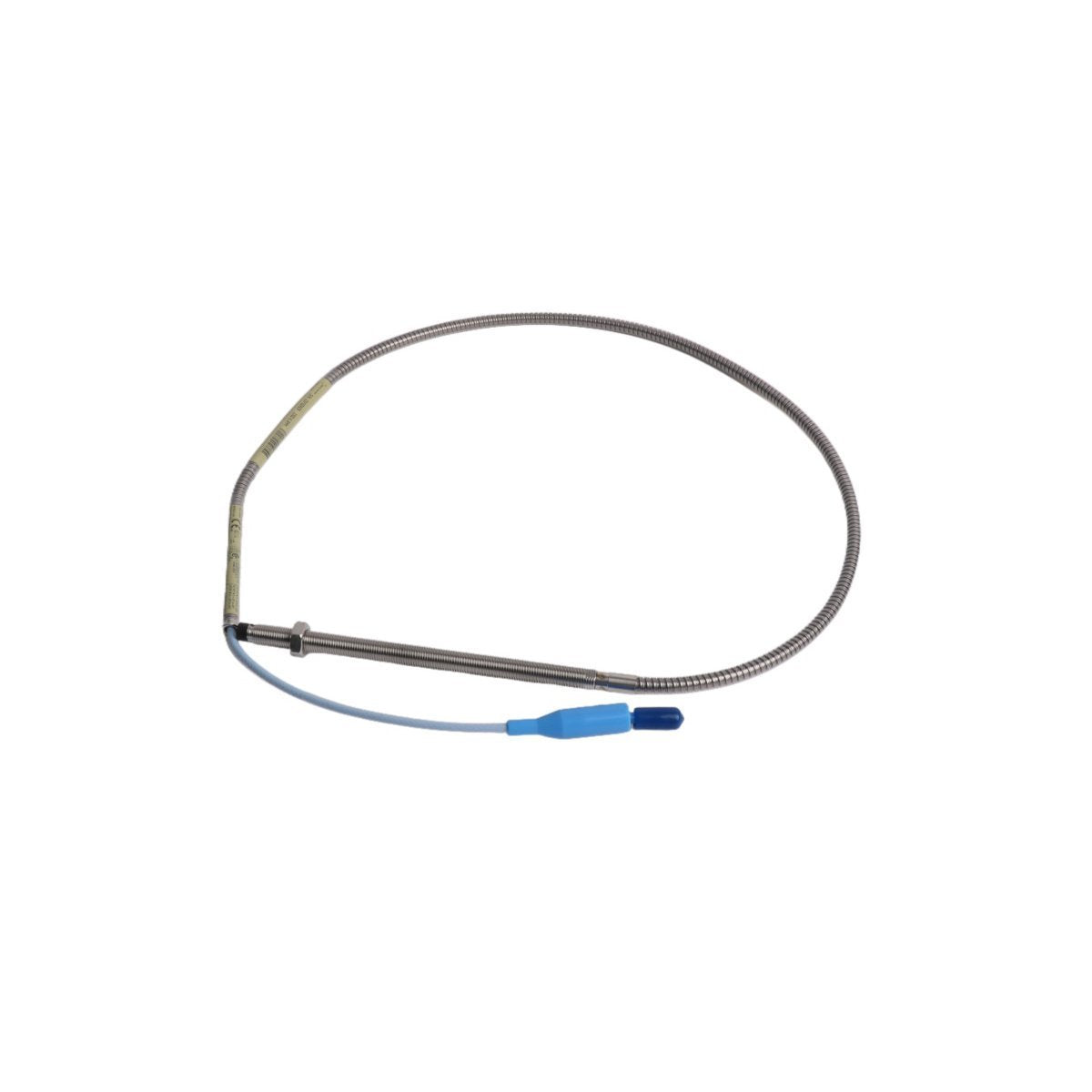

Configured for radial and axial shaft vibration measurement in 3300 XL monitoring platforms, the Bently Nevada 330102-00-68-05-02-05 (330102-00-68-05-02-05 Proximity Probe) provides direct physical/electrical execution for non-contacting displacement sensing across rotating machinery.

Model Suffix Configuration

The 330102 series utilizes a structured ordering code to define mechanical and electrical interfaces. The suffix -00-68-05-02-05 specifies the probe thread size, case length, total system cable length, and connector termination standard required for integration into factory-calibrated 3300 XL Proximitor sensor systems.

Hardware Specifications

Transducer Electrical and Rotor Dynamics Integrity

Accurate shaft displacement measurement depends on consistent eddy-current probe scaling. During site commissioning, technicians must perform gap voltage validation (-10 VDC targets) at the Proximitor output to ensure the transducer is correctly positioned within its linear operational range. To maintain high-fidelity rotor dynamics data, effective cross-talk suppression is mandatory. This is achieved by ensuring the coaxial shield remains continuous and is grounded exclusively at the monitor end, thereby preventing ground loops from introducing electromagnetic interference into the low-level signal path.

Ordering Information

• 330102-00-68-05-02-05 Proximity Probe

• Integral coaxial cable assembly

• Mounting jam nuts

• Technical installation manual

Field Installation Guidelines

• Surface Preparation: Verify the target shaft surface is clean, smooth, and free of metallic burrs or non-conductive coatings to ensure eddy-current field stability.

• Mechanical Mounting: Thread the probe body into the mounting bracket until it makes physical contact with the shaft, then retract to the gap distance defined in the machine documentation.

• Cable Management: Route coaxial leads through dedicated, grounded conduits; avoid sharp bends and maintain a minimum bend radius of 50 mm to prevent structural stress on the cable.

• Connector Protection: Secure all coaxial connections with appropriate dust caps until final integration to prevent moisture or particulate ingress.

• Shielding Continuity: Ensure that cable shields are not grounded at the machine housing to avoid common-mode noise and measurement drift.

Frequently Asked Questions

• Is this probe compatible with legacy 3300 systems? No, 3300 XL series probes are calibrated for 3300 XL Proximitors; mismatching components will result in signal linearity errors.

• Can the cable length be shortened in the field? No, the probe and cable are a factory-matched set. Altering the length changes system capacitance and will invalidate the frequency response.

• How do I identify a faulty probe tip? Structural cracks or significant pitting in the PPS tip indicate a failed transducer; such units must be replaced to maintain monitoring accuracy.

• Why is there a 50/60 Hz noise floor? Such interference typically points to a ground loop; ensure the cable shield is grounded only at the monitoring instrument interface.

• Are these probes suitable for hydrogen-cooled generators? Yes, the construction materials are compatible with standard hydrogen-cooled generator environments.

• Does probe orientation affect radial readings? For journal bearings, probes should be installed 45 degrees from the vertical centerline for optimal orbital analysis.

• Can I use thread-locking compounds on the probe body? Use only approved locking nuts; do not use chemical thread-lockers that could impede electrical ground paths or contaminate the sensor.

• What is the nominal system sensitivity? The system is fixed at 200 mV/mil (7.87 V/mm) as governed by the matched Proximitor/Probe configuration.
