Product Overview

The Bently Nevada 330102-00-15-10-01-05 is an industry-standard 3300 XL 8 mm Proximity Probe designed for critical machinery protection and continuous condition monitoring. Operating via the non-contacting eddy current principle, this high-precision sensor is engineered to monitor radial vibration, axial thrust position, and keyphasor reference data on fluid-film bearing machines.

The 3300 XL 8 mm probe system provides highly accurate and repeatable displacement measurements within a 2.0 mm (80 mils) linear range. It is the benchmark choice for tracking high-speed rotor dynamics because of its excellent thermal stability and resistance to harsh industrial fluids.

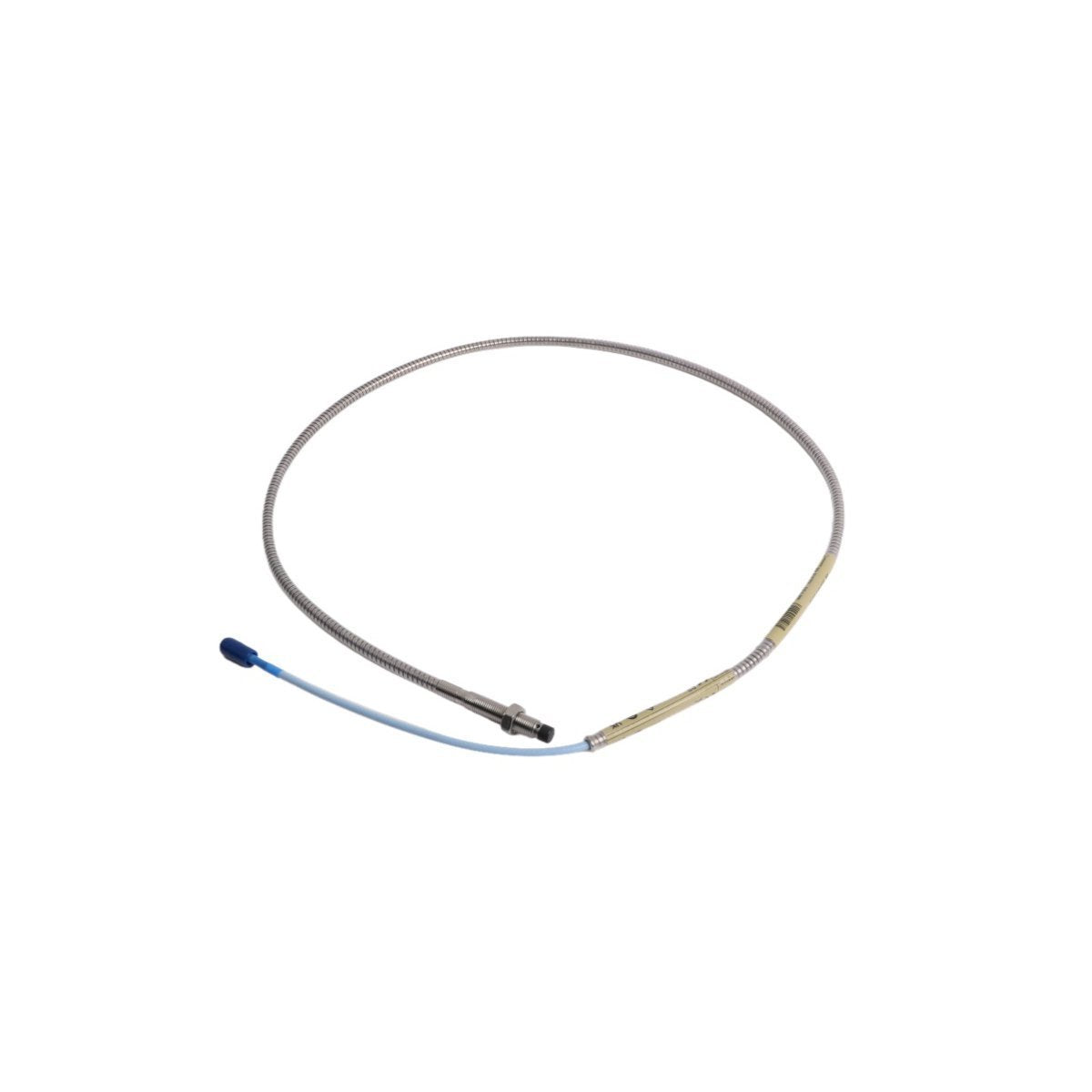

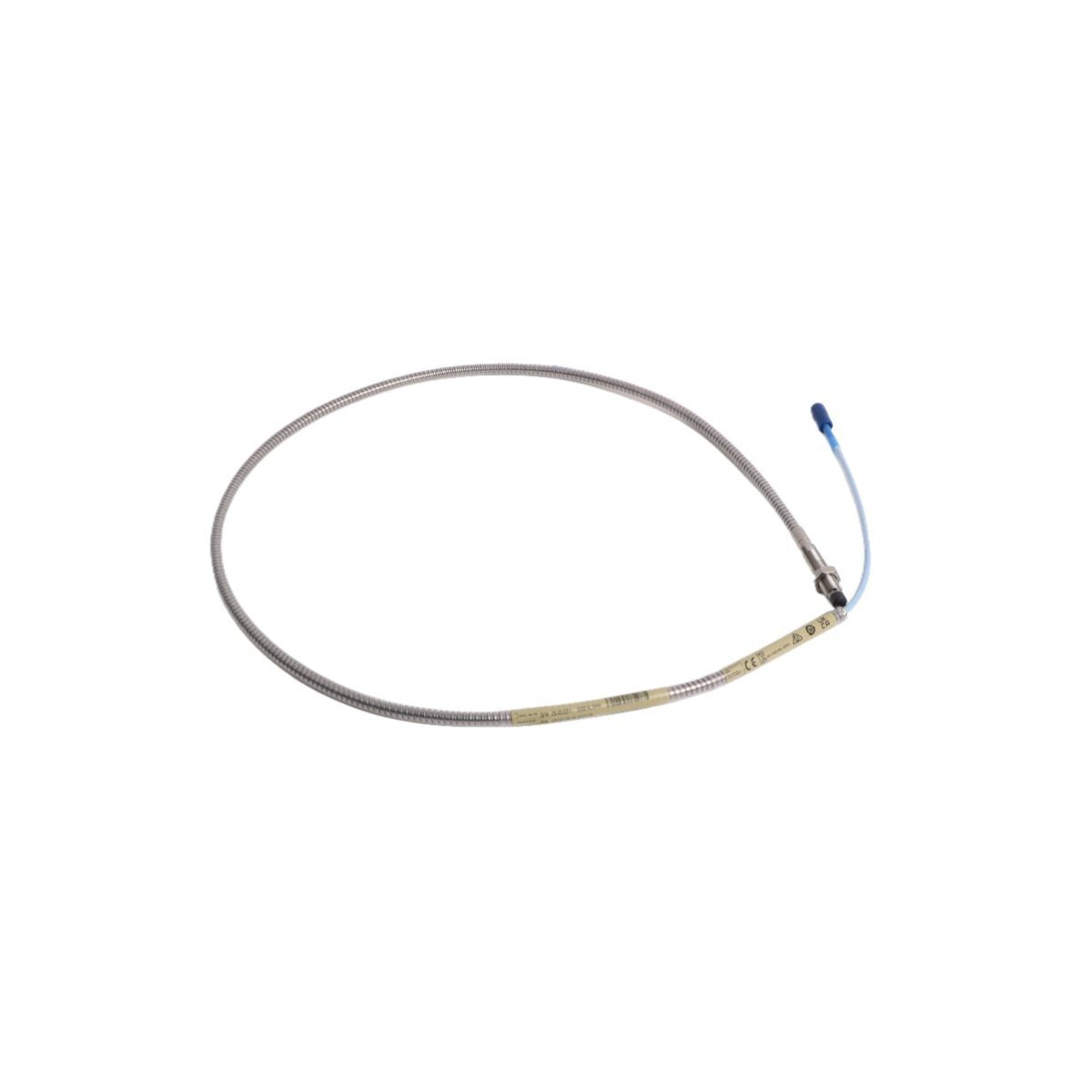

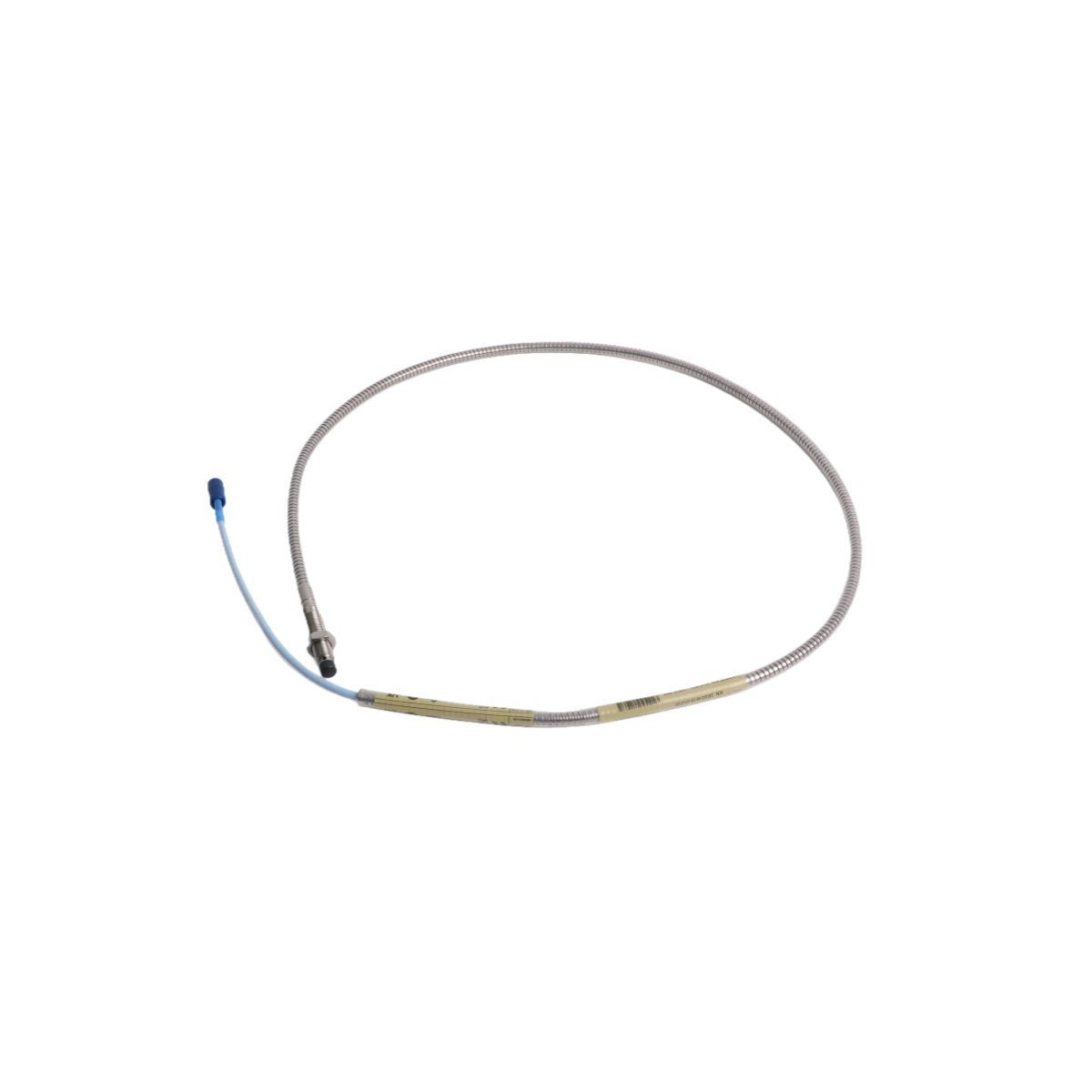

This specific configuration features an English standard 3/8-24 UNF threaded body with a 0.0-inch unthreaded length and a 1.5-inch overall case length. The sensor comes integrated with a 1.0-meter (3.3 feet) coaxial cable protected by a flexible stainless steel armor sleeve and is terminated with a miniature coaxial ClickLoc connector. It includes comprehensive multi-agency hazardous area approvals (Option 05), making it immediately suitable for integration into Bently Nevada 3500 Machinery Protection Systems (MPS) or distributed turbomachinery instrumentation loops worldwide.

Technical Specifications

Model Configuration Explanation

The part number 330102-00-15-10-01-05 defines explicit structural characteristics mapped to the official Bently Nevada 3300 XL 8 mm product catalog options:

• 330102: Base model number for the standard 3300 XL 8 mm Proximity Probe with standard English threads (3/8-24 UNF).
• 00: Unthreaded Length Option. Specifies 0.0 inches of unthreaded length. The entire 1.5-inch casing is fully threaded, allowing full mechanical layout flexibility.
• 15: Overall Case Length Option. Specifies a 1.5-inch case length, ideal for surface mounts, shallow brackets, or low-profile internal bearing blocks.
• 10: Total Length Option. Dictates a 1.0-meter (3.3 feet) integrated probe cable length, bringing the delicate connection out of direct exposure to the bearing housing core.
• 01: Connector and Cable Type Option. Selects a miniature coaxial ClickLoc connector combined with flexible stainless steel armor running the length of the cable for robust mechanical protection.
• 05: Agency Approval Option. Multiple Approvals certification package, covering international intrinsic safety (IS) and non-incendive rules under ATEX, IECEx, and North American CSA frameworks for Zone 0, Zone 1, Zone 2, and Class I Division 1/2 environments.

Typical Applications

The 330102-00-15-10-01-05 probe is a cornerstone instrument within heavy process industries where failure-free rotating machinery performance is mandatory:

• Radial Shaft Vibration: Measures the dynamic lateral motion of shafts within fluid-film bearings to detect unbalance, misalignment, and oil whip.
• Axial Thrust Position: Monitors continuous axial displacement of high-speed rotors to prevent catastrophic rotor-to-stator collisions within gas or steam turbines.
• Keyphasor Reference Inputs: Provides phase-angle information and exact RPM measurements to allow advanced machinery orbit tracking and balancing diagnostics.
• Industrial Assets Covered: Extensively utilized on high-pressure boiler feed pumps, multi-stage centrifugal compressors, gas turbine generators, process air fans, and heavy turbo-expanders.

System Compatibility

To satisfy API 670 performance parameters for machinery protection, the 330102-00-15-10-01-05 probe must operate within a matched three-component loop:

• Extension Cables: Must be matched with a 3300 XL 8 mm Extension Cable (e.g., 330130 series). The physical sum of the probe cable (1.0m) and extension cable must equal exactly 5.0 meters or 9.0 meters total loop length.
• Proximitor Sensors: Interfaces directly with the 3300 XL Proximitor Sensor (Model 330180), which drives the RF signal to the probe tip and rectifies the returns into a clean -24 Vdc voltage format.
• Machinery Protection Systems: Direct backplane interface via terminal blocks to the Bently Nevada 3500/42M Proximitor Seismic Monitor module or legacy 3300 system racks.

Proximity Probe Installation Guidelines

• Target Surface Quality: The shaft target zone must have a fine finish of 0.8 micrometers (32 microinches) Ra or smoother and must be free of deep scratches, machining tracks, or chrome plating to eliminate electrical runout anomalies.
• Mechanical Gap Voltage Setup: Rotate the probe into its 3/8-24 UNF mount while measuring the DC voltage at the Proximitor "BUF" terminal. Tighten the probe until the multi-meter reads -10.0 Vdc. This value marks the center point of the 2.0 mm linear tracking envelope.
• Tip Clearance Counterbore: Maintain a clear circle of at least 30 mm (1.2 inches) around the exposed 8 mm probe tip. Inadequate counterbore clearance will cause the probe to detect the surrounding mounting wall, leading to a distorted scale factor.
• Cross-Talk Prevention: When implementing orthogonal X-Y probe networks on a bearing housing, ensure a minimum physical separation distance of 40 mm (1.6 inches) between adjacent probe tips to eliminate mutual electromagnetic cross-talk.
• Torque Limitations: Lock down the 3/8-24 UNF thread using the supplied locknut. Do not exceed the maximum allowable installation torque of 11.2 N·m (100 in·lb). Secure the final position using locknut safety wire.

Product Advantages

• High System Linearity: Delivers an Incremental Scale Factor (ISF) of 7.87 V/mm (200 mV/mil) with minimal variance, yielding excellent data fidelity for process operators and machinery diagnosticians.
• Rugged ClickLoc Connectors: Gold-plated brass connector connections provide a high-vibration resistant lock without requiring special tooling during field routing.
• Heavy-Duty Strain Relief: Formulated with patented TipLoc molding to structurally bond the ceramic tip to the stainless steel body, along with CableLoc anchoring to withstand up to 330 N of direct pull tension.
• Stainless Steel Armor Protection: Integrated flexible armor shielding guards the internal coaxial conductor against pinching, abrasive wear, and hot hydrocarbon oil exposure.
• Full Interchangability: Individual probes, extension cables, and Proximitor sensors can be hot-swapped in the field without any need for component re-calibration.

Ordering Information

Procurement Notice: For new installation drop-ins, verify your required total loop length (5.0m or 9.0m) to ensure the matching 3300 XL Extension Cable and Proximitor Sensor are requested concurrently with this probe.

Logistics and Shipping

To maintain precise electronic calibration during transit, all shipments adhere to rigorous protection and environmental isolation protocols:

Professional Packaging Protocol:

Every Bently Nevada 330102 probe is sealed inside an anti-static industrial packaging shield to prevent potential electrostatic discharge (ESD) from damaging the internal elements. The sensor and its integrated armored cable are secured within a form-fitting, shock-absorbing high-density foam insert designed to withstand dropped impacts, heavy compression forces, and vibration stress during international freight transport. Complete factory material traceability sheets and a Certificate of Conformance (CoC) accompany each package.

Frequently Asked Questions

• Can I use a 3300 XL 8 mm probe with a legacy 3300 5 mm or 11 mm Proximitor?

  No. The 3300 XL 8 mm probe requires a matching 3300 XL 8 mm Proximitor Sensor (330180). Mixing sensor sizes or generations alters the circuit capacitance, which causes large measurement errors and will invalidate API 670 compliance.

• What does the "00" value indicate for the unthreaded length parameter?

  The "00" option means the probe has 0.0 inches of unthreaded section. The entire 1.5-inch stainless steel case is completely threaded with 3/8-24 UNF threads, giving you maximum adjustment depth inside a bracket or sleeve.

• What is the standard scale factor of this proximity probe system?

  The nominal scale factor is 7.87 V/mm (200 mV/mil). This means that for every 1 mil (0.001 inches) or 0.0254 mm of physical shaft movement toward or away from the probe tip, the output voltage signal shifts by exactly 200 mV.

• Why is the "01" armored cable option preferred over standard unarmored options?

  The stainless steel armor protects the delicate internal coaxial line against physical slicing, heavy compression, hot turbine oils, and friction wear when the cable is routed through conduits or across sharp metal edges.

• How can I identify a probe fault using a digital multimeter?

  Measure the DC voltage across the terminal block of the Proximitor Sensor. If the voltage reads close to 0 Vdc, there is a short circuit in the cable or connector. If it reads approximately -24 Vdc, it indicates an open circuit, a broken cable, or a probe tip located far outside its linear range.

• Does this probe require routine field calibration?

  No. The Bently Nevada 3300 XL system is completely interchangeable. As long as matching components (8 mm probe, extension cable, and Proximitor) are used within the exact designated loop length, the system automatically conforms to standard linear scale specifications.

• What target material is this specific probe factory-calibrated for?

  The probe is calibrated for AISI 4140 electric steel targets. If your machine features a shaft made of other alloys, stainless steel, or chrome-plated finishes, the scale factor must be compensated or custom-calibrated to ensure measurement accuracy.

• What hazardous area environments is the "05" approval option certified for?

  The "05" multi-approval choice combines ATEX, IECEx, and CSA standards into a single option. It allows the probe to be safely deployed in intrinsically safe, non-incendive configurations across Zone 0, Zone 1, Zone 2, and Class I, Division 1 or 2 environments globally.
