Product Overview

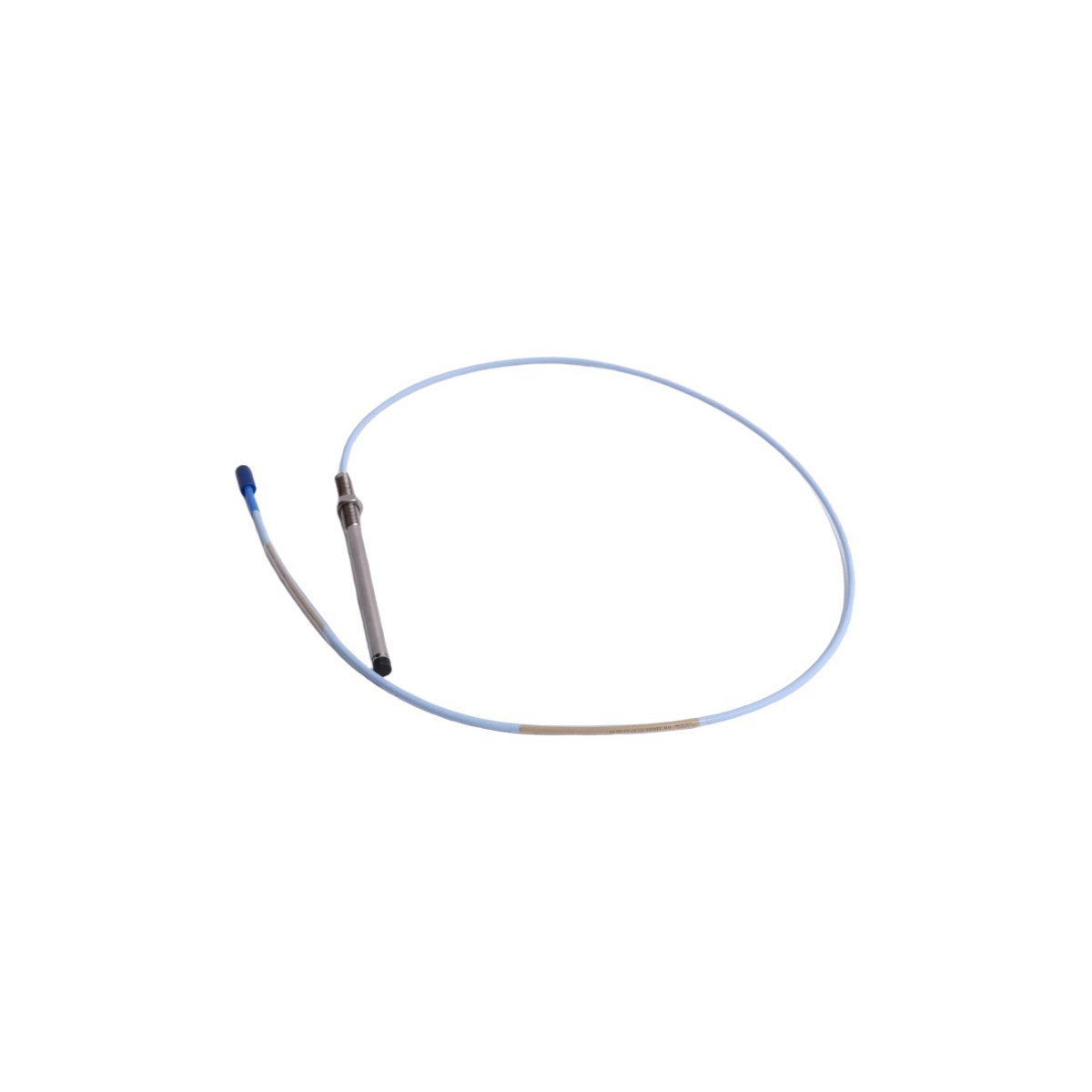

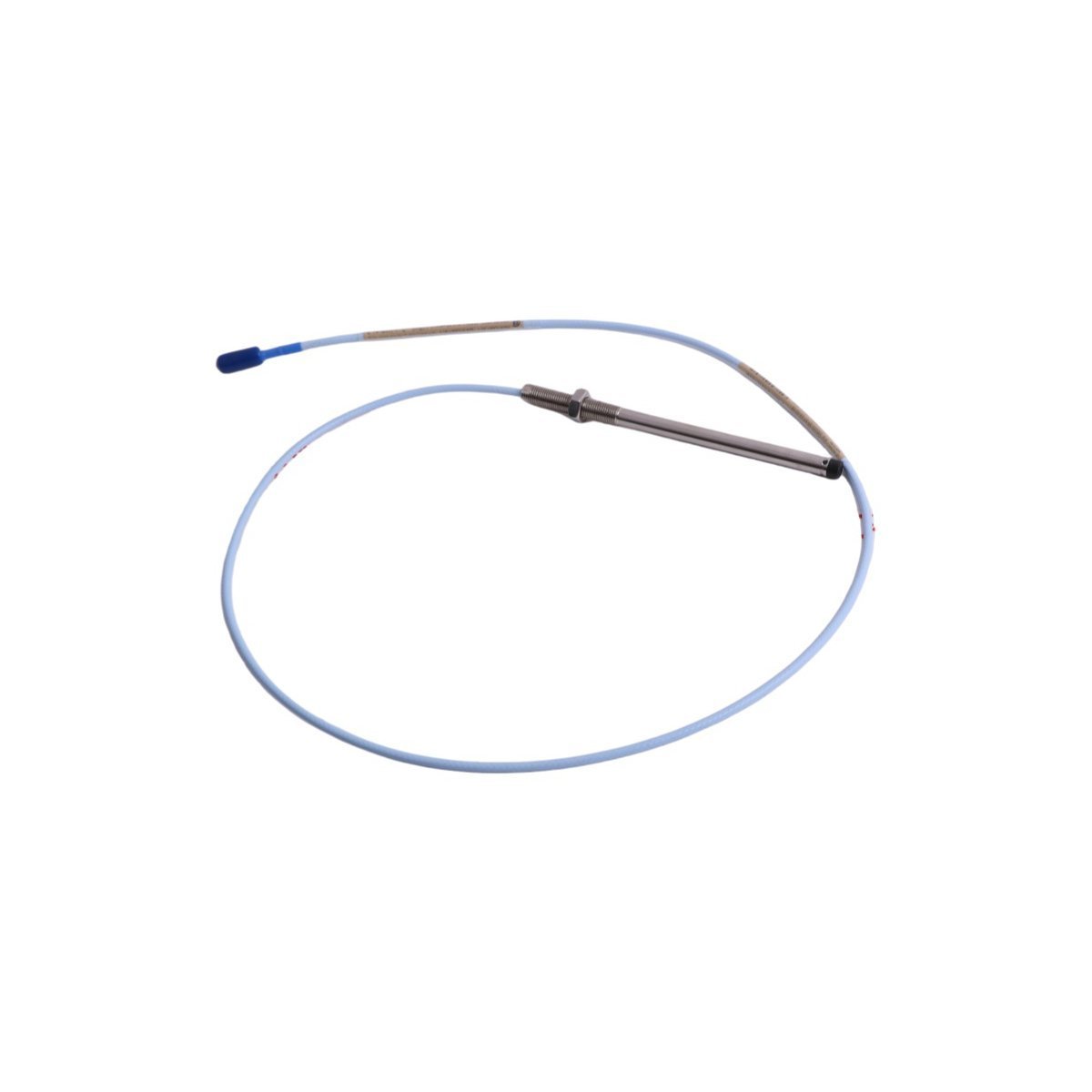

The Bently Nevada 330101-37-57-10-02-05 is an 8 mm eddy-current proximity probe from the 3300 XL transducer family, intended for non-contact measurement of shaft displacement on rotating machinery. The probe generates a displacement signal proportional to the distance between the probe tip and a conductive target. When used with a compatible Proximitor sensor (and extension cable when applicable), it supports continuous monitoring of radial vibration and position-related parameters for machinery protection and condition monitoring programs.

This probe configuration is typically selected when longer mechanical reach is needed to suit specific bearing housing or bracket geometries, while maintaining the measurement stability expected from 3300 XL proximity systems.

Hardware Parameters

Technical corrections and notes

• “System Accuracy ±0.75% velocity” is not applicable to a proximity displacement probe. Proximity probes measure displacement; velocity accuracy statements apply to seismic velocity sensors or derived calculations in monitors.

• Frequency response, linear range, and calibration depend on the complete transducer system (probe + cable + Proximitor) and the target material. Confirm compatibility with the selected monitor input requirements during engineering.

Industrial Applications

Common deployment scenarios include:

• Steam and gas turbines for continuous bearing vibration monitoring and rotor behavior assessment

• Centrifugal compressors where displacement trending supports protection logic and early fault detection

• Large pumps and motor-driven trains where increasing vibration often indicates bearing wear, looseness, or hydraulic instability

• High-speed fans and gear-driven equipment requiring stable non-contact sensing in oil-contaminated or high-vibration areas

• Hazardous-area installations where certified transducer hardware is required by site compliance standards

Installation considerations

• Verify probe mounting depth and clearances for the longer case configuration before installation

• Set probe gap per site procedures to ensure operation within the linear measurement region

• Keep transducer wiring separated from high-current conductors and VFD outputs to reduce EMI-related noise
