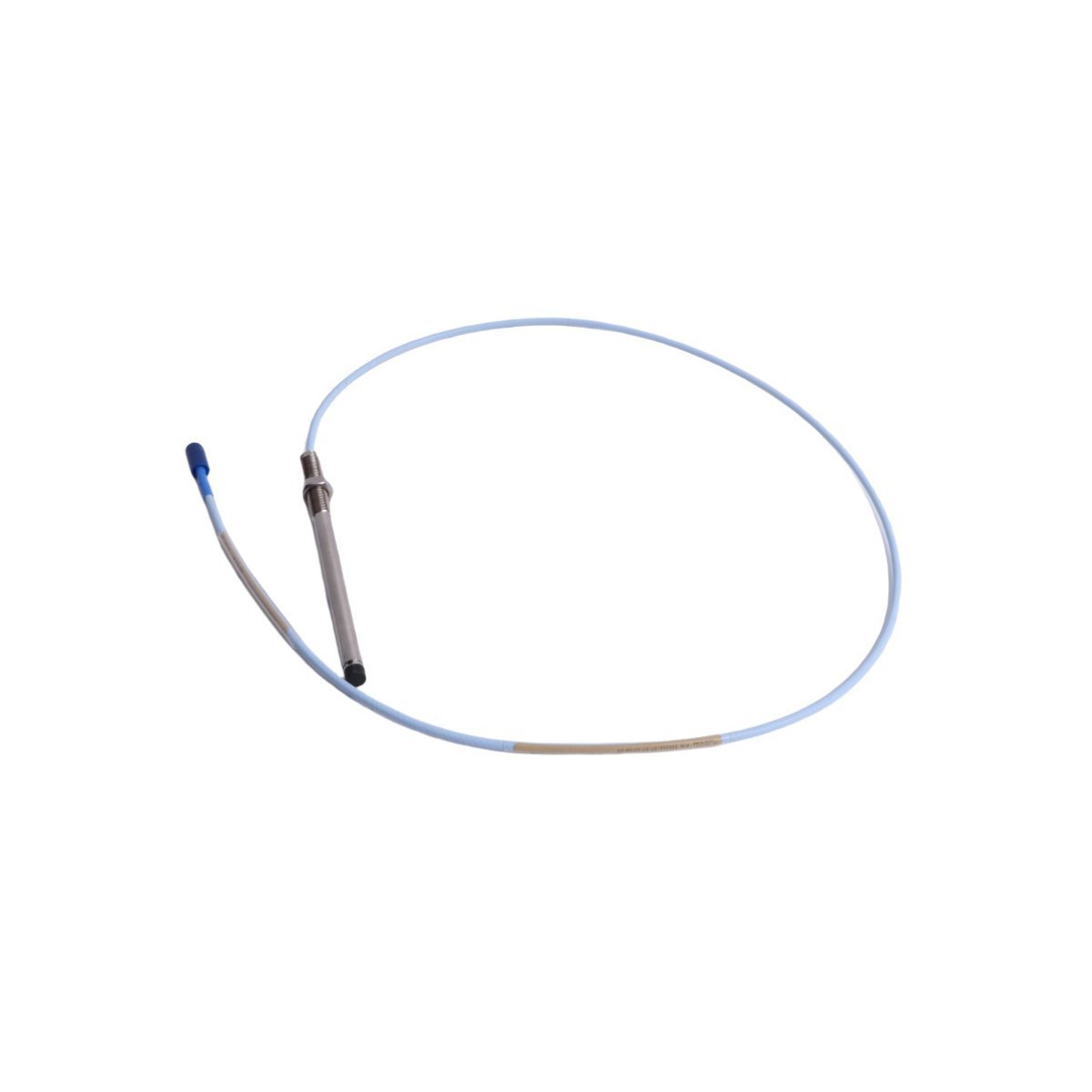

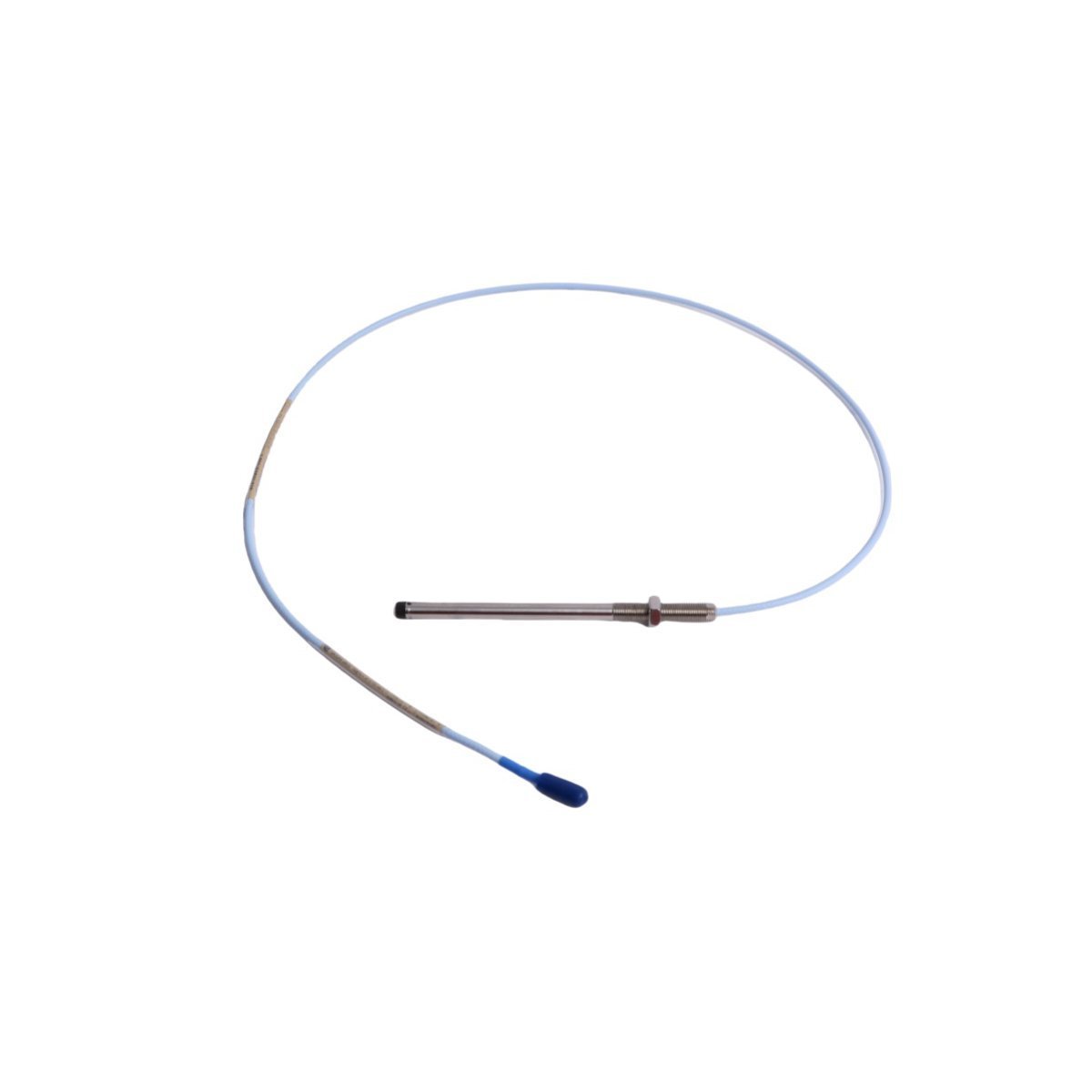

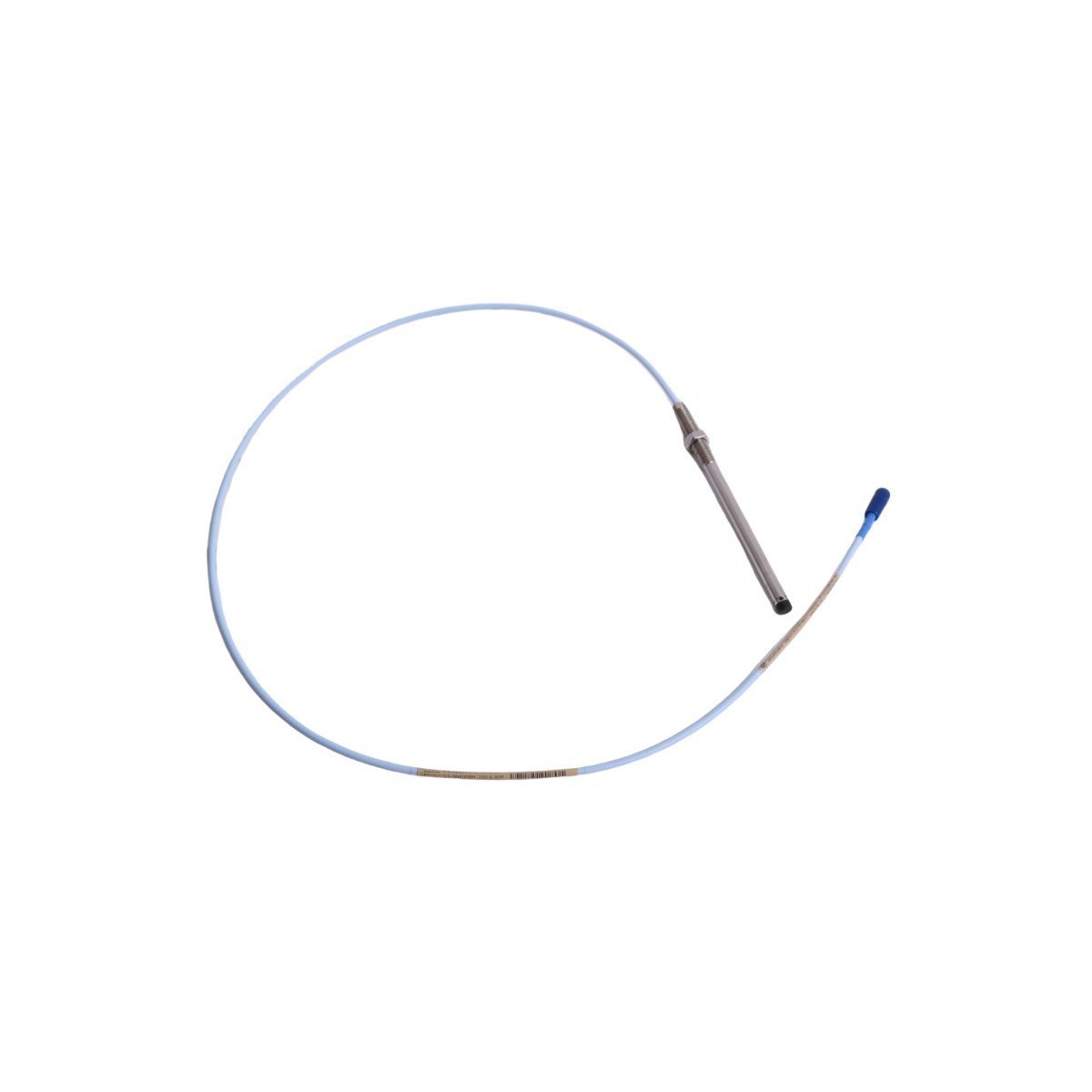

The Bently Nevada 330101-32-70-10-12-05, also cataloged as the 330101 Proximity Probe, operates as a dedicated hardware component for non-contacting displacement and vibration measurements within 3500 Machinery Protection Systems. It transforms mechanical distance deviations into equivalent electrical voltage variables directly processed by local continuous monitoring instrumentation.

Option Code Matrix Breakdown

• 330101: 3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread

• -32: Unthreaded length option (3.2 in)

• -70: Overall case length option (7.0 in)

• -10: Total length option (1.0 m / 3.3 ft)

• -12: Miniature coaxial clickloc connector with fluid-resistant connector protector

• -05: Agency approval option (Multiple approvals, ATEX / IECEx intrinsic safety and non-incendive)

Structural Technical Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The hardware relies on calibrated eddy-current probe scaling tuned precisely to a 7.87 V/mm output across a 2.0 mm linear spectrum. Field initialization requires precise gap voltage validation (-10 VDC targets) representing the exact midpoint of physical linearity. When mapping multi-channel profiles across compact turbine shafts for rotor dynamics monitoring, mechanical layout constraints must prevent cross-talk suppression failures. Unrestricted proximity between adjacent tips distorts the radio frequency field, generating false high-frequency modulation artifacts in the processing unit.

Package Manifest Inventory

• 1 x Bently Nevada 330101-32-70-10-12-05 proximity probe transducer

• 1 x Prefitted miniature coaxial clickloc male connector interface

• 1 x Integrated fluid-resistant silicone connector protector boot

• 1 x Factory calibration documentation and agency approval manual

Site Assembly Guidelines

• Thread Insertion Verification: Rotate the threaded barrel by hand into the target port to confirm zero thread binding before applying mechanical wrenches.

• Electrical Gap Alignment: Monitor the raw loop voltage during adjustment until reaching the standard calibration target value of -10 VDC.

• Cable Routing Constraints: Enclose the flexible coaxial lead within rigid metal conduit to shield against mechanical puncture and excessive bending stresses.

• Shield Ground Isolation: Terminate the outer coaxial shield layer exclusively at the Proximitor sensor housing terminal block to eliminate ground currents.

Freight Handling Logistics

• Dispatch Timeframe: 2-7 days when payment finish

• Shipment Execution: Conducted globally via premium courier networks DHL, FEDEX, or UPS.

• Safety Packing: Wrapped inside specialized anti-static industrial packaging to counteract mechanical shock and electrostatic breakdown.

Technical Queries & Answers

• What is the standard target gap voltage required during probe positioning?

  The alignment process requires adjusting the mechanical gap distance until the matching Proximitor output registers exactly -10 VDC. This targets the precise spatial center of the linear calibration window.

• Can this specific probe model be hot-swapped while the machinery monitor is energized?

  Yes, the passive probe can be decoupled from the extension cable without shutting down the main rack. However, the sudden open-loop voltage will trigger automated alerts if bypass interlocks are inactive.

• How does changing the targeted shaft material change the probe output scaling?

  The eddy-current profile is strictly optimized for AISI 4140 steel targets. Adjusting proximity to alternative alloys distorts the 7.87 V/mm scale factor, requiring structural recalibration.

• What protection does the integrated -12 connector option sleeve offer the hardware?

  The -12 option provides a fluid-resistant silicone protector boot pre-installed over the clickloc connector, shielding the RF connection from moisture, oil immersion, and corrosive atmospheres.

• Is an external power supply source required for this hardware module?

  No, this module functions as a completely passive sensor. It is excited entirely by the continuous high-frequency RF signal provided via the extension cable from the Proximitor Sensor unit.

• What minimum side clearance is demanded to maintain cross-talk suppression?

  Maintain a clear physical radius equivalent to at least three probe tip diameters away from any adjacent structural metals to avoid magnetic field degradation and crosstalk errors.

• What happens to system performance if the total length limits are exceeded?

  The matching Proximitor requires a fixed electrical length of either 5.0 or 9.0 meters. Altering this parameter through arbitrary splicing offsets the system impedance and invalidates the scale factor.

• What are the specific environmental temperature thresholds for the probe body?

  The integrated 8 mm tip assembly and internal coaxial lead are built to operate continuously within a rigid industrial temperature profile ranging from -51 deg C up to a maximum limit of +177 deg C.
