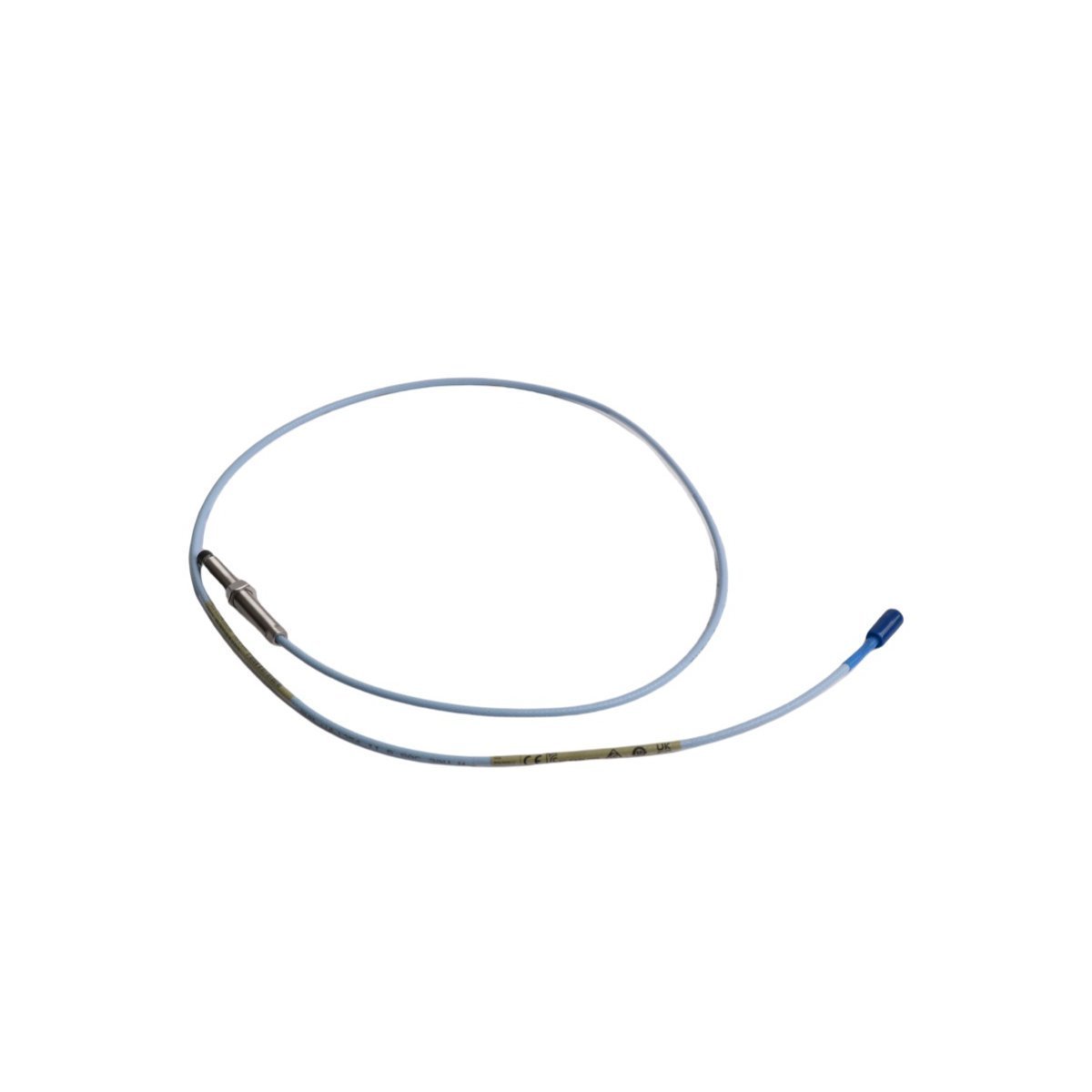

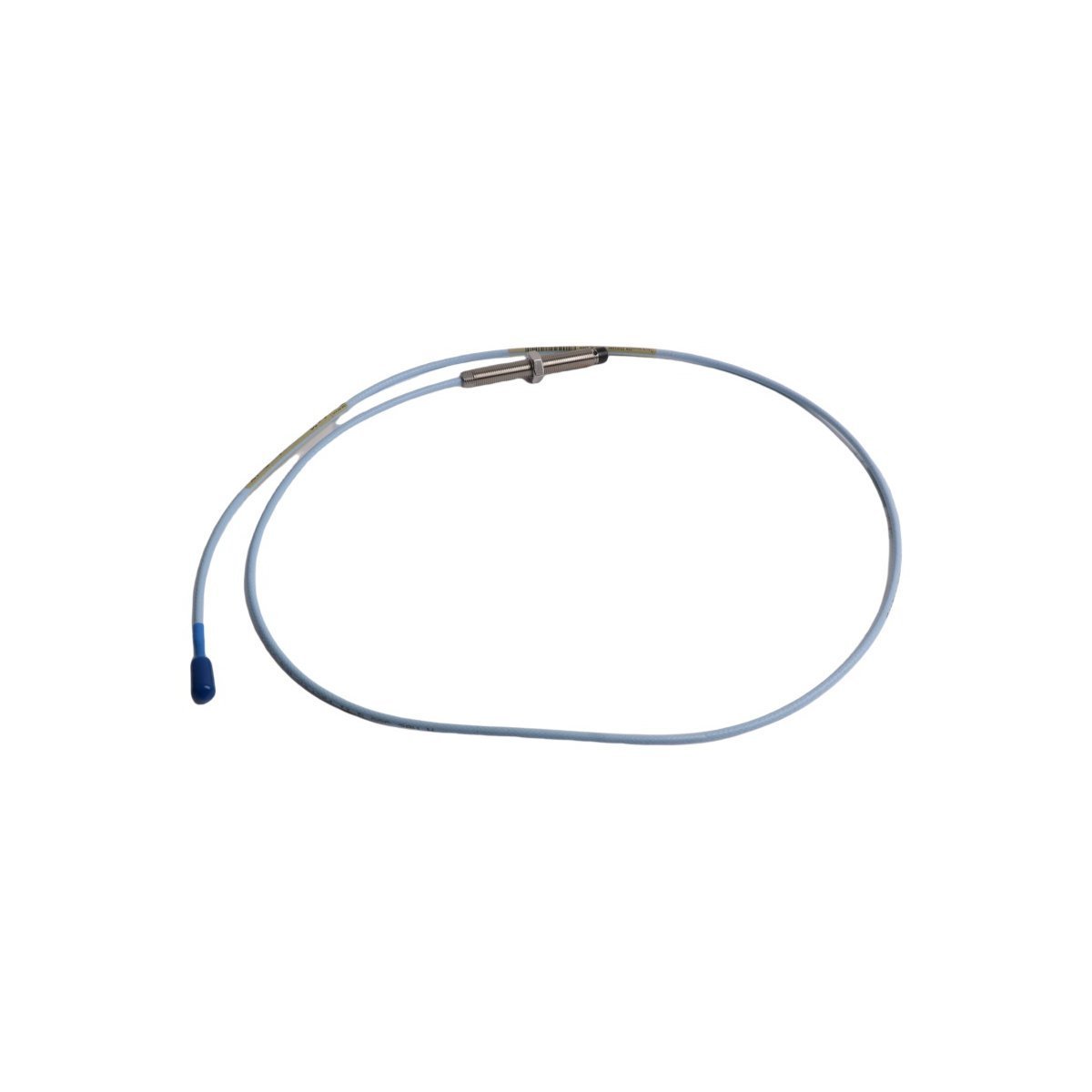

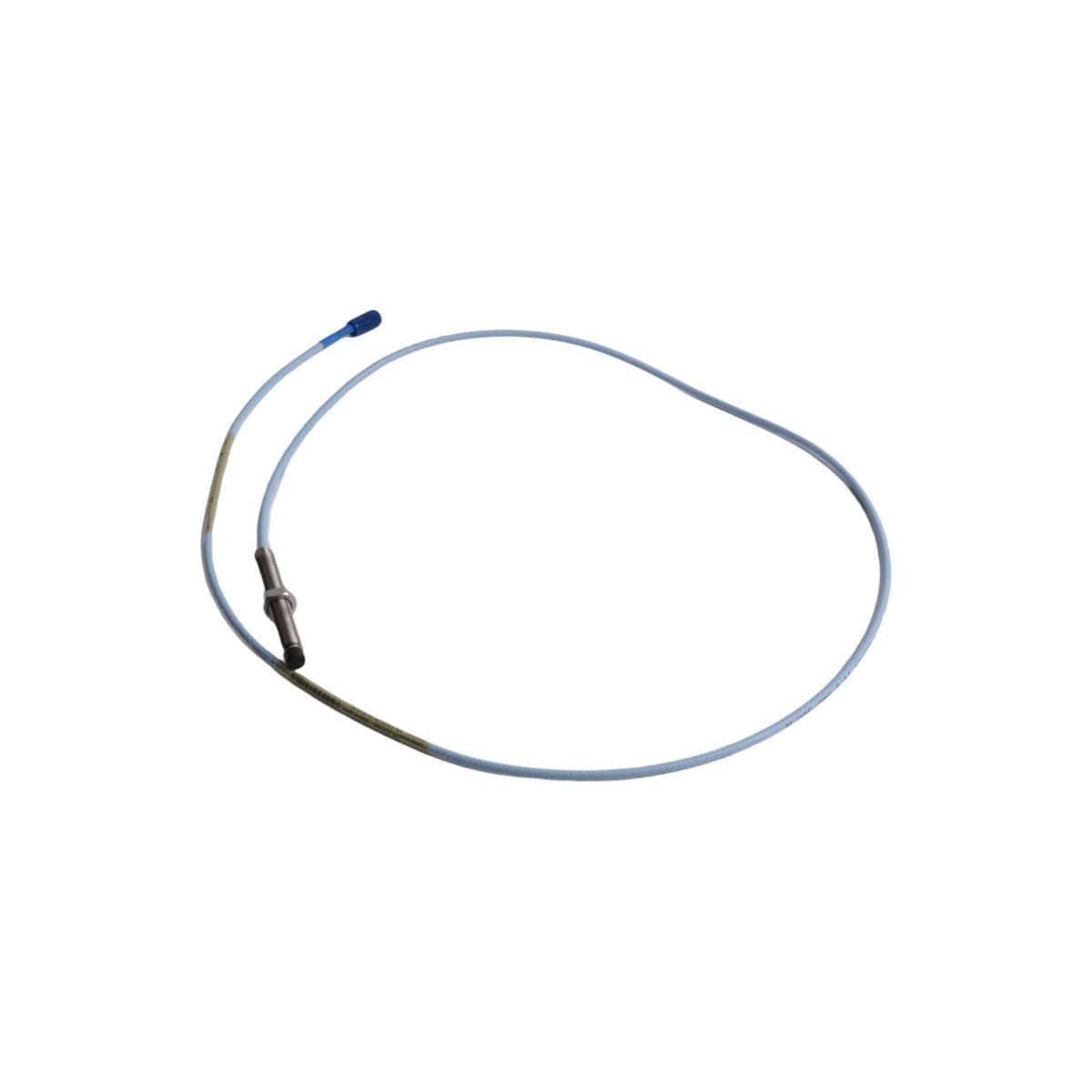

Configured for non-contacting static and dynamic shaft displacement measurements in Turbomachinery Instrumentation System platforms, the Bently Nevada 330101-00-76-20-02-05 (330101 Proximity Probes) provides direct physical/electrical execution. The hardware translates high-frequency eddy-current field modulations induced by the tip assembly into continuous voltage signals to track precise radial vibration and axial position changes relative to a rotating conductive target.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Tracking

The 8 mm sensing tip relies on strict calibration tolerances to sustain the target eddy-current probe scaling output factor of 7.87 V/mm. During the mechanical mounting process, adjusting the physical position of the threaded probe body sets the resting air gap distance, satisfying the electrical gap voltage validation target of -10 VDC at the midpoint of the Proximitor linear range. This specialized impedance alignment allows the multi-channel 3500 monitoring rack to accurately record micro-inch surface variations, optimizing the tracking of high-frequency rotor dynamics while enforcing cross-talk suppression paths when matching dual X-Y orthogonal arrangements on the same shaft plane.

Field Installation Guidelines

• Mounting Torque Constraints: Thread the probe barrel manually into the bracket or housing block. Tighten the primary casing jam nuts using calibrated tools to a maximum specification of 11.2 N-m (100 in-lb) to prevent structural binding of the 3/8-24 UNF threads.

• Transducer Gap Adjustment: Attach a digital voltmeter to the Prox out monitor loop terminals. Adjust the probe depth relative to the target face until the gap voltage validation parameters read exactly -10 VDC nominal (-9.0 to -11.0 VDC acceptable field envelope) before torquing the locking hardware.

• Coaxial Shield Isolation: Clean and dry the click-lock coaxial connections before locking. Slide standard fluorocarbon heat-shrink sleeve tubes over the connected joint to prevent local casing contact, preventing electrical ground loops and preserving cross-talk suppression integrity inside the flexible metal conduit.

Frequently Asked Questions

Q: How does a field deviation from the recommended gap voltage validation affect high-speed tracking metrics?

A: Installing the probe face outside the calibrated linear zone alters the baseline eddy-current probe scaling coefficient. This causes premature signal clipping during peak transient vibration events, degrading accuracy when tracking high-frequency rotor dynamics.

Q: Can the 2.0-meter integral cable be spliced or shortened to minimize conduit clutter?

A: No. Splicing or modifying the cable length alters the specific electrical length and tuned loop capacitance parameters. This disruption invalidates the factory-set eddy-current probe scaling profile, rendering the conversion data inaccurate.

Q: What physical separation parameters must be maintained to achieve reliable cross-talk suppression?

A: Maintain a minimum center-to-center separation distance of 40 mm between adjacent 8 mm probe tips. Mounting the sensors closer than this boundary allows their high-frequency magnetic fields to overlap, inducing parasitic beat frequencies that degrade cross-talk suppression.
