Product Overview

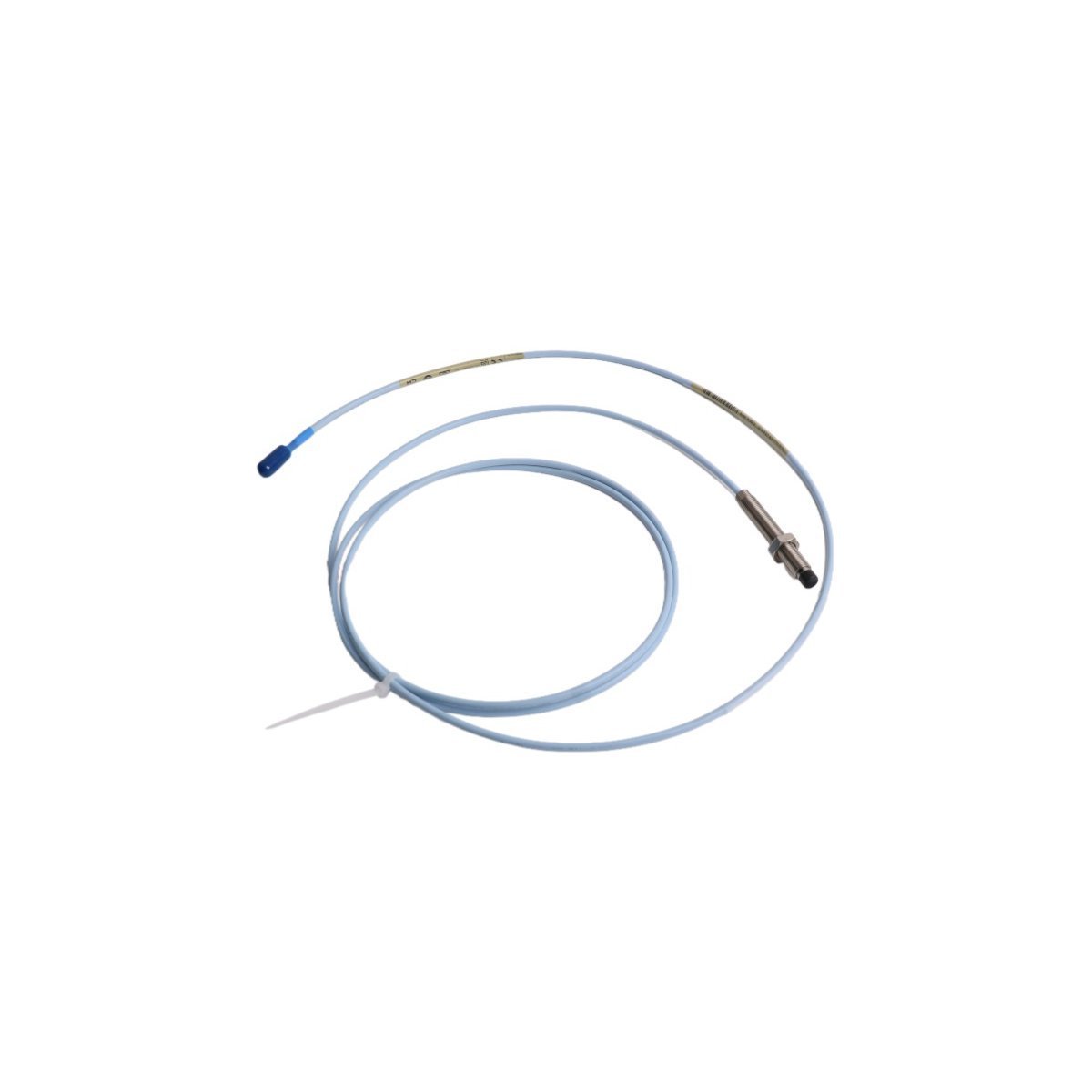

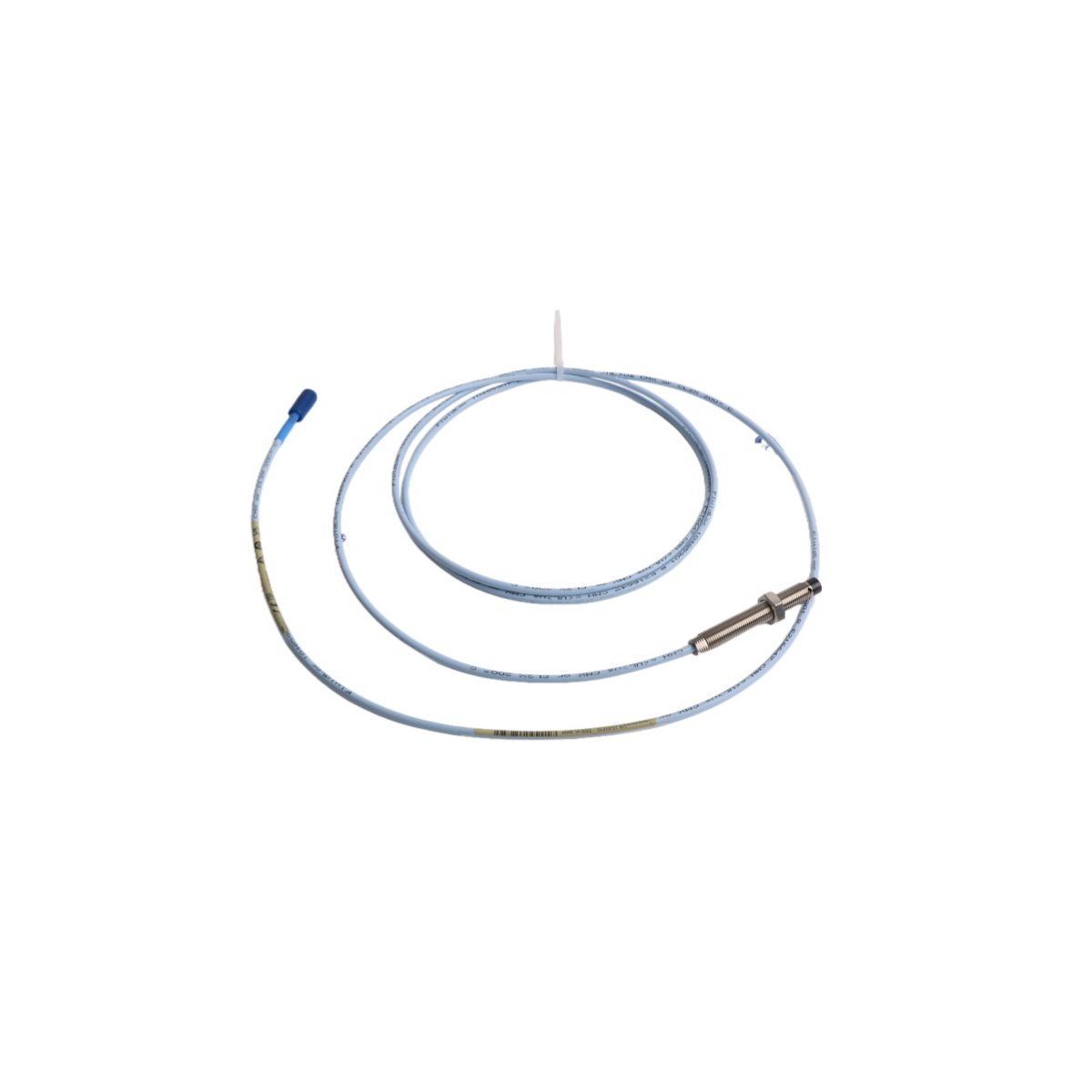

The 330101-00-55-20-12-05 is a high-fidelity eddy current sensor from the Bently Nevada 3300 XL ecosystem, engineered for high-accuracy shaft monitoring. This 8 mm proximity probe serves as a non-contacting transducer that detects both static and dynamic machine movements by generating a proportional voltage based on the gap between the probe tip and the target material. Designed to comply with stringent API 670 standards, this unit ensures linear range stability and thermal consistency even in demanding industrial environments. The system architecture emphasizes full interchangeability, allowing field technicians to swap probes, extension cables, or Proximitor sensors without the logistical burden of bench recalibration or component matching.

Essential Performance Metrics and Physical Data

• Model Code: 330101-00-55-20-12-05

• Sensing Diameter: 8 mm

• System Compliance: Fully meets API 670 Standard requirements

• Signal Protection: Advanced RFI/EMI immunity for CE mark compliance

• Target Material Calibration: AISI 4140 Steel (Standard)

• Nominal Gap: 1.27 mm (50 mils)

• Electrical Requirements: -24 Vdc supply with a 10 kΩ load

• Unit Weight: 0.06 kg

• Product Dimensions: 1.8 x 1.6 x 123 cm

• Manufacturing Origin: USA

• Altitude Rating: Up to 2000 meters operational elevation

Strategic Machine Monitoring Uses

This proximity probe is a fundamental building block for Turbine Supervisory Instrumentation (TSI), specifically utilized for monitoring fluid-film bearing assets. Common applications include tracking radial vibration to identify rotor imbalances or misalignments, and monitoring axial thrust position to prevent mechanical contact between rotating and stationary turbine components. Its robust RFI/EMI shielding makes it particularly effective in power plants and refineries where high-frequency radio interference is prevalent. Additionally, the SpringLoc terminal compatibility ensures that field wiring remains secure under the constant vibration typical of large centrifugal compressors, steam turbines, and high-pressure pumps.

FAQ

Q: Does the 330101-00-55-20-12-05 require manual calibration upon installation?

A: No, the 3300 XL series is designed for complete interchangeability. As long as you are using 3300 XL 8 mm components (probe, cable, and sensor) that match the calibrated system length, no bench matching or manual tuning is required.

Q: How does this probe handle electrical noise in an industrial setting?

A: This model features enhanced RFI/EMI immunity. It is designed to filter out high-frequency radio signals that could otherwise introduce "noise" or false vibration data, allowing it to meet European CE standards without specialized shielded mounting.

Q: Can I use this probe with a target material other than AISI 4140 steel?

A: While the factory specifications and API 670 compliance are based on AISI 4140 steel, the probe can detect other conductive materials. However, the scale factor and linearity will change, and custom calibration would be necessary for accurate displacement readings.

Q: What is the benefit of the SpringLoc terminal strip mentioned in the system overview?

A: SpringLoc terminals provide a robust, constant-pressure connection for field wiring. Unlike screw terminals that can loosen over time due to machine vibration, SpringLoc ensures a permanent, gas-tight connection that does not require specialized tools for installation.

Q: Is this probe suitable for high-altitude installations?

A: Yes, the 330101-00-55-20-12-05 is rated for reliable operation at altitudes up to 2000 meters (approximately 6,561 feet) without degradation of performance or accuracy.
