Product Overview

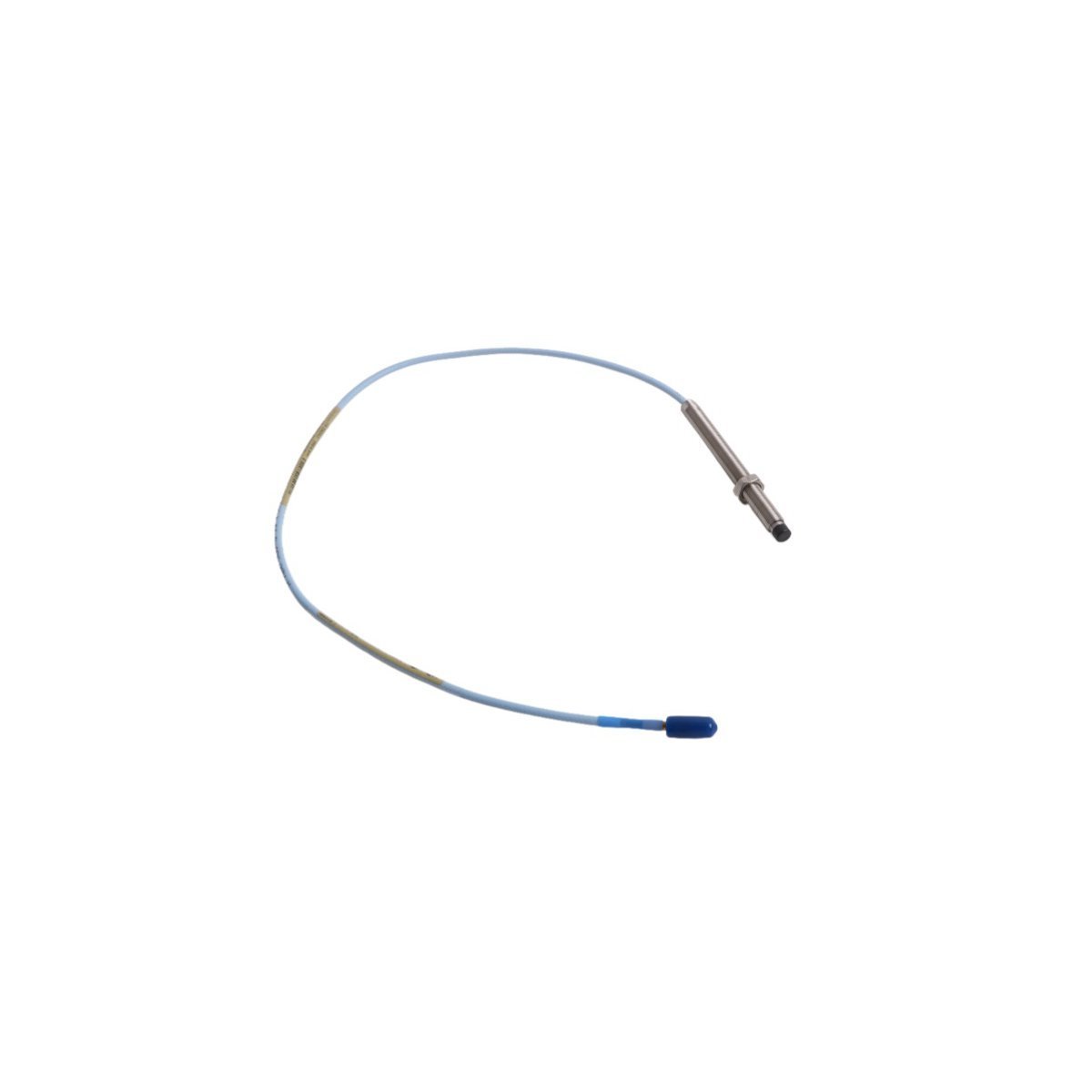

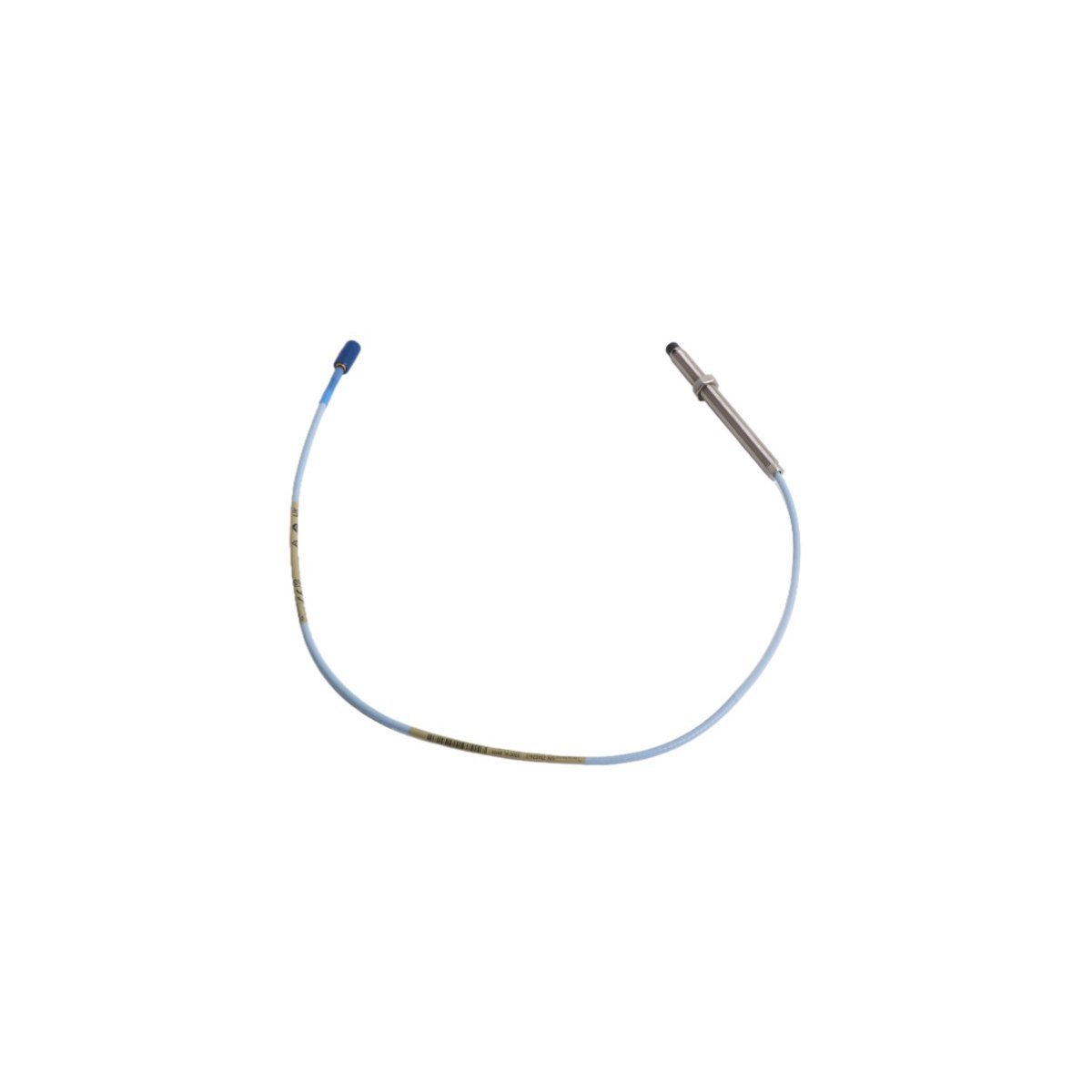

The 330101-00-45-15-02-00 is a precision-engineered 8 mm proximity probe belonging to the industry-standard 3300 XL series. This transducer is designed to measure static (position) and dynamic (vibration) distances between the probe tip and a conductive target, such as a rotating shaft. As a critical component of Turbine Supervisory Instrumentation (TSI), it provides the essential data required for vibration monitoring, thrust position analysis, and eccentricity measurements in high-speed industrial machinery. The 3300 XL system is renowned for its cross-compatibility, allowing this probe to interface seamlessly with 3300 XL Proximitor sensors without requiring manual field calibration.

Technical Specifications and Configuration

The specific nomenclature of the 330101-00-45-15-02-00 model defines its mechanical and electrical profile:

• Model Identification: 330101 (3/8-24 UNF Thread, Without Armor)

• Unthreaded Length: 0.0 inches (00 option)

• Overall Case Length: 4.5 inches (45 option)

• Total Length: 1.5 meters (15 option)

• Connector Type: Miniature coaxial ClickLoc connector (02 option)

• Agency Approval: None specified for this variant (00 option)

• Thread Size: 3/8-24 UNF

• Operating Temperature Range: -51 °C to +177 °C (-60 °F to +351 °F)

• Weight: Approximately 0.06 kg (net probe weight)

Key Functional Characteristics

The 3300 XL 8 mm probe is built to withstand the rigorous environments of steam turbines, gas turbines, and large-scale compressors. It utilizes a polyphenylene sulfide (PPS) tip that is overmolded onto the probe coil, providing a robust seal against moisture and oil penetration. The ClickLoc connector is designed with a gold-plated brass construction and a unique locking mechanism that prevents the connection from loosening due to machinery vibration. This specific 1.5-meter variant offers sufficient lead length for routing through internal machine housings to external junction boxes.

Application and Integration

This proximity sensor is a primary tool for predictive maintenance and machinery protection. Its main applications include:

• Continuous vibration monitoring of fluid-film bearing machines.

• Axial thrust position measurement for preventing catastrophic internal contact.

• Phase reference (Keyphasor) signal generation for speed and timing analysis.

• Integration into 3500 Series or 3300 Series monitoring racks via a compatible Proximitor.
