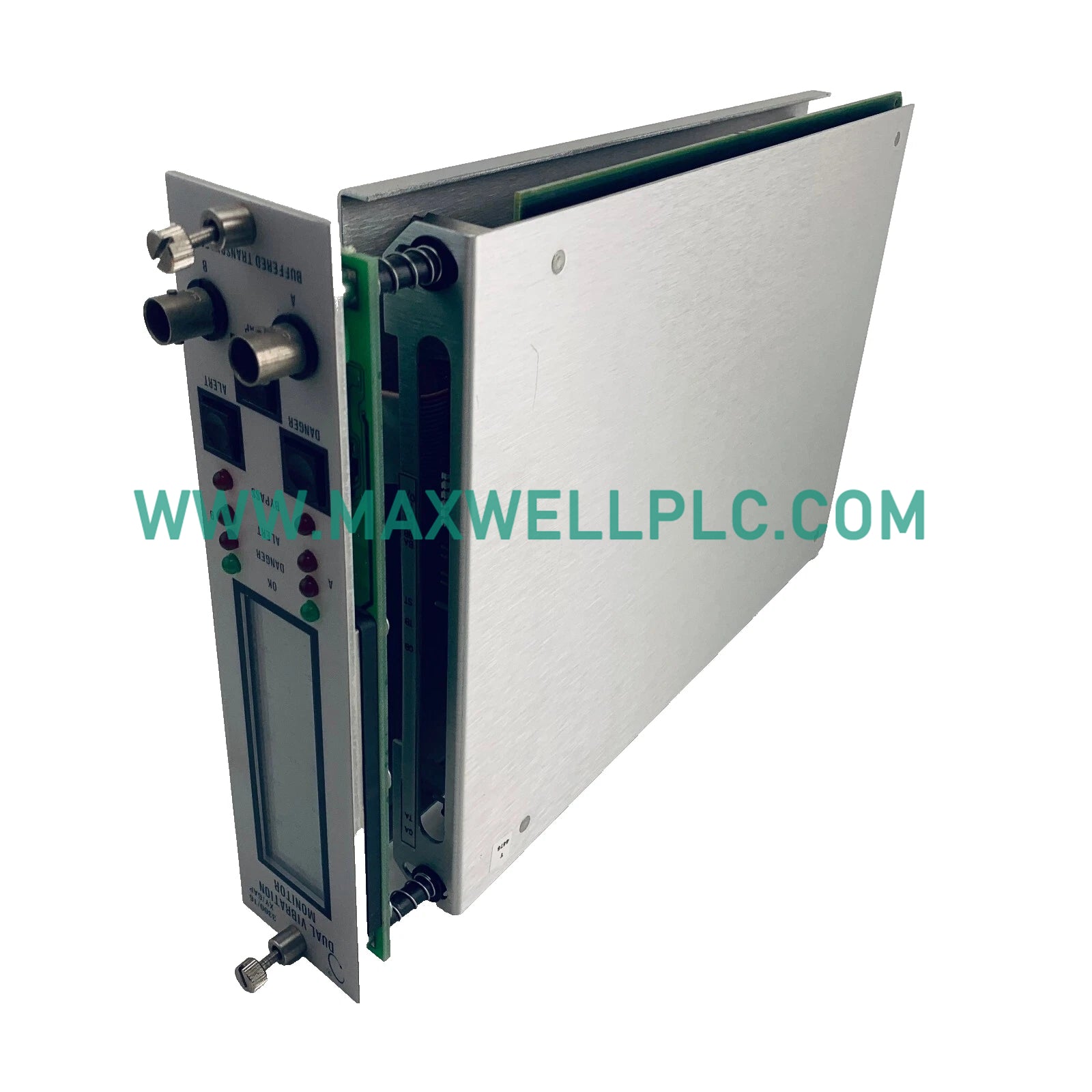

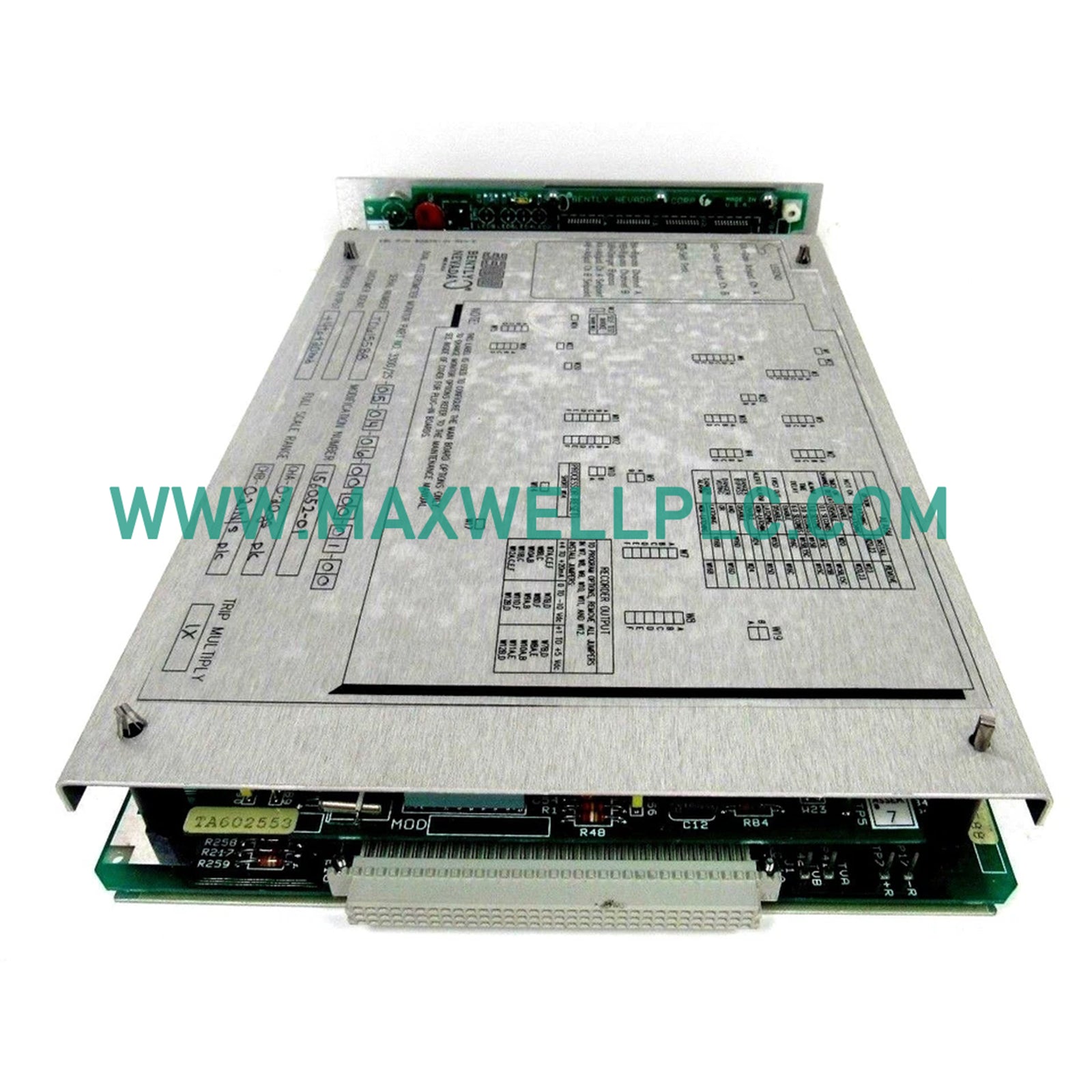

The Bently Nevada 3300/16-01-01-02-01-00-02, also cataloged as the 3300/16 XY/GAP Dual Vibration Monitor, operates as a dedicated hardware component for dual vibration and shaft gap signal monitoring within the Bently Nevada 3300 Monitoring System.

Model Configuration Details

The 3300/16-01-01-02-01-00-02 configuration defines an XY/GAP Dual Vibration Monitor with a 0-3 mils peak-to-peak full-scale range, compatible with Bently Nevada 3300 8 mm, 3300 XL 8 mm, and 7200 5 mm / 8 mm Proximitor Sensor systems.

The model configuration includes a 200 mV/mil transducer input option, hermetically-sealed alarm relay outputs, CSA/NRTL/C agency approval, no safety barrier option, and 3X trip multiply function.

Hardware Specifications

Shaft Vibration Signal Monitoring

The 3300/16 XY/GAP Dual Vibration Monitor processes vibration and gap measurement signals received from compatible Bently Nevada Proximitor Sensors. The module accepts displacement-related signals generated by eddy-current probe systems using the specified 200 mV/mil sensitivity scale.

The GAP channel provides monitoring of probe gap voltage conditions, allowing verification of probe operating position within the measurement range. Proper gap voltage validation is required for accurate shaft displacement measurement and vibration waveform interpretation.

Rotor Dynamics Measurement Characteristics

The 3300/16 supports XY vibration monitoring configurations where two orthogonal vibration channels are evaluated for machinery rotor behavior. The dual-channel arrangement enables analysis of radial vibration characteristics and supports rotor dynamics evaluation.

The Proximitor Sensor input interface uses eddy-current measurement principles, requiring correct probe scaling and cable installation practices. Shielding, signal routing, and grounding methods influence cross-talk suppression between adjacent vibration channels.

Ordering Information

• 1 x Bently Nevada 3300/16-01-01-02-01-00-02 XY/GAP Dual Vibration Monitor
• 1 x 3300 System compatible monitoring module assembly
• 1 x Standard hardware configuration according to selected options

Field Installation Guidelines

Rack Installation

• Install the monitor module in the designated Bently Nevada 3300 rack position.
• Verify rack power availability before inserting the module.
• Confirm module configuration matches the connected Proximitor Sensor type.
• Follow approved grounding practices for machinery monitoring systems.

Signal Wiring

• Use appropriate shielded wiring between Proximitor Sensors and monitoring inputs.
• Maintain separation between vibration signal cables and high-current electrical conductors.
• Verify probe polarity and terminal connections before startup.
• Confirm gap voltage conditions before collecting vibration data.

Frequently Asked Questions

• What function does the 3300/16 module perform?

  The 3300/16 provides XY vibration and GAP monitoring using compatible Bently Nevada Proximitor Sensor inputs within the 3300 System.

• Which sensors are compatible with this configuration?

  The module supports 3300 8 mm, 3300 XL 8 mm, and 7200 5 mm or 8 mm Proximitor Sensors with 200 mV/mil sensitivity.

• What is the vibration measurement range?

  This configuration provides a full-scale vibration range of 0-3 mils peak-to-peak (pp).

• What does the GAP measurement channel monitor?

  The GAP channel monitors probe position conditions through the eddy-current sensor gap voltage output.

• Does this model include a safety barrier option?

  The supplied configuration specifies no safety barrier option.

• What alarm relay type is included?

  The selected alarm relay option is a hermetically-sealed relay configuration.

• What does the 3X trip multiply option provide?

  The 3X trip multiply function changes the monitoring trip level scaling for temporary operating conditions requiring expanded vibration limits.

• How should sensor wiring be installed?

  Sensor cables should be routed away from interference sources with correct shielding and grounding practices applied.
