Product Overview

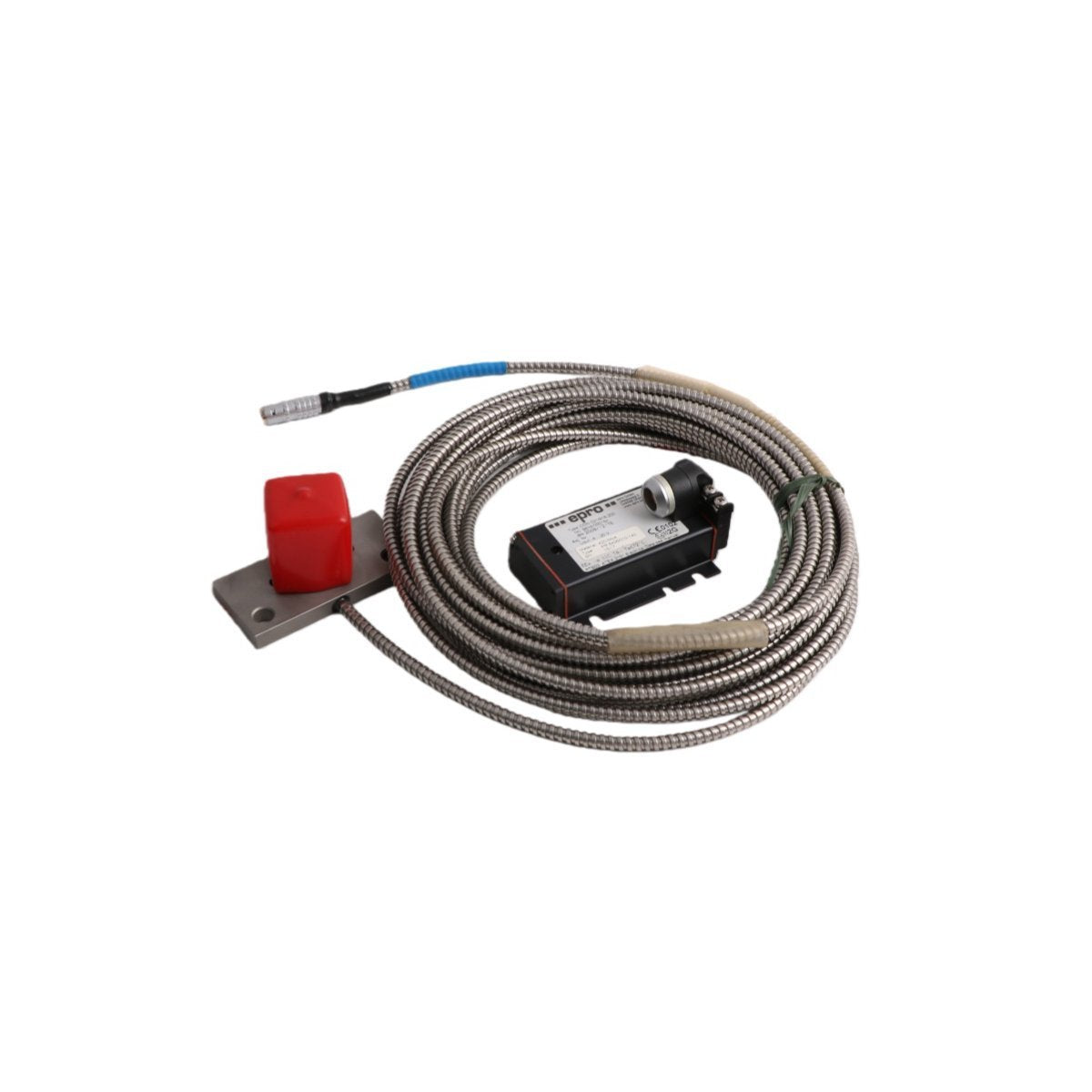

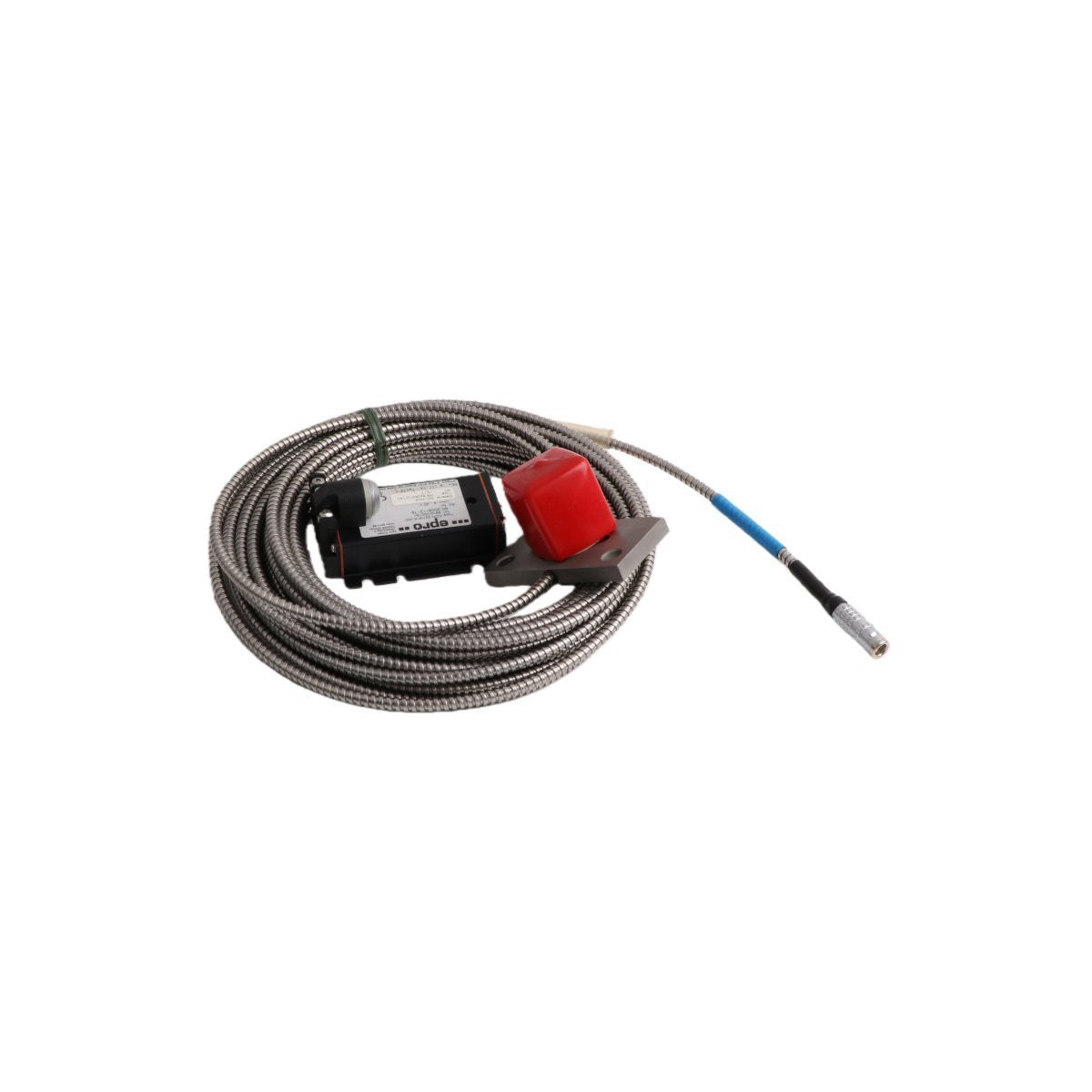

The Emerson PR6426/010-040 CON021 is a heavy-duty 32mm eddy current displacement sensor engineered for high-precision, non-contact monitoring of large-scale rotating machinery. As a flagship component of the EPRO series, this inductive transducer specializes in capturing structural data from massive shafts where standard 8mm probes lack the necessary measuring range or surface area coverage. By translating the physical gap between the sensor tip and the conductive target into a precise proportional voltage, it enables real-time tracking of mechanical clearances. This sensor is an essential asset for machinery protection systems, providing the high-fidelity feedback required to maintain the operational safety of high-value industrial infrastructure.

Engineering Specifications and System Capabilities

Designed for extreme reliability, the PR6426 series provides superior signal stability in the presence of high-pressure lubricants and intense electromagnetic interference.

• Probe Tip Diameter: 32 mm

• Measurement Principle: Non-contacting inductive eddy current

• Cable Interface: High-integrity CON021 connector assembly

• Sensing Range: Extended measuring range suitable for large-shaft displacement

• Construction: Hermetically sealed stainless steel housing

• Environmental Rating: IP67 ingress protection for submerged or oily environments

• Target Compatibility: Calibrated for ferromagnetic materials (standard machine steel)

• Signal Resolution: Sub-micron precision for static position and dynamic vibration

Strategic Deployment and Machinery Protection

The PR6426/010-040 is specifically utilized in the power generation and heavy processing sectors where monitoring large-diameter shafts is mandatory. It is the primary choice for industrial applications involving:

• Large Hydro-Turbines: Monitoring radial shaft vibration and axial thrust in hydroelectric power plants.

• Massive Steam Turbines: Detecting eccentricity and thermal expansion during start-up and steady-state operation.

• Heavy-Duty Compressors: Tracking shaft deflection in high-capacity centrifugal units within the oil and gas industry.

By integrating this sensor into a Distributed Control System (DCS) or specialized vibration monitoring rack, operators can implement proactive maintenance strategies. The sensor's ability to provide accurate data without physical contact prevents mechanical wear on both the probe and the shaft, ensuring long-term system stability. This real-time diagnostic capability is critical for preventing catastrophic bearing failures and minimizing the risk of unplanned outages in vital utility systems.
