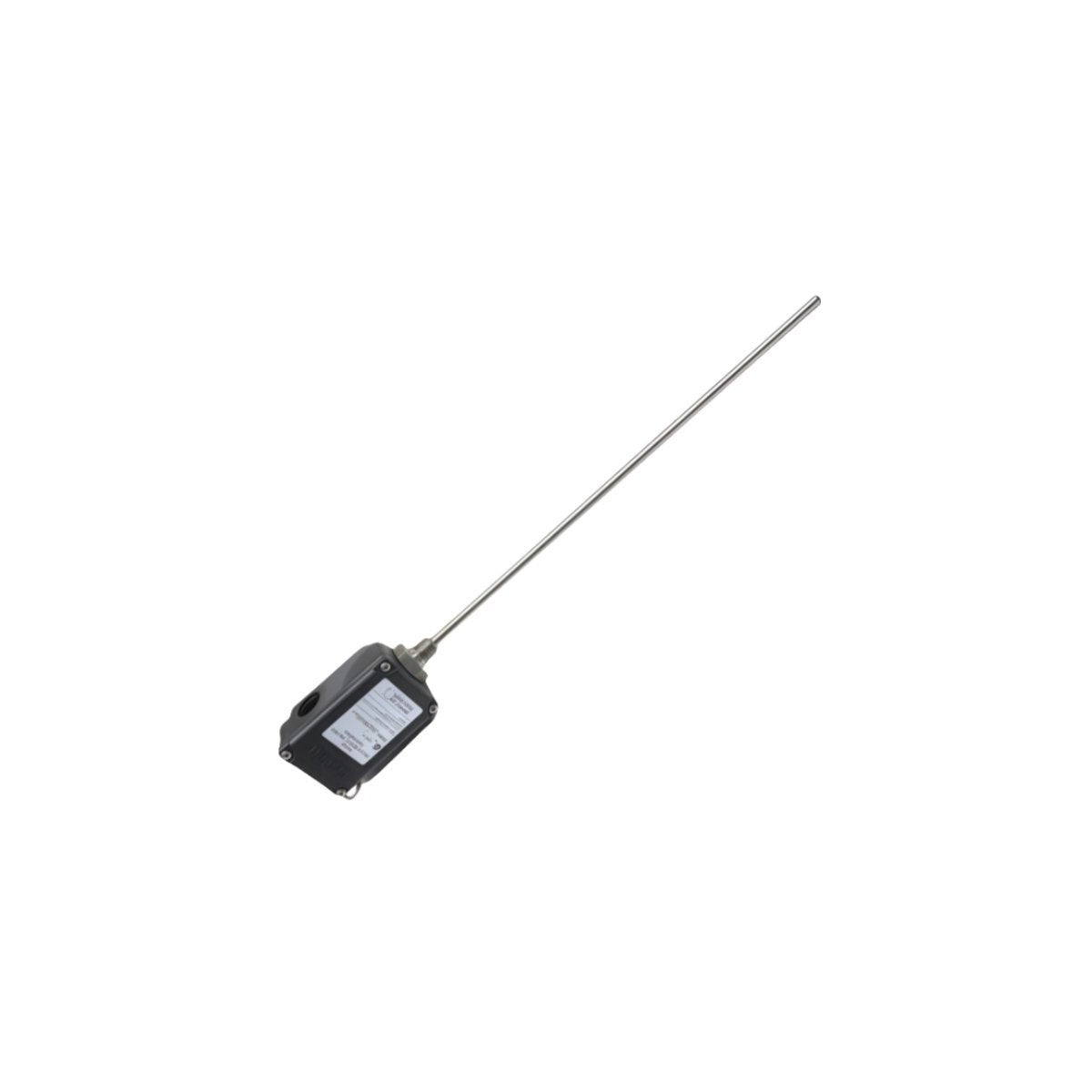

The Bently Nevada 32000-28-05-05-110-03-02 serves as the primary 32000 Proximity Sensor utilized to execute non-contacting static and dynamic shaft displacement routing across 3300 Series machinery monitoring platforms. The hardware transducer utilizes high-frequency eddy-current fields to resolve minute physical air-gap variations over rotating machine targets, generating a continuous analog voltage stream representing precise proximity metrics.

Performance Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The internal inductive matrix of the 32000-28-05-05-110-03-02 is calibrated to enforce tight eddy-current probe scaling baselines needed for the isolation of complex rotor dynamics waveforms. Mechanical mounting positioning tracks an absolute gap voltage validation target of -10 VDC to anchor the conversion curve directly within its linear operational center. Physical shielding parameters are woven directly into the coaxial lead boundaries to secure optimum cross-talk suppression, containing high-frequency signal leakage when routed alongside high-voltage internal paths or alternative probe systems.

Hardware Interface Diagnostics

Q: How is the physical gap voltage validation (-10 VDC target) verified on-site?

A: The probe body is advanced manually into the mounting port while monitoring the raw DC bias voltage at the Proximitor terminal blocks until the reading registers the nominal -10 VDC target midpoint.

Q: Can the probe cable run be isolated while the monitoring loop is actively powered?

A: Yes. Uncoupling the passive coaxial connector interface does not cause electrical damage to the sensor components, though it will instantly force a "Not OK" signal fault at the rack.

Q: What material parameters impact the preset eddy-current probe scaling factor?

A: Factory calibration is keyed directly to AISI 4140 steel. Interfacing with alternative metallurgic targets alters the electrical impedance curve, skewing displacement outputs unless corrected by specialized Proximitor matching.

Field Component Assembly Rules

• Thread the probe into the casing frame by hand, checking physical clearances periodically to prevent any contact damage to the sensitive tip assembly.

• Wipe clean all coaxial link connections with electrical contact solvent and verify dry state conditions before turning and securing the miniature threaded couplings to finger-tight status.

• Shield the raw cable length inside dedicated heavy-gauge steel flexible armor runs to protect against mechanical shear or impact damage.

• Verify that the external metallic outer shield grounds exclusively at the Proximitor housing ground point to suppress industrial ground loop generation.

Ordering Information

• 1 x Bently Nevada 32000-28-05-05-110-03-02 Proximity Sensor

• 2 x Hexagonal Alignment Jam Nuts

• 1 x Material Calibration Report Sheet

Delivery Logistics Data

Delivery time: 2-7 days when payment finish verification is complete. Dispatch execution relies on global air express handlers, including DHL, FEDEX, or UPS. Every hardware container uses anti-static industrial packaging complete with dense structural shock-insulating padding to ensure physical calibration metrics remain stable during international transit.
