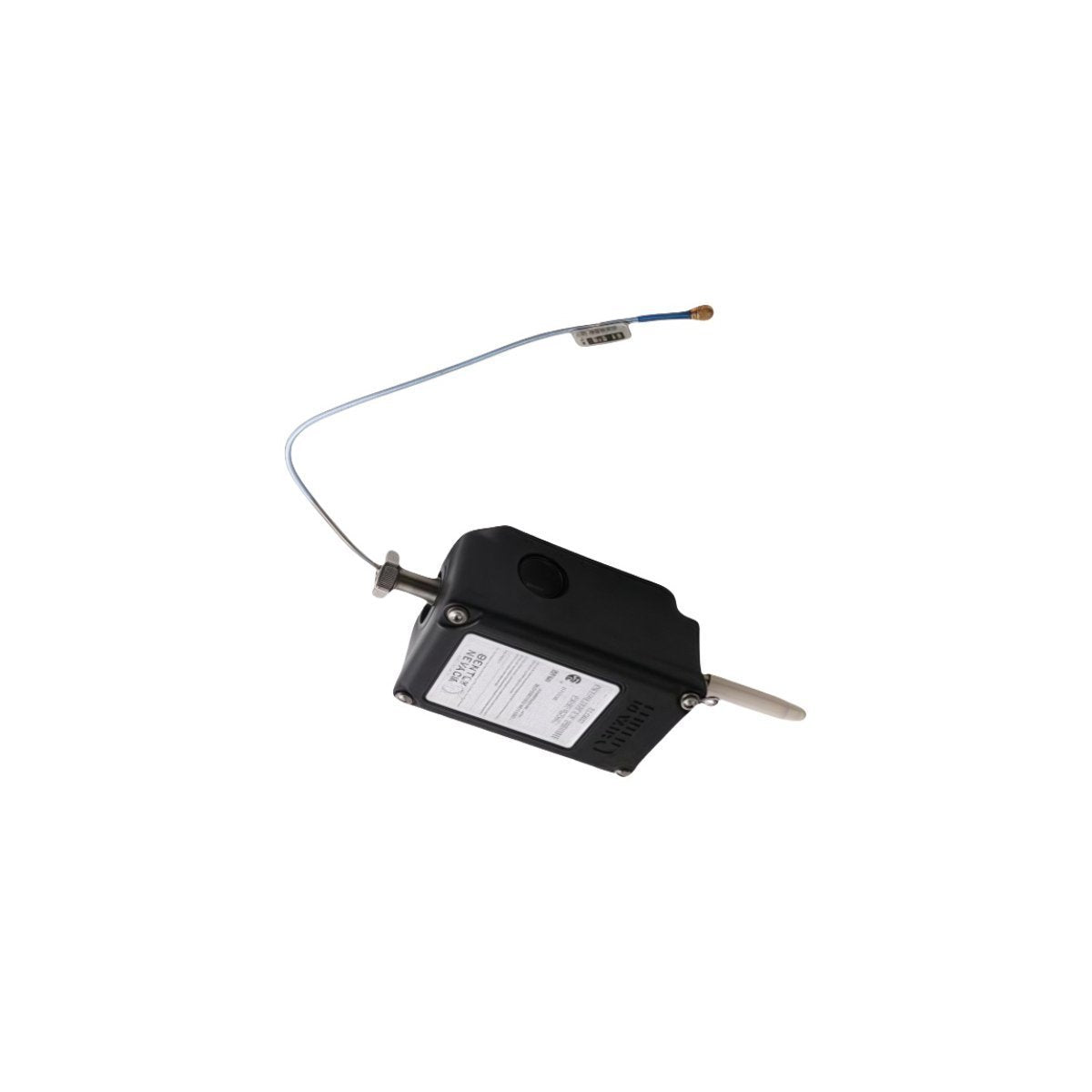

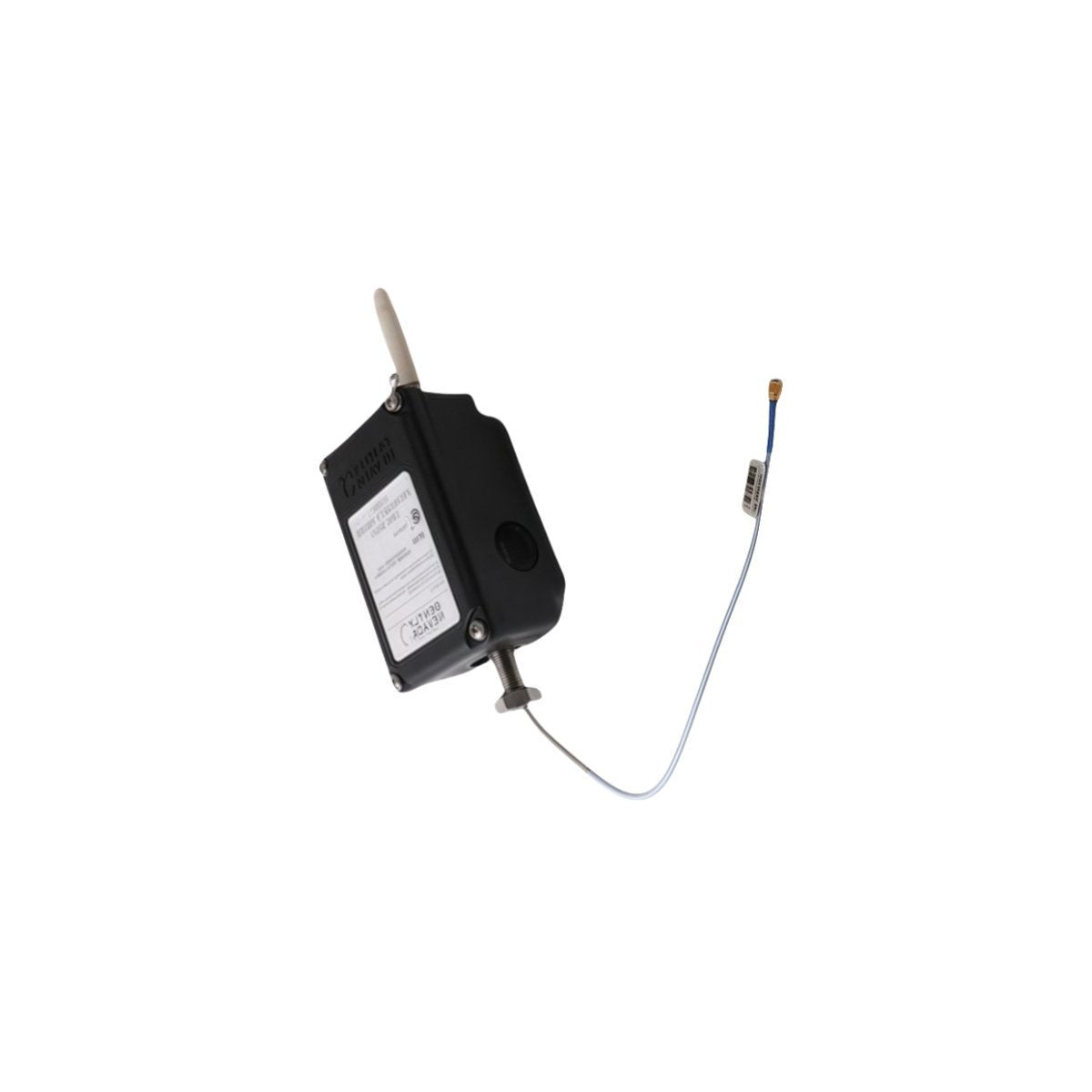

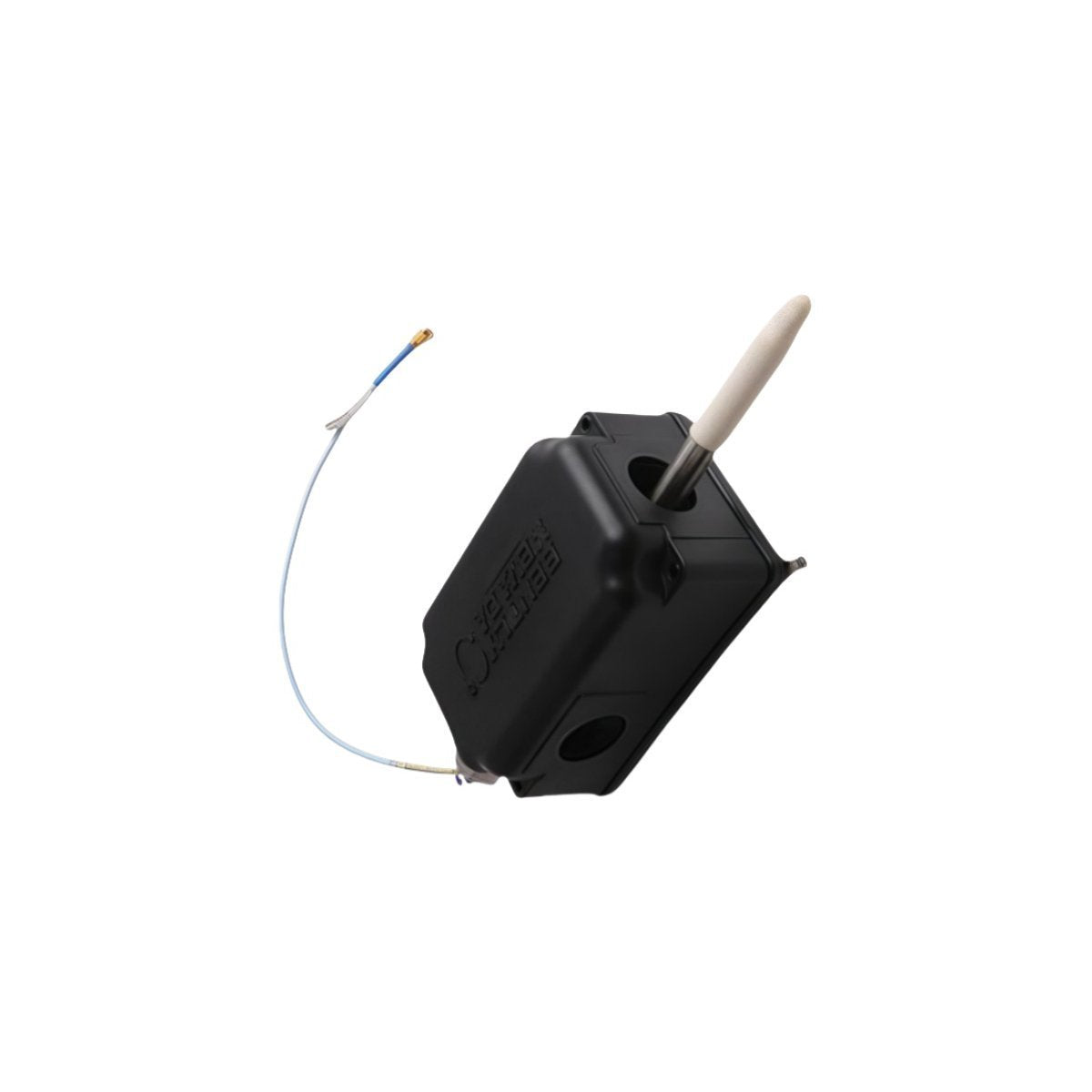

The Bently Nevada 31000-00-00-00-070-03-02 serves as the primary 31000 Proximity Probe Housing utilized to execute mechanical positioning and environmental isolation for proximity transducers across machine casings. The hardware provides direct physical containment, enabling internal probe calibration adjustment relative to a rotating target path without breaching explosion-proof or weatherproof machine seals.

Hardware Specifications

Transducer Protection and Rotor Dynamics Verification

This probe housing assembly provides structural stabilization for proximity sensors tracking real-time rotor dynamics. By mitigating external physical vibration harmonics, the hardware ensures that the proximity sensor tip maintains precise spatial calibration. This structural integrity prevents baseline drift in the factory-established eddy-current probe scaling verification and eliminates mechanical noise feedback during high-amplitude shaft motion. The isolated internal path accommodates raw signal routing, ensuring complete cross-talk suppression by mechanically fixing orthogonal sensor pairs in definitive multi-probe bearing profiles.

Field Installation Guidelines

• Explosion-Proof Thread Engagement: Ensure a minimum of five full threads of engagement are secured when coupling the housing base to the machine NPT mounting port. Tighten the primary locknut assembly to prevent mechanical displacement under continuous machine vibration.

• Internal Transducer Positioning: Utilize the internal sleeve adjustment mechanism to position the probe tip relative to the target shaft. Verify the correct static air gap by tracking the standard gap voltage validation target of -10 VDC across the Proximitor sensor terminals before torquing the exterior sleeve lock screws.

• Shield Line Terminal Grounding: Route the probe coaxial line through the conduit adapter ports. Apply appropriate sealing compound at the housing conduit entry to block moisture entry, keeping the internal ClickLoc nodes isolated from local framework potentials to ensure cross-talk suppression.

Frequently Asked Questions

Q: How does the mechanical configuration of this housing affect the eddy-current probe scaling?

A: The housing acts as a passive physical shield and positioner. It does not affect the factory eddy-current probe scaling parameter, provided the probe tip remains clear of the internal housing metallic margins by the required minimum distance.

Q: Can the internal sensor probe be adjusted or removed while the machinery is operating?

A: Yes. The reverse-access design allows field technicians to adjust the internal sensor positioning or confirm gap voltage validation targets without shutting down the machinery or exposing the interior bearing environment.

Q: What step is required to maintain effective cross-talk suppression inside the enclosure?

A: Ensure that the probe coaxial lines are insulated with fluorocarbon heat-shrink sleeves at all metallic touchpoints inside the housing body. Preventing terminal contact with the housing structure avoids stray ground loops that bypass internal cross-talk suppression.
