Product Overview

The Allen-Bradley 2711P-T15C4A2 is a high-performance Human-Machine Interface (HMI) from the PanelView™ Plus 1500 series, featuring an expansive 15-inch active-matrix color display. This operator terminal serves as a centralized control hub for complex industrial automation systems, providing high-resolution visualization for real-time monitoring of machinery and plant-floor processes. Designed for versatility and power, the 2711P-T15C4A2 combines a robust 128 MB logic module with an analog resistive touchscreen, allowing operators to interact with system parameters through dynamic graphics, including real-time trending, gauges, and interactive pushbuttons.

This unit is engineered to simplify data management by allowing direct on-screen access to production manuals and technical documentation. Its advanced software environment supports complex expression handling, enabling mathematical functions and conditional logic to be executed directly at the terminal level, which reduces the processing load on the primary PLC and streamlines HMI screen development.

Hardware Architecture and Connectivity

The 2711P-T15C4A2 is built on a modular platform that integrates high-speed communication with flexible power management.

• Extensive Interface Options: Features integrated 10/100 Mbps Ethernet for plant-wide networking, a dedicated RS-232 serial port for point-to-point PLC communication, and dual USB ports for peripheral support (keyboards, mice, or data export).

• Storage and Memory: Equipped with 128 MB of internal RAM and 128 MB of non-volatile flash memory. The system includes a CompactFlash slot for expanded storage of log files and application backups.

• Universal Power Supply: Supports a wide-range AC input from 85V to 264V AC (47–63 Hz), ensuring compatibility with diverse global electrical standards without additional transformers.

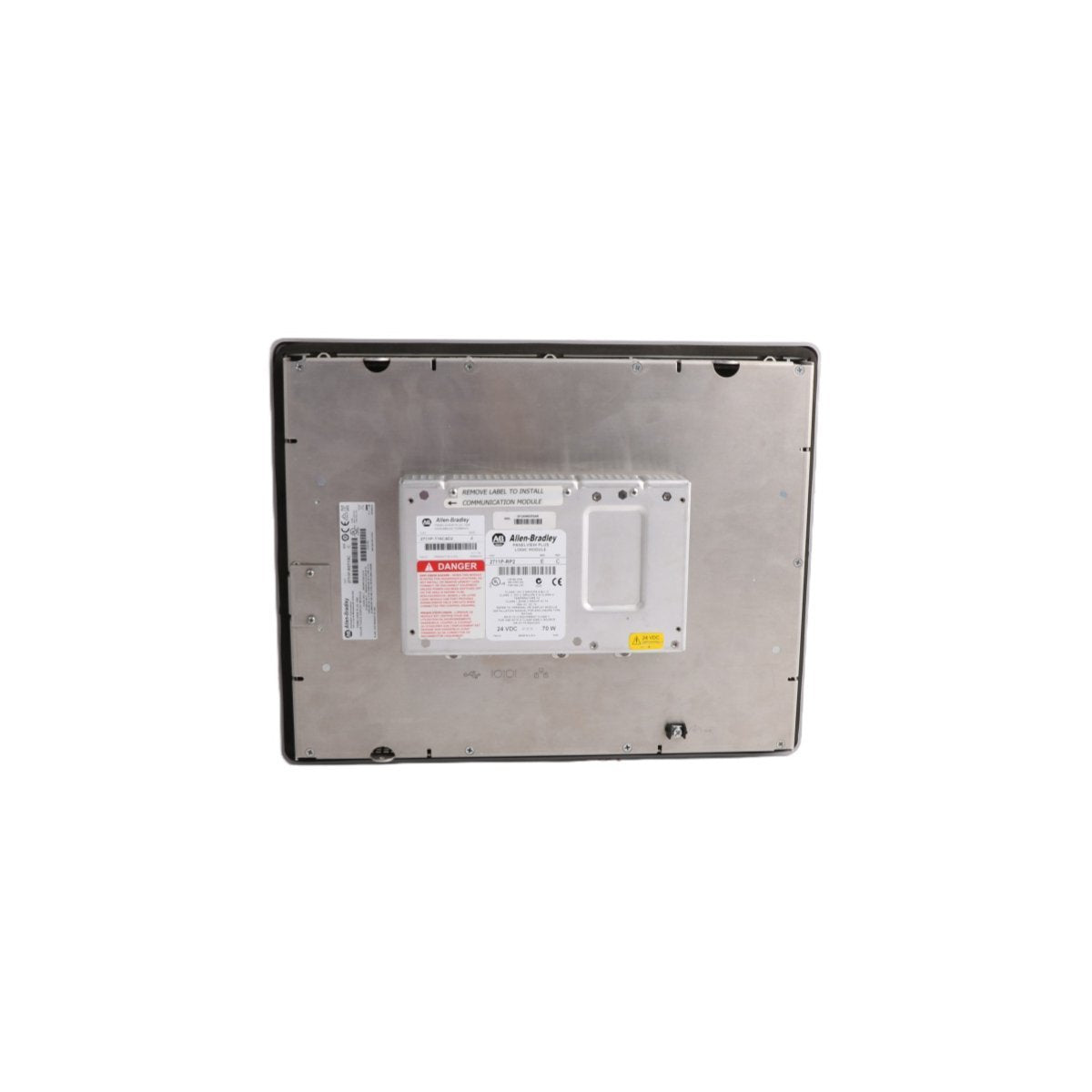

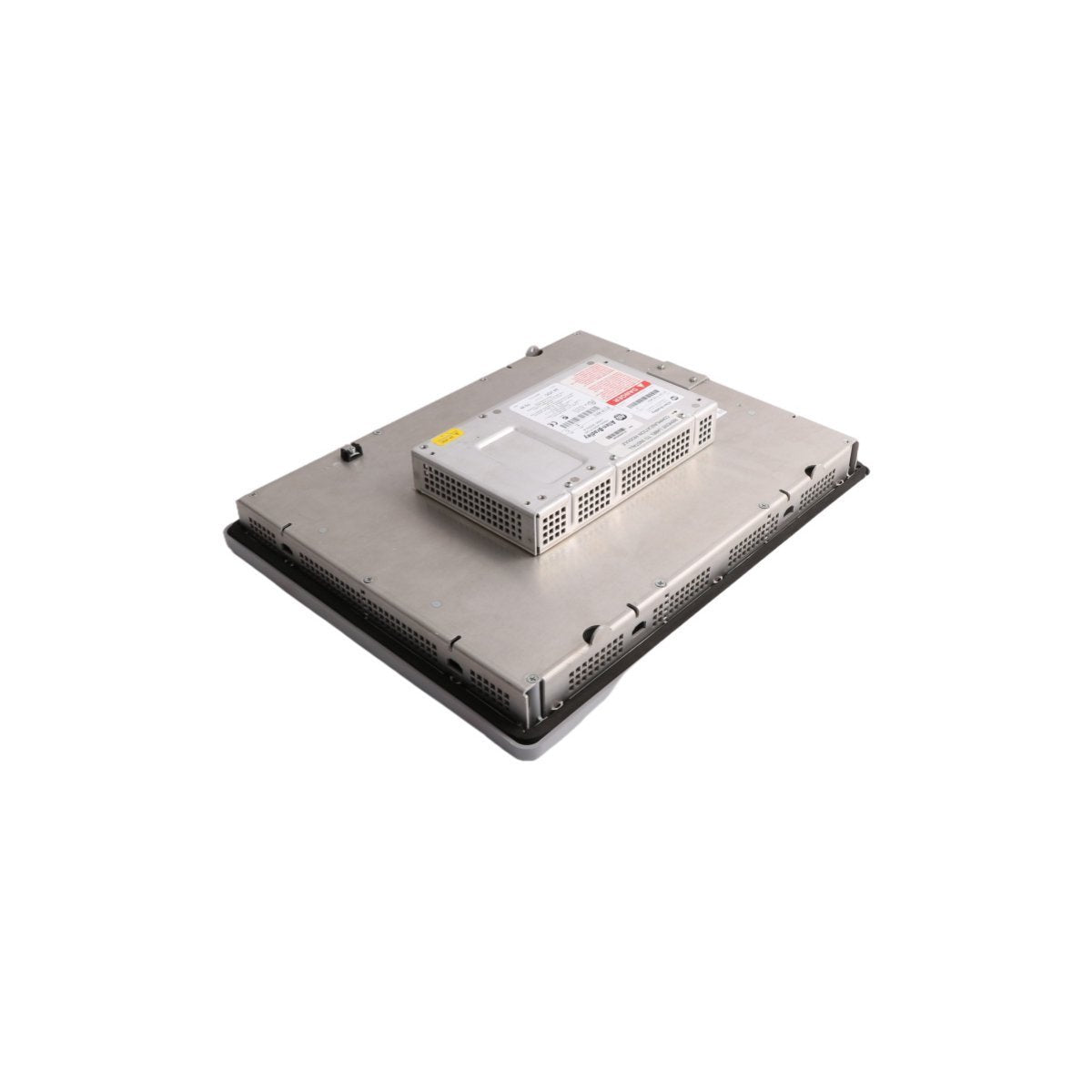

• Modular Design: The terminal consists of a 15-inch display module and a replaceable logic module, facilitating easy hardware upgrades or field repairs.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 2711P-T15C4A2

• Display Size: 15.0-inch Diagonal

• Display Type: Color Active Matrix TFT

• Input Method: Analog Resistive Touchscreen

• Resolution: 1024 x 768 XGA

• Input Voltage: 85–264V AC

• Operating System: Windows CE

• Internal Memory: 128 MB RAM / 128 MB Flash

• Environmental Rating: NEMA 4X, IP54, IP65 (when panel mounted)

• Operating Temperature: 0°C to 55°C (32°F to 131°F)

• Dimensions: 33.0 x 41.6 x 6.5 cm (Screen Assembly)

• Weight: 4.6 kg (Combined assembly weight; note: shipping weight varies by configuration)

Industrial Durability and Compliance

• Ruggedized Construction: The 2711P-T15C4A2 is designed for heavy-duty applications, featuring a front bezel that resists dust, moisture, and chemical exposure typical of manufacturing environments.

• Vibration and Shock Resistance: Built to withstand constant industrial vibration, ensuring long-term reliability on machine-mounted panels.

• Software Integration: Optimized for use with FactoryTalk® View Machine Edition (ME) software, providing a seamless development environment for creating sophisticated user interfaces.

• Communication Support: Capable of communicating with a vast array of controllers, including ControlLogix, CompactLogix, and SLC 500 series via standard industrial protocols.
