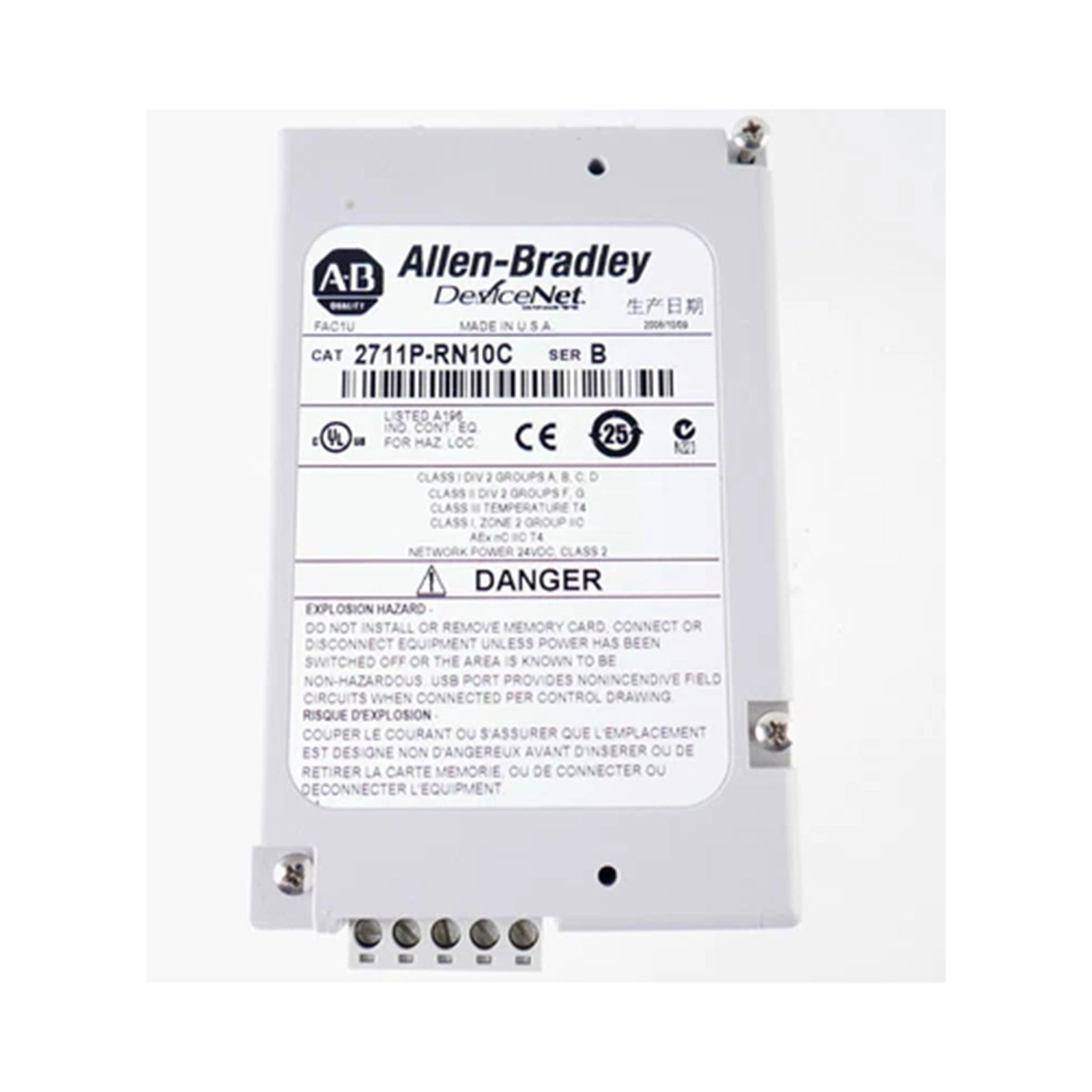

Configured for DeviceNet fieldbus connectivity in PanelView Plus HMI platforms, the Allen-Bradley 2711P-RN10C (2711PRN10C Communication Module) provides direct physical/electrical execution of data exchange between the terminal and the DeviceNet network.

Model Series Identification

The 2711P-RN10C is a dedicated communication expansion module specifically designed for the PanelView Plus 400 and 600 terminal series. It enables the HMI to act as a node on a DeviceNet network, facilitating cyclic data exchange with controllers and other networked field devices.

Hardware Specifications

Allen-Bradley Deterministic Network Integration

This module utilizes the internal expansion port of the PanelView Plus terminal to interface with industrial networks. It supports EtherNet/IP and DeviceNet deterministic network protocols, ensuring that control data transfer remains consistent with scan-cycle requirements. Firmware flash compatibility between the module and the host terminal's operating system must be verified during initial commissioning to ensure robust communication link stability.

Ordering Info

• Allen-Bradley 2711P-RN10C Communication Module

• Installation mounting hardware (screws)

• Note: DeviceNet trunk-line drop cables and 5-pin terminal connectors are not included in the standard module package and must be acquired based on field network topology.

Field Installation Guidelines

• Pre-Installation: Ensure the PanelView Plus terminal is disconnected from all power sources.

• Mounting: Align the module with the communication expansion port on the rear of the terminal. Secure the module using the provided mounting fasteners to ensure proper electrical contact with the backplane.

• Grounding: Maintain a continuous path to earth ground for the DeviceNet cable shield at the power supply or network tap to minimize signal degradation.

• Wiring: Keep signal cabling separate from high-voltage AC paths to prevent induced noise in the DeviceNet differential signal pairs.

Delivery Information

• Delivery time: 3-5 days when payment finish.

• Shipment via DHL, FEDEX, or UPS.

• All units are secured in anti-static industrial packaging to provide shock absorption and protection against electrostatic discharge.

Frequently Asked Questions

1. Can the probe operate in hazardous environments?

   No, this module is rated for standard industrial control panels and is not certified for installation in hazardous (Ex) areas.

2. What is the expected service life?

   The module is engineered for long-term continuous operation within the specified temperature limits of the host PanelView Plus terminal.

3. Is this module hot-swappable?

   No, the module requires the host HMI to be powered down before installation or removal to prevent potential damage to the internal backplane interface.

4. How is the module health tested?

   Module health is verified through the HMI terminal's internal diagnostic screens, which display link status and communication error counts on the DeviceNet network.

5. What cables are compatible?

   The module requires standard 5-pin DeviceNet shielded twisted-pair cabling for connection to the network trunk line.
