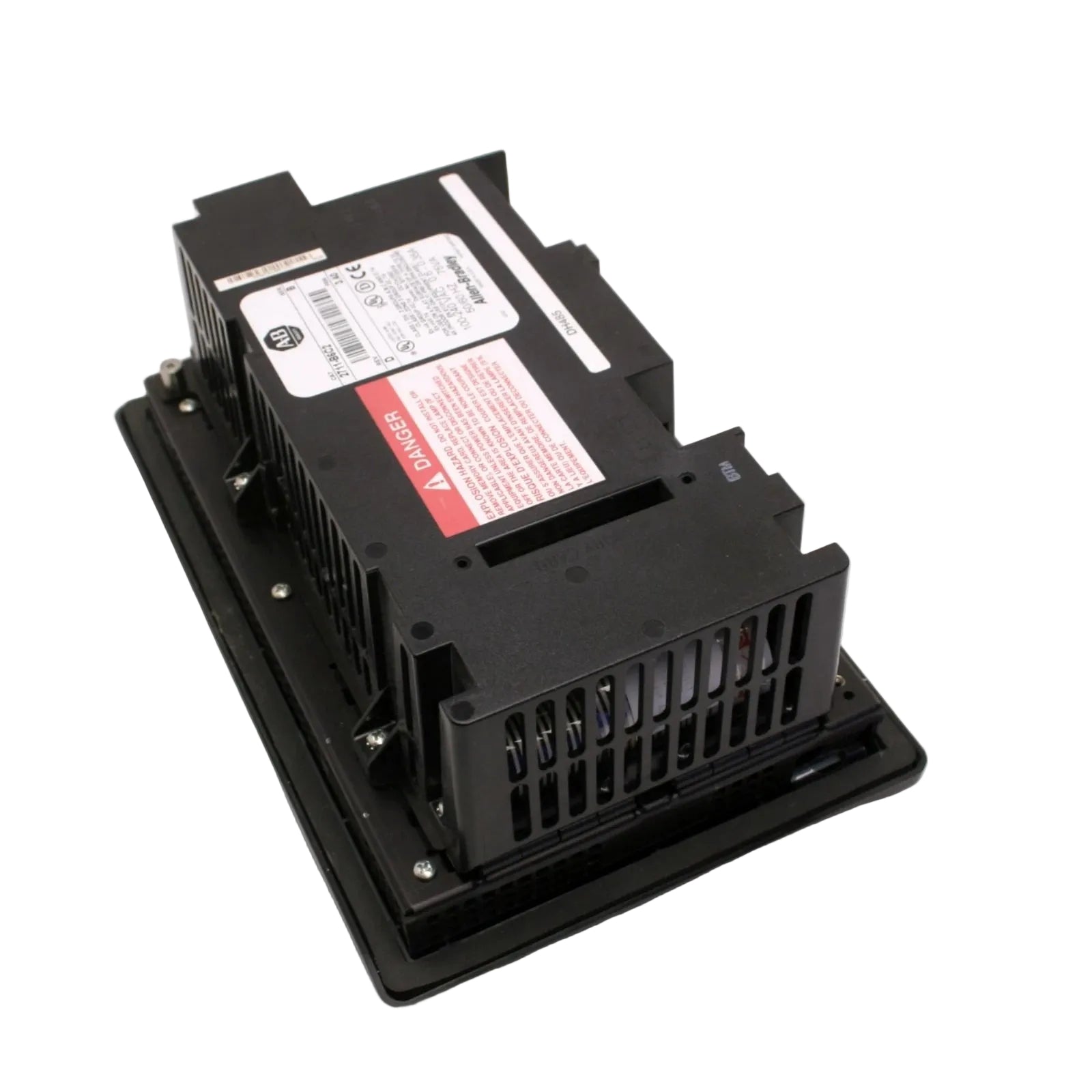

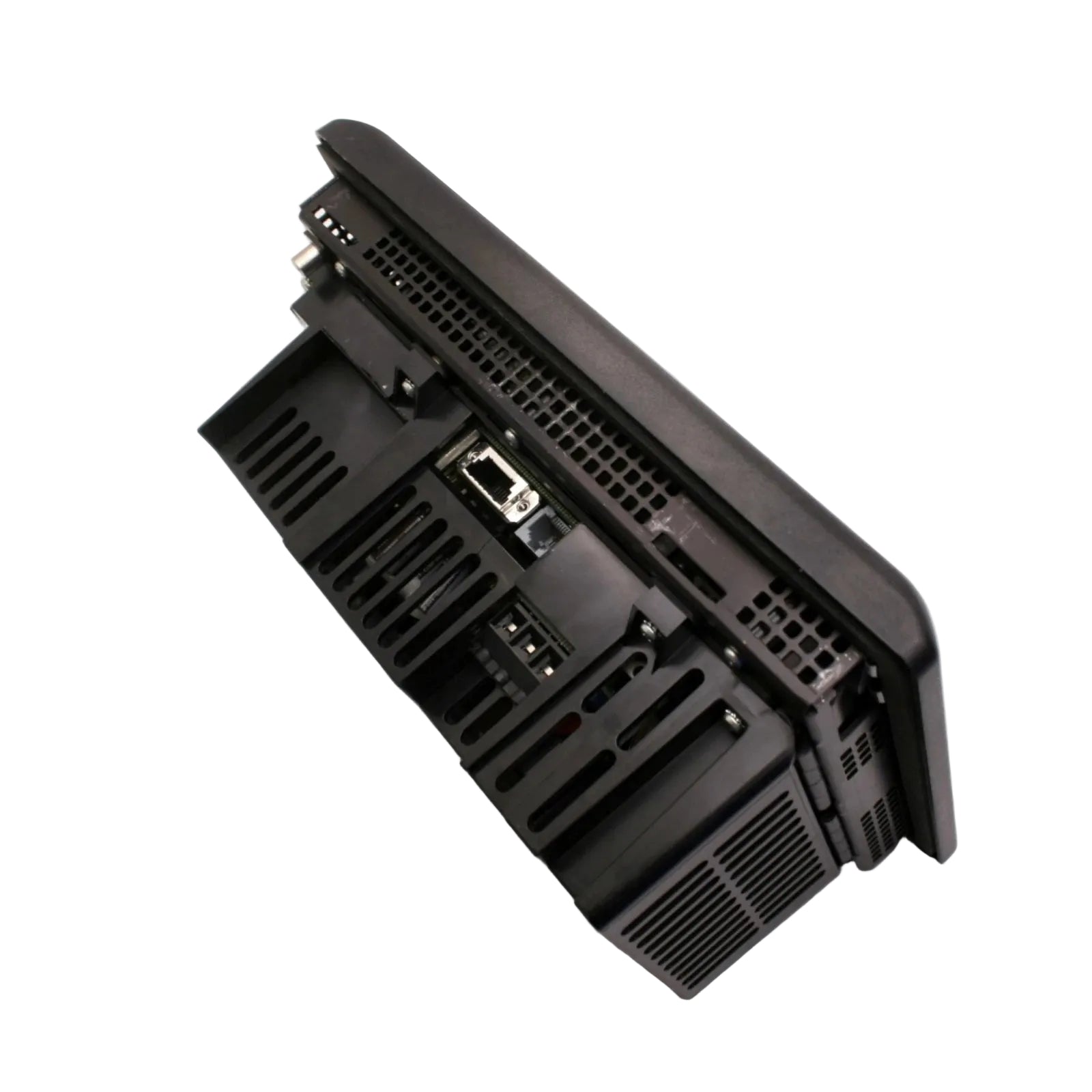

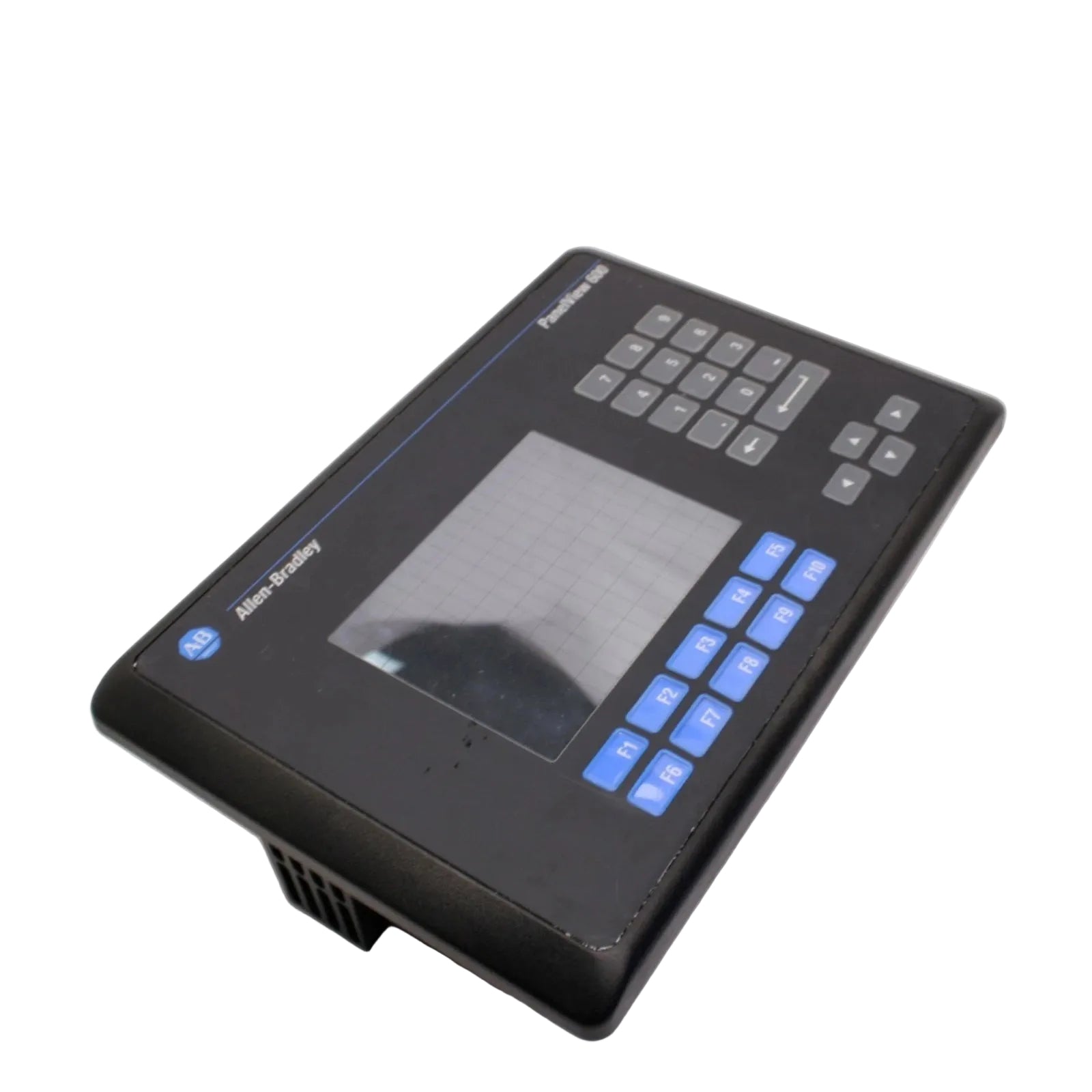

The Allen-Bradley 2711-B6C2, also cataloged as the 2711B6C2 Operator Interface, serves as the primary terminal utilized to execute visualization and command functions across DH-485 network platforms. This hardware component provides a 6-inch color display integrated with both touchscreen regions and physical function keys for localized process control.

Model Identification Matrix

The 2711-B6C2 designation signifies the following configuration:

• Display: 6-inch color terminal.

• Input: Integrated keypad and touchscreen.

• Communication: DH-485 communication ports.

• Power: AC input configuration.

Hardware Specifications

Deterministic Network Connectivity

This terminal utilizes the DH-485 protocol to maintain deterministic communication within Allen-Bradley control architectures. Firmware flash compatibility is managed via the PanelBuilder32 software suite, which requires precise alignment of the project runtime version with the terminal firmware. Operators must verify that the link parameters, including node address and baud rate, match the requirements of the DH-485 network segment to prevent packet collisions or data loss. Proper cabling and termination are mandatory to maintain signal integrity, as the DH-485 bus is sensitive to impedance mismatches and excessive electromagnetic noise in the industrial environment.

Ordering Info

• 2711-B6C2 Operator Interface unit

• Panel mounting clips

• IP65/NEMA 4X rated sealing gasket

• AC power terminal block

Installation & Mounting Guidelines

• Panel Cutout: Prepare the cabinet cutout strictly to specifications to ensure the efficacy of the NEMA 4X/IP65 gasket seal.

• Grounding: Secure the chassis ground terminal to a common industrial earth to protect the internal processor and display circuitry from static discharge.

• Thermal Management: Allow a minimum clearance of 50 mm around the rear of the enclosure to promote airflow, as the internal power supply generates significant thermal dissipation.

• Communication Routing: Route DH-485 cabling through dedicated metallic conduits to maintain signal isolation from AC power supply lines.

Delivery Information

• Delivery time: 2-7 days when payment finish.

• Dispatched via DHL/FEDEX/UPS.

• Components are sealed in anti-static industrial packaging, featuring shock-absorbent layers to mitigate potential damage during global logistics.

Frequently Asked Questions

• What display technology is utilized? The terminal incorporates a 6-inch color LCD display. It is designed to provide high-contrast visualization for process monitoring and status indications within standard industrial control cabinet environments.

• Can project files be migrated to modern software? Migration from PanelBuilder32 applications to newer development environments is not supported via direct import. Manual conversion of graphic objects and tag assignments is required for project upgrades.

• What is the primary communication port function? The DH-485 port facilitates data exchange with controllers and peer-to-peer communication within the DH-485 network. The secondary serial port is reserved for printer connectivity and project file downloads.

• How is the internal real-time clock maintained? The clock and configuration memory are backed by an internal lithium battery. This battery should be replaced periodically to prevent data loss; the unit should ideally be powered during replacement to maintain volatility memory.

• Can the touchscreen be calibrated? The touch interface includes a built-in calibration utility accessible via the configuration screen, which should be used if the screen registration drifts due to mechanical stress or aging.

• What causes communication failures on the DH-485 link? Failures are typically caused by incorrect baud rate settings, node address collisions, or improperly terminated cabling leading to signal reflections on the bus.

• Is the backlight serviceable? The CCFL backlight is a non-serviceable component. Gradual dimming is expected over the device's operational lifespan, and replacement of the terminal is recommended when display legibility is compromised.

• Can the unit operate in hazardous environments? Operation in hazardous locations is only permitted if the unit is housed in an approved enclosure meeting the specific safety requirements and ingress ratings for the designated site.
