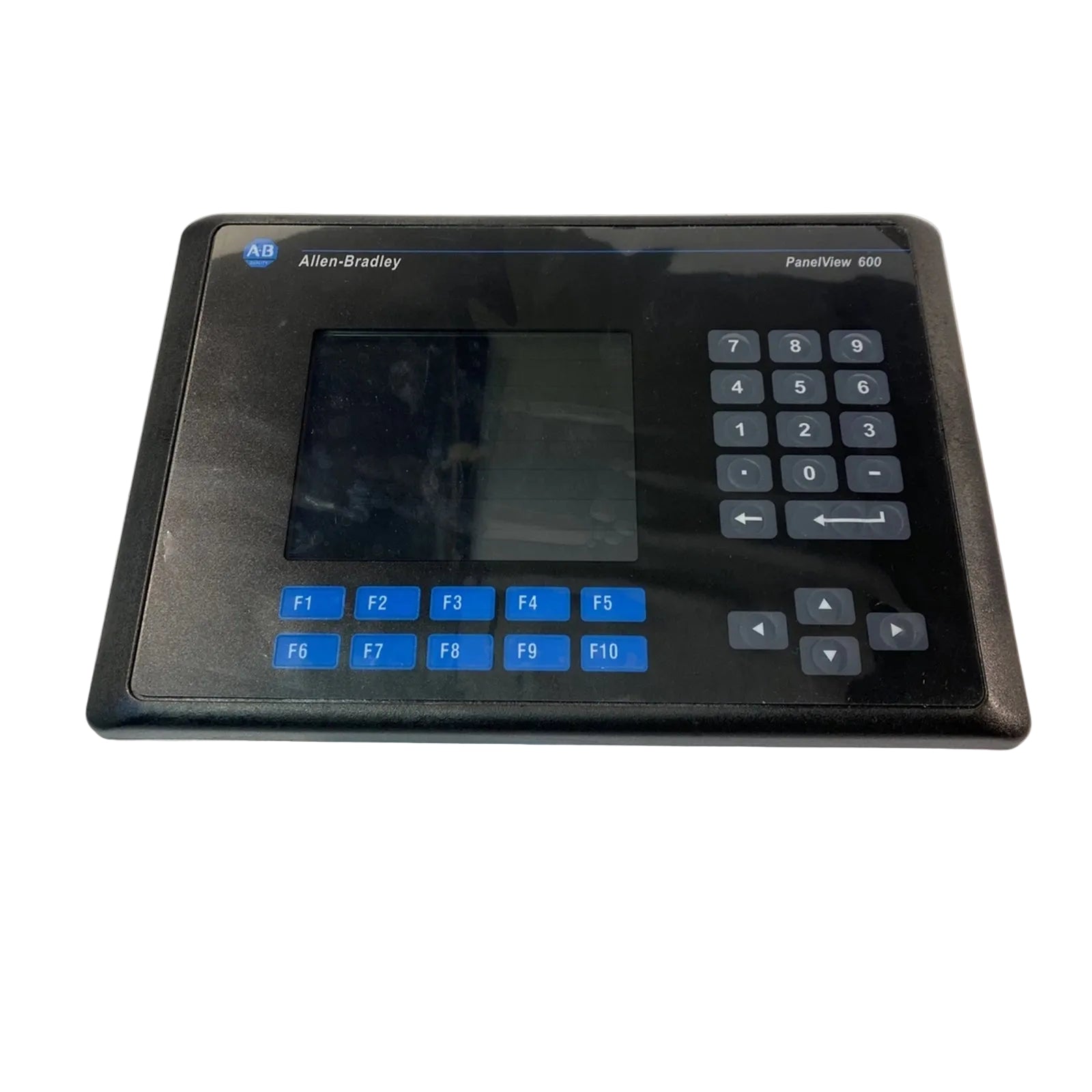

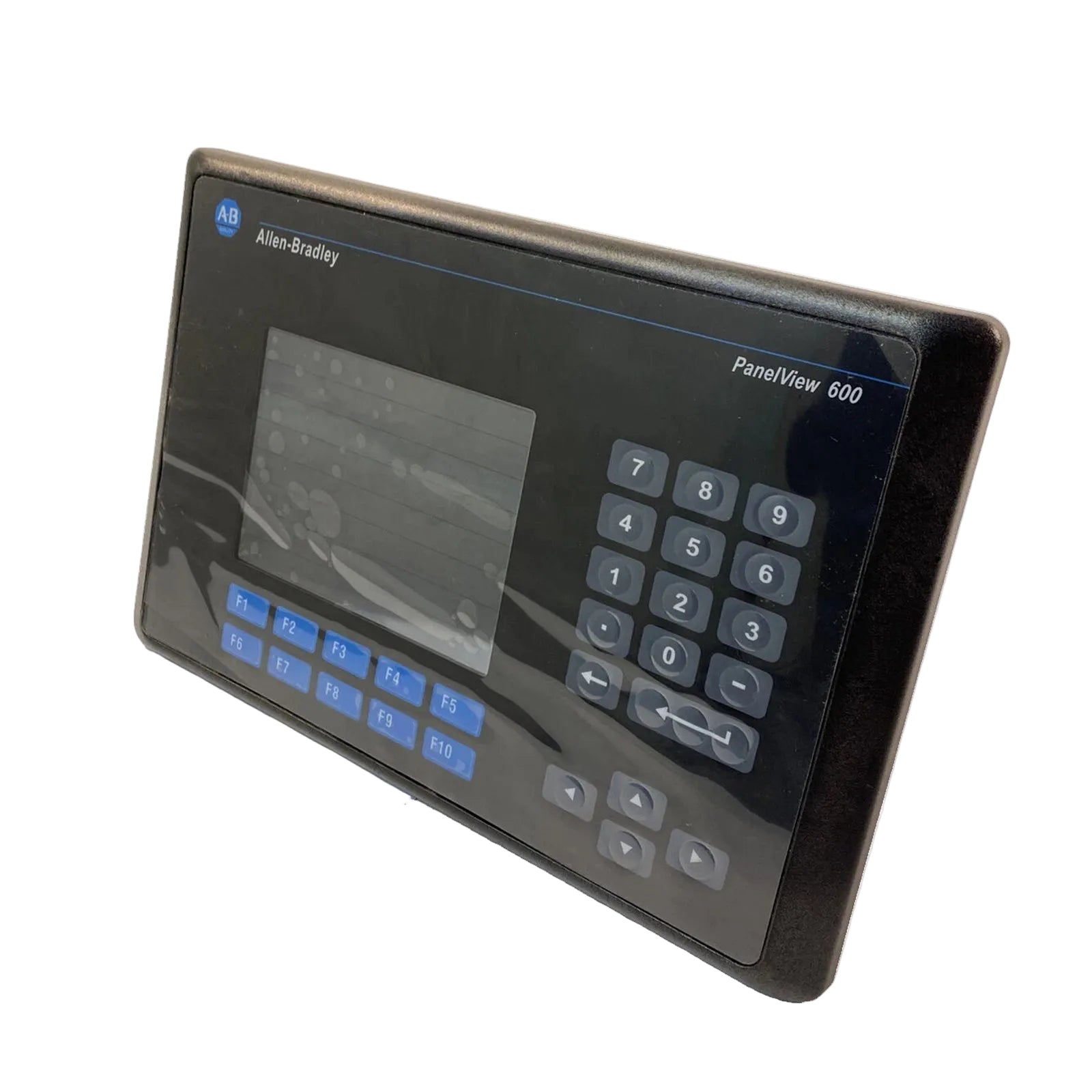

2711-B6C10 Allen-Bradley Operator Interface PanelView 600 HMI
2711-B6C10 Allen-Bradley Operator Interface PanelView 600 HMI
2711-B6C10 Allen-Bradley Operator Interface PanelView 600 HMI
Allen-Bradley

2711-B6C10 Allen-Bradley Operator Interface PanelView 600 HMI

SKU: 2711-B6C10
Categories : All Products
In Stock
  • Dimensions: 27.9 x 20.3 x 12.7 cm
  • Country of origin: USA
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The Allen-Bradley 2711-B6C10, also cataloged as the 2711B6C10 Operator Interface, operates as a dedicated hardware component for localized process visualization and command execution within Allen-Bradley controller networks. The terminal provides a 5-inch color display integrated with both touchscreen regions and physical function keys, facilitating data exchange via DeviceNet and RS-232 serial ports.

Hardware Configuration Matrix

The 2711-B6C10 designation signifies the following configuration:

  • Display: 5-inch color active-matrix/passive LCD.

  • Input: Combined touchscreen and physical keypad.

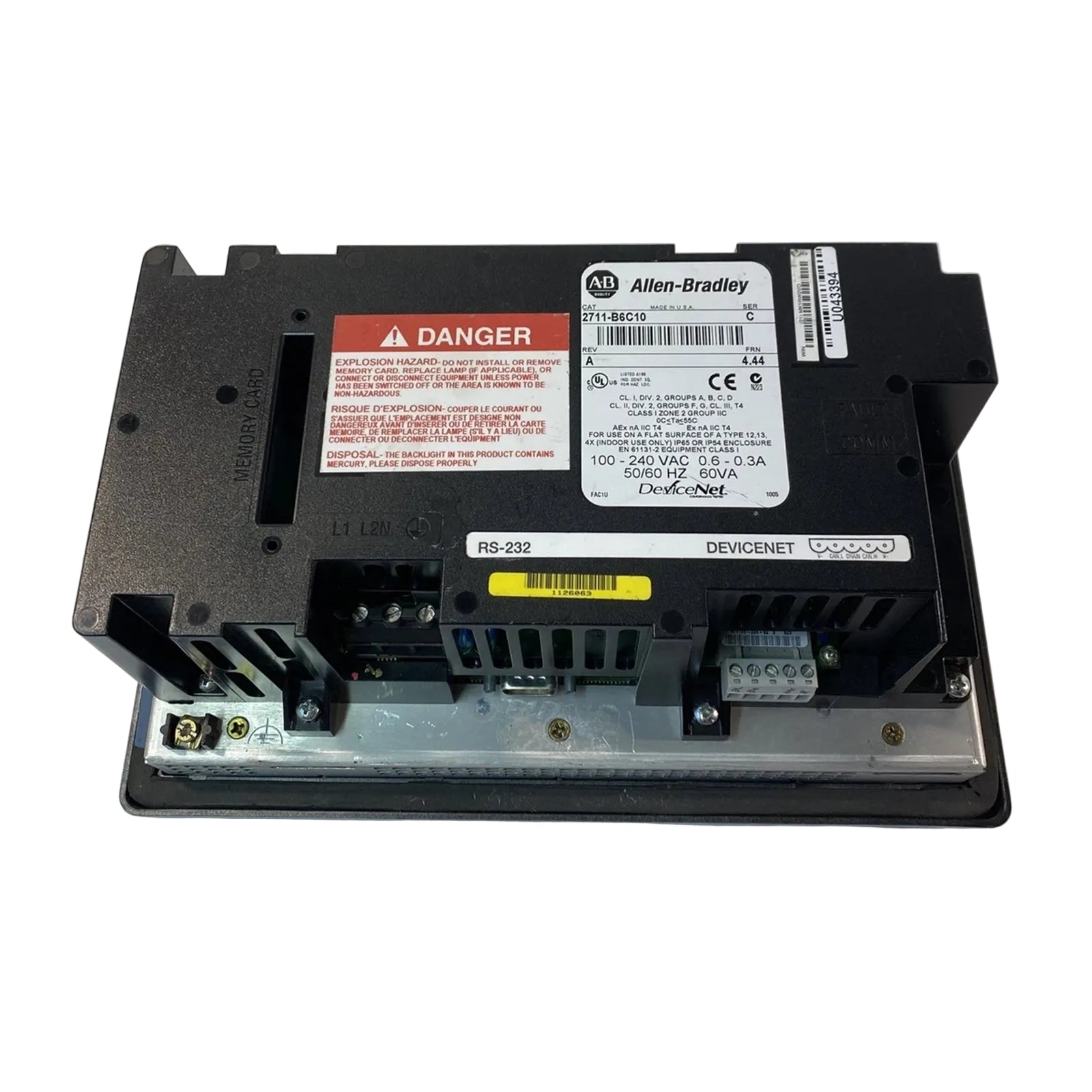

  • Communications: DeviceNet network interface and RS-232 printer port.

  • Power: AC input configuration.

Hardware Specifications

Parameter Specification
Model 2711-B6C10
Brand Allen-Bradley
Origin USA
Weight 2.3 kg
Shipping Dimensions 27.9 cm x 20.3 cm x 12.7 cm
Operating Temp 0 deg C to 55 deg C
Power Consumption 100-240 VAC, 50/60 Hz

Deterministic Network Compatibility

This interface terminal utilizes DeviceNet protocols to maintain communication determinism within PLC-based control architectures. Firmware flash compatibility is restricted to specific PanelBuilder32 software versions; users must verify version alignment before attempting project file uploads. Effective I/O density scaling relies on correct configuration of the DeviceNet node address and baud rate settings to ensure synchronization with the master scanner. Improper termination or shielded cabling practices on the DeviceNet trunk can induce signal reflection, significantly impacting the packet delivery latency required for time-sensitive visualization updates.

Ordering Info

  • 2711-B6C10 Operator Interface unit

  • Installation mounting clips

  • IP65/NEMA 4X rated panel gasket

  • AC power connector

Installation Guidelines

  • Panel Cutout: Prepare the cabinet panel based on precise dimensions to ensure the integrity of the gasket seal for NEMA 4X compliance.

  • Chassis Grounding: Connect the unit chassis to the cabinet equipment ground using a low-impedance copper strap to mitigate high-frequency electrical noise.

  • Clearance: Ensure a minimum of 50 mm clearance around the display and rear components to facilitate ambient air circulation and prevent thermal overheating.

  • Cabling: Segregate DeviceNet and serial cabling from high-voltage AC lines to maintain signal path isolation and reduce induced noise.

Shipping Information

  • Delivery time: 3-5 days when payment finish.

  • Dispatched via DHL/FEDEX/UPS.

  • Components are sealed in anti-static industrial packaging, utilizing reinforced boxing to prevent electrostatic discharge and mechanical impact during global transit.

Frequently Asked Questions

  • What display technology is implemented? The terminal features a 5-inch color LCD display. It is designed to provide high-contrast color visualization of process tags, alarm states, and operational data within standard industrial control cabinet environments.

  • Can project files be converted from newer platforms? Projects developed in legacy PanelBuilder32 software cannot be directly migrated to FactoryTalk View environments. Manual reconstruction of graphic objects and tag databases is necessary when upgrading terminal generations.

  • What is the DeviceNet node limitation? The terminal occupies a single node address on the DeviceNet network. Address conflicts or incorrect baud rate matching will prevent the device from establishing a connection with the network scanner.

  • How is the screen calibration managed? The system includes a built-in touch calibration utility accessible via the configuration mode. This should be utilized if the touch registration becomes offset from the visual graphic icons due to mechanical vibration or material aging.

  • What is the function of the RS-232 port? The RS-232 port is configured primarily for printer output or for downloading project files from a workstation using a standard serial interface cable.

  • Does the device support firmware upgrades? Firmware upgrades are only possible through specific software utilities provided for the 2711 series. Users must ensure that the hardware version supports the intended firmware release to avoid terminal bricking.

  • How is the internal real-time clock maintained? The internal clock and non-volatile configuration memory are maintained by an internal lithium battery. This battery must be replaced periodically to prevent the loss of time-stamping data and configuration parameters during power cycles.

  • Can the keypad be disabled? The interface utilizes both keypad and touchscreen inputs. Disabling specific input methods is performed through software configuration within the project file, which determines whether the logic accepts or ignores inputs from the physical keys.
