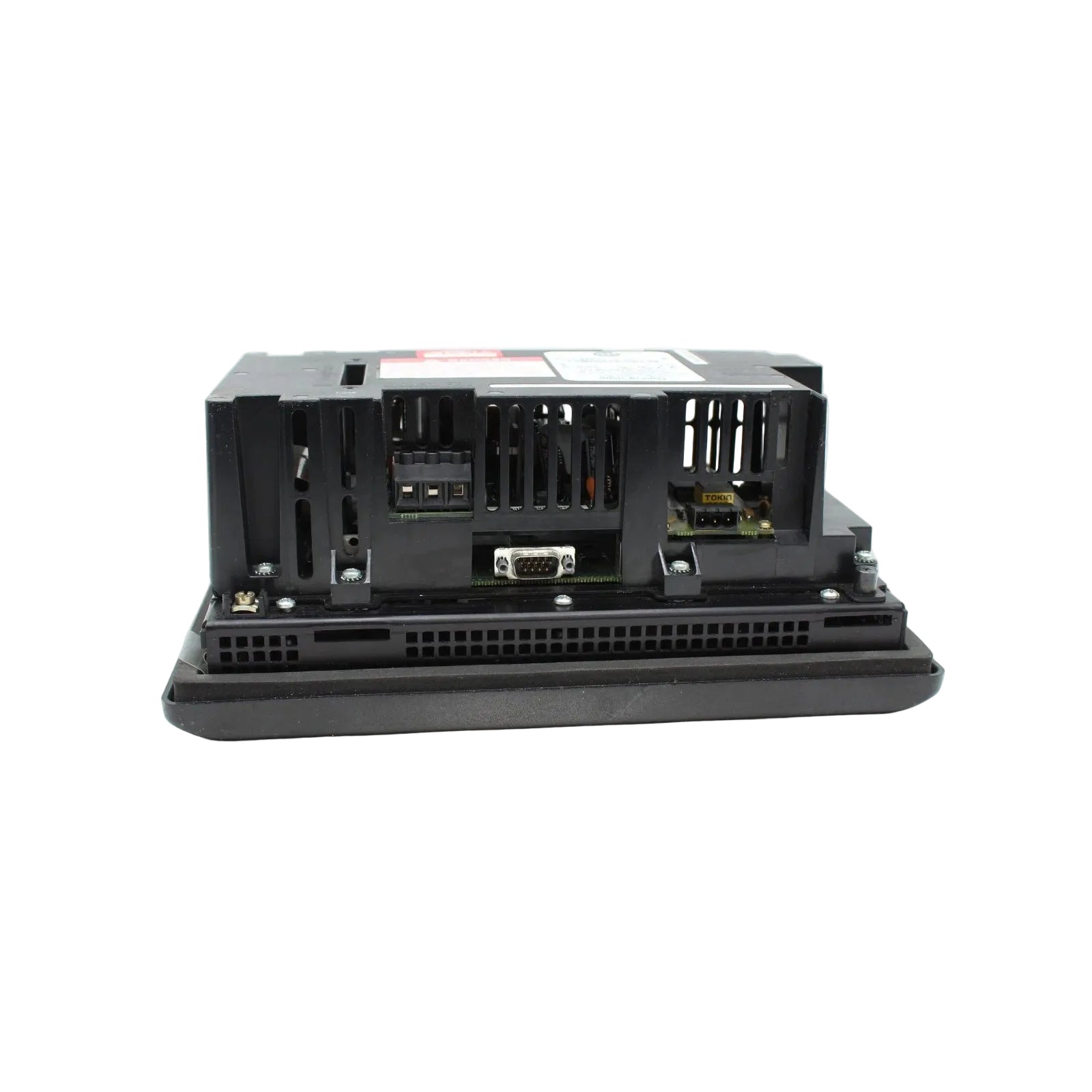

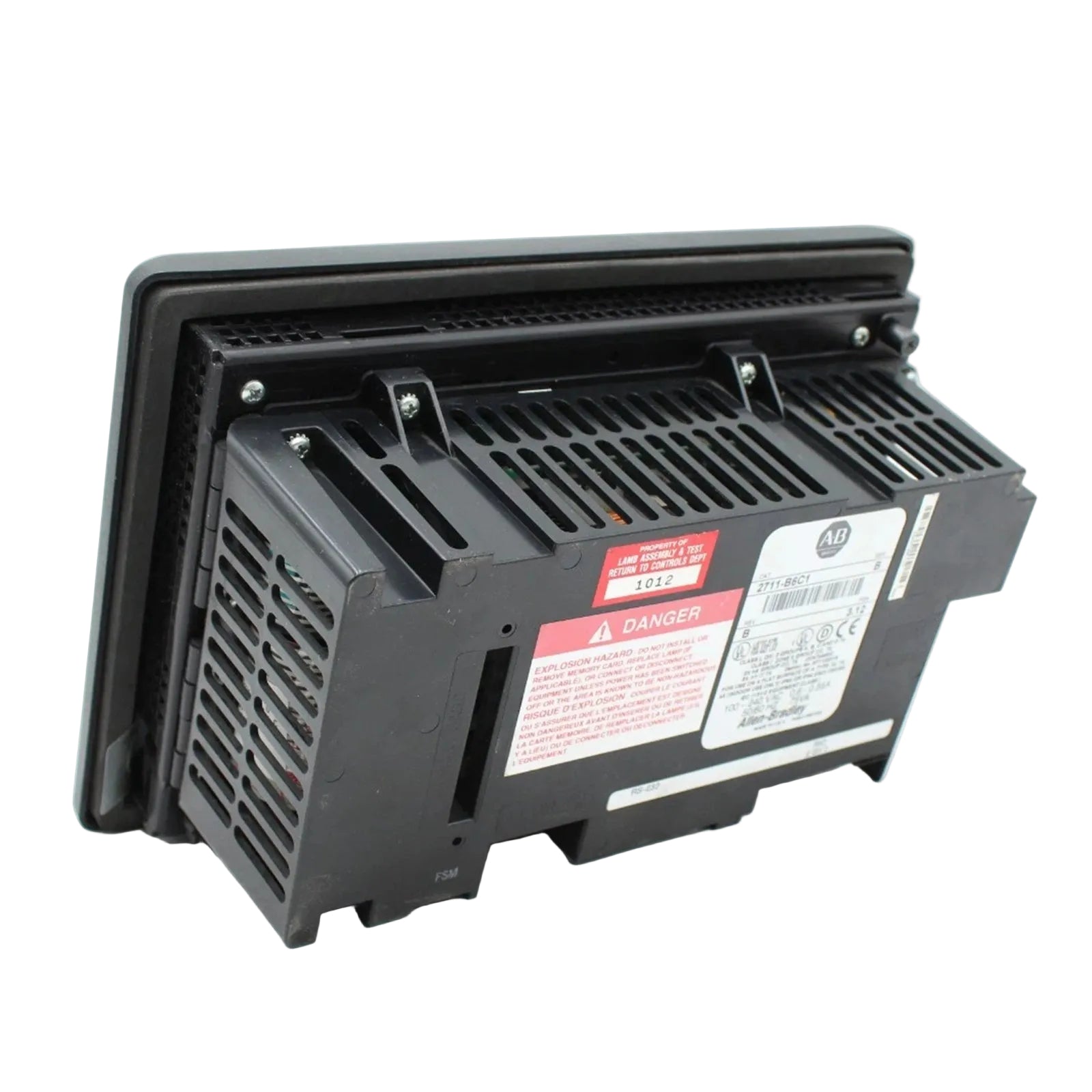

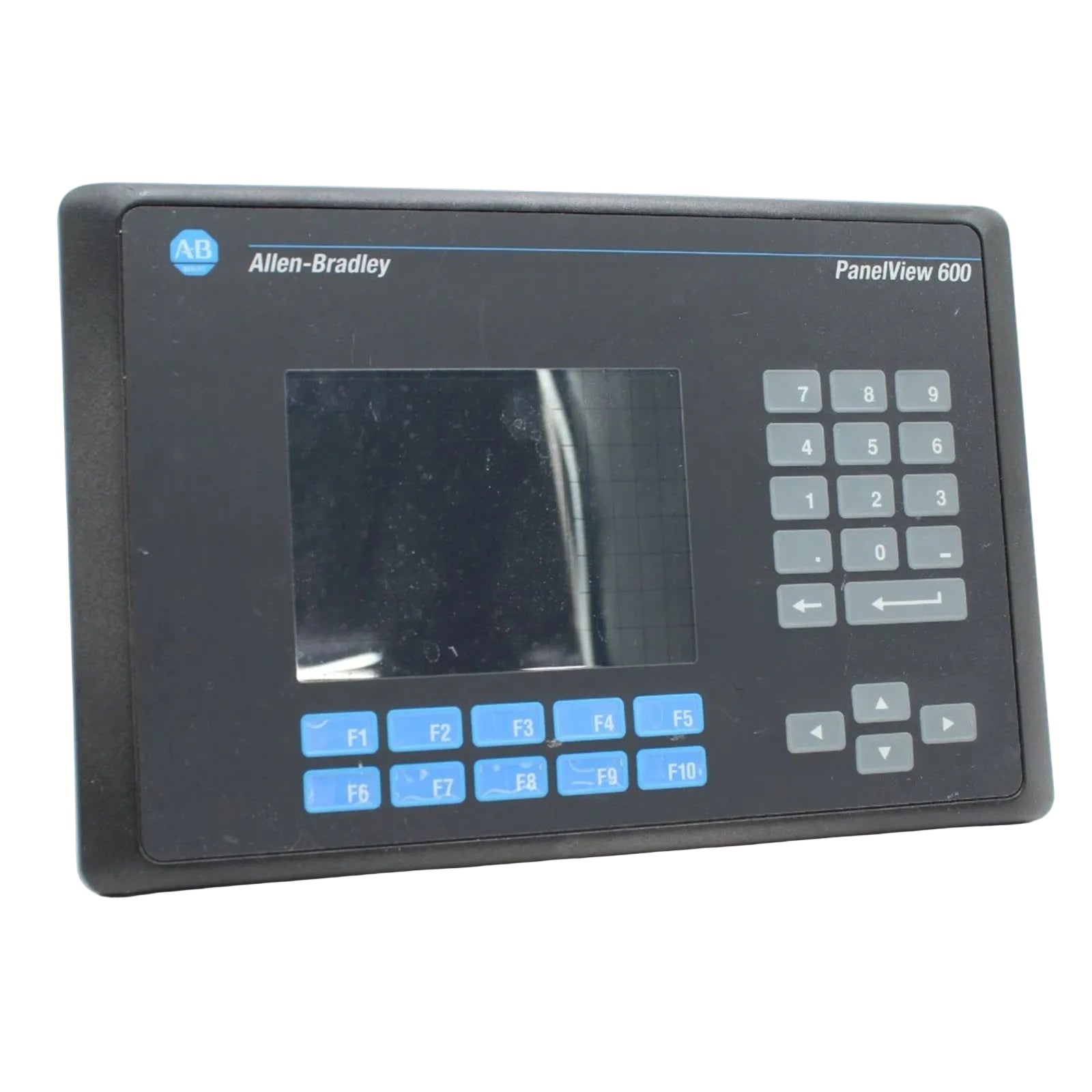

Configured for human-machine interaction in industrial control environments, the Allen-Bradley 2711-B6C1 (2711B6C1 Operator Interface) serves as the primary terminal utilized to execute visualization and command functions across Remote I/O and serial network platforms. This hardware component provides a 6-inch color display integrated with both touchscreen regions and physical function keys for localized process control.

Hardware Configuration Matrix

The 2711-B6C1 identifier signifies the following technical features:

• Display: 6-inch color screen.

• Input: Integrated keypad and touchscreen interface.

• Connectivity: Remote I/O communication port and RS-232 printer port.

• Power: AC input configuration.

Hardware Specifications

Control Systems Communication

The PanelView 600 architecture integrates with Allen-Bradley controller networks through deterministic Remote I/O protocols. Firmware flash compatibility is strictly managed through the PanelBuilder32 software environment, which dictates the tag database mapping for the terminal. Backplane and bus communication velocity is constrained by the legacy Remote I/O scan cycle, requiring precise configuration of the link parameters to prevent data packet drops. Integration requires proper termination of the Remote I/O link at the terminal to maintain signal integrity and eliminate reflections on the physical cabling layer.

Ordering Info

• 2711-B6C1 Operator Interface unit

• Panel mounting hardware kit

• IP65/NEMA 4X gasket

• AC terminal block

Field Installation Guidelines

• Mechanical Mounting: Insert the unit into a panel cutout and secure using the provided clips to maintain the required NEMA 4X ingress protection rating.

• Grounding Requirements: Connect the chassis ground stud directly to the main equipment grounding bus to reduce electrical noise susceptibility.

• Cable Routing: Keep Remote I/O and serial communication cabling separate from high-current AC power wiring to avoid signal interference.

• Ventilation: Ensure the installation location provides at least 50 mm of clearance to prevent heat buildup, as internal components are sensitive to high ambient temperatures.

Delivery Information

• Delivery time: 3-5 days when payment finish.

• Dispatched via DHL/FEDEX/UPS.

• Components are sealed in anti-static industrial packaging, designed to prevent electrostatic discharge and mechanical shock during international transit.

Frequently Asked Questions

• What is the display technology utilized? The terminal uses a 6-inch passive or active matrix color LCD display, depending on the specific revision. It provides high-contrast visualization for process status and alarm monitoring within standard industrial lighting environments.

• Can the project be migrated to newer platforms? Conversion from the legacy PanelBuilder32 application to contemporary platforms requires a manual re-mapping of tags and graphic objects, as there is no direct, automated path for project file migration between architecture generations.

• What are the Remote I/O termination requirements? The Remote I/O link must be terminated with a resistor matching the specific cable impedance to prevent signal reflections that cause intermittent communication errors or terminal lockups.

• How is the backlight maintenance performed? The backlight is a non-user-serviceable CCFL unit. As it ages, luminance will decrease. If the display becomes illegible, the entire terminal unit typically requires replacement due to the unavailability of individual replacement backlights.

• Does the unit support hot-swapping? This device does not support hot-swapping. Power must be removed from the terminal and the Remote I/O link before disconnecting or reconnecting the interface cables to prevent potential damage to the port circuitry.

• What causes persistent communication failures? Failure usually stems from incorrect Remote I/O dip switch settings, improper baud rate selection, or physical damage to the communication cable shielding, which introduces EMI into the network loop.

• How is the internal clock battery replaced? The internal lithium battery, which retains the real-time clock and volatile memory, is located behind the rear cover. Replacement should be performed while the unit is powered to prevent loss of configuration memory.

• Can the touchscreen be calibrated? The terminal includes a built-in touch calibration utility accessible via the configuration screen. This utility should be utilized if the touch registration drifts or becomes inaccurate due to mechanical stress or aging.
