Product Overview

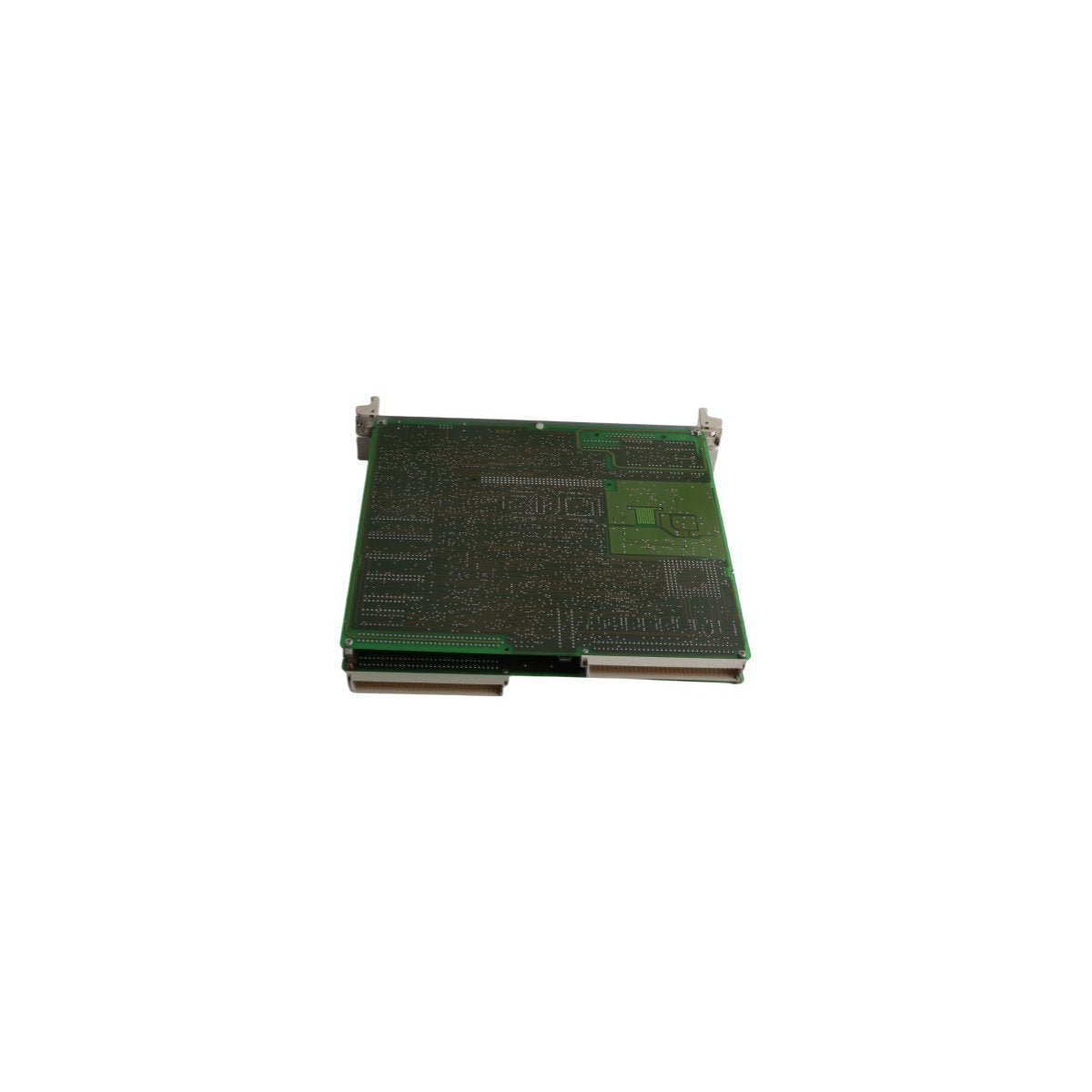

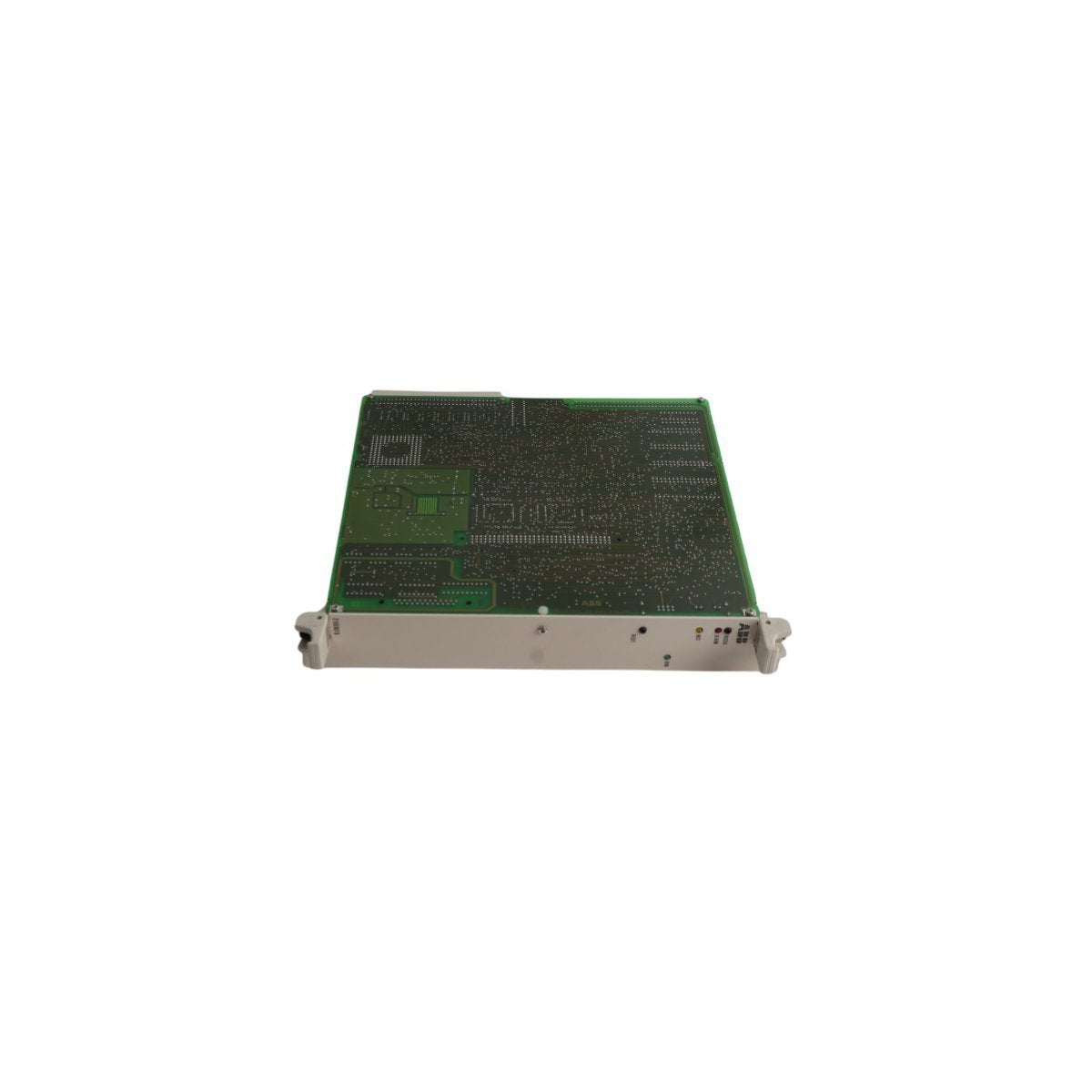

The ABB 216EA61B, identified by order reference HESG448230R1/G, is a high-precision analog input interface specifically engineered for the UNITROL® series of excitation and voltage regulation systems. This specialized board serves as the sensory gateway for the controller, capturing critical process variables such as voltage, current, and frequency from power generation hardware. By utilizing high-resolution signal acquisition and ultra-fast microprocessor logic, the 216EA61B ensures that the excitation system can react instantaneously to grid fluctuations or load changes. Its architecture is optimized for the rigorous demands of power plant environments, providing the deterministic performance necessary to maintain generator stability and synchronization.

Hardware Architecture and Technical Specifications

The HESG448230R1/G is designed with high-grade industrial components to ensure signal fidelity:

• Board Identifier: 216EA61B / HESG448230R1/G

• Processor Integration: High-speed onboard microprocessor for real-time signal filtering.

• Communication Interface: Dual support for RS-485 and CANopen protocols.

• Input Channels: Multi-channel analog sensing for voltage and current feedback.

• Power Requirements: Standard DC 24V (regulated).

• Physical Proportions: 3.8 x 25.5 x 26.1 cm.

• Module Mass: 0.76 kg.

• Environmental Tolerance: Designed for high-heat cabinet operation with advanced thermal dissipation.

• Origin: Sweden.

Specialized Industrial Deployments

The HESG448230R1/G 216EA61B is a staple in high-voltage and energy management sectors:

• UNITROL® Excitation Systems: Serving as the primary analog feedback loop for automatic voltage regulators (AVR) in synchronous generators.

• Power Plant Automation: Capturing telemetry data for hydroelectric, thermal, and nuclear power facility control systems.

• Dynamic Grid Stability: Providing the rapid data acquisition needed for systems that compensate for reactive power and voltage dips.

• DCS Interfacing: Integrating field-level analog signals into the broader Distributed Control System via standardized CANopen or serial links.

FAQ

Q: What is the primary difference between the 216EA61B and standard DCS analog boards?

A: The 216EA61B is specifically tuned for UNITROL® excitation hardware, offering much faster sampling rates and specialized filtering required for high-speed generator control compared to general-purpose I/O.

Q: Does this board support digital communication with other PLC brands?

A: Yes, through its CANopen and RS-485 interfaces, the board can transmit digitized analog data to various industrial controllers and HMI units that support these standard protocols.

Q: How does the HESG448230R1/G handle electrical noise common in power plants?

A: The board features advanced galvanic isolation and shielded signal paths to prevent electromagnetic interference (EMI) from high-voltage equipment from corrupting the low-level analog data.

Q: Is this board a direct replacement for older UNITROL® excitation components?

A: The HESG448230R1/G is a modern active component designed to be compatible with specific UNITROL® series systems; we recommend verifying your system's current hardware revision before installation.

Q: What is the expected lead time for a brand new unit?

A: We currently maintain the 216EA61B in stock with immediate availability, allowing for rapid dispatch to minimize downtime during critical power system maintenance.
