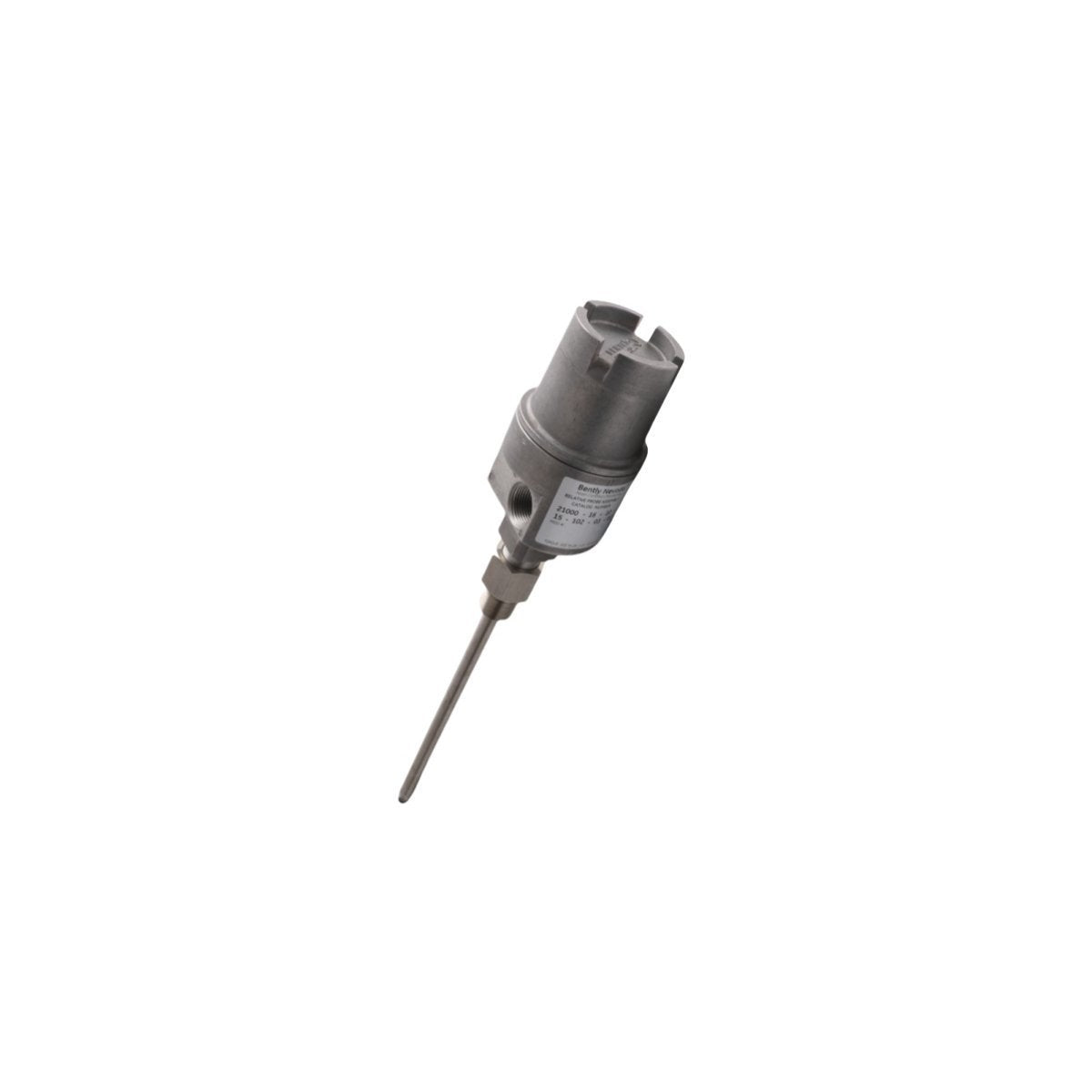

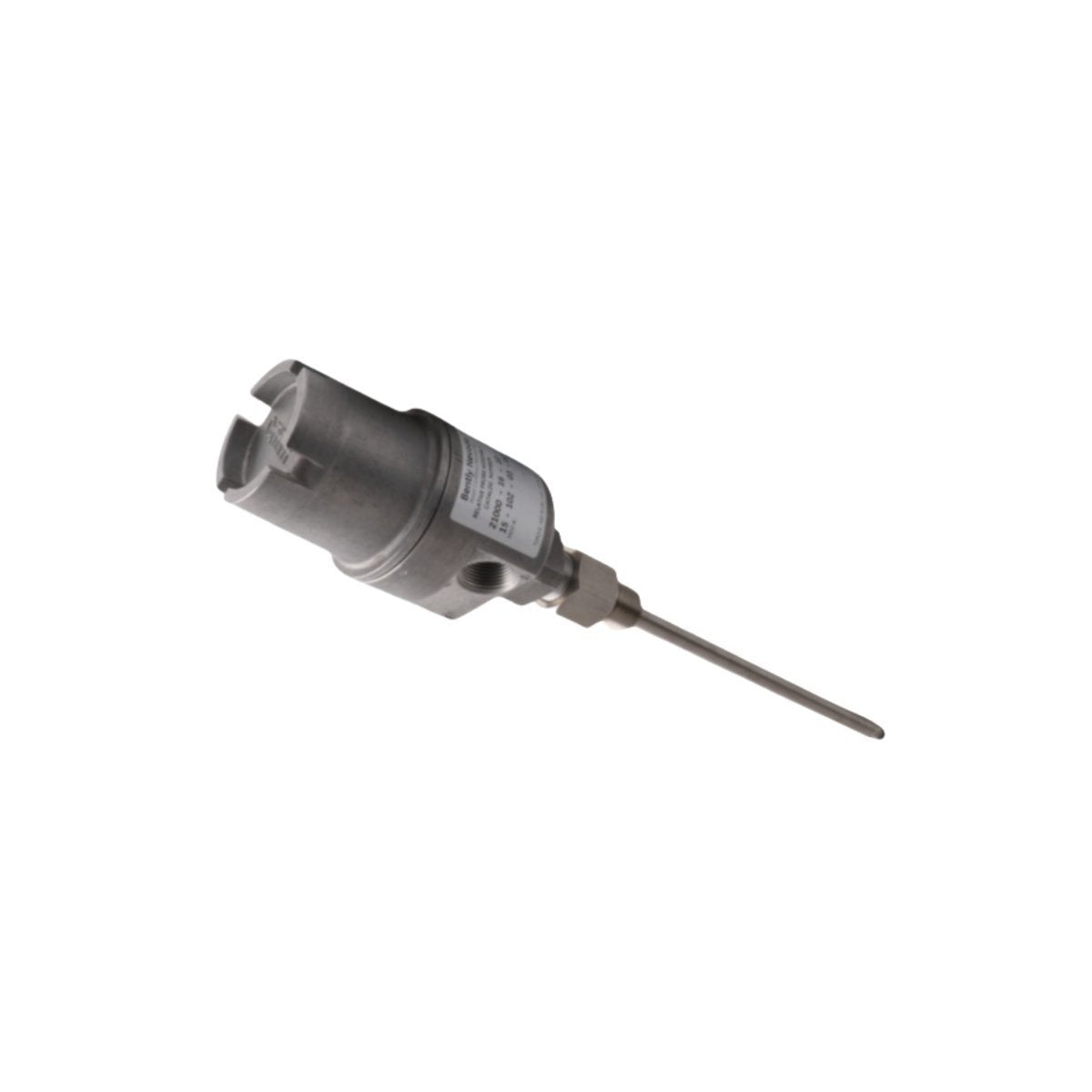

The Bently Nevada 21000-34-10-00-085-04-02, also cataloged as the 21000 Proximity Probe Housing Assemblies, operates as a dedicated hardware component for external mounting and environmental isolation of proximity probes within Machinery Protection Systems. It establishes an explosion-proof, weather-resistant mechanical boundary that allows external adjustment of the internal proximity probe relative to the target shaft surface.

Hardware Reference Parameters

Rotor Dynamics and Gap Voltage Verification Interface

The mechanical design of this housing assembly allows technicians to perform online eddy-current probe scaling adjustments without breaching the machine case. While observing real-time rotor dynamics on connected machinery diagnostic platforms, personnel adjust the internal sleeve to achieve the standard gap voltage validation target of -10 VDC.

The structural rigidity of the 21000 housing prevents mechanical resonance from coupling into the proximity sensor loop. By maintaining structural dampening across high-frequency ranges, the assembly prevents case-induced vibrations from corrupting the raw radial or axial displacement data. Additionally, internal spacing parameters within the sleeve geometry ensure cross-talk suppression by eliminating parasitic paths between the probe body and the aluminum housing shield walls.

Component Engineering FAQ

• Q: Does this housing assembly permit hot-swap adjustment of the probe while the machine is running?

• A: Yes. The internal sleeve configuration allows mechanical gapping, depth extraction, and full probe replacement while the monitored machine remains operational, without exposing the technician to internal oil spray or gas pressure.

• Q: What sealing mechanism prevents process oil from leaking through the housing conduit entries?

• A: The assembly utilizes internal O-ring seals along the adjustable sleeve body paired with an external oil sealing cable grip. These components contain internal splash pressures up to specific factory design limits.

• Q: Does the presence of the aluminum housing change the factory calibration of the proximity sensor?

• A: No. The internal sleeve holds the 8 mm or 11 mm probe tip far enough forward from the metallic face of the housing body to keep the RF field clear of uncalibrated metal surfaces, ensuring the sensor retains its standard scale factor.

Mechanical Positioning and Field Guidelines

1. NPT Thread Engagement: Secure the main housing base into the machine casing port using standard 3/4-14 NPT entry points. Ensure a minimum of 5 full threads engagement and apply industrial thread sealant to achieve an oil-tight, explosion-proof interface.

2. Sleeve Clearance Alignment: When sliding the probe sleeve into the housing body, verify that the internal O-rings are lubricated with compatible system oil to avoid binding or tearing the elastomer.

3. Conduit Connection Controls: Route the sensor extension lead through the designated conduit outlets using flexible liquid-tight or rigid metal paths. Keep the internal wiring isolated from local structural grounds to maintain shield integrity back to the main monitor rack.

4. Locknut Torque Limits: Once the gap voltage validation confirms the targeted -10 VDC baseline, tighten the external housing locknut to the specified engineering torque to lock the sleeve position and prevent drift from operational machine vibration.

Procurement Package Architecture

• Primary Bill of Materials: One (1) 21000 housing assembly complete with dome cover, adjustable sleeve mechanisms, and internal O-ring sets.

• Included Hardware Elements: External locknuts, grounding screws, and standard fluid seals.

• Non-Included Elements: Proximity probes, extension cables, and Proximitor drivers must be selected and purchased as independent line items matching the machine dynamics matrix.

Freight and Consignment Standards

• Logistics Handover Interval: 2-7 days when payment finish.

• Distribution Channel: Dispatched globally using premium carriers such as DHL, FEDEX, or UPS.

• Protective Configuration: Enclosed within anti-static industrial packaging and custom foam inserts to eliminate mechanical impacts and environmental exposure during shipping.
