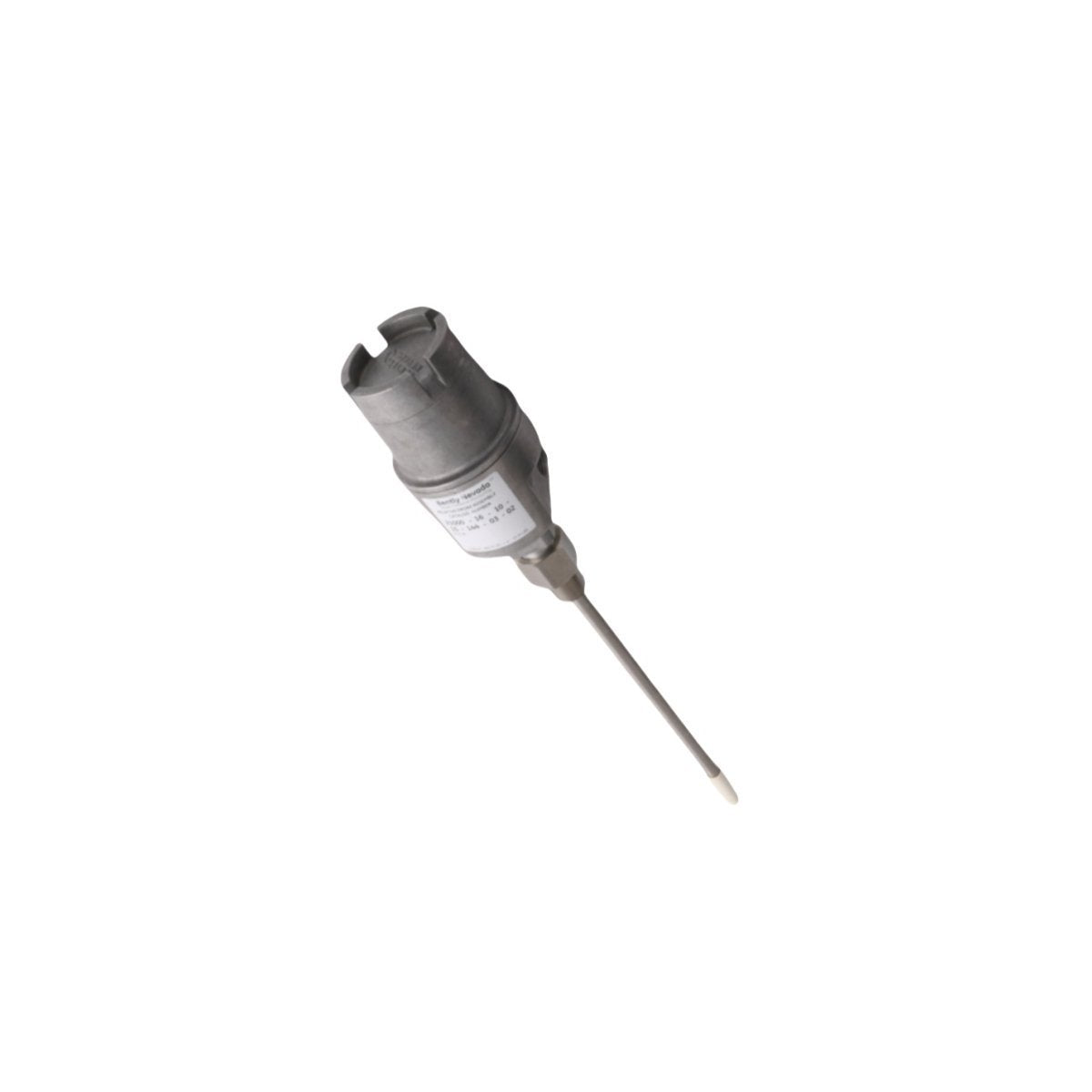

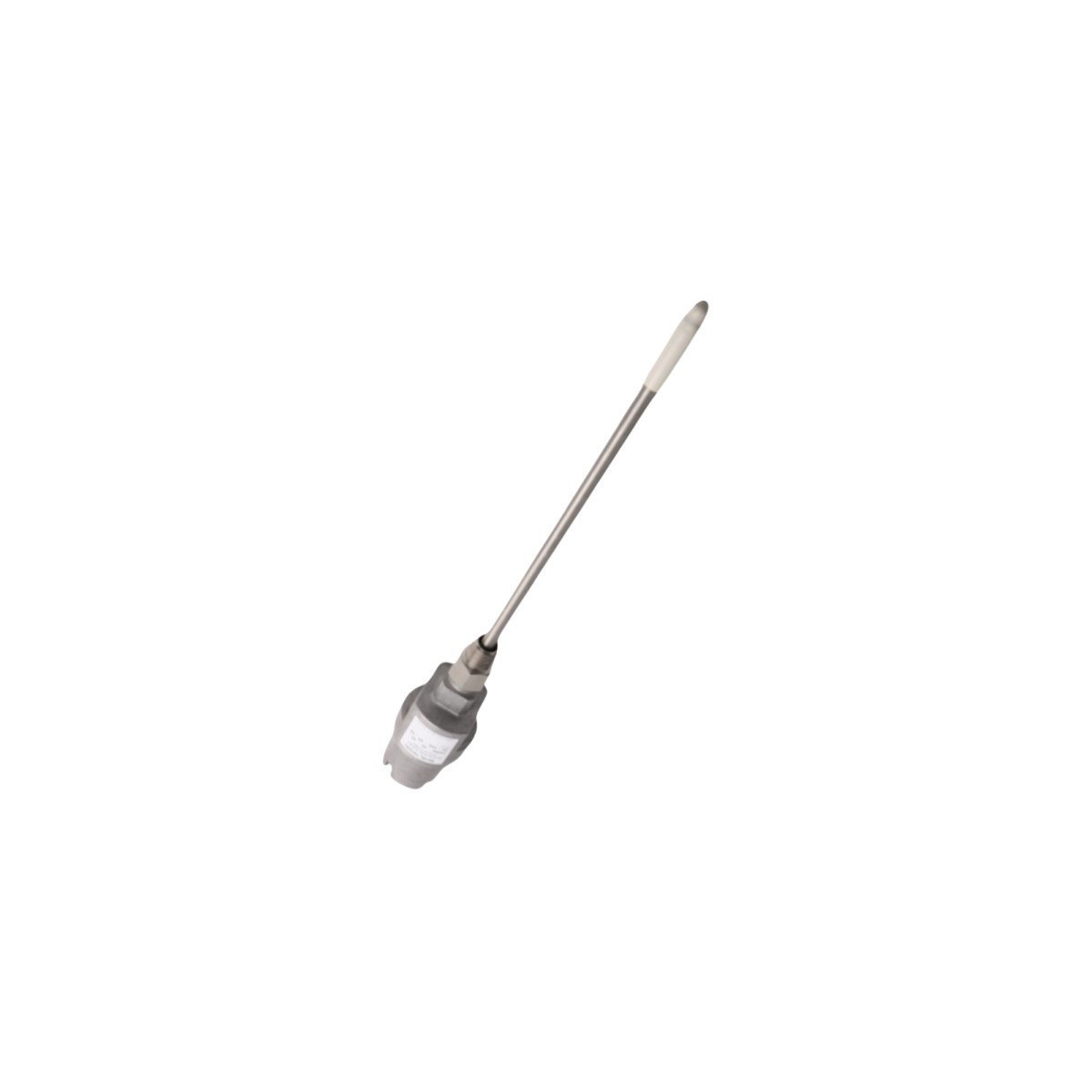

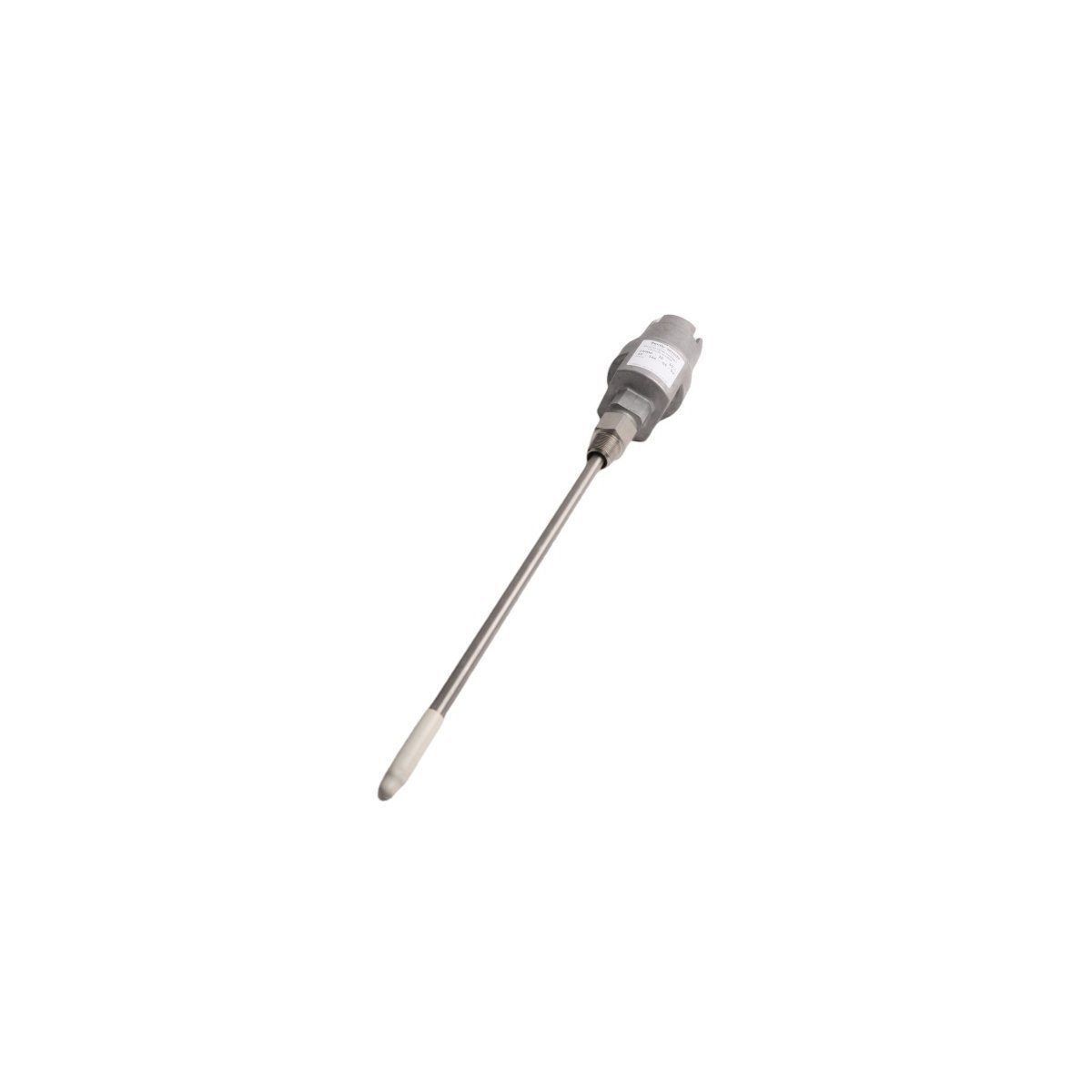

The Bently Nevada 21000-16-05-15-038-04-02 serves as the primary 21000 Proximity Probe Housing utilized to execute physical containment and external linear adjustment of proximity sensors across Proximity Probe Housing Assemblies platforms. This mechanical hardware configuration operates as a sealed process boundary interface, facilitating the manual insertion, positioning, and replacement of proximity transducers without requiring machinery shutdown or fluid loop depressurization.

Hardware Reference Parameters

Eddy-Current Probe Scaling and Rotor Dynamics Integrity

The physical architecture of the Bently Nevada 21000-16-05-15-038-04-02 is engineered to maintain stable eddy-current probe scaling under high-amplitude machine vibrations. By rigidly locking the sensor position relative to the rotating target, the housing isolates the transducer from high-frequency casing resonance that distorts true rotor dynamics displacement data. This spatial stability allows for precise gap voltage validation (-10 VDC targets) during static configuration. Additionally, the continuous metallic sleeve provides built-in electromagnetic shielding, contributing to cross-talk suppression between adjacent sensor lines routed through adjacent structural conduit paths.

Field Installation Guidelines

1. Inspect the machine casing bore threads to verify exact compatibility with the housing mounting suffix (-04 option code) prior to installation.

2. Achieve a minimum structural engagement of 5 full threads into the machine casing wall to guarantee appropriate mechanical pressure boundary containment.

3. Guide the unshielded proximity probe into the internal sleeve assembly, preventing structural abrasion or tension along the extension cable.

4. Manually advance the internal adjustable sleeve while verifying the sensor loop output with a calibrated voltmeter until gap voltage validation (-10 VDC targets) is established.

5. Tighten the primary external hex locknuts against the housing body to lock the probe depth configuration against continuous machinery vibration.

Hardware Operational FAQ

Q: Does the material composition of the housing interfere with the eddy-current probe scaling parameters?

A: No, the structural components at the operational tip are composed of non-magnetic metals, ensuring that the sensor's calibrated voltage-to-distance slope is unaffected by the enclosure.

Q: How is the fluid boundary sustained when adjusting the probe depth while the machine is running?

A: The housing incorporates a high-pressure dynamic packing gland around the internal sleeve, which prevents lubrication oil or process gas leakage during manual adjustments.

Q: Is external grounding wiring required to enable the cross-talk suppression features of this housing?

A: No, cross-talk suppression is achieved via the direct, metal-to-metal thread contact with the machine frame, providing a direct reference ground for the sensor shield loop.
