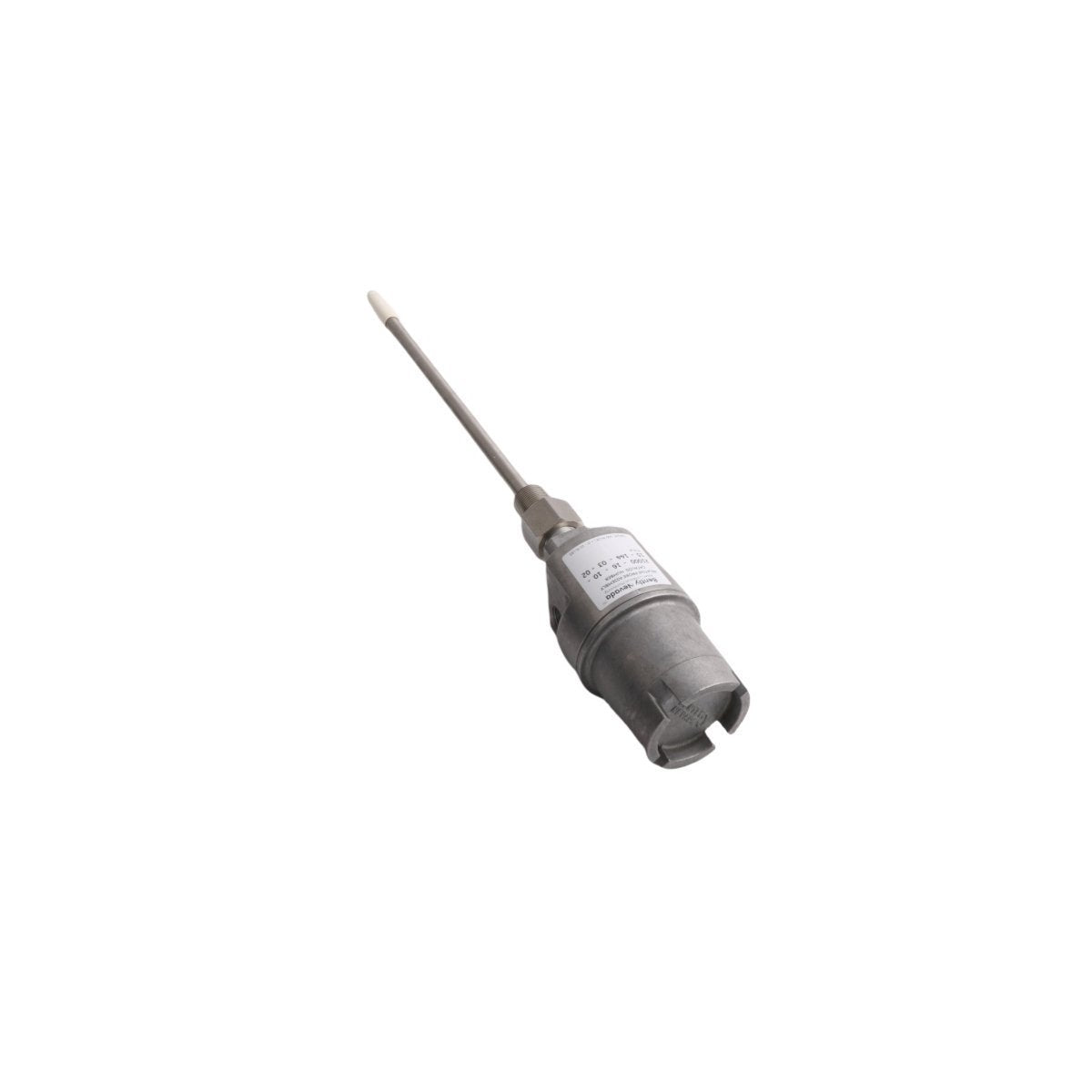

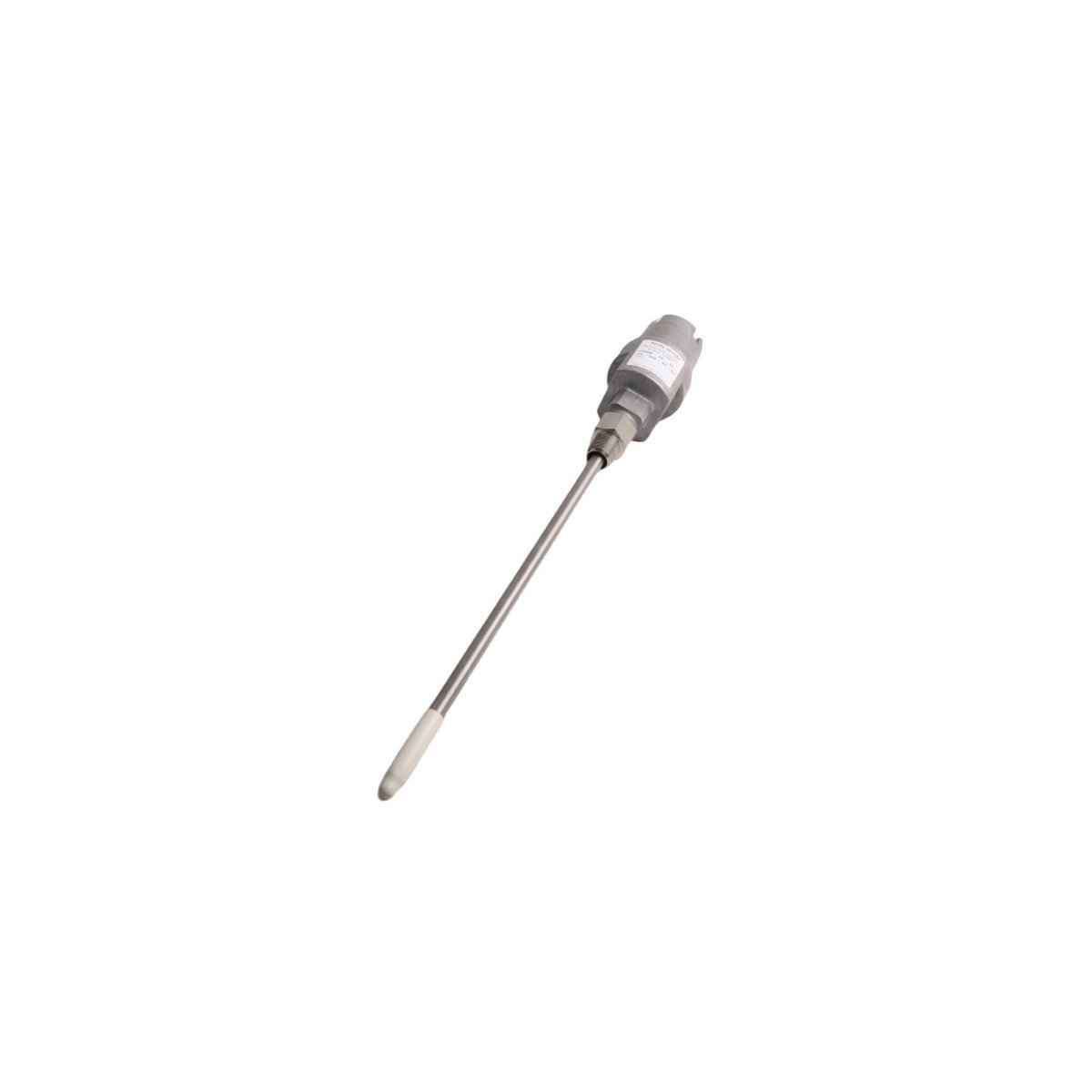

Configured for external mounting and environmental protection of proximity probes within Turbine Supervisory Instrumentation (TSI) systems, the Bently Nevada 21000-16-05-00-103-03-02 (21000 Proximity Probe Housing Assemblies) provides direct physical/electrical execution. The hardware assembly mechanical structure encapsulates the proximity sensor, enabling live mechanical insertion adjustments and transducer protection under direct internal machine casing pressures.

Model Suffix Selection

• 21000: Base Explosion-Proof Proximity Probe Housing Assembly.

• -16: Probe thread configuration option (3/8-24 UNF threads).

• -05: Conduit fitting entry option (Dual 3/4-14 NPT layout).

• -00: Main body material option (Anodized aluminum construction).

• -103: Sleeve insertion depth option (10.3 inches total length).

• -03: O-ring compound classification (Fluorocarbon Viton seals).

• -02: Reverse-mount mechanical hardware installation kit.

Hardware Specifications

Machinery Monitoring and Rotor Dynamics Interface

The mechanical rigidity of the 21000-16-05-00-103-03-02 structure prevents housing deflection, preserving precise eddy-current probe scaling profiles over high-speed target rotor tracks. Keeping external mechanical resonances from feeding back into the 3/8-24 UNF probe barrel isolates true rotor dynamics from casing vibration waveforms. Instrument teams execute gap voltage validation (-10 VDC targets) by loosening the outer locking sleeve and sliding the internal 10.3-inch carrier column assembly. This variable mechanical adjustment maintains cross-talk suppression benchmarks by optimizing spatial distance between nearby proximity sensors inside the bearing house.

Technical Clarifications

Q: What are the specific threshold limits for the internal -03 fluorocarbon seals?

A: The -03 suffix specifies fluorocarbon Viton O-rings capable of maintaining containment up to +150 deg C. This synthetic compound resists chemical breakdown when continuously exposed to hydrocarbon gas mists or synthetic turbine lubricants, preventing oil tracking into external conduit pathways.

Q: Can the internal proximity sensor be extracted or replaced while the machine is at operating velocity?

A: Yes. The dual-stage dynamic Viton seal design maintains a tight compression envelope against the moving sleeve face. Technicians can adjust or change out the internal sensor without tripping the unit or causing oil blow-by.

Q: How is electrical ground loop path creation avoided within this metallic enclosure?

A: The housing relies on non-conductive internal bushings that isolate the 3/8-24 UNF probe barrel from the main aluminum shell. This prevents common-mode casing currents from degrading the low-voltage shield network of the Proximitor loop.

Field Installation Guidelines

Align the main housing flange perpendicular to the target shaft axis within 0.5 degrees to eliminate asymmetric eddy-current scaling errors. Thread the 3/4-14 NPT conduit couplings into the housing interface using at least 5 full threads of engagement to meet certified explosion-proof compliance guidelines. Apply a light film of clean lubricant to the Viton O-rings before sliding the 10.3-inch sleeve column into position to prevent seal scoring. Once gap voltage validation confirms the target -10 VDC baseline setting, torque the external locking collar to prevent sleeve drift under dynamic load conditions.

Ordering Info

• 1 x Bently Nevada 21000 Aluminum Housing Body Unit

• 1 x 10.3-Inch Adjustable Carrier Sleeve (3/8-24 UNF ready)

• 2 x Fluorocarbon Viton Sealing O-Rings

• 1 x Reverse-Mount Industrial Hardware Kit

• 1 x External Threaded Protective Cap

Freight and Assembly Packaging

Delivery time: 2-7 days when payment finish, routed via expedited global transport systems including DHL/FEDEX/UPS. All items are packed inside custom form-fitted anti-static industrial packaging cavities. The internal adjustable sleeves and machined thread boundaries are wrapped inside heavy-duty high-density polyethylene sleeves to eliminate the risk of surface distortions during international freight.
