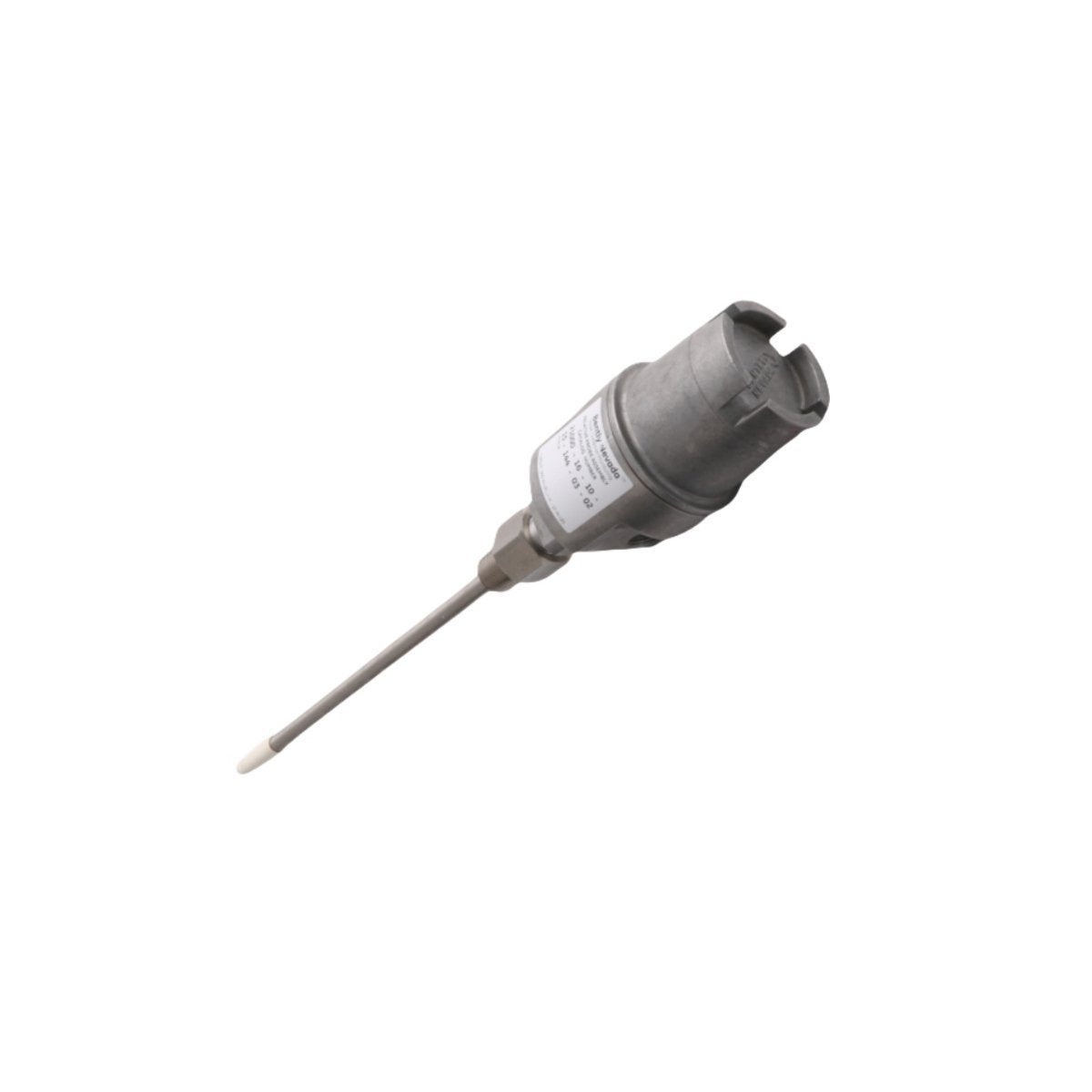

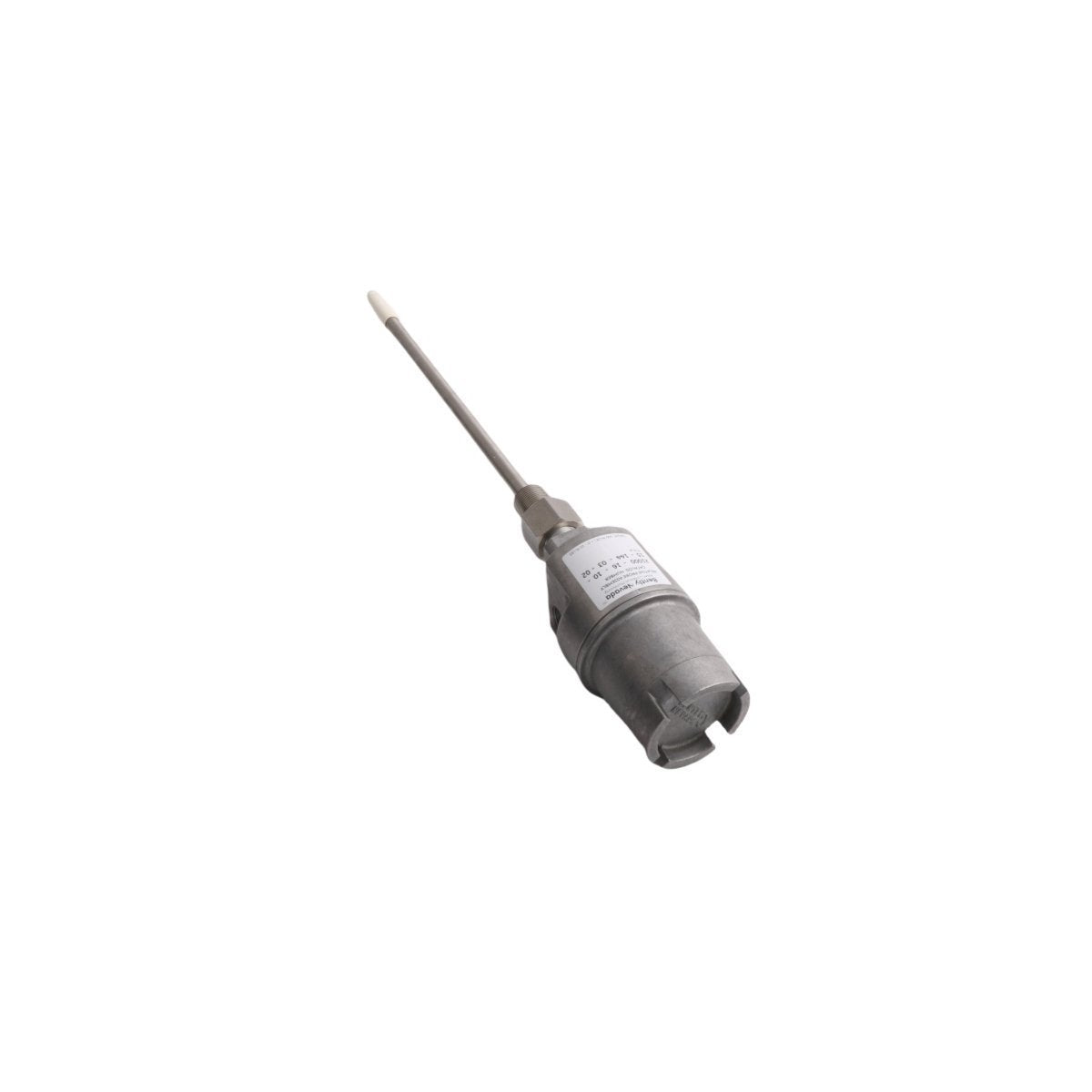

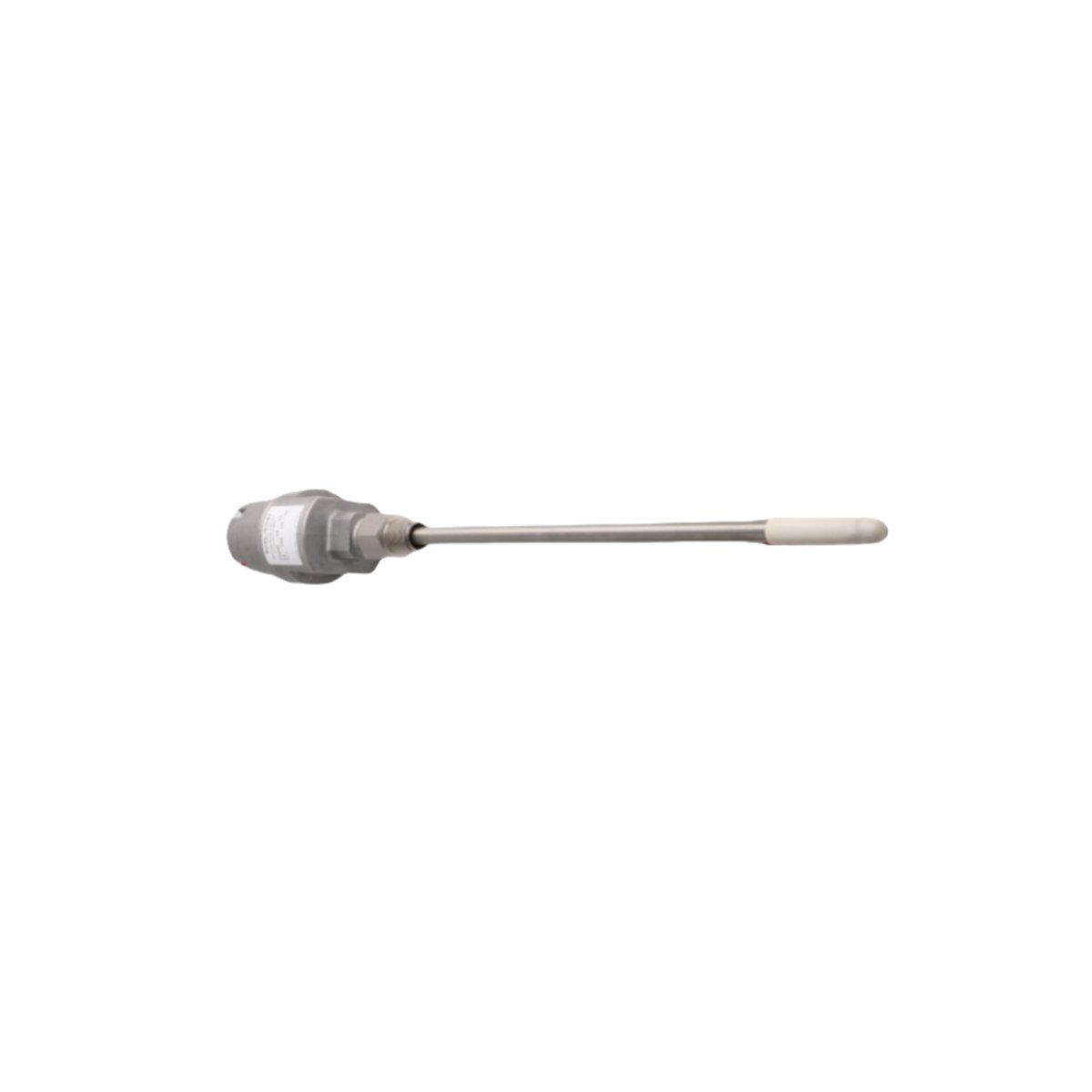

The Bently Nevada 21000-16-05-00-085-03-01, also cataloged as the 21000 Proximity Probe Housing, operates as a dedicated hardware component for physical containment and external depth positioning of proximity sensors within Proximity Probe Housing Assemblies. The hardware functions as an externally adjustable pressure-sealed insertion assembly, allowing calibration, adjustment, and replacement of proximity transducers through the machine casing boundary without requiring system decompression or lubrication loop interruption.

Hardware Specifications

Gap Voltage Validation and Cross-Talk Suppression

The mechanical assembly of the Bently Nevada 21000-16-05-00-085-03-01 is engineered to maintain constant eddy-current probe scaling accuracy under severe mechanical stress profiles. By eliminating high-frequency deflection and resonance relative to the rotating shaft target, the housing ensures that structural vibrations do not introduce measuring anomalies into the monitored rotor dynamics metrics. This structural stiffness facilitates stable, long-term gap voltage validation (-10 VDC targets). Furthermore, the solid conductive metallic shielding path inherent to the assembly structure provides continuous cross-talk suppression between individual probe lines housed within adjacent or parallel cable pathways.

Field Installation Guidelines

1. Verify that the thread profile on the machine casing interface matches the outer casing thread option prior to mechanical mounting.

2. Ensure a minimum engagement of 5 full threads into the machine casing wall to secure the process pressure boundary.

3. Feed the unshielded proximity probe tip and cable through the internal sleeve bore carefully, ensuring no torsion or abrasive contact occurs along the internal walls.

4. Adjust the depth of the internal sleeve until the transducer output matches the designated gap voltage validation (-10 VDC targets) using a standard multimeter.

5. Torquing the primary hex locknuts against the housing body secures the calibrated position against high-frequency structural vibration.

Frequently Asked Questions

Q: Does the physical composition of this housing modify the factory eddy-current probe scaling?

A: No. The housing geometry around the active sensor face is non-magnetic, ensuring that the voltage-to-distance slope of the companion Proximitor sensor is unaffected by the metallic structure.

Q: How does the internal seal design withstand process pressure during online adjustment?

A: The housing relies on a compressed internal packing gland and elastomer O-ring assembly that constricts around the adjustable sleeve, forming a dynamic fluid barrier during positioning maneuvers under load.

Q: Is a dedicated grounding strap required to maintain cross-talk suppression?

A: No. Thread engagement with a properly grounded machine casing provides a direct low-impedance path to earth, ensuring continuous electrostatic shielding for effective cross-talk suppression.
