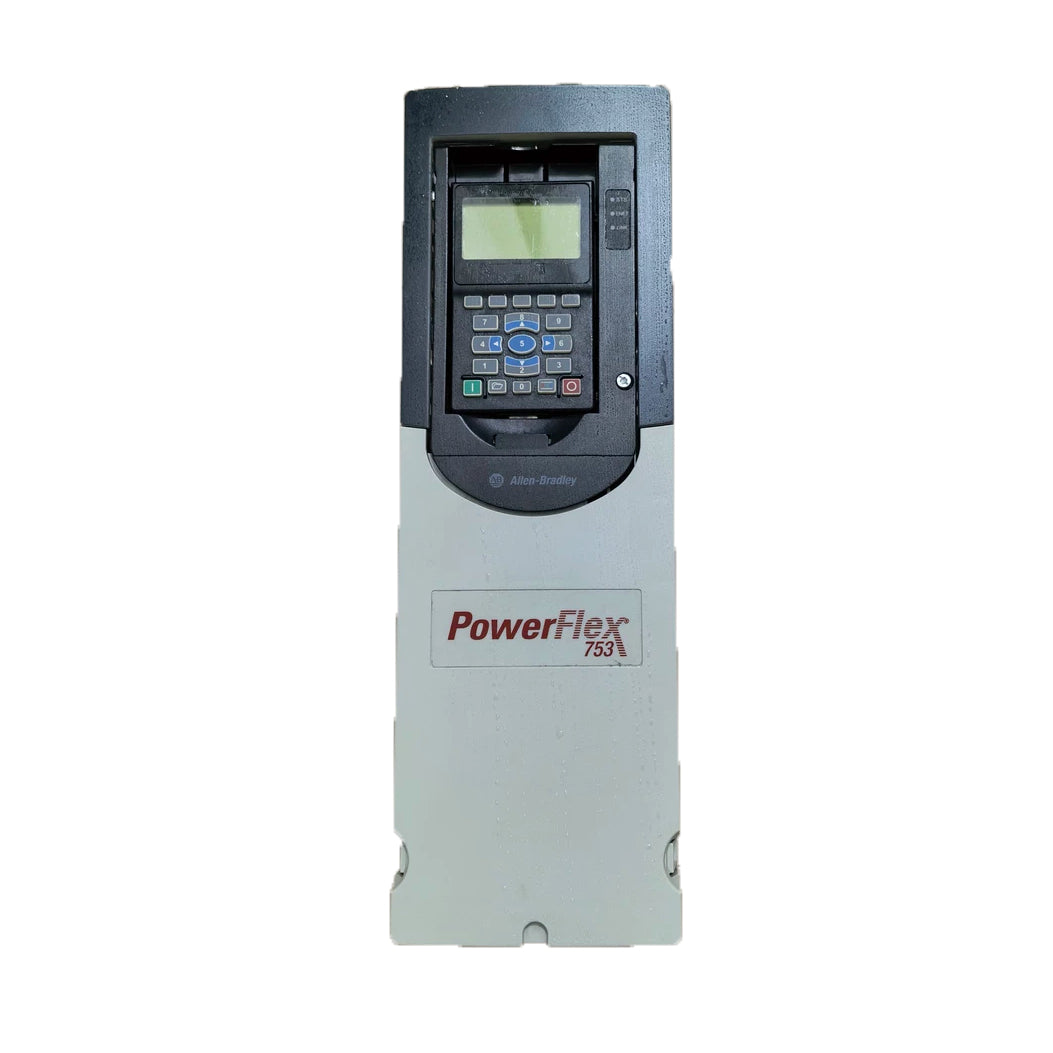

The Allen-Bradley 20G11NC3P5JA0NNNNN, also cataloged as the 20G11NC3P5JA0NNNNN AC Drive, operates as a dedicated hardware component for motor speed regulation and torque control within industrial power conversion platforms.

Model Identification Matrix

The 20G11NC3P5JA0NNNNN configuration designates an air-cooled PowerFlex 753 unit engineered for 400 VAC/540 VDC input operation. The model architecture includes integrated precharge circuitry and internal transistors, housed in an IP20/IP00 open-type chassis. This specific build excludes a Human Interface Module (HIM) and provides filtering for electromagnetic compatibility.

Hardware Specifications

Industrial Drive Control Attributes

The PowerFlex 753 platform utilizes high-speed internal processing to support deterministic EtherNet/IP and common industrial protocol (CIP) networks. The architecture supports firmware flash compatibility, allowing localized updates to control loops and motion profiles. I/O density scaling is achieved through modular option cards, enabling precise synchronization of drive axes within multi-drive automation systems.

Ordering Info

• 1 x 20G11NC3P5JA0NNNNN AC Drive Assembly

• 1 x User Terminal Block set

• 1 x Technical Installation Guide

Field Installation Guidelines

• Thermal Management:

  Ensure the drive is mounted in a vertical orientation within a clean, ventilated enclosure to maintain convective cooling airflow across the heatsink.

• Electrical Isolation:

  Route signal and power cabling through separate metallic conduits to prevent crosstalk and noise injection into sensitive control circuits.

• Grounding Strategy:

  Connect the chassis ground terminal directly to the equipment safety ground bus using a low-impedance conductor to ensure reference potential stability.

• Clearance Requirements:

  Provide a minimum of 15 cm of vertical clearance above and below the unit to allow for sufficient air volume during continuous operation at rated load.

Frequently Asked Questions

• Can the 20G11NC3P5JA0NNNNN be operated without a HIM?

  Yes. The drive can be commissioned and operated via external control signals or network commands, provided the initial parameters are configured through software.

• Is it possible to perform a hot-swap of the drive during operation?

  No. The input power must be completely disconnected and the DC bus must be verified as fully discharged before attempting to remove or install the drive.

• What is the function of the internal precharge circuit?

  The precharge circuit limits the inrush current to the DC bus capacitors during initial power-up, preventing damage to the input rectifier bridge.

• Are internal transistors included in this build?

  Yes. This model is equipped with an internal dynamic braking transistor, which allows for the connection of an external braking resistor.

• How is the firmware updated on this unit?

  Firmware updates are executed via the drive communication port using the manufacturer's dedicated engineering workstation software.

• Does this model support DC input?

  Yes. The drive is rated for 540 VDC input, allowing for operation on a common DC bus configuration as specified in the technical manual.

• What is the purpose of the installed jumper?

  The factory-installed jumper typically links the control board and safety circuitry; verify the schematic before removal to avoid disabling critical hardware functions.

• What protection rating does the IP00 enclosure offer?

  IP00 indicates that the unit provides no protection against solid objects or liquids; it must be installed within an appropriate NEMA/UL-rated secondary enclosure.
