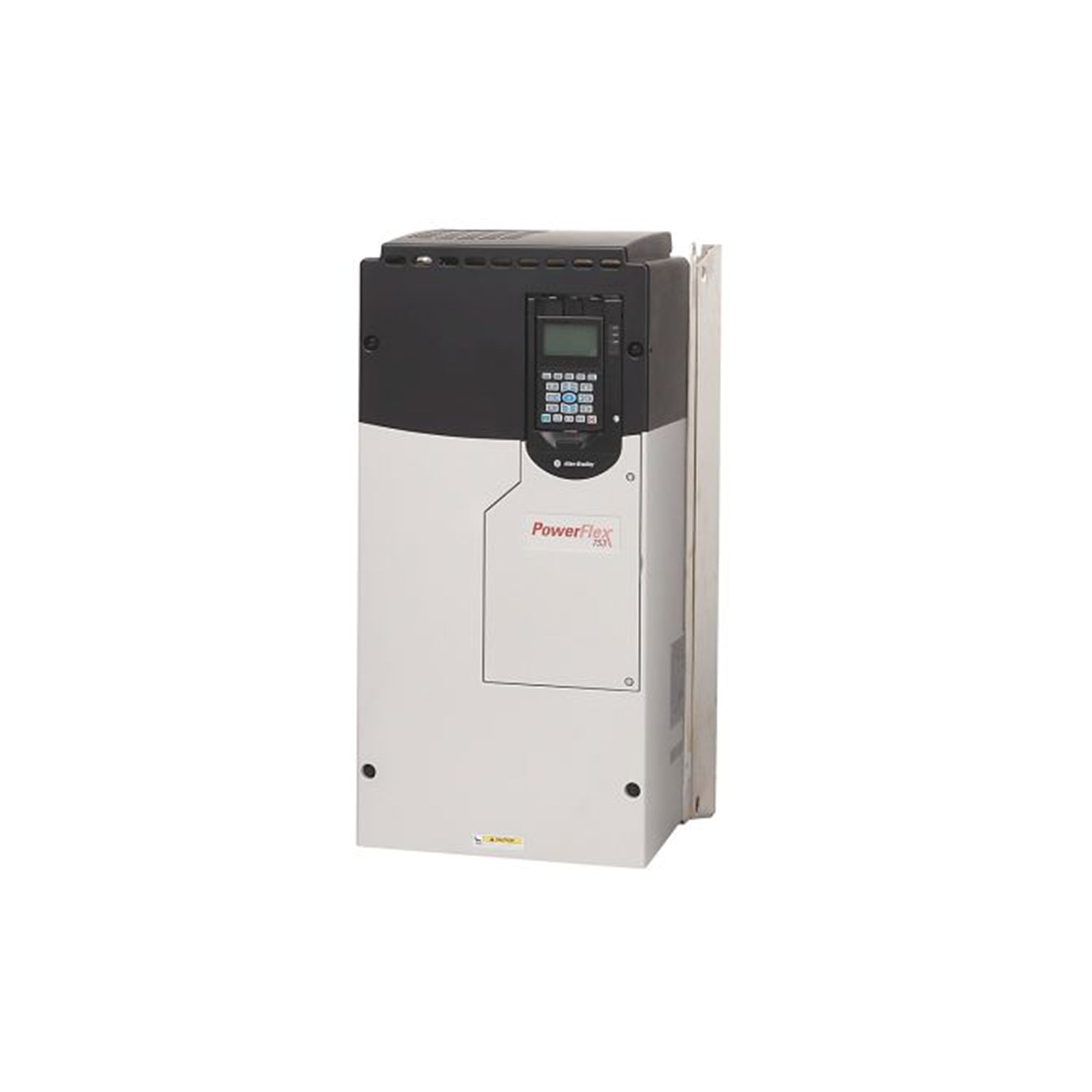

Configured for variable frequency motor control in EtherNet/IP industrial automation networks, the Allen-Bradley 20F1ANC367JN0NNNNN (20F1 AC Drive) provides direct electrical execution. This drive integrates embedded I/O, supports 400 VAC three-phase input, and controls motor acceleration, deceleration, torque, and speed through the PowerFlex 753 platform.

Model Identification

The catalog number 20F1ANC367JN0NNNNN identifies a PowerFlex 753 AC Drive configured with embedded I/O, standard forced-air cooling, 400 VAC input, Frame 7 construction, filtered EMC configuration, AC input with precharge circuitry, and an open enclosure design. The supplied ordering information does not define the individual suffix characters; therefore, no suffix-level decoding is provided.

Technical Specifications

Deterministic Network Integration

The PowerFlex 753 platform supports deterministic industrial communication through embedded network interfaces and optional communication adapters. Firmware compatibility should be verified before replacing an existing drive to maintain communication consistency with PLC controllers and supervisory systems. Embedded I/O reduces additional wiring requirements while supporting distributed automation architectures.

Package Contents

• 1 x Allen-Bradley 20F1ANC367JN0NNNNN PowerFlex 753 AC Drive

• 1 x Factory documentation supplied with the drive (if included by manufacturer)

• Additional communication adapters, HIM devices, encoder modules, braking hardware, cables, and mounting accessories are supplied only when separately ordered.

Installation Recommendations

Mechanical Installation

• Install the drive vertically according to the manufacturer mounting orientation.

• Maintain adequate clearance for forced-air ventilation.

• Prevent obstruction of cooling air intake and exhaust paths.

• Install inside an enclosure suitable for the application environment.

Electrical Wiring

• Verify the incoming supply matches the specified 400 VAC three-phase rating.

• Connect protective earth before energizing the drive.

• Route motor and control cables separately to minimize electrical interference.

• Follow local electrical codes for conductor sizing and protective devices.

• Confirm EMC grounding practices when filtered configurations are installed.

Technical Questions

• Can this drive be replaced directly with another PowerFlex 753 unit?
  Replacement depends on matching voltage class, current rating, firmware revision, option modules, and communication configuration.

• Does this drive support hot swapping while energized?
  Complete drive replacement should be performed only after removing input power and confirming DC bus discharge according to safety procedures.

• Is dynamic braking included?
  No. This configuration is specified without a dynamic braking transistor.

• Does the drive include embedded I/O?
  Yes. Embedded I/O is included as part of this configuration.

• Can optional communication modules be installed later?
  Yes. Supported communication adapters depend on the available option slots and firmware compatibility.

• What enclosure protection is supplied?
  The drive is provided as an open-type configuration intended for installation within a suitable electrical enclosure.

• Should shielded motor cables be used?
  Shielded cables are recommended where EMC performance and conducted noise reduction are required by the installation.

• Is firmware verification recommended before commissioning?
  Yes. Firmware compatibility should be confirmed with the controller program and installed option modules before startup.
