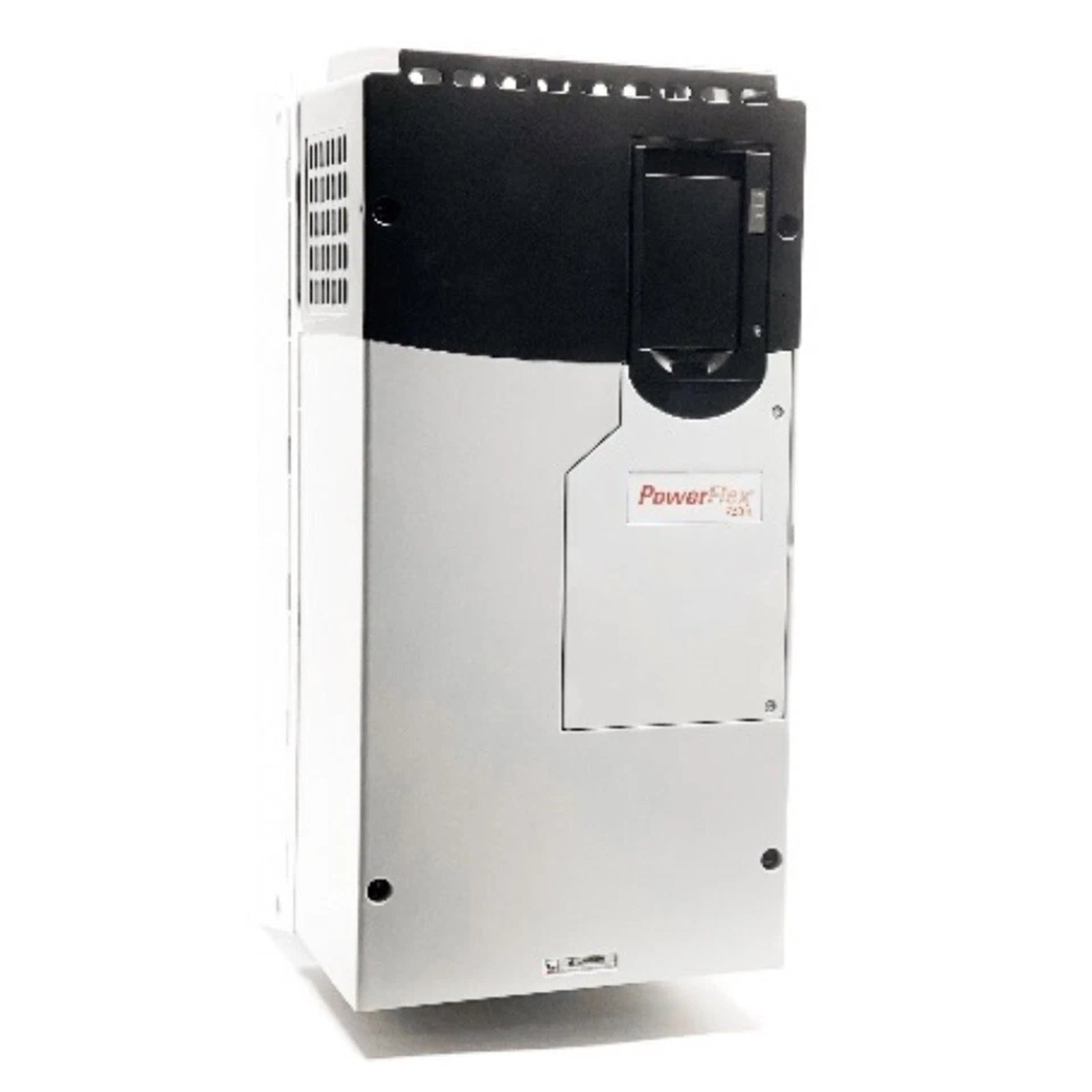

Configured for variable frequency motor speed regulation in EtherNet/IP deterministic networks, the Allen-Bradley 20F1ANC302JN0NNNNN (PowerFlex 753 AC Drive) provides direct physical/electrical execution.

Engineering Parameter Matrix

Deterministic Network Architecture & Platform Integration

This Frame 7 drive architecture executes synchronized operational loops over EtherNet/IP deterministic networks via optional communication adapters. Embedded I/O channels route raw signals directly into the processing core, eliminating external network propagation delays. Firmware flash compatibility enables synchronization with Logix control platforms, maintaining uniform instruction execution across multi-axis topologies while native control algorithms maintain tight loop regulation under variable loads.

Standard Procurement Fulfillment

• 1 Allen-Bradley 20F1ANC302JN0NNNNN AC Drive

• 1 Factory Calibration and Hardware Verification Report

• 1 Frame 7 Mechanical Reference Manual

On-Site Deployment Requirements

• Chassis Orientation Constraints

  Secure the chassis exclusively in a vertical orientation on a rigid, vibration-resistant backpanel to prevent uneven stress on power internal buses.

• Thermal Boundary Compliance

  Maintain an open perimeter of 150 mm on both top and bottom faces of the Frame 7 enclosure to avoid thermal restriction of the forced air fan paths.

• EMI Ground Shielding Termination

  Bond motor cable shields directly to the drive ground bus with a low-impedance connection to prevent high-frequency common-mode noise propagation.

• Terminal Screw Fastening Metrics

  Apply the exact manufacturer-rated nominal torque to all AC power input and output terminal blocks to mitigate localized heat build-up.

Drive Hardware Operations FAQ

• What specific function does the pre-installed CM jumper perform on this unit?

  The CM jumper ties internal EMI filtering capacitors directly to chassis ground to provide common-mode noise suppression on symmetrical electrical systems.

• Can option cards or internal communication modules be hot-swapped during active operations?

  No. Option modules do not support hot-swap maneuvers. Complete isolation of input lines and total bus voltage discharge are required before card extraction.

• How does the control firmware handle main logic updates and flash cycles?

  Firmware flash compatibility allows updates via specialized software tools, requiring the drive control loop to be inhibited during the rewrite process.

• What is the electrical consequence of the "no DC Terminals" physical configuration?

  This configuration prevents direct connection to a shared DC bus network, restricting the unit to localized AC power distribution configurations.

• Does this specific version support dynamic braking resistors directly?

  No. This drive configuration does not incorporate an internal dynamic braking chopper circuit; external braking modules must be introduced.

• What mechanism provides cooling for the power semiconductor modules?

  The unit utilizes an internal forced air fan assembly that routes ambient air through the main rear-mounted aluminum heat sink fins.

• Is an external precharge bypass contactor required for line start?

  No. The drive contains internal precharge circuitry linked with the AC input terminals to control current spikes when line power is applied.

• What indicates that the DC bus capacitors are safe for terminal interaction?

  An onboard LED indicator must extinguish completely, and physical verification with a multimeter must register 0 VDC across internal test points.
