Product Overview

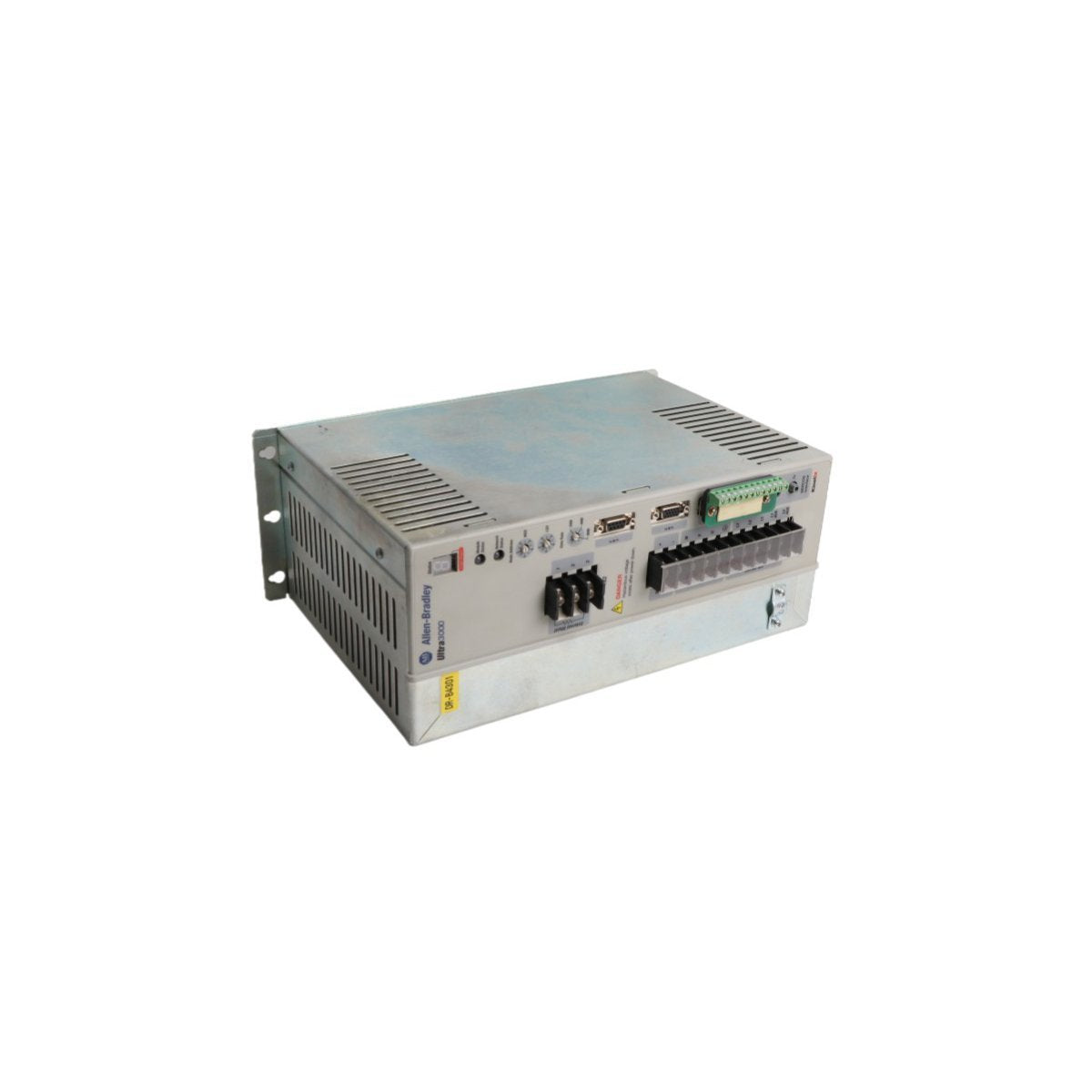

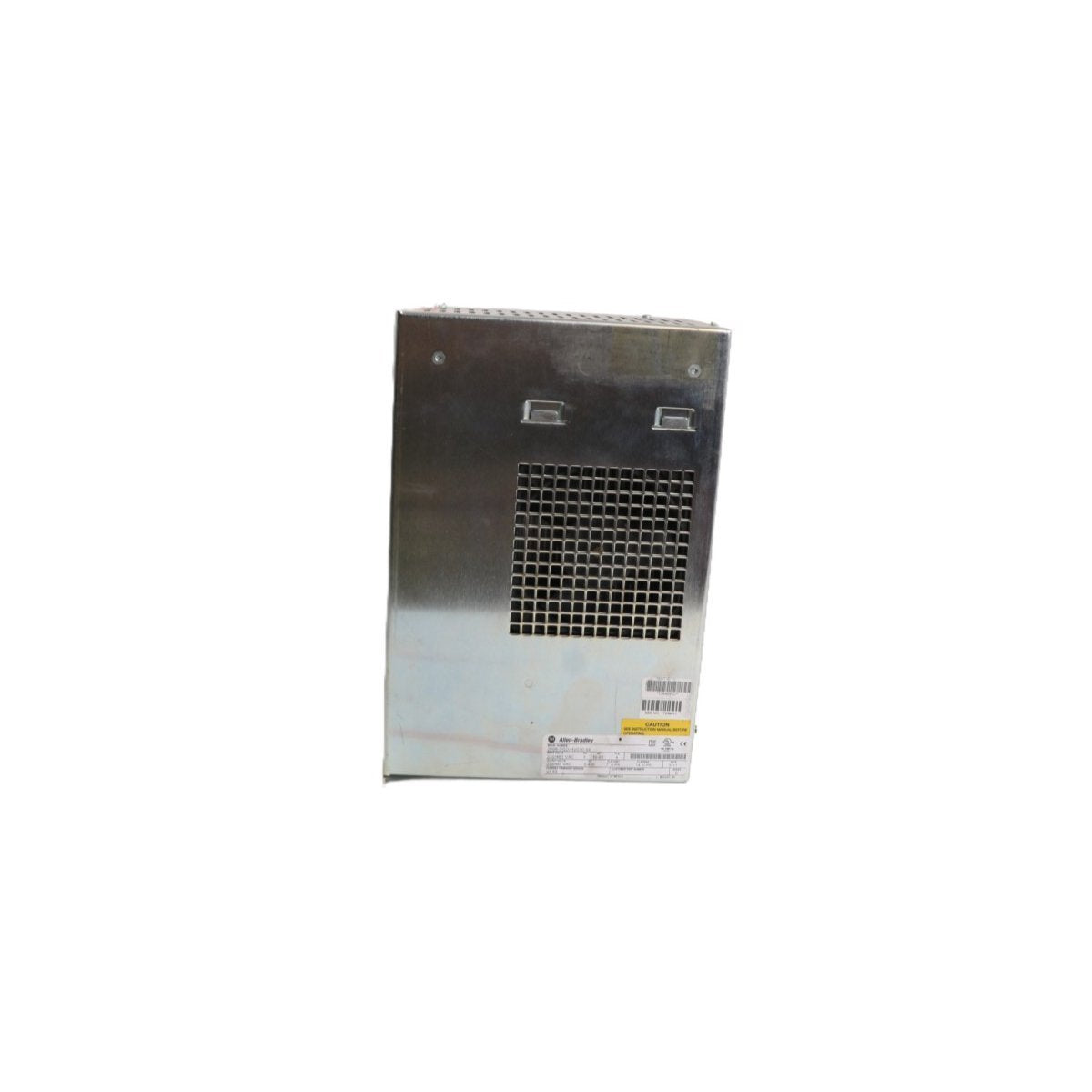

The Allen-Bradley 2098-DSD-020-SE is a high-performance digital servo drive belonging to the Ultra3000™ series. Engineered for precision and versatility, this specific model features an integrated SERCOS (Serial Real-time Communication System) interface, allowing it to function as a core component within the Kinetix® integrated motion architecture. It translates high-level controller commands into precise motor movements via a fiber-optic ring, ensuring deterministic synchronization across multi-axis systems.

Designed for demanding industrial environments, the 2098-DSD-020-SE handles complex motion profiles including indexing and synchronized electronic gearing. Its digital architecture eliminates the drift and noise common in analog systems, providing a reliable power stage for 230V class brushless servo motors.

Technical Characteristics

• Communication Interface: Integrated SERCOS fiber-optic interface for high-speed digital motion control.

• Input Voltage: 115V to 230V AC (Single-Phase or Three-Phase capability).

• Power Output: Rated for a continuous output current of 10 Amps (RMS) and an intermittent peak current of 30 Amps (0-peak).

• Frequency Range: 47 to 63 Hz input frequency support.

• Feedback Support: Universal feedback connector (CN2) compatible with high-resolution incremental encoders.

• Connectivity Ports: Features CN1 (I/O connector), CN2 (Feedback), and CN3 (Serial RS-232/RS-485 for drive commissioning).

• Diagnostics: On-board 7-segment status display for real-time fault tracking and communication status.

• Enclosure Rating: Open-type construction intended for cabinet installation.

• Operating Temperature: 0°C to 55°C (32°F to 131°F).

• Dimensions: 3.5 x 13 x 14.5 cm (compact frame size for high power density).

• Weight: 0.9 kg.

Motion Control and System Reliability

The 2098-DSD-020-SE is optimized for seamless integration with ControlLogix™ and GuardLogix™ processors through SERCOS interface modules (such as the 1756-M16SE). By utilizing a digital fiber-optic link, the drive provides inherent electrical isolation between the logic and power sections, significantly reducing electromagnetic interference (EMI) in machine-level networks.

Internal safety and monitoring features include overvoltage protection, short-circuit detection, and thermal monitoring. The drive’s "Self-Tune" capabilities allow for rapid commissioning by automatically identifying motor inertia and optimizing PID loop gains. This unit is frequently deployed in high-speed packaging, automated assembly, and precision CNC applications where high torque density and millisecond-level response times are critical. Although the Ultra3000 series was officially moved to a discontinued status in 2016, it remains an essential legacy component for maintaining the operational integrity of existing Kinetix-based production lines.
