Product Overview

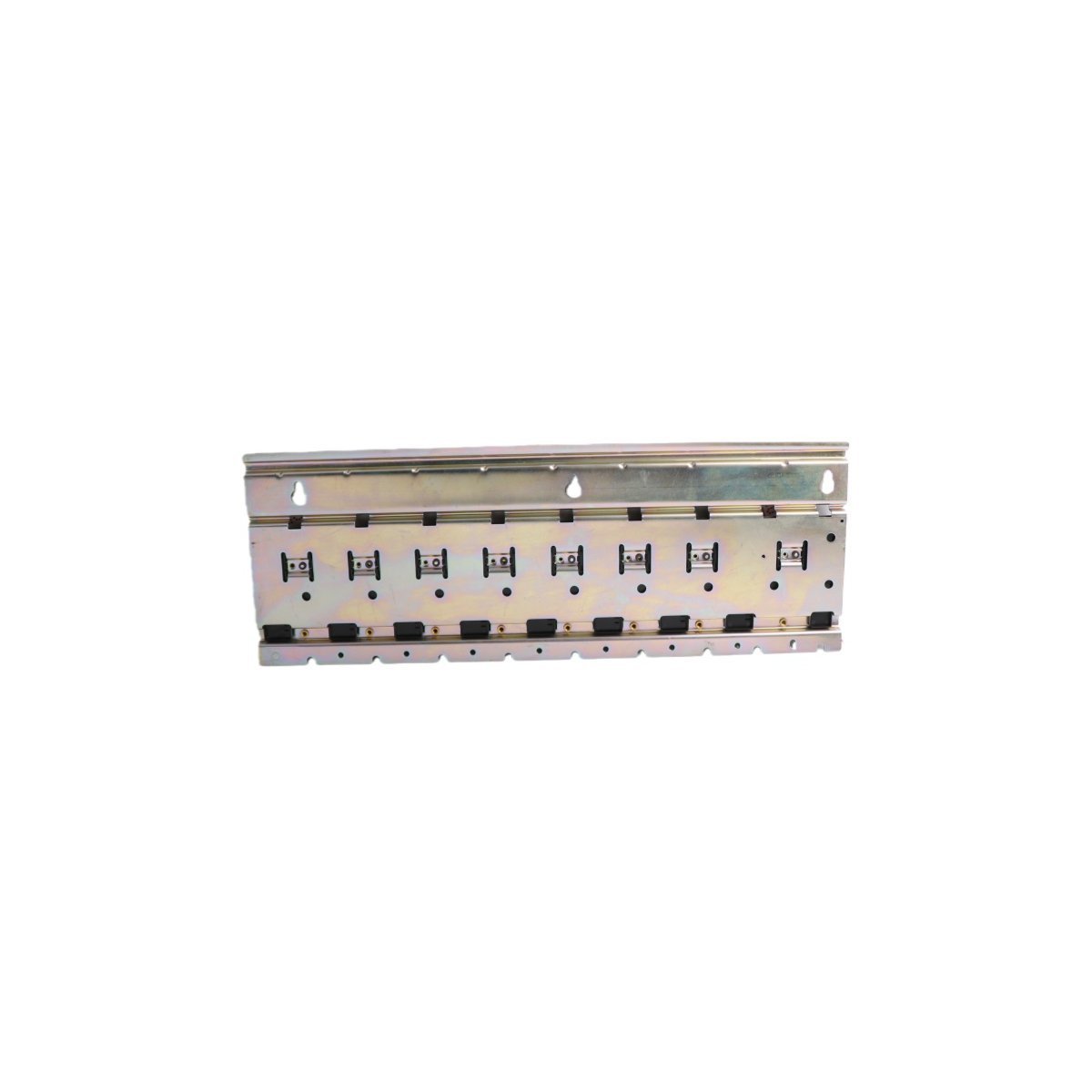

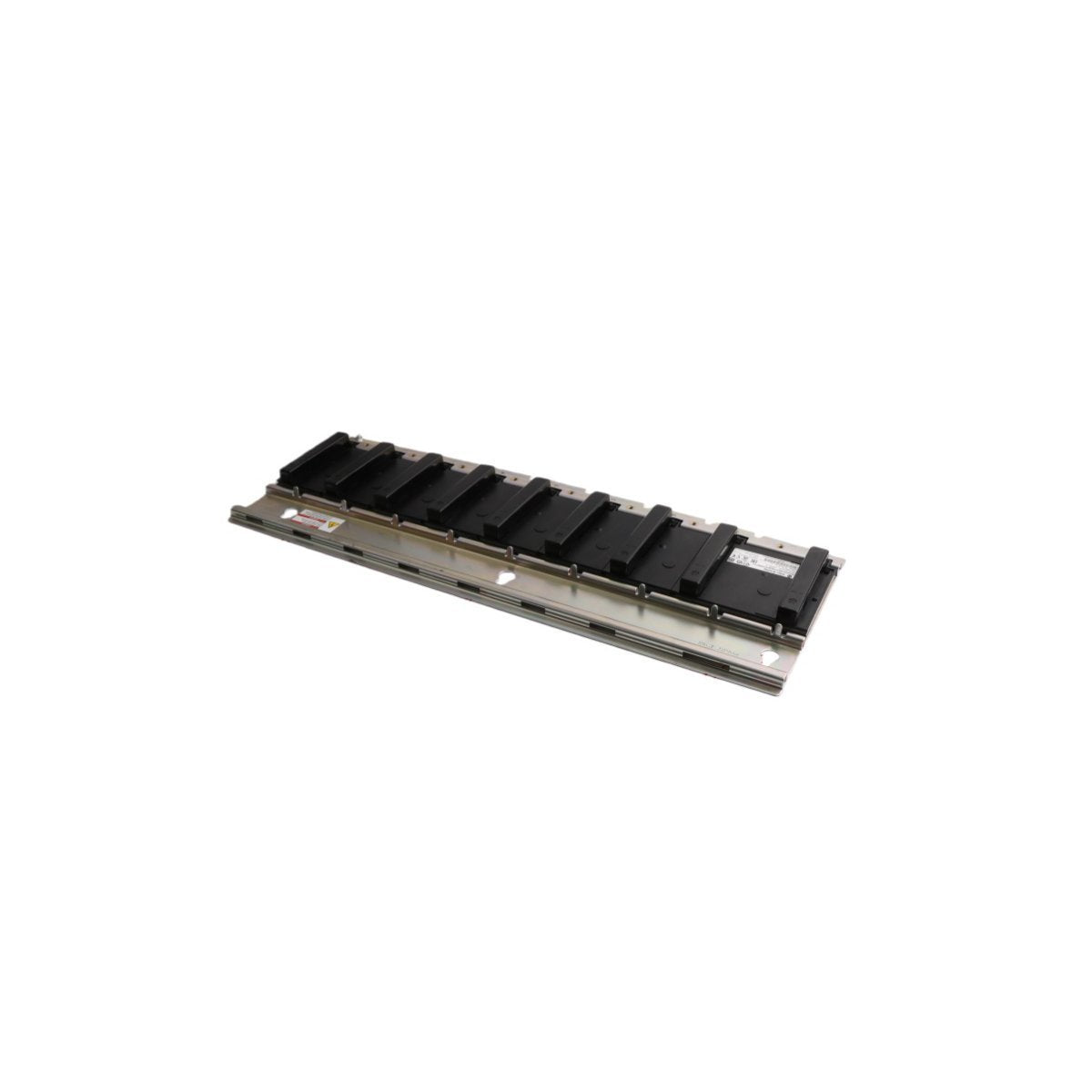

The Allen-Bradley 2094-PRS4 is a high-efficiency slim power rail designed specifically for the Kinetix® 6000 multi-axis servo drive system. This rail acts as the mechanical and electrical foundation for the drive cluster, providing a common backplane for DC bus power distribution, control power, and communication signals. By utilizing the 2094-PRS4, engineers can consolidate multiple drive components into a single, cohesive unit, significantly reducing the wiring footprint and complexity within the control cabinet.

The unit is engineered to support a flexible arrangement of modules, including Integrated Axis Modules (IAM), Axis Modules (AM), and auxiliary components such as shunt modules or slot fillers. Its "slim" design is optimized for space-sensitive applications, allowing for high power density without occupying excessive panel real estate.

Technical Configuration and Integration

The 2094-PRS4 is designed to streamline the assembly of multi-axis motion control systems through its standardized slot architecture.

• Slot Capacity: Features four available slots. Typically, this configuration accommodates one Integrated Axis Module (IAM) which occupies two slots, and two additional Axis Modules (AM), or various combinations of inverter and shunt modules.

• Voltage Compatibility: Fully compatible with both 230V and 460V AC drive systems, providing a universal platform for global industrial power standards.

• Simplified Installation: Modules are secured via a single mounting screw and the pins on the power rail, eliminating the need for complex wire harnesses between drive units.

• Thermal and Grounding Efficiency: Designed for horizontal mounting using M6 bolts, the rail provides a low-impedance ground path and optimized thermal dissipation for the attached drive power stages.

• System Scalability: The modular nature of the rail allows for rapid system expansion or maintenance; modules can be added or replaced by simply sliding them onto the rail interface.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 2094-PRS4

• Product Family: Kinetix 6000 Servo Drives

• Module Type: Slim Power Rail

• Number of Slots: 4 Slots

• Supported Drive Voltage: 230V AC / 460V AC

• Mounting Hardware: M6 (1/4 in.) Bolts

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Relative Humidity: 5% to 95% (Non-condensing)

• Weight: 0.9 kg (1.98 lbs)

• Dimensions: 14.5 x 13.0 x 3.5 cm

Industrial Motion Applications

The Kinetix 6000 power rail system is a critical component in high-performance automation sectors:

• Packaging Machinery: Synchronizing multi-axis pick-and-place robots and high-speed wrapping lines.

• Material Handling: Coordinating precise motion for automated sorting and conveyor systems.

• Converting and Printing: Managing tension control and axis synchronization in web-based processing.

• Automotive Assembly: Providing a robust power base for robotic arm controllers and specialized assembly tooling.
