Product Overview

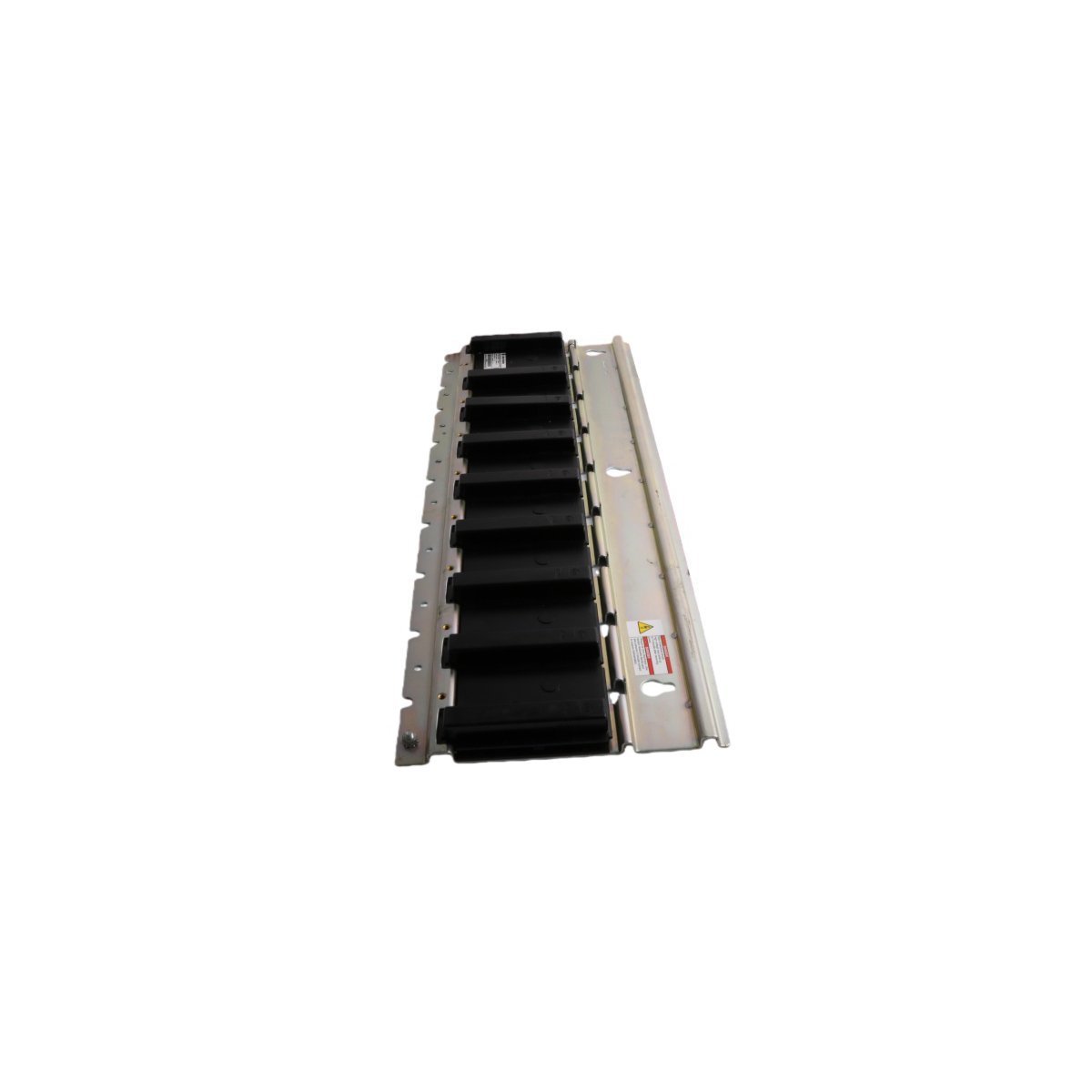

The Allen-Bradley 2094-PRS3 is a precision-engineered 3-axis slim power rail designed for the Kinetix® 6000 multi-axis servo drive platform. This hardware serves as the high-performance structural and electrical backbone for motion control systems, facilitating the mounting and interconnection of drive modules. By consolidating the DC bus and control power distribution into a single rail, the 2094-PRS3 eliminates the need for complex bulk wiring between drives, significantly reducing assembly time and potential points of failure.

This power rail is specifically built for space-optimized control cabinets. Its "slim" profile allows for a high density of motion axes in a compact footprint. The architecture supports a variety of voltage classes, making it a flexible foundation for both 200V and 400V drive systems. Whether integrating Kinetix 6200 or 6500 modules, the 2094-PRS3 provides a stable, low-impedance electrical path that is critical for high-dynamic motor responses and regenerative energy management.

System Configuration and Integration

The 2094-PRS3 features a specialized slot configuration designed for modular scalability. It consists of one dedicated slot for an Integrated Axis Module (IAM)—which acts as the system converter—and two subsequent slots for Axis Modules (AM) or specialized shunt modules. This 3-axis capacity allows for the creation of small, efficient drive groups or the expansion of larger distributed motion systems.

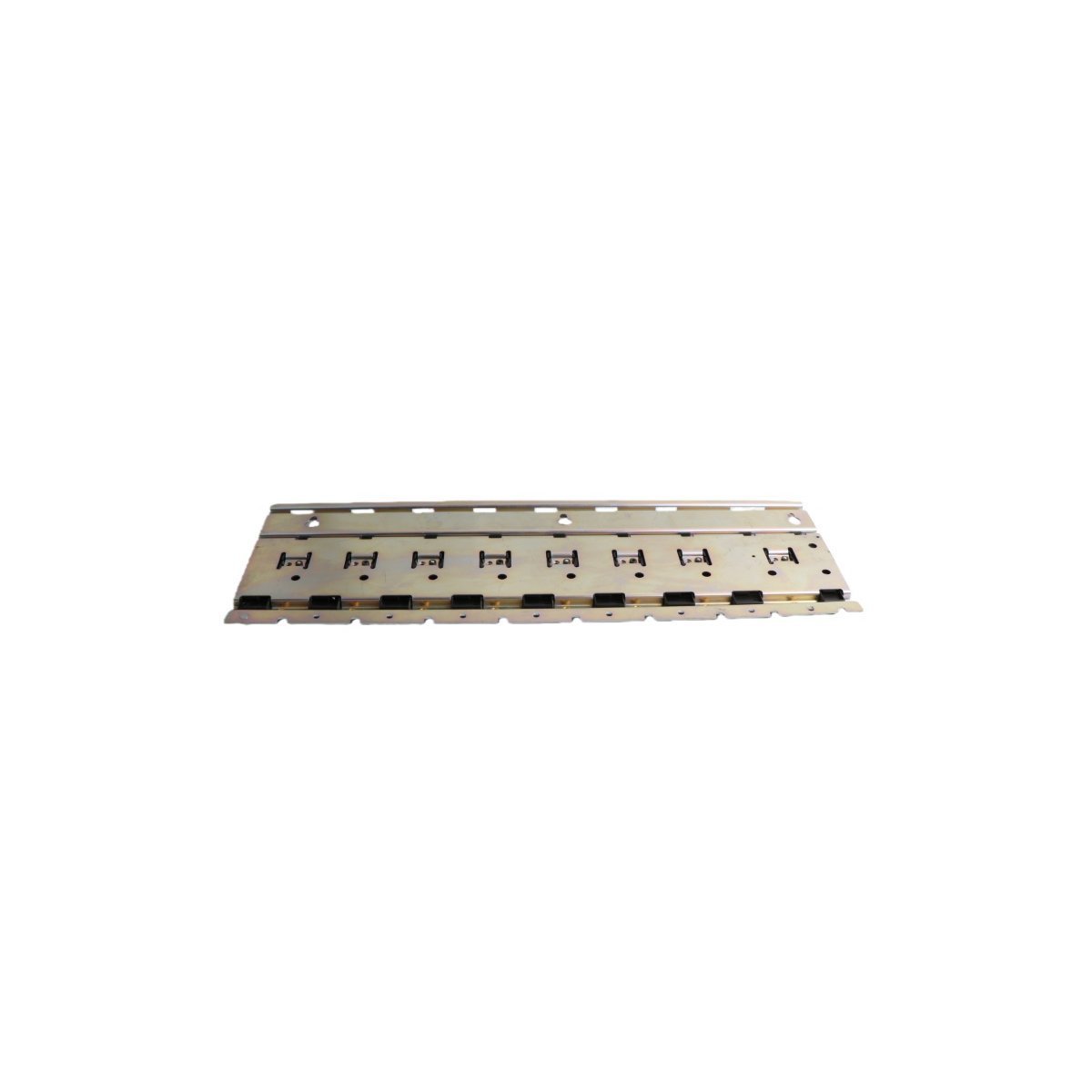

Installation is facilitated by a robust mounting design that ensures consistent alignment between the rail connectors and the drive modules. To maintain electromagnetic compatibility (EMC) and system safety, the unit includes a heavy-duty braided grounding strap. Additionally, the rail is shipped with protective connector covers to prevent debris ingress during the cabinet build process, ensuring that the sensitive gold-plated power and signal pins remain pristine until the modules are seated.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 2094-PRS3

• Module Type: Multi-axis Power Rail

• Series: Kinetix 6000 / 6200 / 6500

• Number of Slots: 3 (1 IAM Converter slot, 2 Inverter/Axis slots)

• Voltage Class: Compatible with 200V and 400V systems

• Mounting Type: Subpanel mount (Slim profile)

• Weight: 0.9 kg (approx. 2.0 lbs)

• Dimensions: 3.5 x 13.0 x 14.5 cm

• Grounding: Includes integrated braided grounding strap

• Protection: Includes pins/connector protection covers

Key Engineering Advantages

• Compact Footprint: The slim design maximizes panel density, allowing more axes to be installed in a smaller enclosure.

• Reduced Wiring: Integrated DC bus and control power rails eliminate the requirement for manual daisy-chaining of power cables.

• Modular Flexibility: Supports a mix of axis modules and shunt modules, allowing the system to be tailored to specific torque and energy requirements.

• Reliable Connectivity: High-quality backplane connectors provide a vibration-resistant interface for power and feedback signals.
